User Manual for FLIR PVS-14-51 3AG Multi-Purpose Night Vision Monocular and Head Mount Kit Click to enlarge the picture
Contents of the user manual for the FLIR PVS-14-51 3AG Multi-Purpose Night Vision
- Product category: NV Monoculars & Multi-Systems FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR NV Monoculars & Multi-Systems
 |
User manual for the FLIR PVS-14-51 3AG Multi-Purpose Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

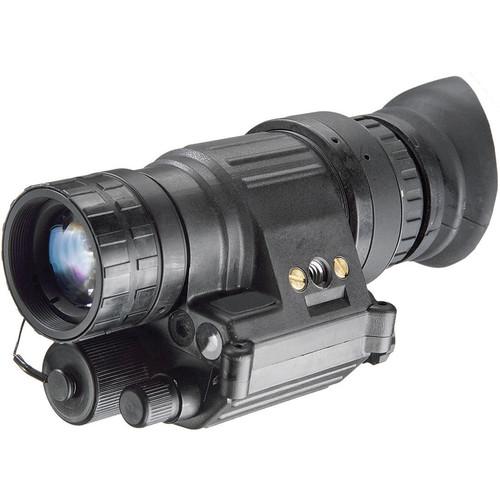

Product description Be confident in the night using the battle-ready ARMASIGHT by FLIR's PVS-14-51 3AG Multi-Purpose Night Vision Monocular and Head Mount Kit. This no-nonsense kit includes an adjustable head mount, an adapter, and a new iteration of the legendary PVS-14 night vision monocular that offers a wider 51° angle of view than its peers and can withstand the harsh environment of the battlefield, including extreme temperatures and temporary water submersions. Furthermore, this compact device affords you the flexibility of using it as a monocular, a firearm- or headgear-mounted device (using the included harness and an adapter), or as a binocular when coupled to a similar device via optional adapters. At the core of this night vision device is a 3rd-generation image-intensifier tube (IIT) that converts infrared images into visible ones. Its high-performance thin film microchannel plate offers a higher tube life, and its auto-gated power supply allows operation under bright light conditions. The IIT is also enhanced with a bright light cutoff function for preserving the tube from accidental burnout by strong flashes and a manual gain for controlling image brightness and contrast. To improve close-range visibility and allow reading maps in total darkness, the device has a built-in illuminator.
The lightweight yet durable composite polymer body enables you to venture almost anywhere. It offers heavily knurled rings and adjusters for a sure grip and a wide winged rubber eyecup to ensure a comfortable contact and to prevent leakage of light. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Capability
-
- 3rd-generation intensifier tube
- High-performance thin film microchannel plate has higher tube life
- Auto-gated power supply allows operation under bright light conditions
- Bright-light cutoff
- Manual brightness control
- Built-in IR illuminator
- Use and Handling
-
- 1x magnification
- Compatible with optional lenses
- 51° wide angle of view
- f/1.26, 19mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +4 to -6 diopter correction
- Built-in IR and low-battery indicators

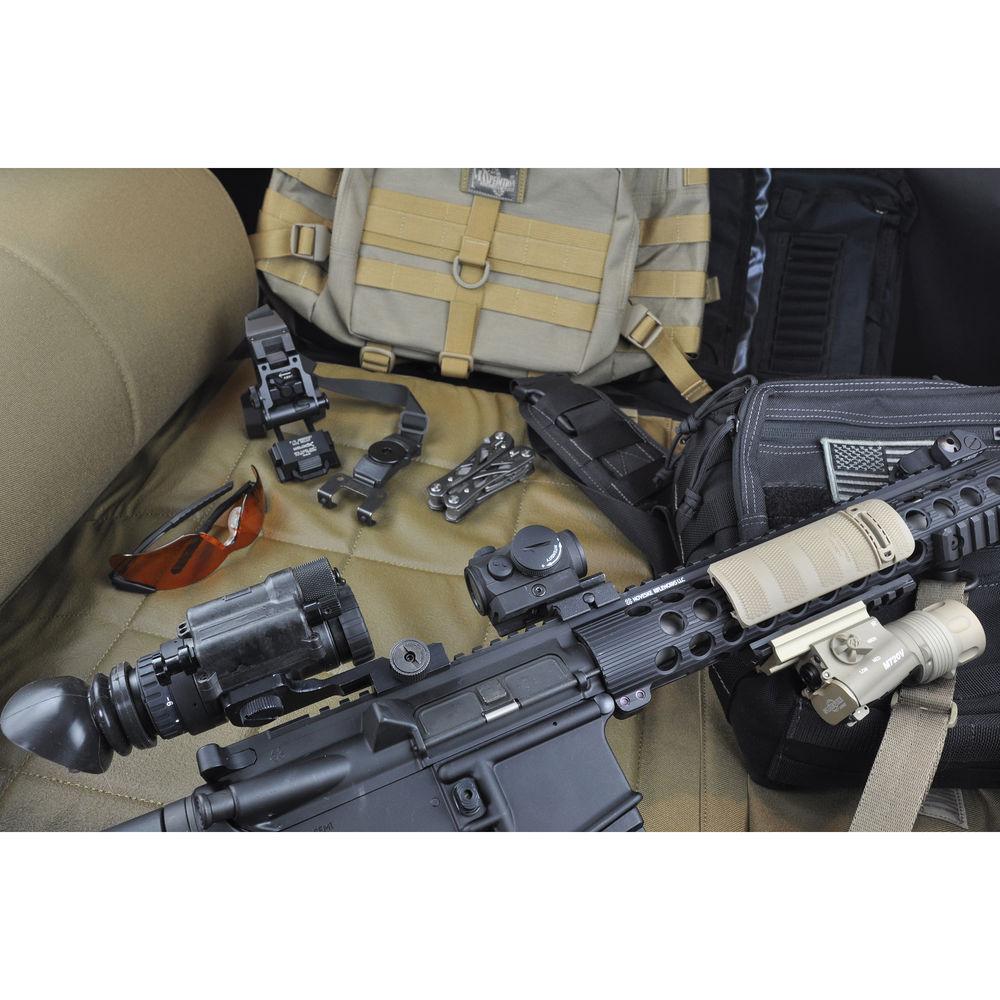

- Can be used as a handheld device or mounted on a firearm or headgear
- Construction Details
-
- Composite polymer housing
- Durable and lightweight
- Compact and ergonomic design
- Mounting point for headgear or a firearm
- Knurled adjusters and rings give a non-slip grip
- Wide winged rubber eyecup
- Waterproof

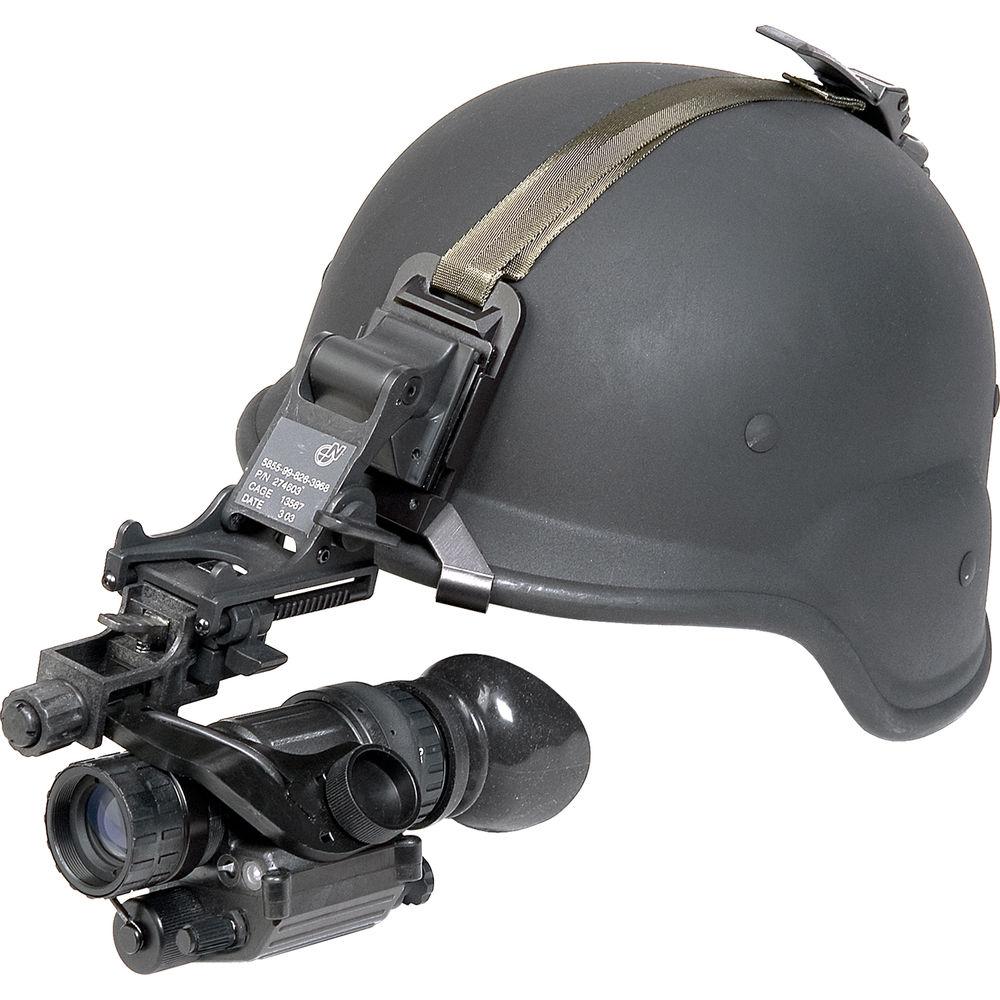

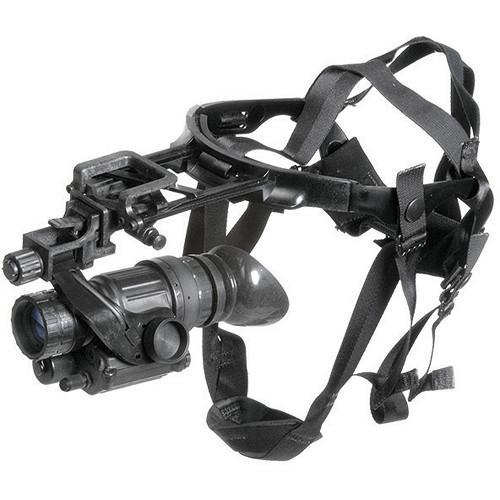

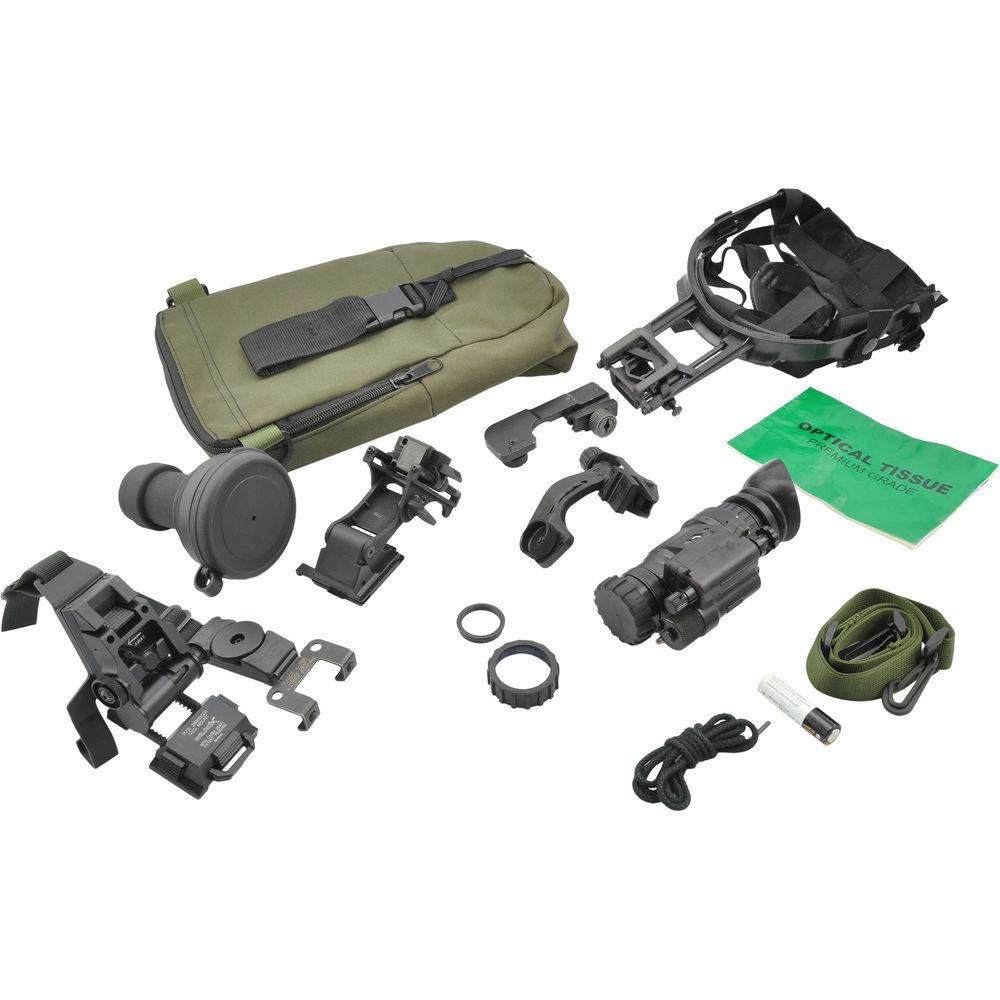

UPC: 849815009873 In the Box FLIR PVS-14-51 3AG Multi-Purpose Night Vision Monocular and Head Mount Kit (Matte Black) - Head Mount Assembly
- Head Mount Adapter
- AA Battery
- Soft Carry Case
- Daylight Filter
- Sacrificial Window
- 2 x Demist Shields
- Shoulder Strap
- Tethering Cord
- Set of Brow Pads
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR PVS-14-51 3AG Multi-Purpose Night Vision Monocular and Head Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR PVS-14-51 Specs | Intensifier Tube | 3rd generation
Thin film auto-gated | | Photocathode Type | GaAs photocathode | | Magnification | 1x | | Angle/Field of View | 51° | | Lens System | f/1.26, 19mm | | Minimum Focus Distance | 9.8" / 0.25 m | | Dioptric Correction | +4 to -6 | | Infrared Illuminator | Yes | | Battery | 1 x AA battery | | Runtime | 50 hours | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.5 x 2.2 x 2.0" / 11.4 x 5.7 x 5.1 cm | | Weight | 11.3 oz / 320.0 g |
