User Manual for FLIR PVS-14-51 HD 2nd-Generation Night Vision Monocular and Head Mount Kit Click to enlarge the picture
Contents of the user manual for the FLIR PVS-14-51 HD 2nd-Generation Night Vision
- Product category: NV Monoculars & Multi-Systems FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR NV Monoculars & Multi-Systems
 |
User manual for the FLIR PVS-14-51 HD 2nd-Generation Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

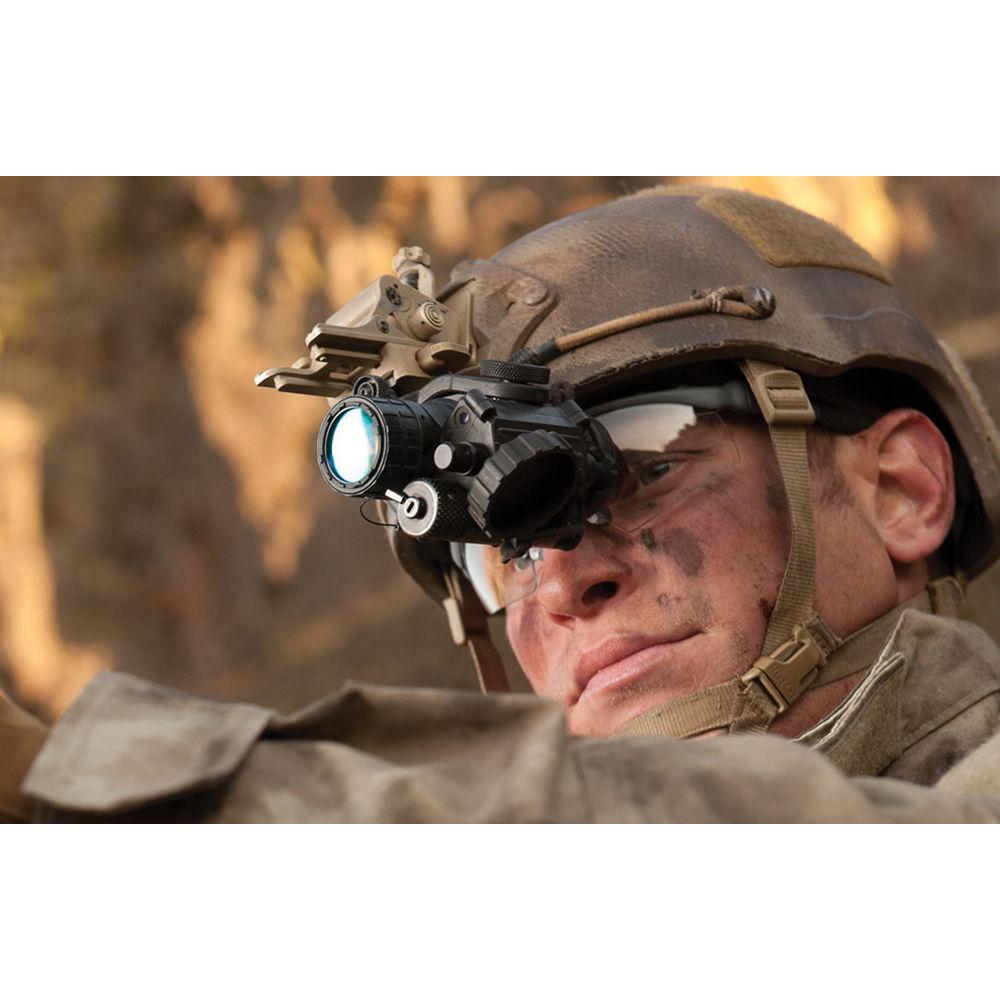

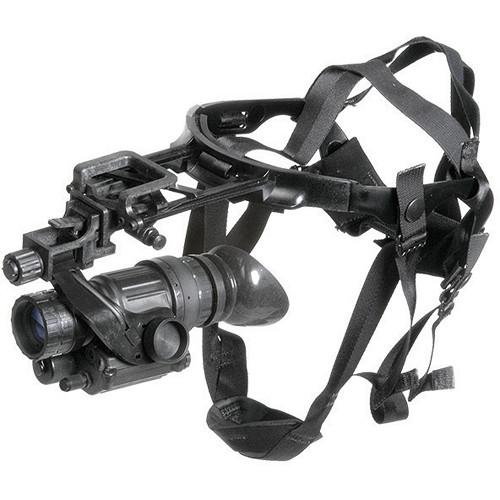

Product description Enhanced with an extra-wide 51° angle of view, this PVS-14-51 HD 2nd-Generation Night Vision Monocular Head Mount Kit from ARMASIGHT by FLIR is specifically engineered for armed forces and law enforcement personnel. It comes with everything you need to use the monocular hands-free or mounted on your head or helmet, including an adjustable head mount and an adapter. At the core of the night vision monocular is a 2nd-generation high-definition image intensifier tube (IIT) that converts infrared images into visible ones. The IIT is enhanced with a bright-light cutoff function for protecting the tube from accidental burnout by bright flashes and a manual gain for controlling image brightness and contrast. To improve close-range visibility and allow reading maps in total darkness, the device has a built-in illuminator.

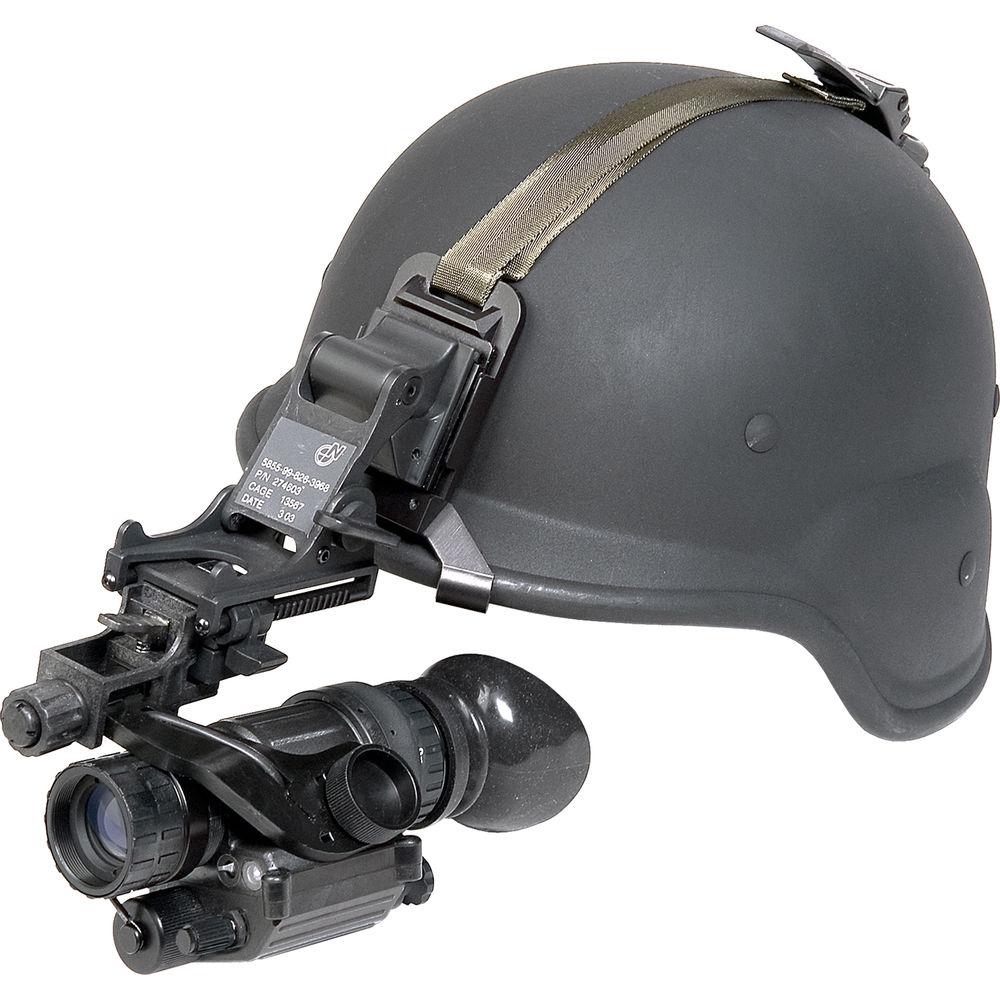

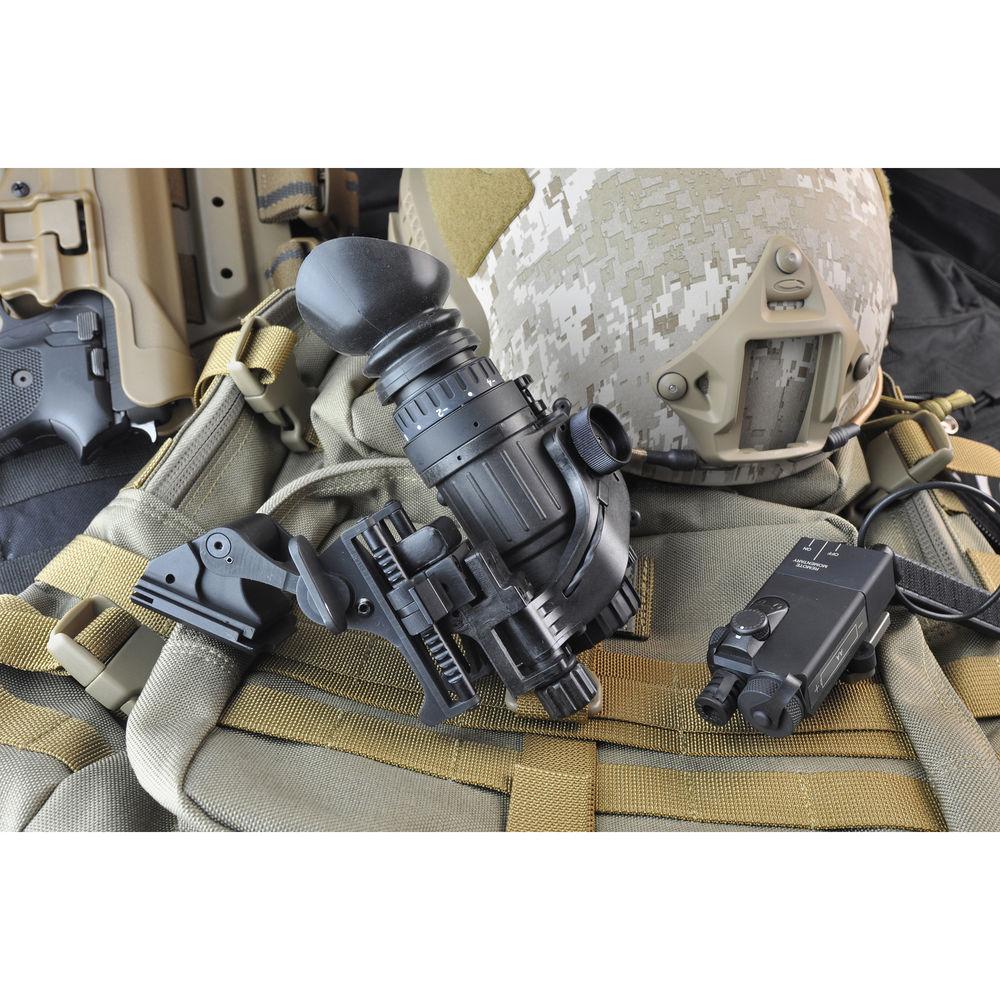

The composite body allows you to venture almost anywhere and can withstand impact, extreme temperatures, and even water submersions. It offers heavily knurled rings and adjusters for a non-slip grip and a wide winged rubber eyecup to ensure comfortable contact with your face and to prevent light leakage. Using the included accessories, the monocular can be worn on the head mount assembly, whose adjustable harness should securely fit helmets of different sizes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier Tube
-
- 2nd-generation intensifier tube
- High definition (HD)
- Bright-light cutoff
- Manual brightness control
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification
- Compatible with optional lenses
- 51° wide angle of view
- f/1.26, 19mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +4 to -6 diopter correction
- Built-in IR and low-battery indicators

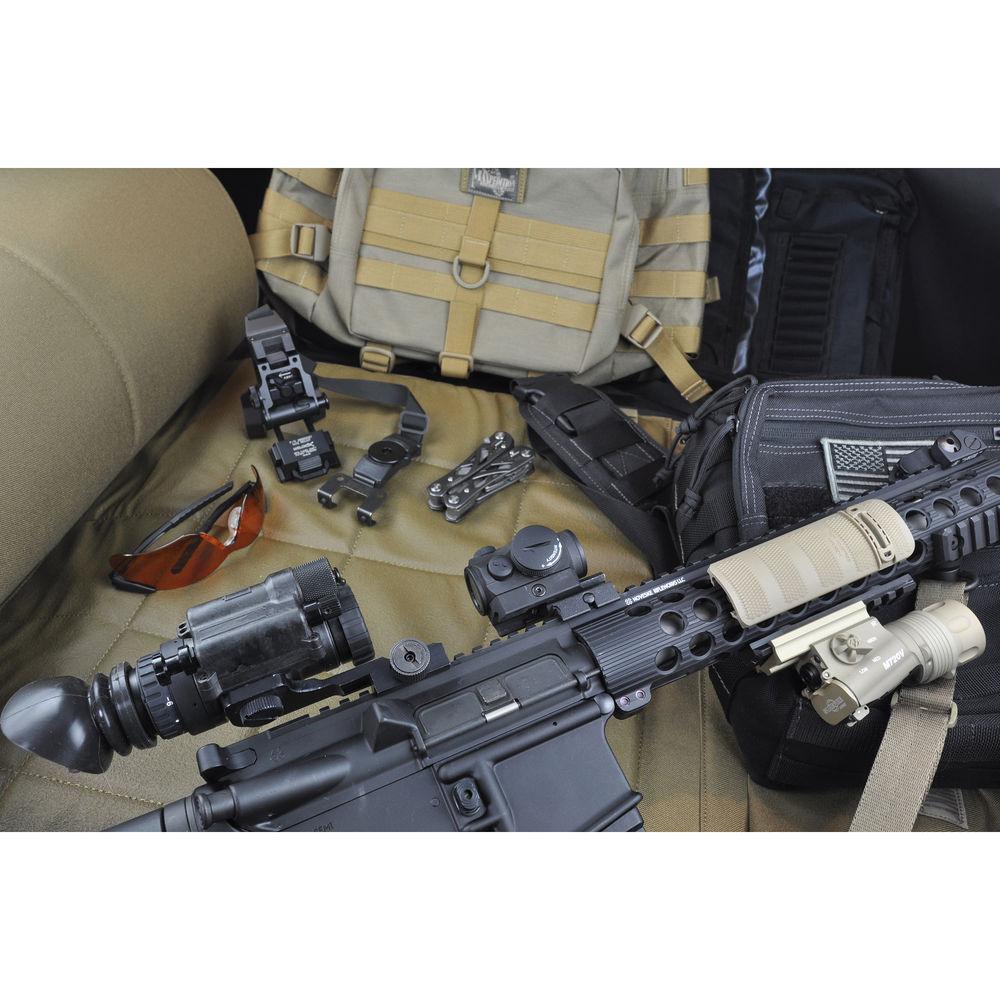

- Can be used as a handheld device or mounted on a firearm or headgear
- Construction Details
-
- Composite polymer housing
- Durable and lightweight
- Compact and ergonomic design
- Mounting point for headgear or a firearm
- Knurled adjusters and rings give a non-slip grip
- Wide winged rubber eyecup
- Weather-resistant

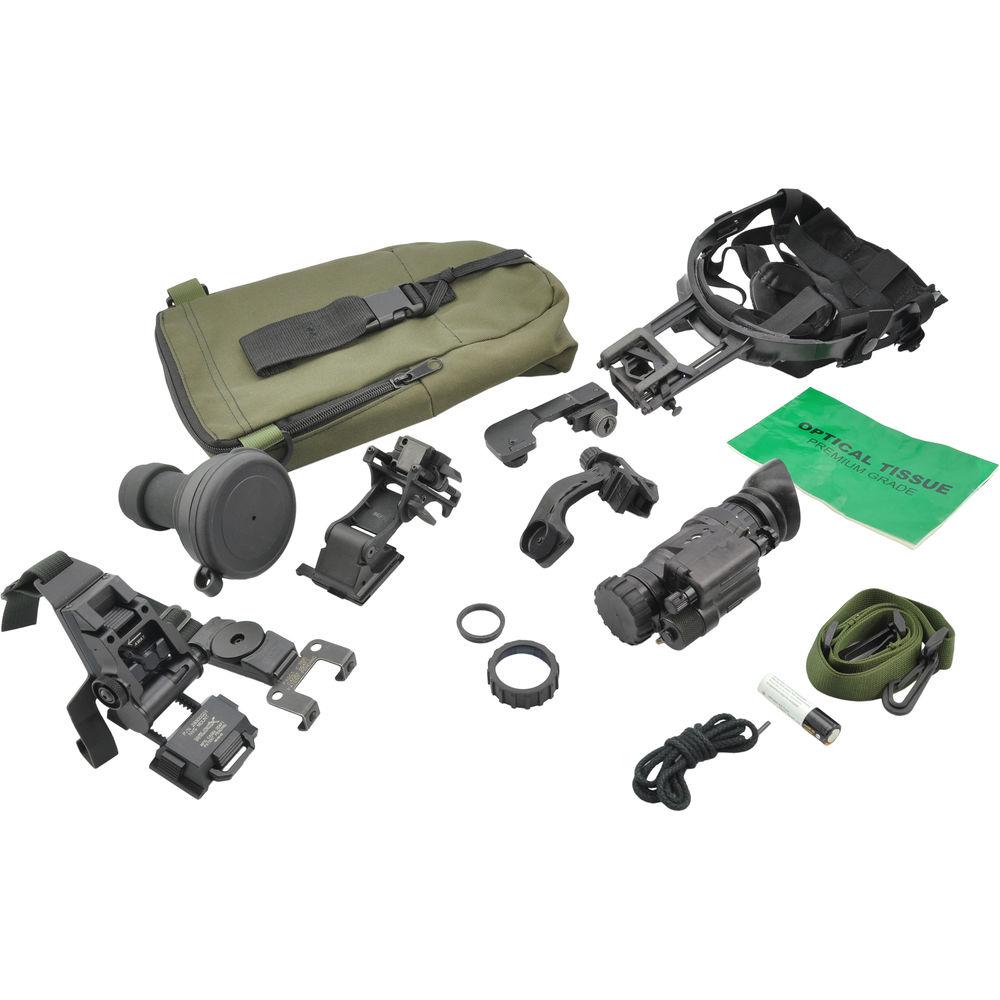

UPC: 849815009835 In the Box FLIR PVS-14-51 HD 2nd-Generation Night Vision Monocular and Head Mount Kit (Matte Black) - Soft Carry Case
- AA Battery
- Daylight Filter
- Sacrificial Window
- Demist Shields
- Shoulder Strap
- Tethering Cord
- Helmet/Head Mount Adapter
- Head Mount Assembly
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR PVS-14-51 HD 2nd-Generation Night Vision Monocular and Head Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR PVS-14-51 Specs | Intensifier Tube | 2nd-generation high-definition tube
Multi-alkali | | Magnification | 1x | | Angle of View | 51° | | Lens System | f/1.26, 19mm | | Minimum Focus Distance | 9.8" / 0.25 m | | Dioptric Correction | +4 to -6 | | Infrared Illuminator | Yes | | Battery | 1 x AA battery | | Runtime | 50 hours | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.5 x 2.2 x 2.0" / 11.4 x 5.7 x 5.1 cm | | Weight | 11.3 oz / 320.0 g |
