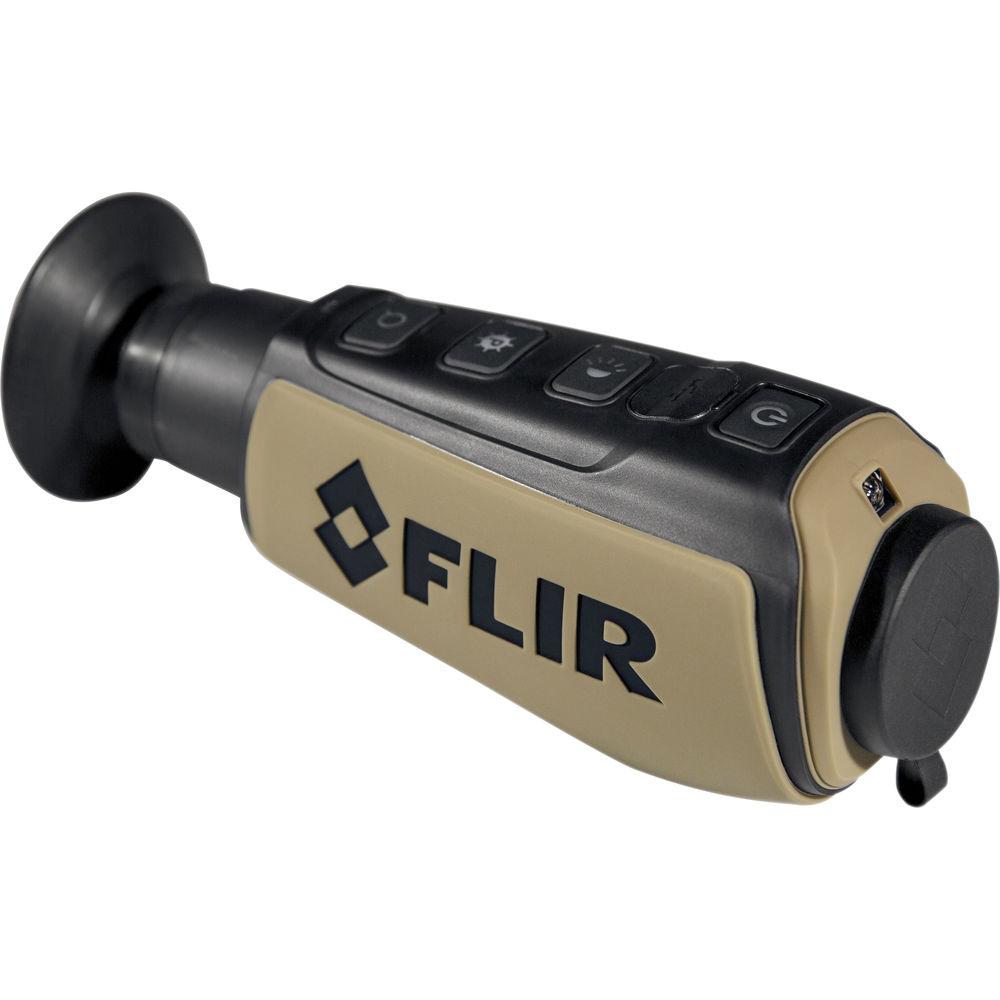

User Manual for FLIR Scout III 240 Thermal Monocular Click to enlarge the picture
Contents of the user manual for the FLIR Scout III 240 Thermal Monocular
- Product category: Thermal Imagers FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Thermal Imagers
 |
User manual for the FLIR Scout III 240 Thermal Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description - Introducing the FLIR Scout III

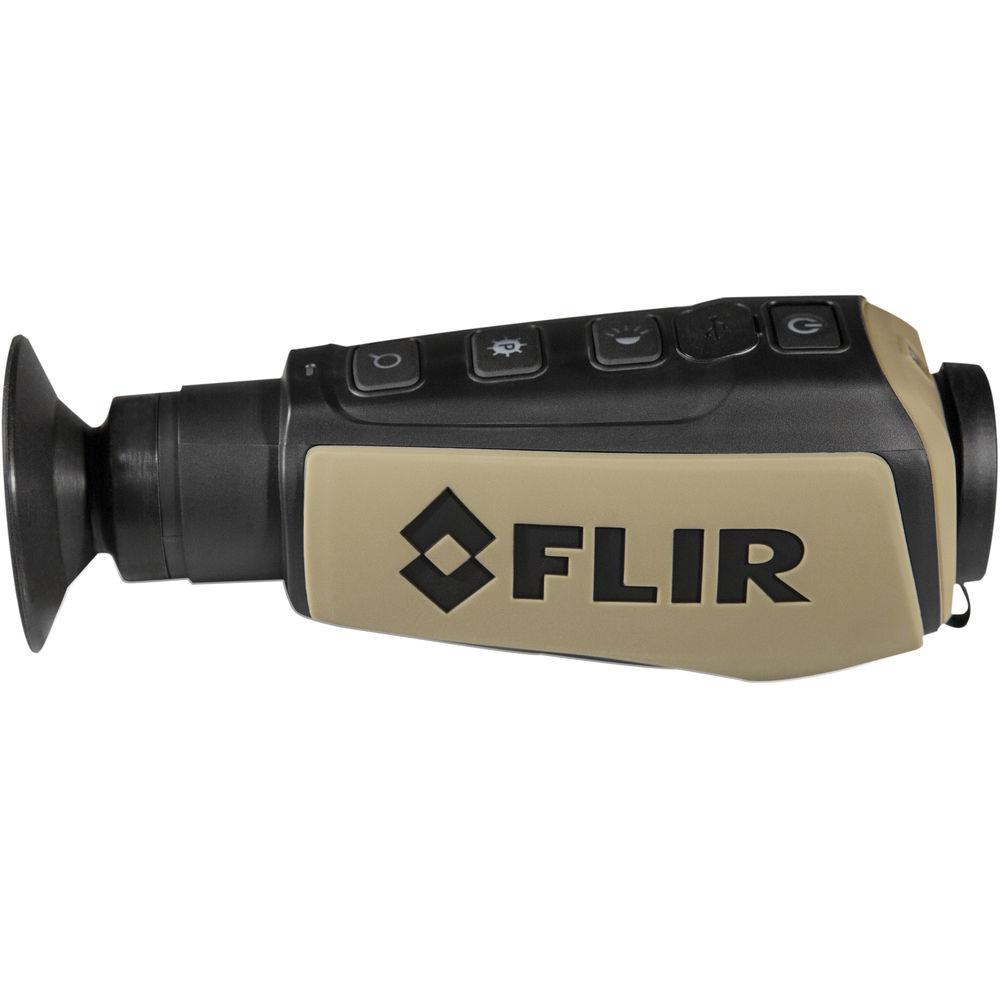

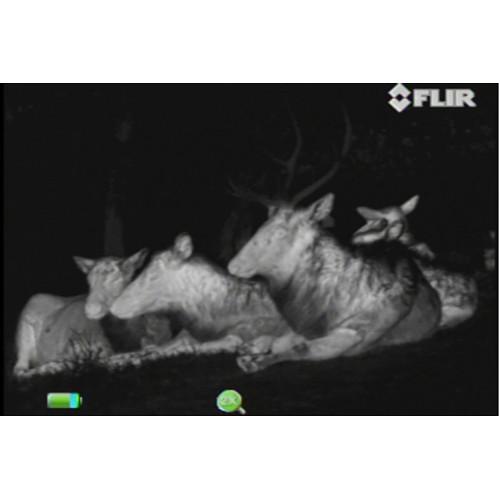

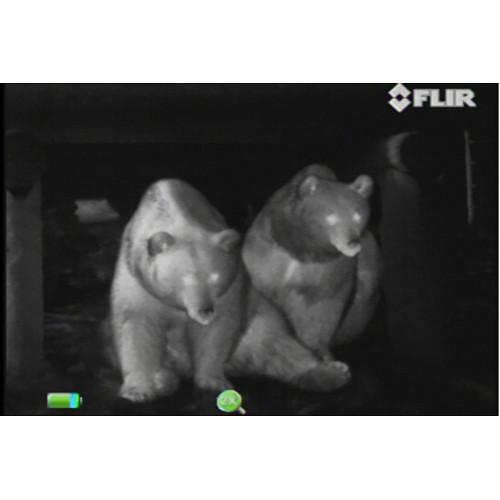

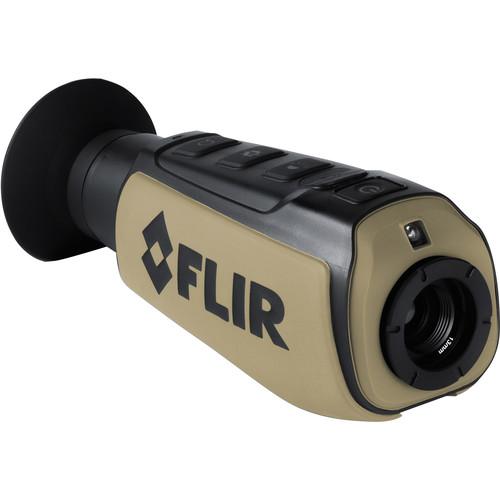

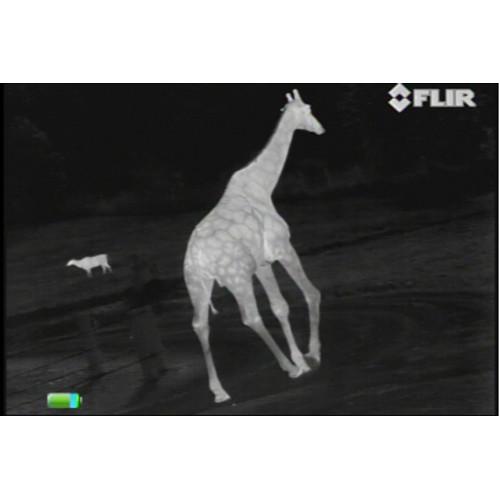

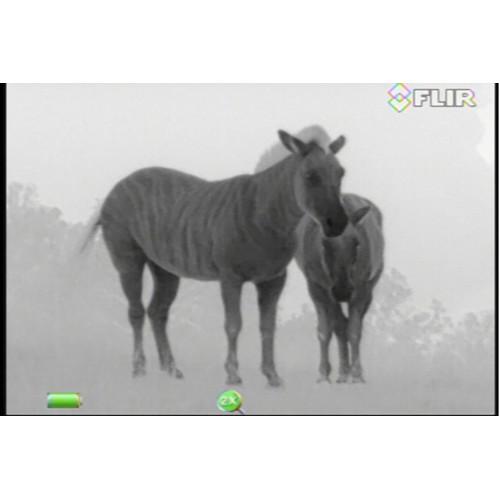

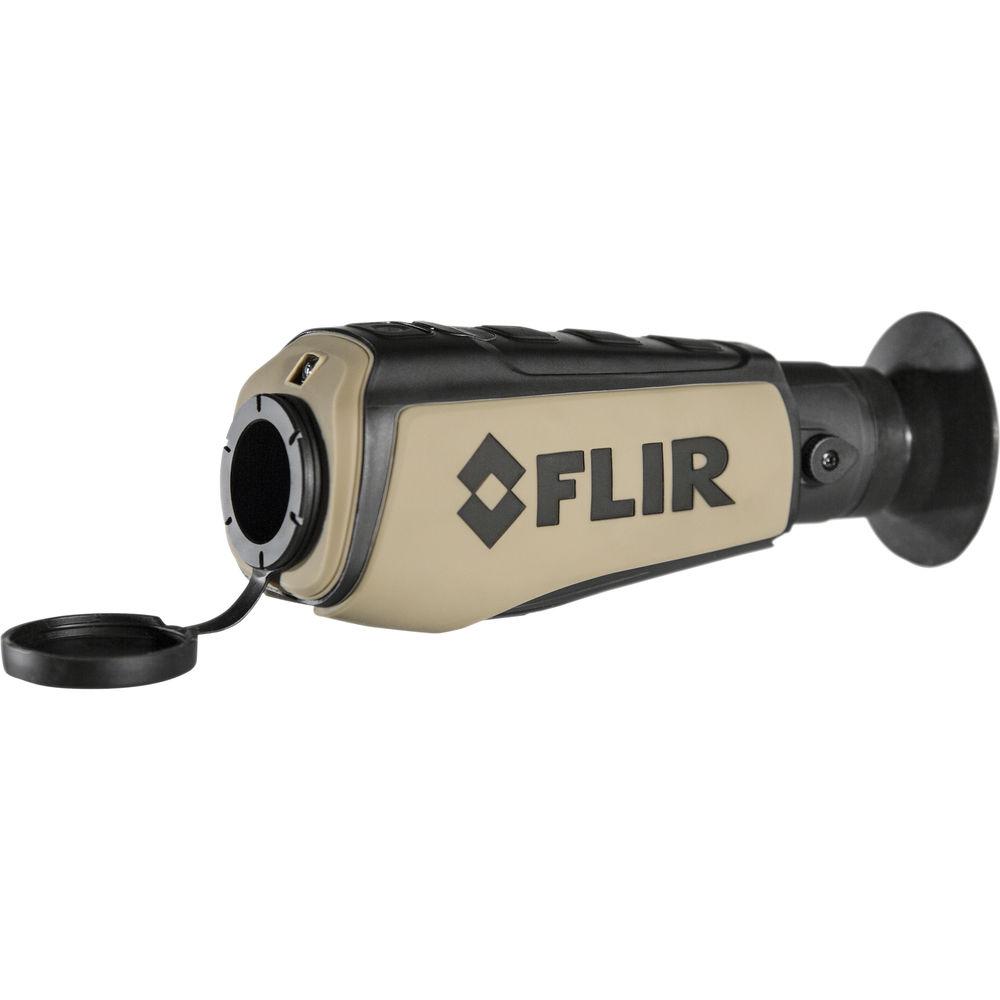

FLIR Scout III 240 Thermal Monocular is a handheld thermal imaging device designed primarily for outdoor enthusiasts but can be useful for anyone. You can view, record, or relay images and videos of thermal signatures through fog, smoke, and foliage during the day or at night. At the core of this device is the 240 x 180 VOx uncooled microbolometer that operates at a 30 Hz refresh rate. This thermal imager features a 13mm lens with a 24 x 18° field of view, 1x magnification, and a number of palettes and digital enhancements like the FLIR Proprietary Digital Detail Enhancement. You can view scenery on the built-in 640 x 480 LCD display or relay NTSC or PAL videos to external displays and recorders. To enhance user experience, the monocular offers a simple but effective control pad and an in-view menu.
This thermal imaging device is packaged into a lightweight, durable, and ergonomic polymer body. Its rubberized covering provides a non-slip grip, and its rubber eyecup offers comfort and protects eyepiece optics from rain and snow. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Imager & Optical System
-
- 240 x 180 VOx microbolometer
- 7.5-13.5µm spectral response
- 30 Hz refresh rate
- 13mm lens with a 24 x 18° AFOV
- 1x magnification
- Built-in LED task light
- Video, Display, Memory
-
- FLIR Proprietary Digital Detail Enhancement
- 640 x 480 LCD display with brightness adjustment
- Black Hot, White Hot, InstAlert polarity modes
- Default NTSC video output via custom USB to RCA cable
- Output switchable to PAL via user GUI
- Construction Details
-
- Durable and lightweight polymer housing
- Rubber covering for a non-slip grip
- Waterproof and submersible
- Impact-resistant
- Rubber eyecup
UPC: 812462021048 In the Box FLIR Scout III 240 Thermal Monocular (30 Hz) USB Power Adapter/Charger Wrist strap USB Cable MOLLE Bag Limited 3-Year Warranty Limited 10-Year Warranty on Thermal Sensor Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Scout III 240 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR Scout III-240 Specs | Array Configuration | 240 x 180 VOx microbolometer | | Sensitivity | <50 mk @ f> | | Spectral Response | 7.5-13.5 µm | | Refresh Rate | 30 Hz | | Field of View | 24 x 18° | | Lens System | 13 mm | | Digital Zoom | 1x | | Video Format | NTSC/PAL | | Display | 640 x 480 LCD | | Start-Up Time | 1.5 seconds | | Battery / Runtime | 1 x rechargeable internal Li-ion battery / 5 h | | Weatherproofing | IP67-rated, waterproof | | Shock Rating | 3.3' / 1 m | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -40°F to 140°F (-40°C to 60°C) | | Dimensions | 6.7 x 2.3 x 2.4" (17 x 6 x 6 cm) | | Weight (with Batteries) | 12 oz (340 g) | | | | Package Weight | 2.035 lb | | Box Dimensions (LxWxH) | 9.9 x 9.4 x 3.6" |
