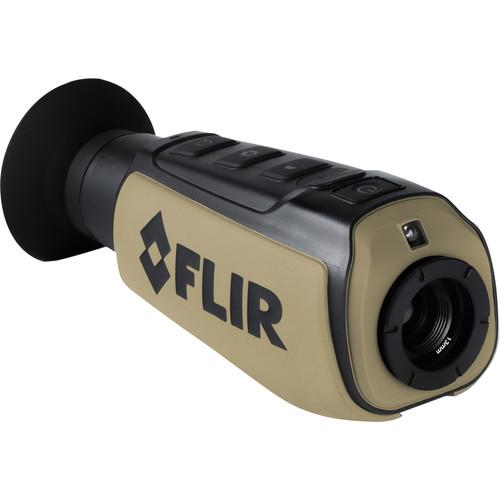

User Manual for FLIR Scout III 640 Thermal Monocular Click to enlarge the picture
Contents of the user manual for the FLIR Scout III 640 Thermal Monocular
- Product category: Thermal Imagers FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Thermal Imagers
|
User manual for the FLIR Scout III 640 Thermal Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description - Introducing the FLIR Scout III
- FLIR Scout III 640 Thermal Monocular
FLIR's Scout III 640 Thermal Monocular is a handheld thermal imaging device designed primarily for outdoor enthusiasts, but can be useful for anyone. It allows you to view thermal signatures through fog, smoke, and foliage during the day or at night. You can also relay NTSC composite video (30 Hz refresh rate) to external displays or recording devices. At the core of this device are a 640 x 512 VOx uncooled microbolometer thermal sensor and a 35mm fixed focal length lens with an 18 x 14° field of view. The on-board electronics and a 640 x 480 color LCD display will show you a 2x-4x digital zoom and several palettes and viewing enhancements like the FLIR Proprietary Digital Detail Enhancement. To enhance your experience, the monocular offers an easy-to-use but effective control pad on its top and in-view menu functions.
This imaging system is packaged into a waterproof and impact-resistant housing. The body is compact and ergonomic and has a rubberized covering for protection again damage. The wide rubber eyecup offers comfort and prevents accidental exposure by reducing leakage of display light. Another small but handy enhancement is a built-in task light for illuminating your path or performing other activities in the dark. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Imager & Optical System
-
- 640 x 512 VOx microbolometer sensor
- 7.5 - 13.5µm spectral response
- 35mm focal length lens
- 18 x 14° angular field of view
- Video Performance & Display
-
- 2x, 4x digital zoom
- FLIR Proprietary Digital Detail Enhancement
- 640 x 480 LCD display with brightness adjustment
- Black Hot, White Hot, InstAlert polarity modes
- Default NTSC video output via custom USB to RCA cable
- 30 Hz refresh rate
- Use and Handling
-
- 1.5-second start-up time
- Auto power off after 5 minutes of inactivity
- Diopter adjustment lever on eyepiece
- Built-in LED task light is operational even when imager is off
- LED charging indicator
- Construction Details
-
- Durable and lightweight housing
- Compact and ergonomic design allow one-handed operation
- Rubber covering ensures a non-slip grip
- Powered by internal rechargeable 2400mAh (3.7V) battery
- Impact-resistant to 3.3'
- Rubber eyecup
- Waterproof
UPC: 812462021062 In the Box FLIR Scout III 640 Thermal Monocular (30 Hz, Flat Dark Earth) - USB Power Adapter/Charger
- USB Cable
- USB to RCA Cable
- Lens Cap
- Wrist strap
- MOLLE Bag
- Limited 2-Year Warranty
- Limited 10-Year Warranty on Thermal Sensor
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Scout III 640 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR 431-0019-31-00 Specs | Array Configuration | 640 x 512 VOx microbolometer | | Sensitivity | <50 mk at f> | | Spectral Response | 7.5 - 13.5 µm | | Refresh Rate | 30 Hz | | Field of View | 18 x 14° | | Lens Focal Length | 35mm | | Digital Zoom | 2x, 4x | | Video Format | Default Setting: NTSC
User-Defined: PAL | | Display | 640 x 480 LCD | | Lamp | LED task light | | Start Time | 1.5 seconds | | Battery / Runtime | 1 x internal rechargeable 2400 mAh (3.7 V) Li-ion battery / 5 hours | | Weatherproofing | IP67-rated, waterproof | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Shock Resistance | 3.3' / 1.0 m drops | | Dimensions | 6.7 x 2.4 x 2.3" / 17.0 x 6.2 x 5.1 cm | | Weight (with Batteries) | 12.0 oz / 340.0 g | | | | Package Weight | 2.025 lb | | Box Dimensions (LxWxH) | 10.0 x 9.25 x 3.55" |
