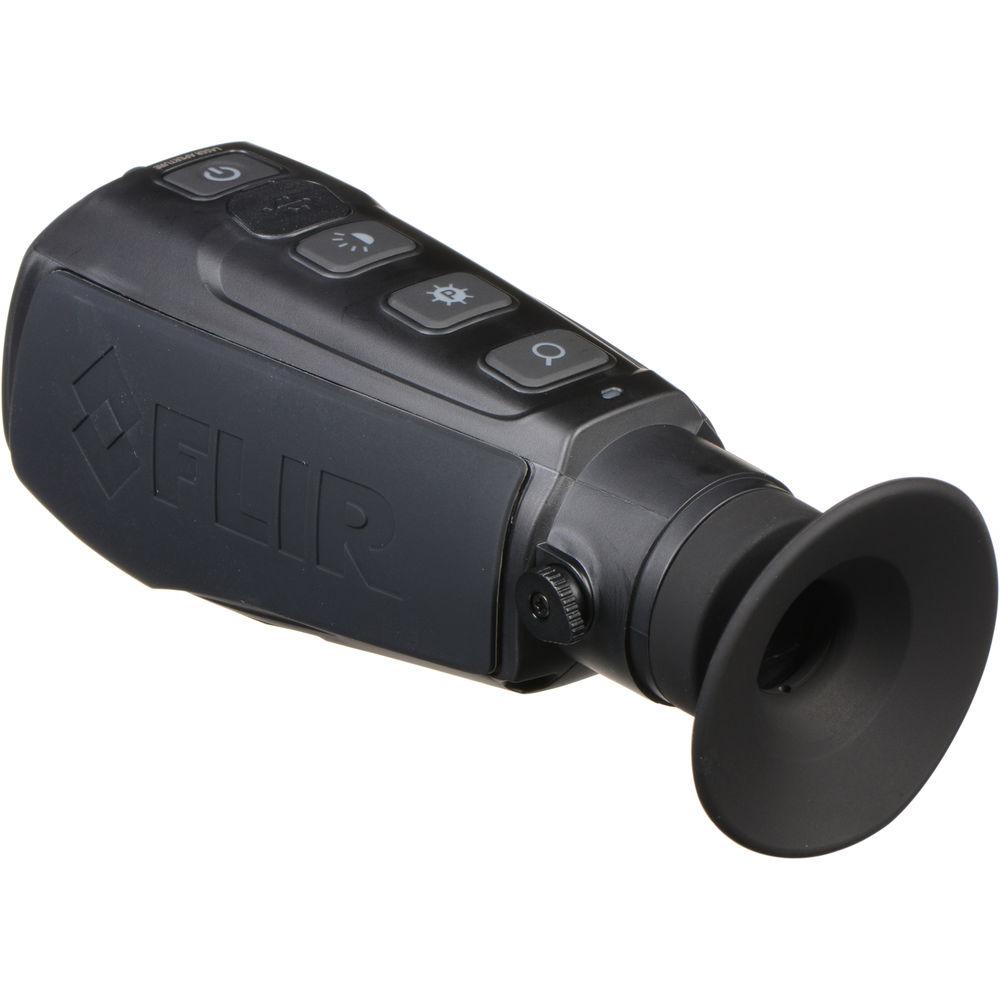

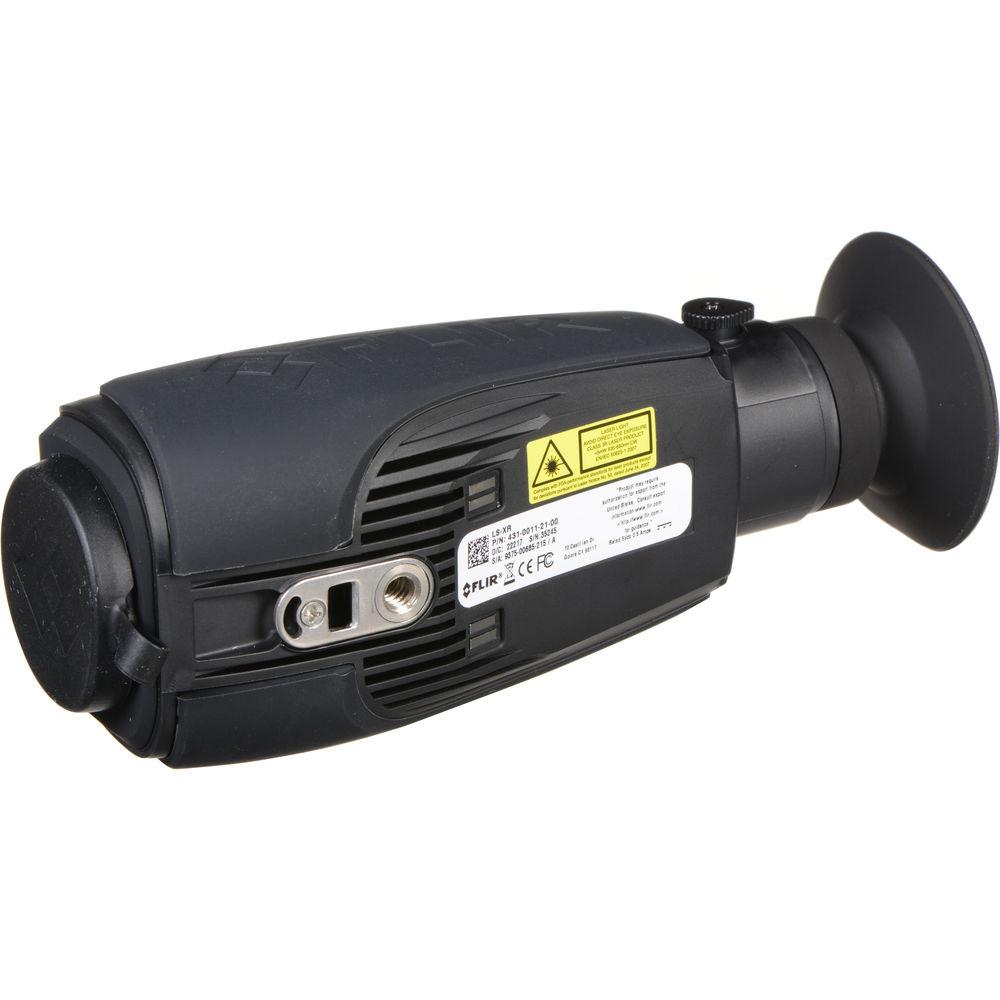

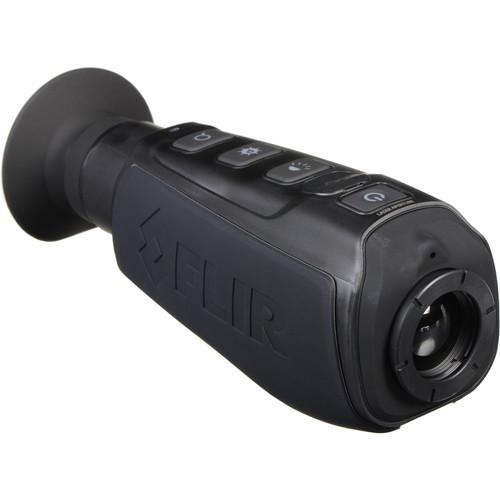

Product description The FLIR Scout LS-XR 640 x 512 Thermal Monocular is a handheld thermal imaging device designed primarily for law enforcement professionals, but can be useful to anyone. You can view, record, or relay images and videos of thermal signatures through fog, smoke, and foliage during the day or at night. At the core of this device is the 640 x 512 VOx uncooled microbolometer that operates at room temperature at a 30 Hz refresh rate. This thermal imager features a 35mm lens with an 18 x 14° field of view, 2-8x digital zoom, and a number of palettes and digital enhancements like the FLIR Proprietary Digital Detail Enhancement. You can view scenery on the built-in 640 x 480 LCD display or relay 640 x 512 NTSC or PAL videos to external displays and recorders. To enhance user experience, the monocular offers a simple but effective control pad and an in-view menu.
This thermal imaging device is packaged into a lightweight, durable, and ergonomic polymer body. Its rubberized covering provides a non-slip grip, and its rubber eye cup offers comfort and protects eyepiece optics from rain and snow. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Imaging Performance
-
- 640 x 512 VOx microbolometer
- 35mm lens with 18 x 14° field of view
- 30 Hz refresh rate
- 2x, 4x, and 8x digital zoom
- Video, Display, Memory
-
- FLIR Proprietary Digital Detail Enhancement
- 640 x 480 LCD display with brightness adjustment
- Black Hot, White Hot, InstAlert polarity modes
- Built-in red laser pointer allows precise aiming
- Default NTSC video output via custom USB to RCA cable
- Output switchable to PAL via user GUI
- Manual focus lens
- Construction Details
-
- Durable and lightweight polymer housing
- Rubber covering for a non-slip grip
- Waterproof and submersible
- Impact-resistant
- Rubber eyecup
UPC: 812462020362 In the Box FLIR Scout LS-XR 640 x 512 Thermal Monocular (30 Hz) - USB Power Adapter/Charger
- Custom Video Out Cable
- Wrist Strap
- USB Cable
- Molle Bag
- Limited 3-Year Warranty
- Limited 10-Year Warranty on Thermal Sensor
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Scout LS-XR 640 x 512 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR Scout LS-XR Specs | Array Configuration | 640 x 512 VOx microbolometer | | Sensitivity | <50 mk at f> | | Refresh Rate | 30 Hz | | Spectral Response | 7.5 - 13.5 μm | | Start-Up Time | <1.5 seconds | | Magnification | 2x, 4x, 8x digital zoom | | Field of View | 18 x 14° | | Lens System | 35mm | | Video Output | NTSC/PAL | | Battery / Runtime | 1 x internal Li-ion cell battery / 5 h | | Weatherproofing | IP67-rated, waterproof | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -40°F to 140°F (-40°C to 60°C) | | Dimensions | 6.7 x 2.4 x 2.3" (170 x 62 x 58.7 mm) | | Weight | 12.0 oz (340 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.8 x 9.0 x 3.6" |
