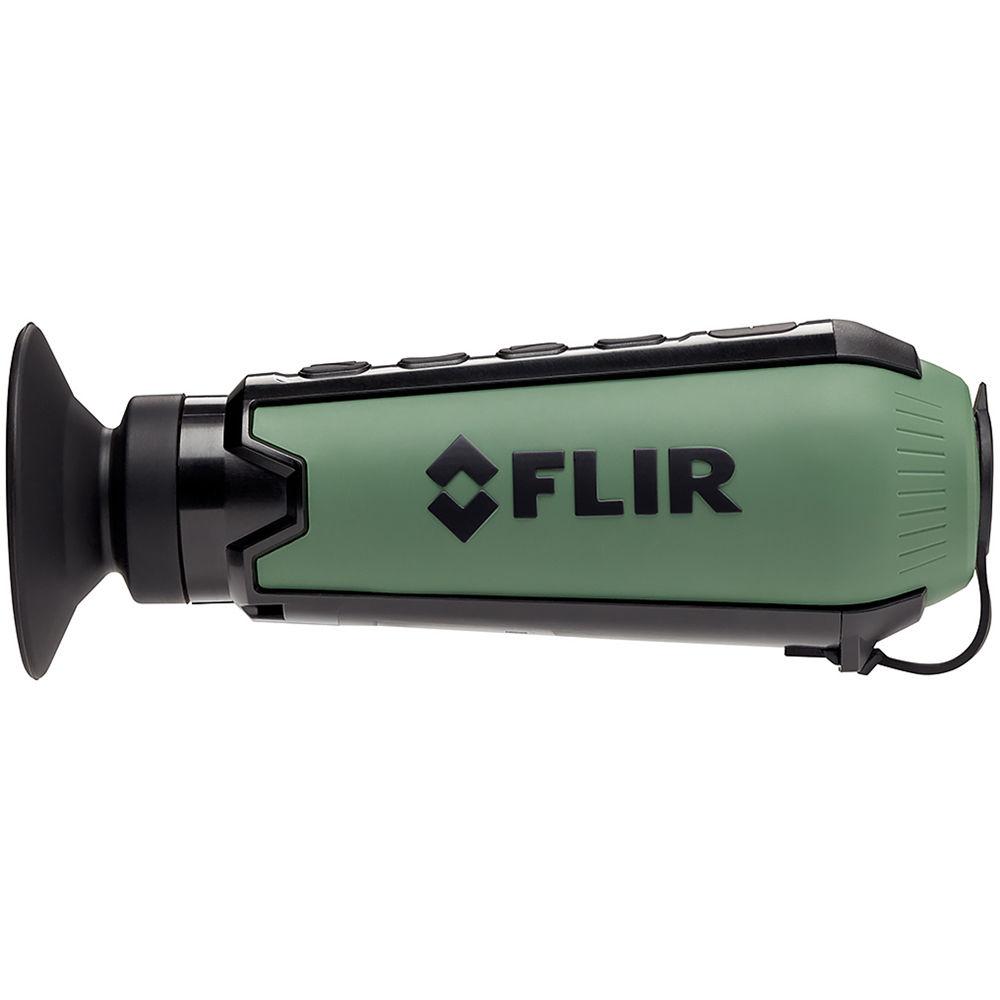

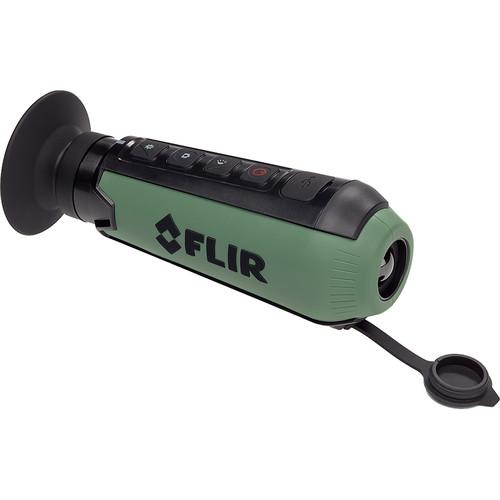

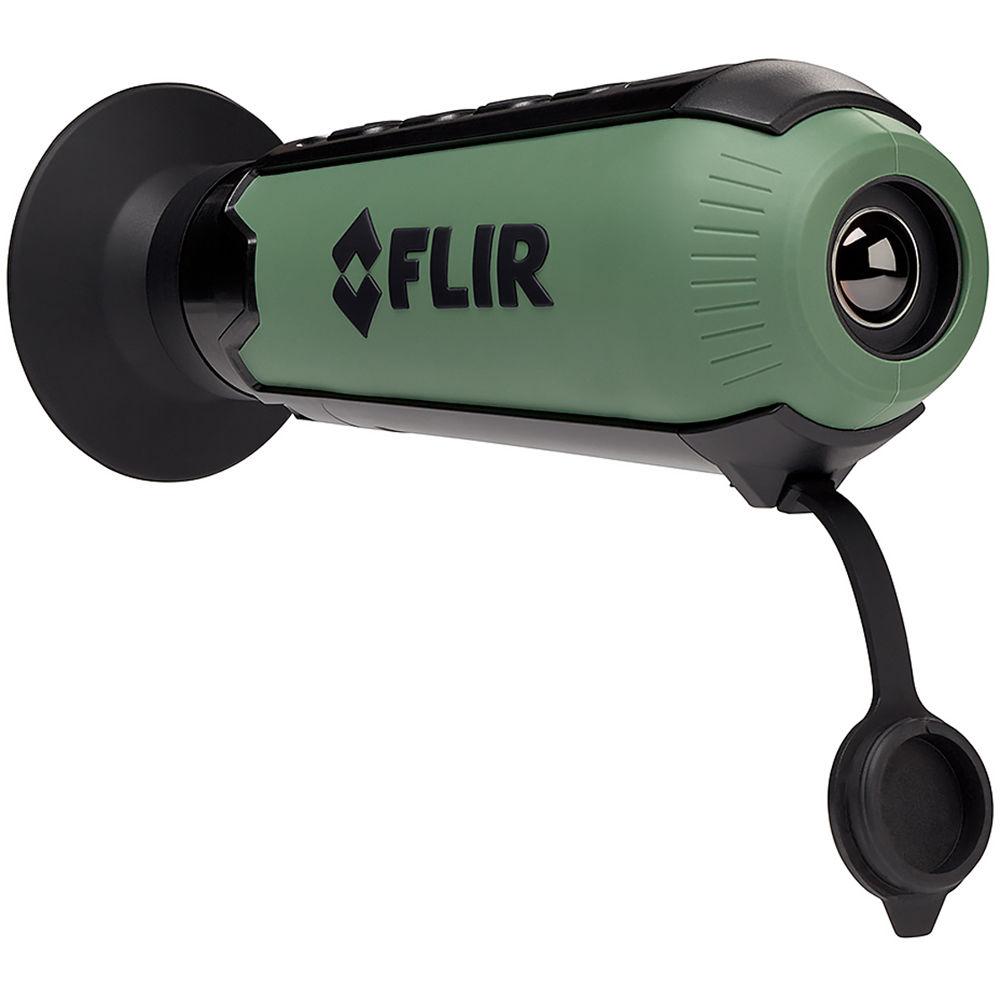

User Manual for FLIR Scout TK Thermal Monocular Click to enlarge the picture
Contents of the user manual for the FLIR Scout TK Thermal Monocular
- Product category: Thermal Imagers FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Thermal Imagers
 |
User manual for the FLIR Scout TK Thermal Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description - Introducing the FLIR Scout TK
- Flir Scout TK Thermal Imager
- Flir Scout TK Thermal Imager (Field Test)
Ideal for exploring the outdoors at night, or in complete darkness, the FLIR Scout TK Thermal Monocular is a pocket-sized thermal imaging device that has a multitude of features for night and daytime thermal imaging. Its 160x120 Lepton Core VOx microbolometer is an uncooled and ultra-compact thermal sensor that will help you to reveal hidden warm objects, people, hot pipes or wires, and animals using their thermal signature in total darkness or daytime. Thanks to a compact and ergonomic design, you will be able to easily reach and man its intuitive four-button control pad located on the top panel in a single-handed operation. Despite its compact size, the imager has all the feature of a full-size thermal monocular, such as your choice of imaging palettes: White Hot, Black Hot, InstAlert, Graded Fire, and three others. Additionally, this monocular has video and photo recording capability, and a USB compatibility with your PC. To streamline your viewing experience, the monocular also features a fast 5-second start-up, 9 Hz refresh rate, image brightness control, and a FLIR Proprietary Digital Detail Enhancement image processing technology. To allow you to take it anywhere on your adventures, the housing is engineered to withstand harsh environments. It is compact, waterproof/submersible, and resistant to extreme temperatures. It also offers a wide rubberized eyecup and a rubber covering to provide a sure grip and impact-resistant performance. - Imaging & Optical Performance
-
- 160x120 FLIR Lepton VOx microbolometer
- Lens system: f/1.1 silicon doublet
- 20x16° field of view
- 9 Hz refresh rate
- Use and Handling
-
- Brightness adjustment
- White Hot, Black Hot, InstAlert, Graded Fire, Rainbow, Iron, Lava, and Arctic video palettes
- USB port for PC compatibility

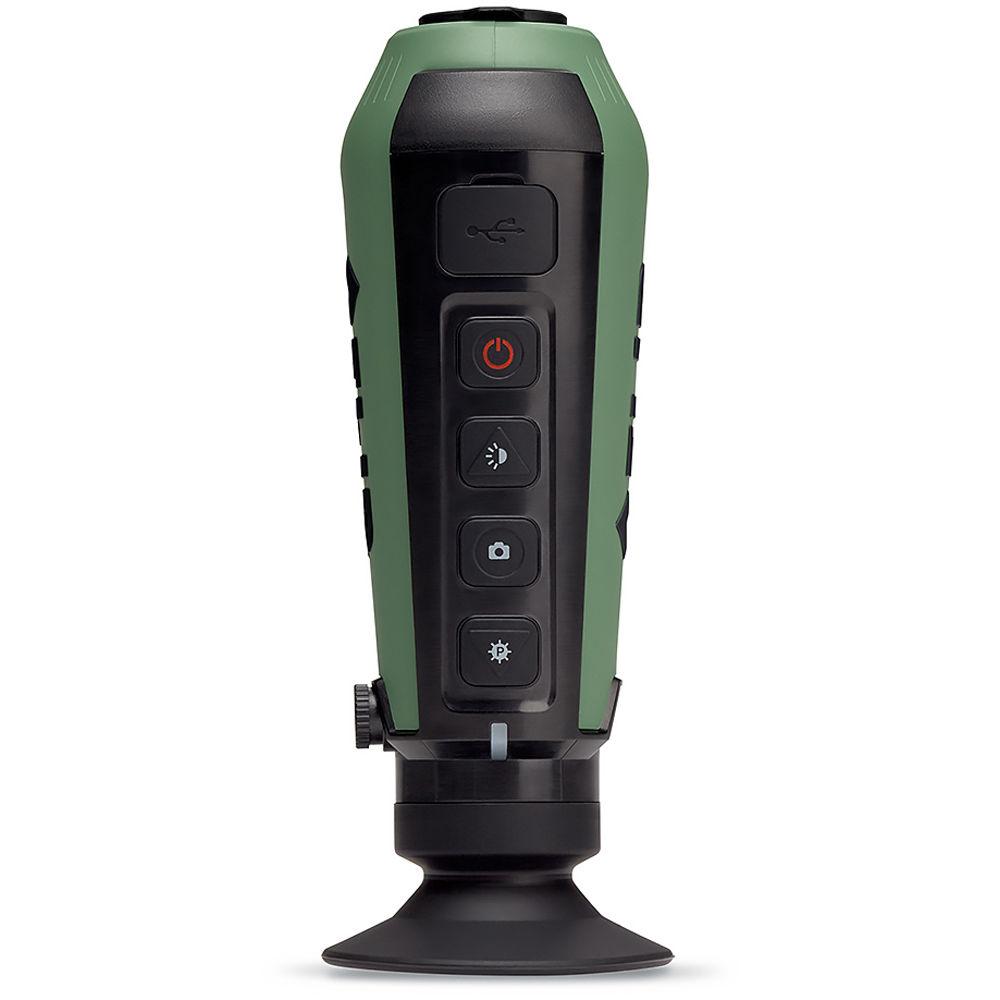

- Intuitive 4-button control pad
- Power button
- Video detection palettes - short presses toggle through the options
- Brightness - toggle up or down
- Short press for image
- Long press for video
- Construction Details
-
- Ergonomic and compact housing
- Rubber covering for a sure grip
- Wide round rubber eyecup
- Tethered objective lens cover
- IP-67 waterproof and submersible
- Impact-resistant
- Operating temperature: -4 to 104°F
- Weight: 6 oz
UPC: 812462021079 In the Box FLIR Scout TK Thermal Monocular (9 Hz) USB Cable Neck Lanyard Lens Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Scout TK Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR 431-0012-21-00S Specs | Array Configuration | 160x120 FLIR Lepton Core VOx microbolometer | | Sensitivity | <50 mk > | | Spectral Response | 7.5-13.5 µm | | Field of View | 20x16° | | Lens System | f/1.1 silicon doublet | | Eye Relief | Not specified | | Minimum Focus Distance | 6" / 150 mm | | Refresh Rate | 9 Hz | | Video Output | No | | Start-Up Time | Less than 5 second | | Power Source | 1 x internal rechargeable Li-ion battery | | Runtime | 5 h | | Weatherproofing | IP67, submersible | | Shock Rating | 6.6" / 2 m | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 4 x 1.5 x 1.5" / 101.6 x 38 x 38 mm | | Weight (with Batteries) | 6 oz / 170 g | | | | Package Weight | 1.045 lb | | Box Dimensions (LxWxH) | 7.35 x 4.4 x 3.6" |
