User Manual for FLIR Secure 4MP Wi-Fi Camera with Color Night Vision Click to enlarge the picture
Contents of the user manual for the FLIR Secure 4MP Wi-Fi Camera with
- Product category: Wireless Cameras FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Wireless Cameras
 |
User manual for the FLIR Secure 4MP Wi-Fi Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

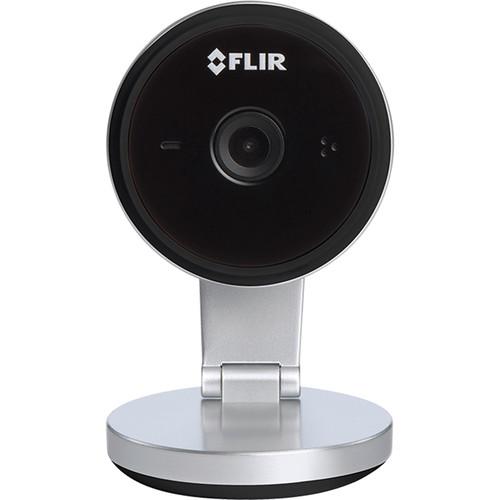

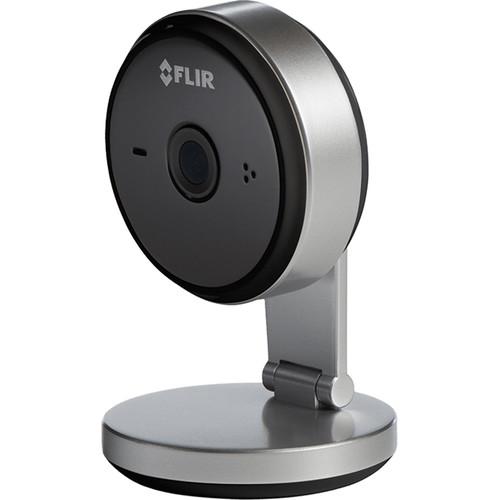

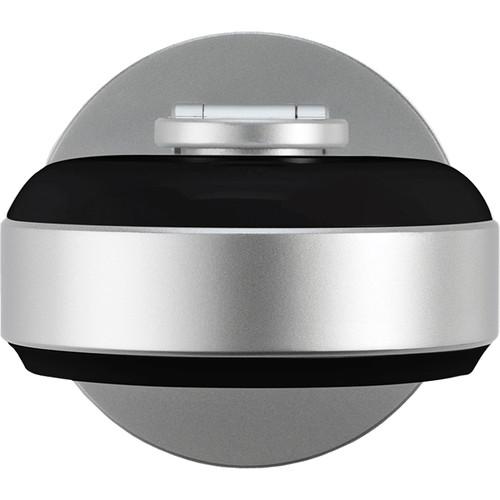

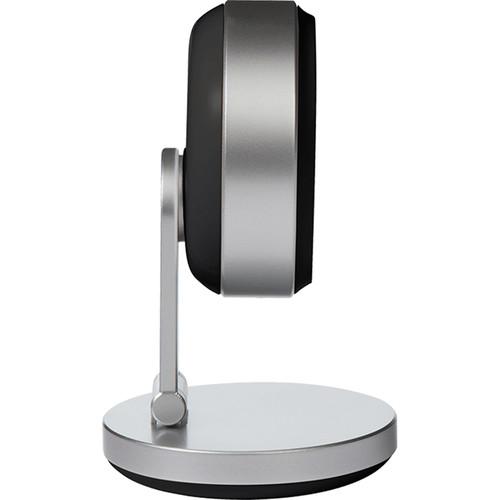

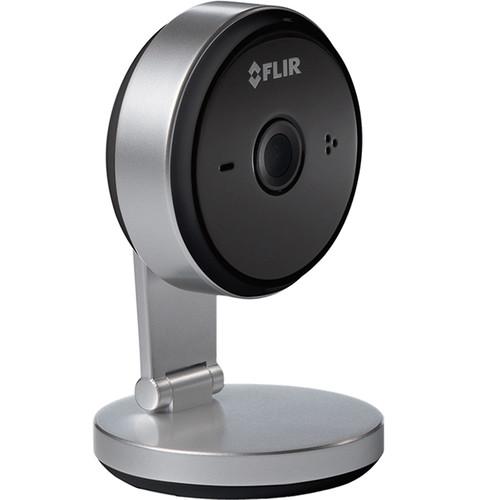

Product description Mount or place the FLIR Secure 4MP Wi-Fi Camera with Color Night Vision on a wall or table to monitor your home during the day and at night. This camera records high-quality 4MP video and saves it locally to a microSD card (16GB included). It features a 2.8mm lens with a wide-angle 155° field of view to view the goings-on in a large room. The discreet IR LED provides up to 40' of night vision, to help you keep your home safe 24/7. Color Night Vision allows the camera to produce color images in low-light scenes, providing greater detail.
Keep an eye on your home from anywhere with the free FLIR Secure app for iOS and Android. Simply download the app and customize settings, view a live video feed, and hear and speak with visitors using the built-in speaker and microphone on the camera. Wi-Fi connectivity makes setup and customization easy. With the free FLIR Cloud subscription, you get two days of video history, 10GB of cloud storage, and three 8-hour RapidRecap videos from up to two days. - 4MP 1/3" sensor captures 2680 x 1440 resolution video
- IR cut filter and IR LED for night vision up to 40'
- Color Night Vision (CNV) technology for color video in low-light scenes
- 2.8mm lens has a 155° field of view
- Built-in microphone and speaker for two-way audio communication
- Active noise cancellation for clear audio
- Free FLIR Cloud subscription gives you two days of video history, 10GB of cloud storage, and three 8-hour RapidRecap videos from up to two days
- RapidRecap for reviewing hours of footage stored on the FLIR Cloud in just minutes
- SmartZone for customized motion alerts based on specific user-selected areas
- 16GB microSD card included for local storage
- Wi-Fi connectivity for remote access via FLIR Secure app for iOS and Android
UPC: 841430014331 In the Box FLIR Secure 4MP Wi-Fi Camera with Color Night Vision 16GB microSD Card Power Adapter 10' Micro-USB Cable 3 x Cable Clips Mounting Plate Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Secure 4MP Wi-Fi Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR FXC22BK Specs | Image Sensor | 4 MP 1/3" CMOS sensor | | Resolution | 2680 x 1440 (4 MP), 1920 x 1080 (1080p) | | Lens | 2.8mm fixed | | Field of View | Diagonal: 155°
With Dewarping: 130° | | Video Compression | Enhanced H.264 | | Day/Night | IR cut filter | | Night Vision | Color Night Vision: In low-light conditions
B&W: In complete darkness | | Number of IR LEDs and Range | 1 x IR LED, up to 40' (12 m) | | IR Wavelength | 850 nm | | Digital Zoom | 5x | | Audio | Built-in microphone and speaker, two-way | | Storage | 16 GB microSD card included, supports up to 64 GB microSDHC or microSDXC, class 10 or higher | | Wireless | Wi-Fi 802.11b/g/n 2.4 GHz (WEP, WPA, WPA2 encryption supported)
Bluetooth Low Energy (BLE, encrypted) | | Encryption | SSL | | Connector | Micro-USB for power | | Power | AC Power Adapter:
Input: 100-240 VAC 0.2 A
Output: 5 VDC 2.0 A
Camera Input: 5 VDC, 1.0 A | | Requirements | Wi-Fi connection with at least 1 Mbps upload speed | | Mobile App Support | iOS 7 or above
Android 4.0 or above | | Web Browser Support | IE10 or later, Microsoft Edge, Safari, Chrome, Firefox | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Dimensions | 3.7 x 2.3 x 2.3" (94 x 58 x 58 mm) | | Weight | 0.26 lb (118 g) | | | | Package Weight | 1.175 lb | | Box Dimensions (LxWxH) | 6.0 x 5.25 x 4.85" |
