User Manual for FLIR ThermoSight PTS233 Pro 1.5-6x19 Thermal Weapon Sight Click to enlarge the picture
Contents of the user manual for the FLIR ThermoSight PTS233 Pro 1.5-6x19 Thermal
- Product category: Thermal Scopes FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Thermal Scopes
 |
User manual for the FLIR ThermoSight PTS233 Pro 1.5-6x19 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

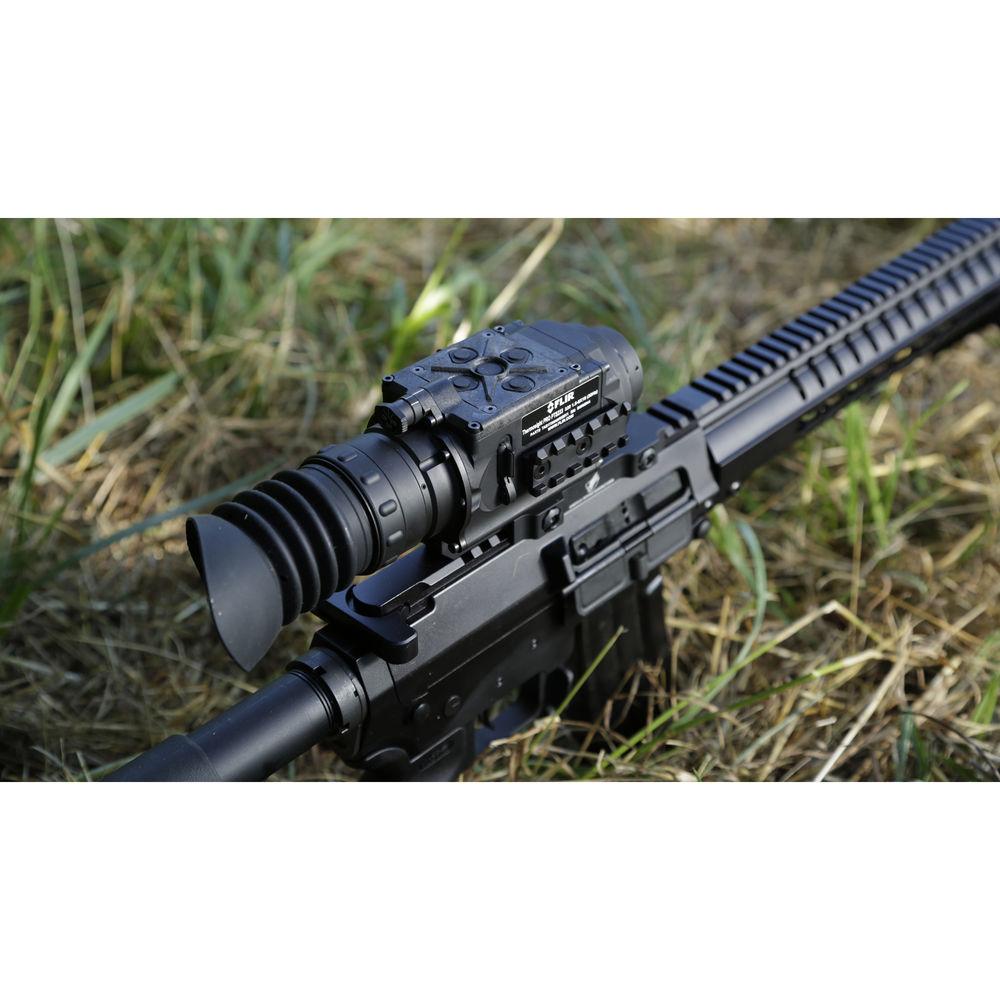

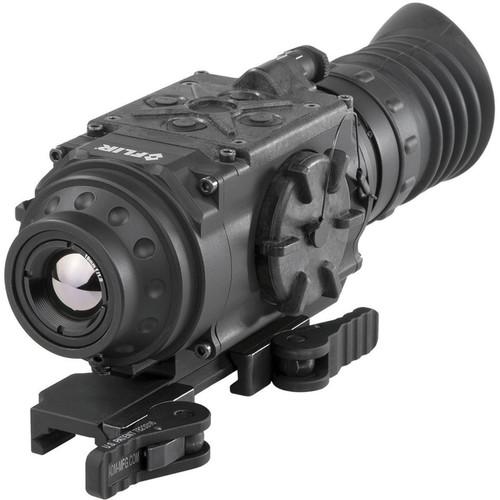

Product description Raid the night with FLIR's ThermoSight PTS233 Pro 1.5-6x19 Thermal Weapon Sight. This advanced thermal imaging riflescope features a 320 x 256 FLIR Boson microbolometer with a 12µm pixel pitch and a High Visibility Technology (HVT) digital multi-reticle, which provides improved visibility against any background. The imaging sensor of the scope is sensitive in the Long-Wave Infrared region of the electromagnetic spectrum and produces videos with a 60 Hz refresh rate. In addition to viewing thermal profiles on the built-in 1280 x 960, Quad-VGA FLCOS display, the device also allows you to relay data to external devices for viewing or recording. The optical system features a 19mm, f/1.0 germanium lens, a 12 x 9.5° field of view, and an optical magnification of up to 1.5x.
To simplify user experience, the monocular offers an easy-to-use but effective control pad and an in-view menu. For accurate target acquisitions, the sight also offers five digital reticle patterns with High Visibility Technology (HVT). The reticle also offers a choice of four colors: black, white, red, and cyan.
The scope is packaged into a lightweight, durable, compact, and ergonomic aluminum housing with a Picatinny/Weaver dual quick release mount. For attaching more accessories, the sight also carries a short Picatinny/Weaver rail on the right side. The PTS233 offers an impact-resistant construction and features an objective lens cover and a wide rubber eyecup Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Sensor
-
- 320 x 256 FLIR Boson VOx microbolometer
- 12µm pixel pitch
- LWIR (Long-Wave Infrared) spectral range
- 60 Hz refresh rate
- Display and Video Performance
-
- High-definition 1280 x 960 Quad-VGA FLCOS display
- Shot-activated video recording
- FLIR Proprietary Digital Detail Enhancement
- White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, and Outdoor Alert polarity modes
- Digital compass and inclinometer provide a precise range and target orientation
- USB Type-C video out port for digital video output
- Optical Performance
-
- 19mm, f/1.0 lens system
- 1.5x optical magnification
- 2x and 4x digital zoom
- 12 x 9.5
|
Upload User Manual
Have you got an user manual for the FLIR ThermoSight PTS233 Pro 1.5-6x19 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR PTS 233 Specs | Thermal Sensor | 320 x 256 Boson VOx microbolometer | | Spectral Response | LWIR: Long-wave infrared | | Pitch | 12 μm | | Refresh Rate | 60 Hz | | Field of View (H x V) | 12 x 9.5
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
