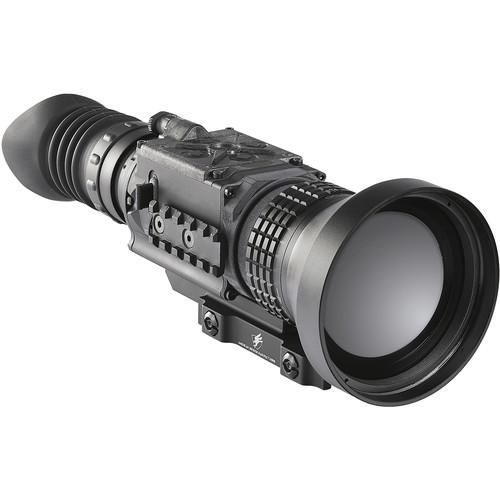

Product description Raid the night with FLIR's ThermoSight PTS736 Pro 6-24x75 Thermal Weapon Sight. This advanced thermal imaging riflescope features a 320 x 256 FLIR Boson microbolometer with a 12µm pixel pitch and a High Visibility Technology (HVT) digital multi-reticle, which provides improved visibility against any background. The imaging sensor of the scope is sensitive in the Long-Wave Infrared region of the electromagnetic spectrum and produces videos with a 60 Hz refresh rate. In addition to viewing thermal profiles on the built-in 1280 x 960, Quad-VGA FLCOS display, the device also allows you to relay data to external devices for viewing or recording. The optical system features a 75mm, f/1.0 germanium lens, a 3.0 x 2.5° field of view, and an optical magnification of up to 6x.
To simplify user experience, the monocular offers an easy-to-use but effective control pad and an in-view menu. For accurate target acquisitions, the sight also offers five digital reticle patterns with High Visibility Technology (HVT). The reticle also offers a choice of four colors: black, white, red, and cyan.

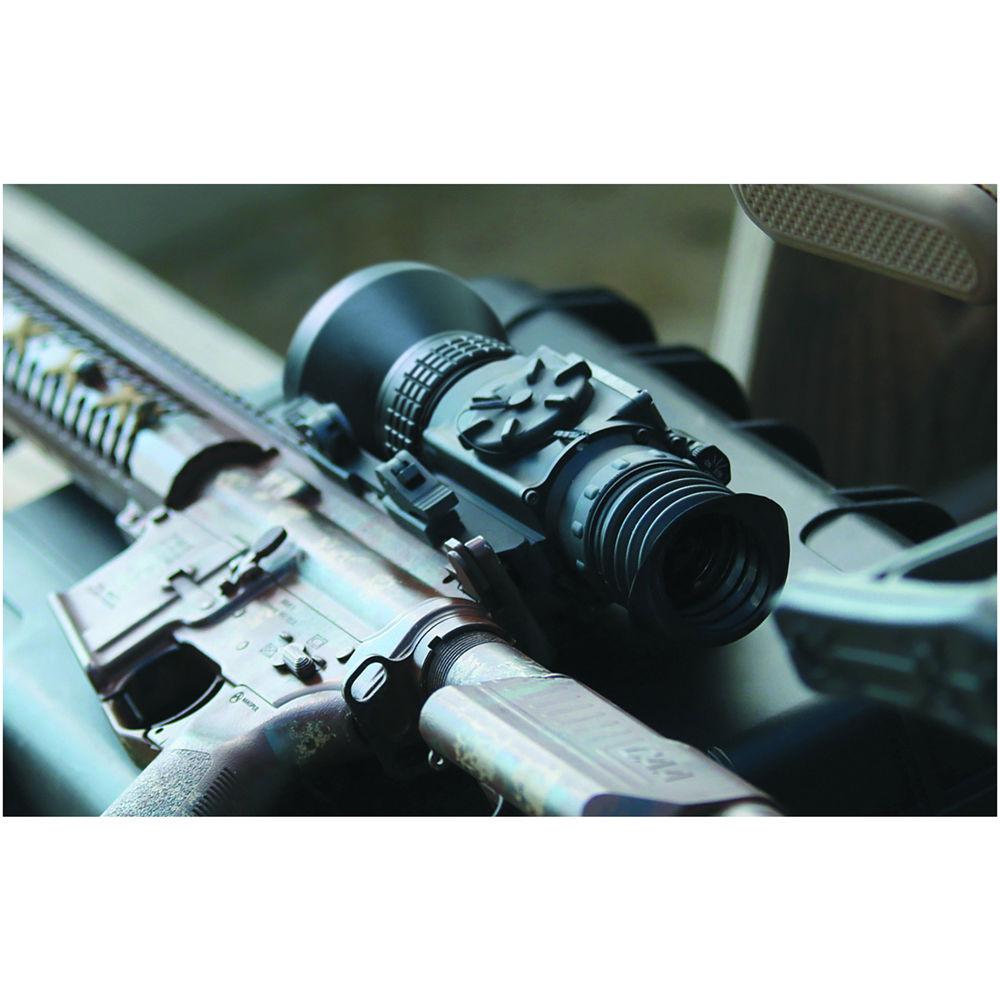

The scope is packaged into a lightweight, durable, compact, and ergonomic aluminum housing with a Picatinny/Weaver dual quick release mount. For attaching more accessories, the sight also carries a short Picatinny/Weaver rail on the right side. The PTS736 offers an impact-resistant construction and features an objective lens cover and a wide rubber eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Sensor
-
- 320 x 256 FLIR Boson VOx microbolometer
- 12µm pixel pitch
- LWIR (Long-Wave Infrared) spectral range
- 60 Hz refresh rate
- Display and Video Performance
-
- High-definition 1280 x 960 Quad-VGA FLCOS display
- Shot-activated video recording
- FLIR Proprietary Digital Detail Enhancement
- White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, and Outdoor Alert polarity modes
- Digital compass and inclinometer provide a precise range and target orientation
- USB Type-C video out port for digital video output
- Optical Performance
-
- 75mm, f/1.0 lens system
- 6x optical magnification
- 2x and 4x digital zoom
- 3.0 x 2.5° field of view
- 32.8' minimum focus distance
- +5 to -5 diopter adjustment
- 1.8" eye relief
- Use and Handling
-
- On, off, and standby modes

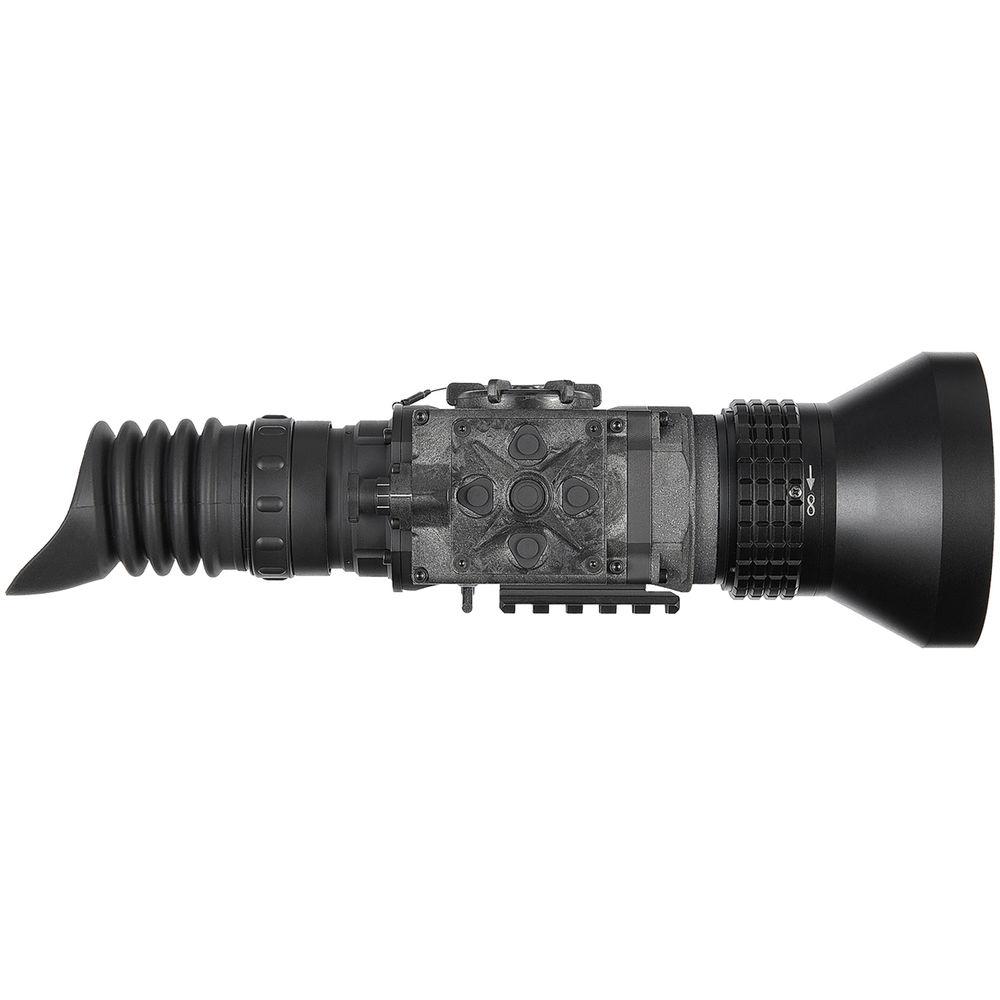

- Easy-to-use control pad
- Digital boresight adjustment

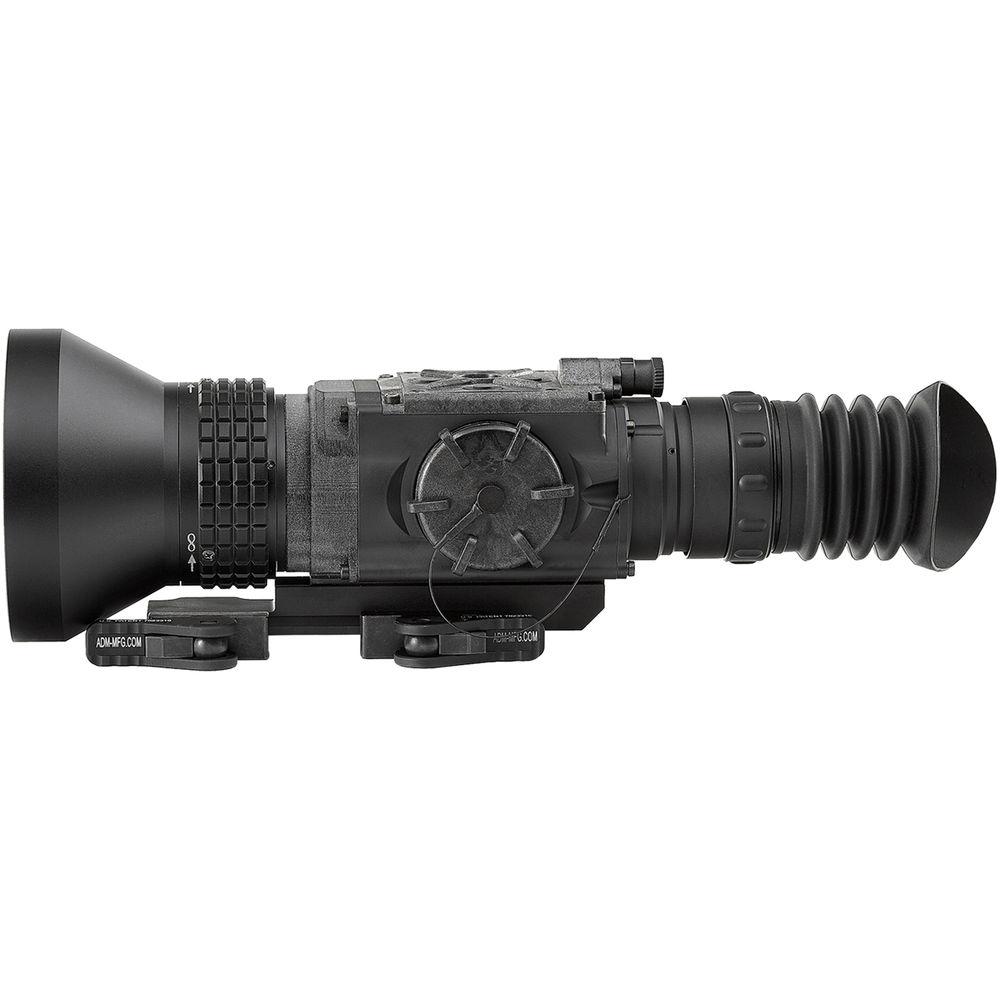

- Construction Details
-
- Compact and durable aluminum housing

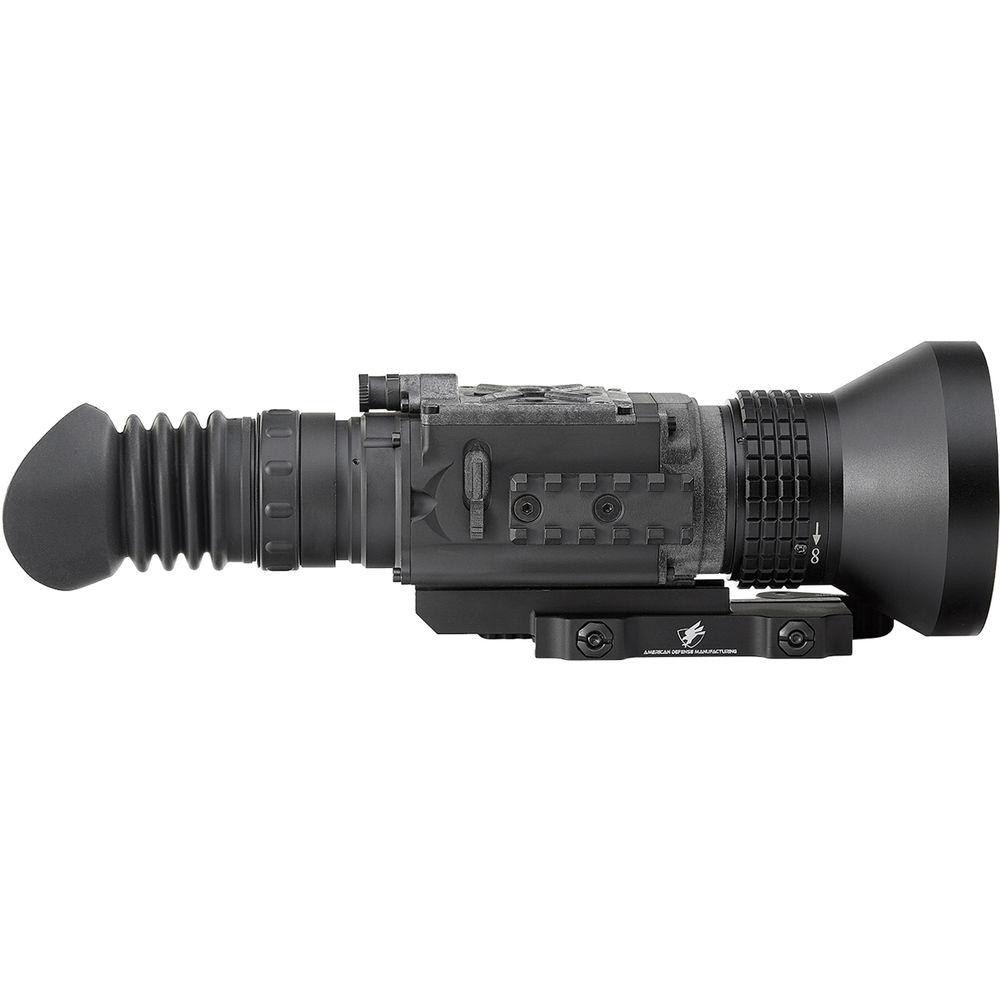

- Quick release Picatinny/Weaver mount
- Short accessory rail on the side
- Rubber winged eyecup
- Waterproof, rated IP67
- Impact resistant
- Digital Reticle
-

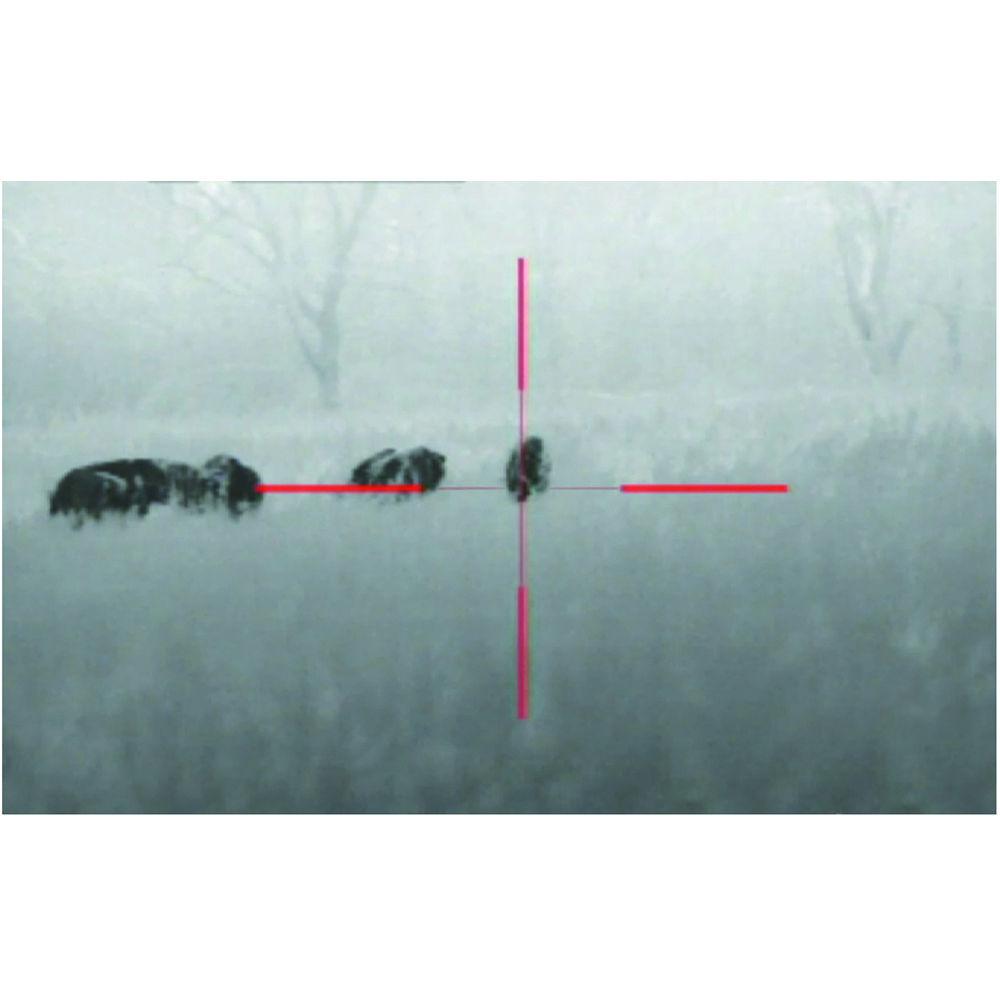

- Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and "No Reticle" options
- High Visibility Technology (HVT) improves visibility against any background
- Black, white, red, and cyan reticle colors
- Digital boresight
UPC: 849815007855 In the Box FLIR ThermoSight PTS736 Pro 6-24x75 Thermal Weapon Sight (60 Hz, Digital Multi-Reticle, Matte Black) - 2 x CR123A Batteries
- Lens Cover
- 2 x Battery Cassettes
- 3' USB Type-C Cable
- Hard Carrying Case
- Lens Cloth
- Limited 2-Year Warranty
- Limited 3-Year Warranty with Registration within 60 Days
- Limited 10-Year Warranty on Sensor with Registration within 60 Days
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR ThermoSight PTS736 Pro 6-24x75 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR ThermoSight PTS736 Specs | Thermal Sensor | 320 x 256 Boson VOx microbolometer | | Spectral Response | LWIR: Long-wave infrared | | Pitch | 12 μm | | Refresh Rate | 60 Hz | | Field of View (H x V) | 3.0 x 2.5° | | Lens System | 75mm, f/1.0 | | Eye Relief | 1.8" / 45 mm | | Magnification | 6x optical magnification
2x, 4x digital zoom | | Minimum Focus Distance | 32.8' / 10.0 m | | Diopter Adjustment | +5 to -5 | | Windage/Elevation Adjustment | Yes, digital | | Display | 1280 x 960, Quad-VGA FLCOS | | Video Out | Yes, digital via USB Type-C | | Internal Storage | Up to 1000 images
Up to 2.5 hours of video recording | | Image Processing | FLIR Proprietary Digital Detail Enhancement | | Image Modes | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, and Outdoor Alert | | Reticle | Type: Digital
Patterns: Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair
Color: Black, white, red, and cyan | | Battery / Runtime | 2 x CR123A lithium batteries / 4 hours | | External Power | USB Type-C Port: 5 VDC | | Weatherproofing | Waterproof, rated IP67 | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Mount | Picatinny/Weaver | | Dimensions | 11.1 x 3.7 x 3.5" / 28.3 x 9.3 x 8.9 cm
Height above Rail: 1.89" / 4.8 cm | | Weight | 2.14 lb / 970.0 g | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 13.9 x 12.5 x 6.4" |
