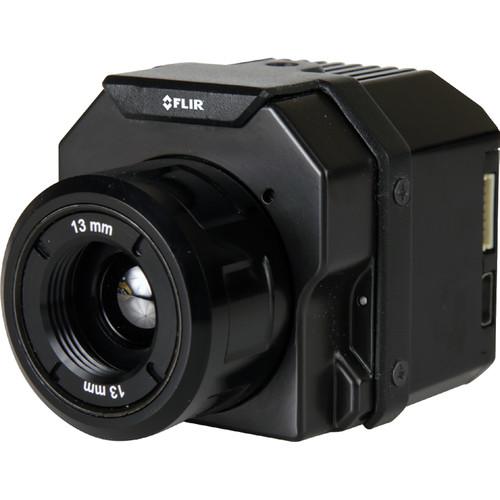

Product description FLIR Vue Pro R 336 Thermal Imaging Camera is a compact infrared imaging camera that can be attached to Small Unmanned Aircraft Systems (sUAS) for taking thermographic and radiometric aerial imaging. In addition to gathering infrared imagery and the ability to sense through fog and smoke, this version of camera can collect detailed radiometric data and non-contact temperature measurements from an aerial perspective. The 640 x 512 VOx microbolometer sensor delivers calibrated thermographic data embedded in every pixel of still images that it collects. This data can be later analyzed using the FLIR Tools or other optional software like ResearchIR, Matlab, ImageJ, Pix4D, and Drone Deploy. While in flight, you can control the camera via MAVLink (Micro Air Vehicle Link communicating protocol) flight controller and save video and images to an external micro-USB card. The collected data can also be extracted from the camera through a built-in mini-USB port.
For easy mounting to a drone, the housing offers several options such as a 1/4"-20 threaded socket, six M2 x 0.4 threaded holes (two on each side and on the bottom), and a detachable GoPro adapter with a snout mount. While mounted to your grounded aircraft, the camera can be easily configured wirelessly via its built-in low-power Bluetooth module using your iOS or Android device. While in air, the camera will allow operators to conduct search and rescue, agricultural surveying, and security missions at altitudes of up to 40,000'. - Applicators, Use, and Handling
-
- Optimized for radiometric areal thermography
- Captures accurate non-contact temperature measurements
- Saves images with calibrated temperature data embedded in every pixel
- Provides on-board recording and data storage on a microSD memory card
- Captures JPEG and radiometric R-JPEG images for analysis with thermography and reporting software
- Records 8-bit digital MJPEG or H.264 videos and 14-bit TIFF images
- MAVLink integration and camera control through the 7-pin mini-USB accessory port
- Allows remote control of camera functions like color palettes, recording, and e-zoom
- Built-in low-power Bluetooth module allows configuration using FLIR iOS/Android apps
- Applications involve search and rescue, agricultural surveying, and security
- Useful for inspections of roofs, power lines, substations, and cell towers
- Enables collecting of a temperature profile through smoke and fog
- Imaging & Optical Performance
-
- 640 x 512 VOx microbolometer
- 7.5 Hz refresh rate
- LWIR Spectral Range: 7.5 - 13.5μm
- Radiometric Range: 32 to 104°F
- Up to 4x digital zoom
- Focal Length: 19mm
- Field of View: 32 x 26°
- Minimum Focus: 6.0"
- Video, Digital Enhancements, Memory
-
- Image optimization for sUAS
- Region Of Interest (ROI) selector
- Digital Detail Enhancement (DDE)
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- JPEG photos and MJPEG videos
- Black hot/white hot, and other polarity modes
- Default NTSC video output
- Status and Bluetooth LEDs
- Audible status indicators
- 32GB microSD card included
- Construction Details
-
- Compact design
- Lightweight and durable housing
- Rated for altitudes up to 40,000'
- Six M2 x 0.4 threaded mounting holes
- 1/4"-20 mounting socket on the top
- GoPro adapter with snout mount
- Removable lens barrel nut
UPC: 812462021543 In the Box FLIR Vue Pro R 640 Thermal Imaging Camera (19mm Lens, 7.5 Hz, Matte Black) - 32GB microSD Card
- GoPro Adapter
- USB/Video Power Cable
- Limited 3-Year Warranty
- Limited 10-Year Warranty on Thermal Sensor
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Vue Pro R 640 Thermal Imaging Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR 436-0024-00S Specs | Array Configuration | 640 x 512 VOx microbolometer | | Pixel Pitch | 17 μm | | Spectral Range | Spectral Range: 7.5 - 13.5 μm
Radiometric Temperature Range: 32 to 104°F / 0 to 40°C | | Lens System | Focal Length: 19mm
Hyper Focal Distance: 31.4' / 9.5 m | | Field of View | Angular FOV: 32 x 26°
Instantaneous FOV: 0.9 MRAD | | Minimum Focus Distance | 6.0" / 153 mm | | Depth of Field | 15.8' / 4.8 m minimum | | Digital Zoom | Up to 4x | | Refresh Rate | 7.5 Hz | | Video Output | Default Format: NTSC
Factory-Configurable to PAL | | Video Formats | 8-Bit: MJPEG, H.264
14-Bit: TIFF-Seq | | Image Formats | 8-Bit: JPEG, R-JPEG, TIFF
14-Bit: TIFF | | Power Supply | 4.0 - 6.0 VDC | | Power Dissipation | 0.5-second Shutter Event: 2.5 W maximum
Steady State: <1.2 W | | Weatherproofing | No | | Operating Altitude | 40,000' / 12,192 m | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -67 to 203°F / -55 to 95°C | | Dimensions | 2.3 x 1.8" / 57.2 x 44.5 mm | | Weight | 3.3 - 4.0 oz / 93.6 - 113.4 g (configuration dependent) |
