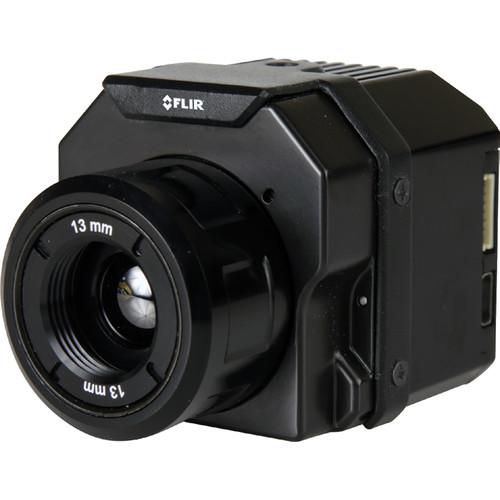

User Manual for FLIR Vue Pro R 640 Thermal Imaging Camera Click to enlarge the picture
Contents of the user manual for the FLIR Vue Pro R 640 Thermal
- Product category: Thermal Imagers FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Thermal Imagers
|
User manual for the FLIR Vue Pro R 640 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description FLIR Vue Pro R 640 Thermal Imaging Camera is a compact infrared imaging camera that can be attached to Small Unmanned Aircraft Systems (sUAS), such as drones, for taking thermographic and radiometric aerial imaging. In addition to gathering infrared imagery and the ability to sense through fog and smoke, this version can collect detailed radiometric data and non-contact temperature measurements from an aerial perspective. The 640 x 512 VOx microbolometer sensor delivers calibrated thermographic data embedded in every pixel of still images that it collects. This data can then be analyzed later using the FLIR Tools or other optional software like ResearchIR, Matlab, ImageJ, Pix4D, and Drone Deploy. While in flight, you can control the camera via the MAVLink (Micro Air Vehicle Link communicating protocol) flight controller and save video and images to an external micro-USB card. The collected data can also be extracted from the camera through a built-in mini-USB port.
For easy mounting to a drone, the housing offers several options such as a 1/4"-20 threaded socket, six M2 x 0.4 threaded holes (two on each side and on the bottom), and a detachable GoPro adapter with a snout mount. While mounted to your grounded aircraft, the camera can be easily configured wirelessly via its built-in low-power Bluetooth module using your iOS or Android device. While in air, the camera will allow operators to conduct search and rescue, agricultural surveying, and security missions at altitudes of up to 40,000'. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Applicators, Use, and Handling
-
- Optimized for radiometric areal thermography
- Captures accurate non-contact temperature measurements
- Saves images with calibrated temperature data embedded in every pixel
- Provides on-board recording and data storage on a microSD memory card
- Captures JPEG and radiometric R-JPEG images for analysis with thermography and reporting software
- Records 8-bit digital MJPEG or H.264 videos and 14-bit TIFF images
- MAVLink integration and camera control through the 7-pin mini-USB accessory port
- Allows remote control of camera functions like color palettes, recording, and e-zoom
- Built-in low-power Bluetooth module allows configuration using FLIR iOS/Android apps
- Applications involve search and rescue, agricultural surveying, and security
- Useful for inspections of roofs, power lines, substations, and cell towers
- Enables the collection of a temperature profile through smoke and fog
- Imaging & Optical Performance
-
- 640 x 512 VOx microbolometer
- 7.5 Hz refresh rate
- LWIR Spectral Range: 7.5 - 13.5μm
- Radiometric Range: 32 to 104°F
- Up to 4x digital zoom
- 9mm focal length lens system
- Field of view: 69 x 56°
- Minimum Focus: 1.3"
- Video, Digital Enhancements, Memory
-
- Image optimization for sUAS
- Region of Interest (ROI) selector
- Digital Detail Enhancement (DDE)
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- JPEG photos and MJPEG videos
- Black hot/white hot, and other polarity modes
- Default NTSC video output
- Status and Bluetooth LEDs
- Audible status indicators
- 32GB microSD card included
- Construction Details
-
- Compact design
- Lightweight and durable housing
- Rated for altitudes up to 40,000'
- Six M2 x 0.4 threaded mounting holes
- 1/4"-20 mounting socket on the top
- GoPro adapter with snout mount
- Removable lens barrel nut
UPC: 812462021505 In the Box FLIR Vue Pro R 640 Thermal Imaging Camera (9mm Lens, 7.5 Hz, Matte Black) - 32GB microSD Card
- GoPro Adapter
- USB/Video Power Cable
- Limited 3-Year Warranty
- Limited 10-Year Warranty on Thermal Sensor
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Vue Pro R 640 Thermal Imaging Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR 436-0022-00S Specs | Array Configuration | 640 x 512 VOx microbolometer | | Pixel Pitch | 17 μm | | Spectral Range | Spectral Range: 7.5 - 13.5 μm
Radiometric Temperature Range: 32 to 104°F / 0 to 40°C | | Lens System | Focal Length: 9mm
Hyper Focal Distance: 6.9' / 2.1 m | | Field of View | Angular FOV: 69 x 56°
Instantaneous FOV: 1.9 MRAD | | Minimum Focus Distance | 1.3" / 32.0 mm | | Depth of Field | 3.6' / 1.1 m minimum | | Digital Zoom | Up to 4x | | Refresh Rate | 7.5 Hz | | Video Output | Default Format: NTSC
Factory-Configurable to PAL | | Video Formats | 8-Bit: MJPEG, H.264
14-Bit: TIFF-Seq | | Image Formats | 8-Bit: JPEG, R-JPEG, TIFF
14-Bit: TIFF | | Power Supply | 4.0 - 6.0 VDC | | Power Dissipation | 0.5 second Shutter Event: 2.5 W maximum
Steady State: <1.2 W | | Weatherproofing | No | | Operating Altitude | 40,000' / 12,192 m | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -67 to 203°F / -55 to 95°C | | Dimensions | 2.3 x 1.8" / 57.4 x 44.5 mm | | Weight | 3.25 - 4.0 oz / 92.1 - 113.4 g (configuration dependent) |
