User Manual for FLIR Vue Pro Thermal Imaging Camera for Commercial sUAS with 6.8mm Lens Click to enlarge the picture
Contents of the user manual for the FLIR Vue Pro Thermal Imaging Camera
- Product category: Drones & Aerial Imaging FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Drones & Aerial Imaging
|
User manual for the FLIR Vue Pro Thermal Imaging Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

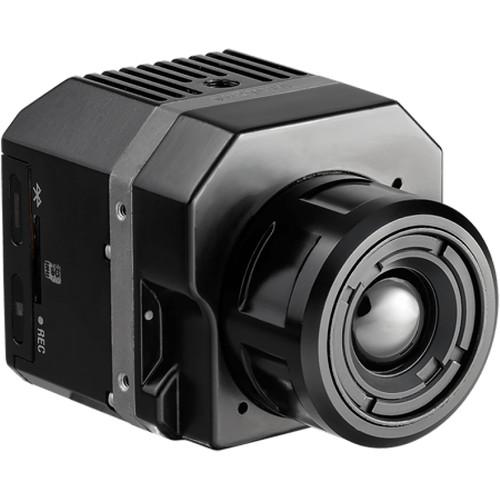

Product description FLIR Vue Pro is a compact thermal-imaging camera that features internal recording capability for use on small commercial UAS (unmanned aerial systems). It includes a 6.8mm lens and captures 336 x 256 resolution images at 30 Hz in NTSC mode. The camera is designed for plug-n-play operation and features Wi-Fi and Bluetooth to enable access to advanced settings as well as remote camera control in the field. There is also a desktop GUI you can use when a computer is available. A PWM port allows the camera to integrate with the host UAV's flight control system. It is then possible to operate the camera via the transmitter. An all-purpose mini-USB port enables data transfer from the card, powering the camera, and video output. Accepting 5 VDC power, Vue Pro can be adapted to power from the main flight battery with a suitable BEC installed. - On-Board Recording
- Vue Pro records 8-bit digital video in MJPEG or H.264 formats along with 14-bit still imagery to a separately available microSD card. Data from the card can be retrieved either using a card reader or by connecting the camera directly to a computer using USB
- Camera Control
- An accessory port gives you access to two camera controls using PWM commands, so you can select color palettes, start and stop recording, or trigger the camera's electronic zoom in-flight using you transmitter (radio controller). Support for MAVLink is expected in the near future
- Field Configurable
- Vue Pro comes with a built-in Bluetooth module so you can easily configure your camera using an iOS or Android mobile device. Change color palettes, set your image optimization features, configure your PWM inputs, and start recording all without lugging a computer to the field
- Compact Form Factor
- Weighing around 4 ounces in its heaviest configuration, the Vue Pro is designed for use on smaller UAS platforms, such as those designed to carry an action camera. Flexible mounting points mean you can statically mount the camera or use a gimbal
- Unified 10-Pin USB Connector
- 5 VDC power in, SD card data I/O, and video output all flow through a single, GoPro-style 10-pin mini-USB interface. The pinout configuration is provided in camera documentation to help make creation of custom solutions simpler
- Flexible Mounting
- The Vue Pro features a pair of M2x0.4 mounting holes on each side as well as the bottom and a 1/4"-20 threaded socket on top. Whether you want to static-mount it or put it on a brushless gimbal, Vue Pro can do the job
- Plug-n-Play Operation
- The Vue Pro is designed to work out of the box, without any advanced configuration required. However, if you do require custom settings, just download the Camera Controller GUI from the FLIR website to tap the camera's full potential
UPC: 812462021116 In the Box FLIR Vue Pro Thermal Imaging Camera for Commercial sUAS with 6.8mm Lens (30 Hz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial sUAS with 6.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR 436-0013-00 Specs | | | Imager | Uncooled VOx Microbolometer | | Spectral Band | 7.5 to 13.5 μm | | Resolution | 336 x 256 | | Frame Rate | NTSC: 30 Hz
PAL: 25 Hz
Note: For U.S. only. Not for export | | Lens | Focal Length: 6.8mm
Angle of View: 45 x 35°
Minimum Focus Distance: 1" / 2.5 cm
Hyperfocal Distance: 3.9' / 1.2 m
Minimum Focus Depth of Field: 2' / 0.6 m | | Image Processing | Digital Detail Enhancement: Yes (adjustable via GUI)
Image Inversion: Yes (adjustable via GUI)
Polarity Control (black hot/whitehot): Yes (adjustable via GUI)
Color Palettes: Yes (adjustable via GUI) | | Recording Media | microSD | | File Formats | Video: MJPEG, H.264 | | | | Connectivity | 1 x mini-USB for power, data I/O, and video out
1 x PWM control port
Bluetooth LE
Wi-Fi | | Mounting Holes | Two M2x0.4 on each of two sides & bottom
One 1/4"-20 threaded hole on top | | Power Requirements | 4.0 to 6.0 VDC | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -67 to 203°F / -55 to 95°C | | Operating Altitude | Up to 40,000' / 12,192 m | | Dimensions | 2.26 x 1.75" / 57.4 x 44.4 mm (including lens) | | Weight | 3.25 to 4 oz / 92.1 to 113.4 g (configuration dependent) | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 7.2 x 4.4 x 2.95" |
