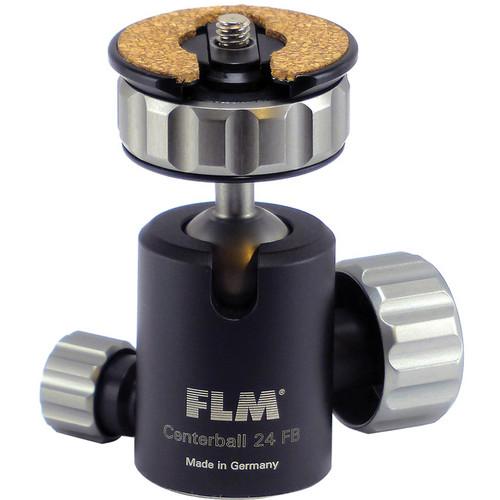

User Manual for FLM CB-24FB Ball Head with PRB-45 Quick Release System Click to enlarge the picture
Contents of the user manual for the FLM CB-24FB Ball Head with PRB-45
- Product category: Tripod Heads FLM
- Brand: FLM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLM Tripod Heads
|
User manual for the FLM CB-24FB Ball Head with PRB-45 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLM product will considerably shorten its lifespan!
|
Product description This unique kit by FLM consists of the CB-24FB Ball Head paired with the PRB-45 Quick Release System, which includes the PRB-45 clamp and PRP-45 quick release plate.
The CB-24FB is a compact ball head designed to retain the functionality of its larger siblings, while remaining small enough to fit comfortably into a travel-friendly set-up. Standing just 3.2" tall and weighing only 0.5 lb, the head features an impressive load capacity of 33.1 lb. It also utilizes a dual-lock design with friction control that allows the user to adjust the ball's position and the 360° panning base separately. A 3/8"-16 bottom thread has been incorporated in order to maintain compatibility with most common tripod legs.
With the 1/4"-20 quick release plate attached, your camera easily slides into the integrated PRB45 base and is locked in place by tightening the silver ring. A cork coating on the QR base protects your camera body from scratches and prevents the camera from sliding while adjusting its position. - A locking knob controls 360° panning and tilting, while a separate friction knob controls how freely the ball moves.
- The ball head can be mounted to a tripod, monopod or any other support with a 3/8"-16 male thread.
- A notch in the head allows the camera to tilt 90° to shoot in portrait orientation.
- With the 1/4"-20 quick release plate attached, your camera slides into the PRB-45 base and is secured by tightening the silver ring.
- A cork coating on the base protects your camera body and prevents it from sliding while panning or tilting.
In the Box FLM CB-24FB Ball Head with PRB-45 Quick Release System PRP-45 Quick Release Plate for PRB-45 Base tbvqfbbrerudzfdaezcsruabwdcyxutu Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLM CB-24FB Ball Head with PRB-45 Quick Release System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLM CB-24 FB Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 33.1 lb / 15 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Ball Sphere Diameter | 0.9" / 24 mm | | Base Diameter | 1.4" / 35 mm | | Dimensions | H: 3.2" / H: 81.0 mm | | Weight | 8.0 oz / 227.0 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.488 x 3.701 x 2.52" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
