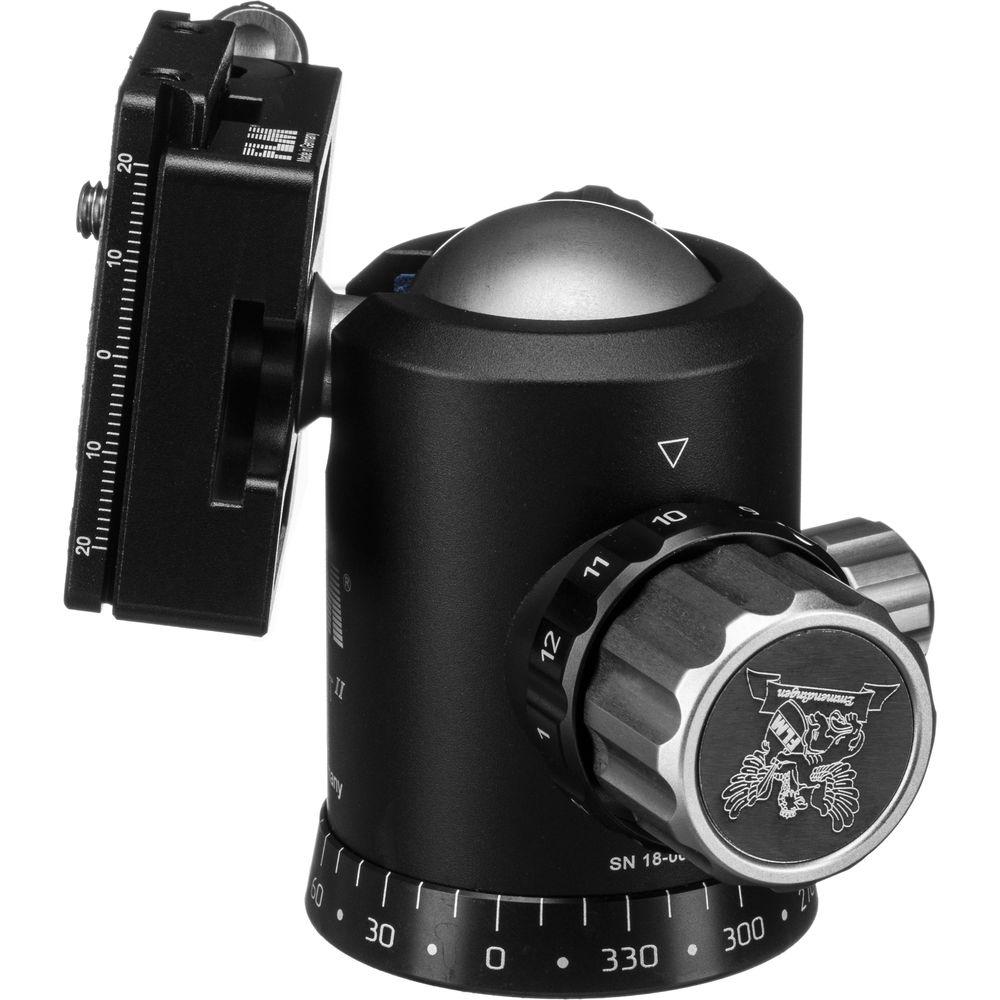

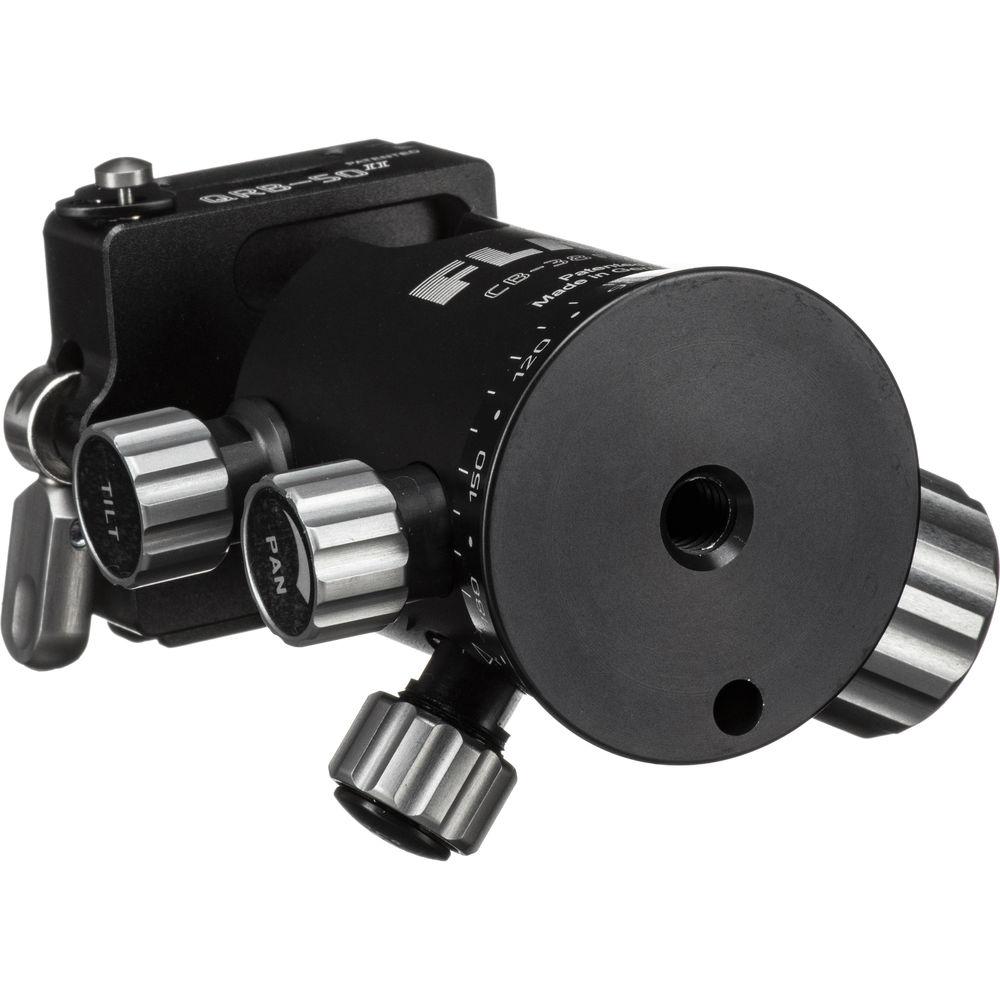

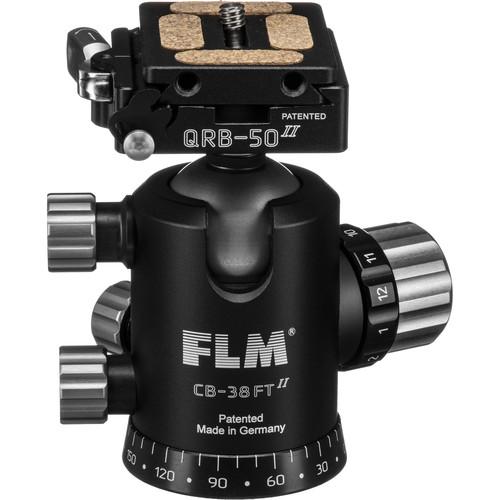

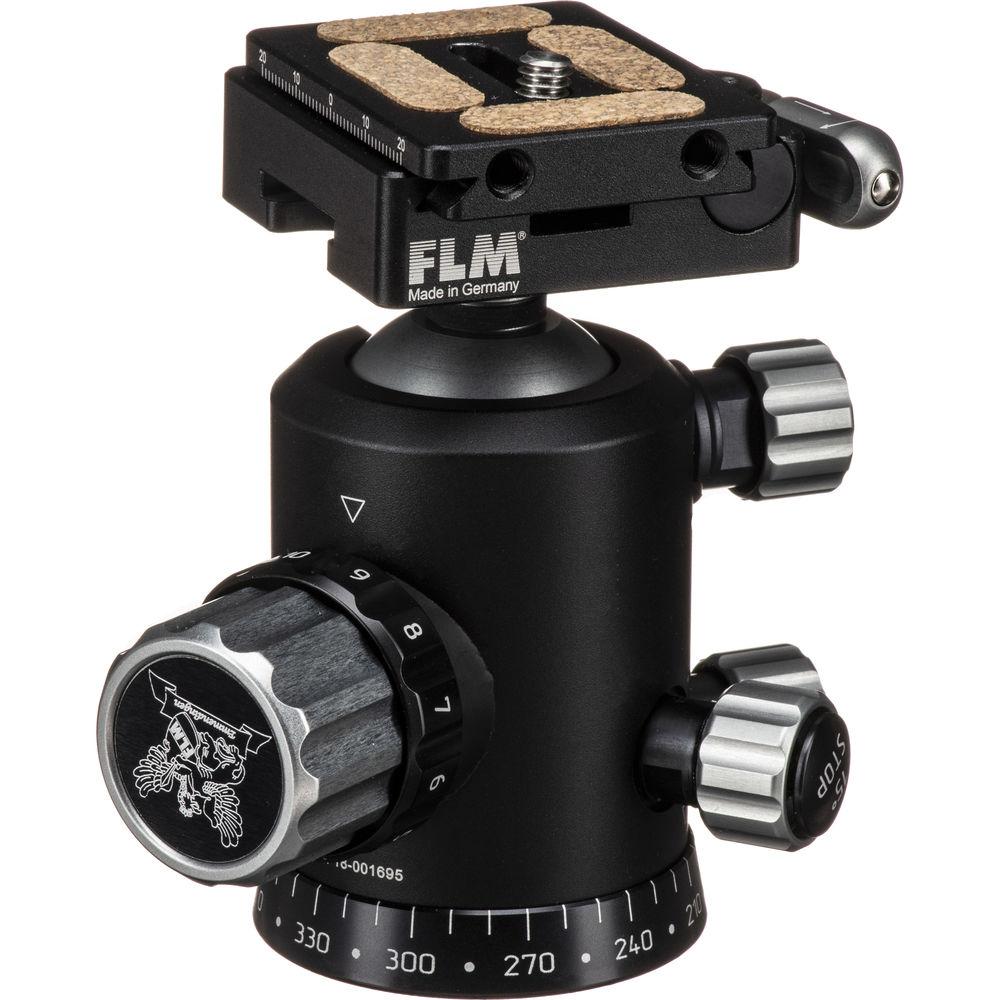

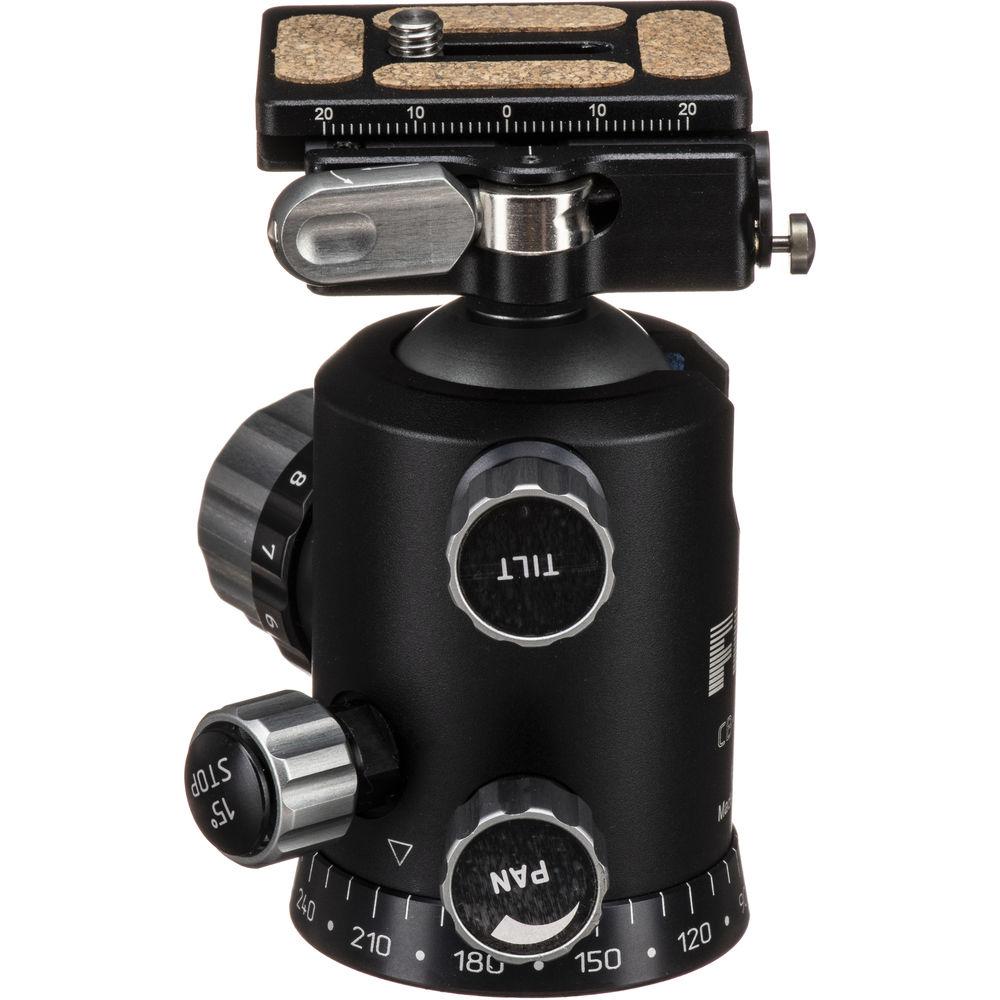

Product description The CB-38 FTR Ball Head with QRP-50 Quick Release System from FLM is an aluminum alloy ball head that can support 55.1 lb. It has three locking knobs; one controls 360° panning and one controls the amount of friction and movement of the ball. The third knob controls FLM's patented tilt function. When the tilt function is activated, the ball moves along a straight line and acts as a tilt head. When the function is deactivated, you have full control over the movement of the ball in all directions.The quick release system includes a dovetail clamp and plate with laser engraved scale numbers on the side so you can adjust your camera fore and aft by 25mm. The plate clicks into the base from above and is secured by the locking pin so you can adjust the base and then lock it into place by turning the locking lever. This prevents your camera from sliding out of the clamp while you're adjusting the camera's location. All parts are sourced and manufactured in Germany. - While panning, the PRS system locks your head every 15° and makes an audible click.
- A quick locking mechanism at 0° allows you to quickly attach or remove the head to or from your tripod.
- A notch in the head allows the camera to tilt 90° to shoot in portrait orientation.
UPC: 053661002388 In the Box FLM CB-38 FTR Ball Head with QRP-50 Quick Release System QRP-50 Quick Release Clamp and Plate rauusssayyvxddafavzqtfvavwwx Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLM CB-38 FTR Ball Head with QRP-50 Quick Release System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLM 12 38 909 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | QRP-50 | | Load Capacity | 55.1 lb / 25.0 kg | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Ball Sphere Diameter | 1.5" / 38 mm | | Dimensions | H: 3.5" / H: 90.0 mm | | Weight | 1.0 lb / 436.0 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 5.1 x 4.5 x 3.7" |
