User Manual for FLM CB-48 FTR Ball Head with QRP-70 Quick Release System Click to enlarge the picture
Contents of the user manual for the FLM CB-48 FTR Ball Head with
- Product category: Tripod Heads FLM
- Brand: FLM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLM Tripod Heads
 |
User manual for the FLM CB-48 FTR Ball Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLM product will considerably shorten its lifespan!
|

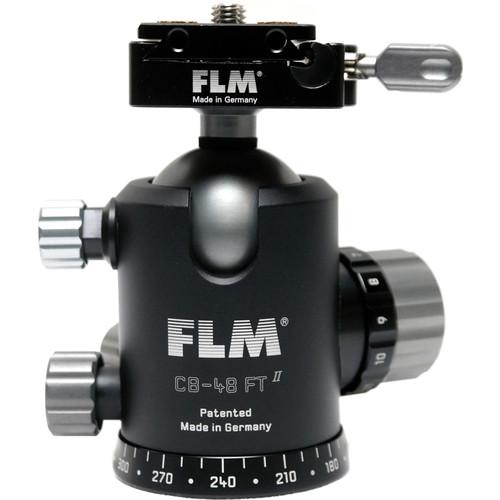

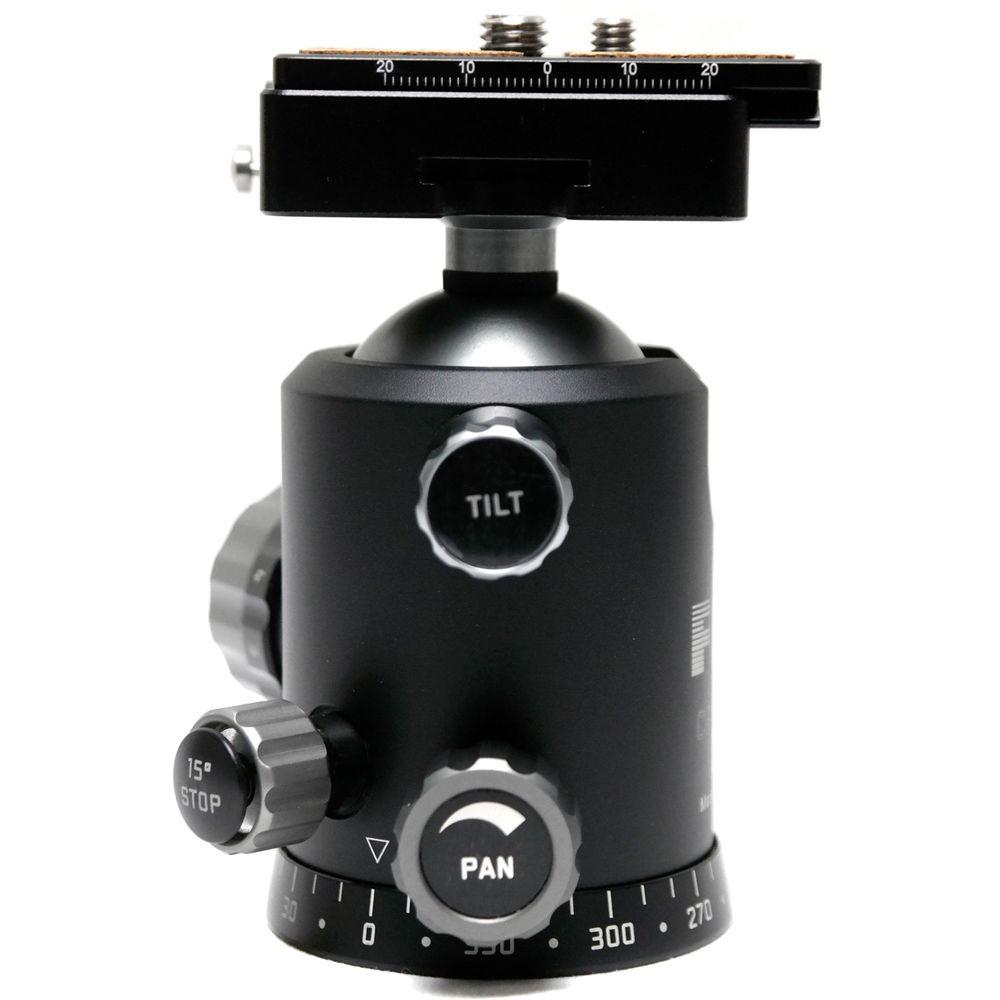

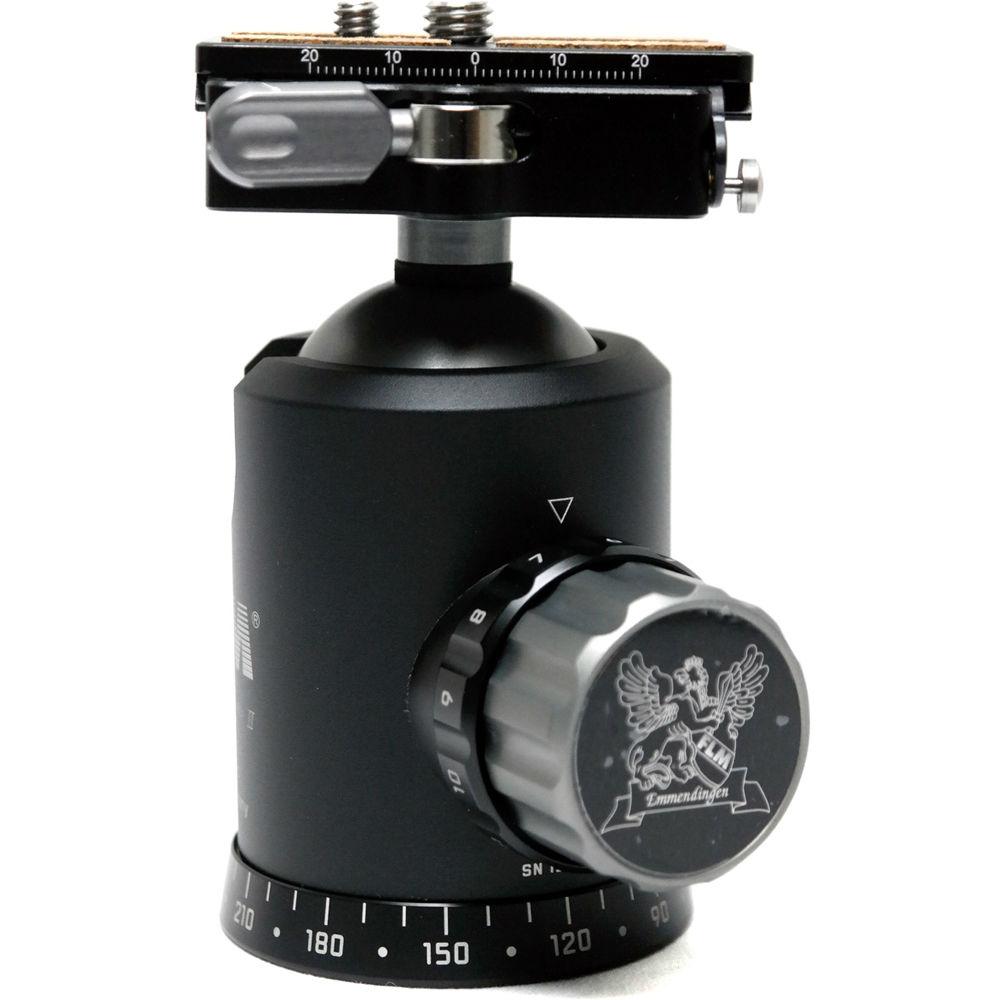

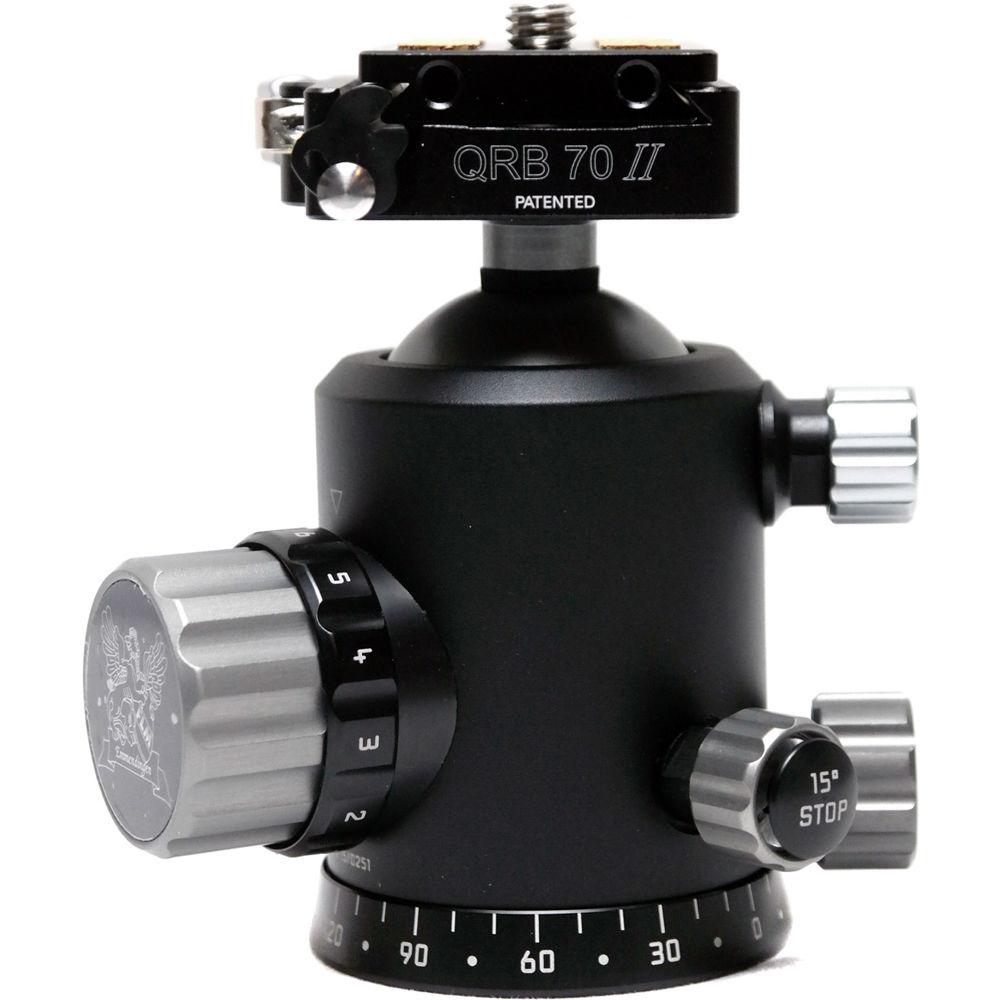

Product description The CB-48 FTR Ball Head with QRP-70 Quick Release System from FLM is an aluminum alloy ball head that can support 99.2 lb. It has three locking knobs; one controls 360° panning and one controls the amount of friction and movement of the ball. The third knob controls FLM's patented tilt function. When the tilt function is activated, the ball moves along a straight line and acts as a tilt head. When the function is deactivated, you have full control over the movement of the ball in all directions.The quick release system includes a dovetail clamp and plate with laser engraved scale numbers on the side so you can adjust your camera fore and aft by 40mm. The plate clicks into the base from above and is secured by the locking pin so you can adjust the base and then lock it into place by turning the locking lever. This prevents your camera from sliding out of the clamp while you're adjusting the camera's location. All parts are sourced and manufactured in Germany. - While panning, the PRS system locks your head every 15° and makes an audible click.
- A quick locking mechanism at 0° allows you to quickly attach or remove the head to or from your tripod.
- A notch in the head allows the camera to tilt 90° to shoot in portrait orientation.
In the Box FLM CB-48 FTR Ball Head with QRP-70 Quick Release System QRP-70 Quick Release Clamp and Plate twytxzqfvxsctarvcadxaxcscru Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLM CB-48 FTR Ball Head with QRP-70 Quick Release System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLM CB-48 FTR Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Quick Release Plate Type | QRP-70 | | Load Capacity | 99.2 lb / 45.0 kg | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Ball Sphere Diameter | 1.9" / 48 mm | | Dimensions | H: 3.9" / H: 99.0 mm | | Weight | 1.3 lb / 593.0 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 5.1 x 4.6 x 3.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
