User Manual for FLM CP30-L3 Pro Tripod and CB-48FTR Ball Head with SRB 60 Arca-Type Clamp Click to enlarge the picture
Contents of the user manual for the FLM CP30-L3 Pro Tripod and CB-48FTR
- Product category: Tripods with Heads FLM
- Brand: FLM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLM Tripods with Heads
 |
User manual for the FLM CP30-L3 Pro Tripod and CB-48FTR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLM product will considerably shorten its lifespan!
|

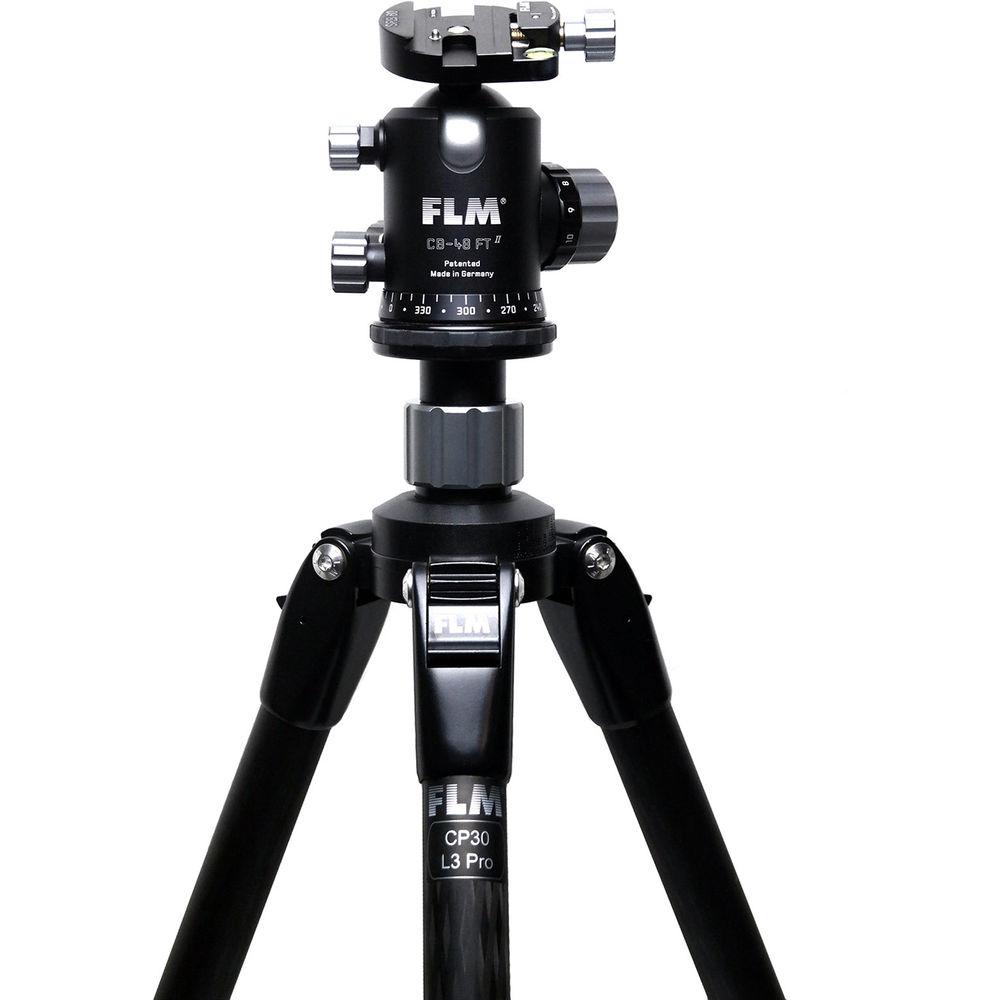

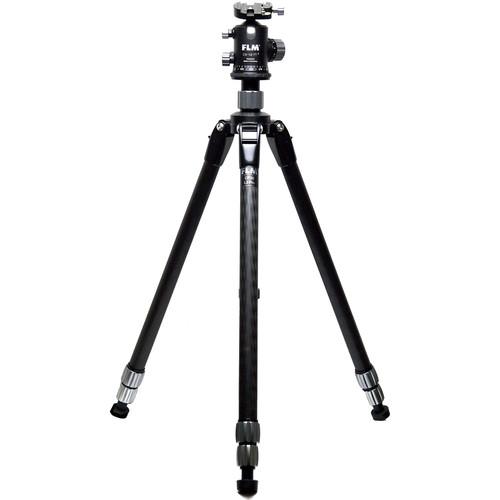

Product description Time-Lapse Tips and Tools Read More This FLM Tripod and Ball Head Kit includes a CP30-L3 Pro Tripod that supports up to 33.1 lb, and measures 24.0" when folded. Each of its 3-section legs features an independent spread, a 3-position angle lock, and twist locks for rapid deployment. The tripod can be set at a minimum height of 25.6", or 4.7" without its removable, push-and-pull, rapid center column. Together, the three legs can be extended to obtain a maximum height of 57.1", or 68.1" when used with the center column fully raised. To further enhance stability on a wide variety of surfaces, including soft and uneven soil, each of the carbon-fiber legs includes a rubber foot with a twist-out, metal spike.
Tripod heads or accessories with 1/4"-20 or 3/8"-16 female accessory threads can be directly connected to either of the included, interchangeable mounts for the center column. For added versatility, the center column itself is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them.

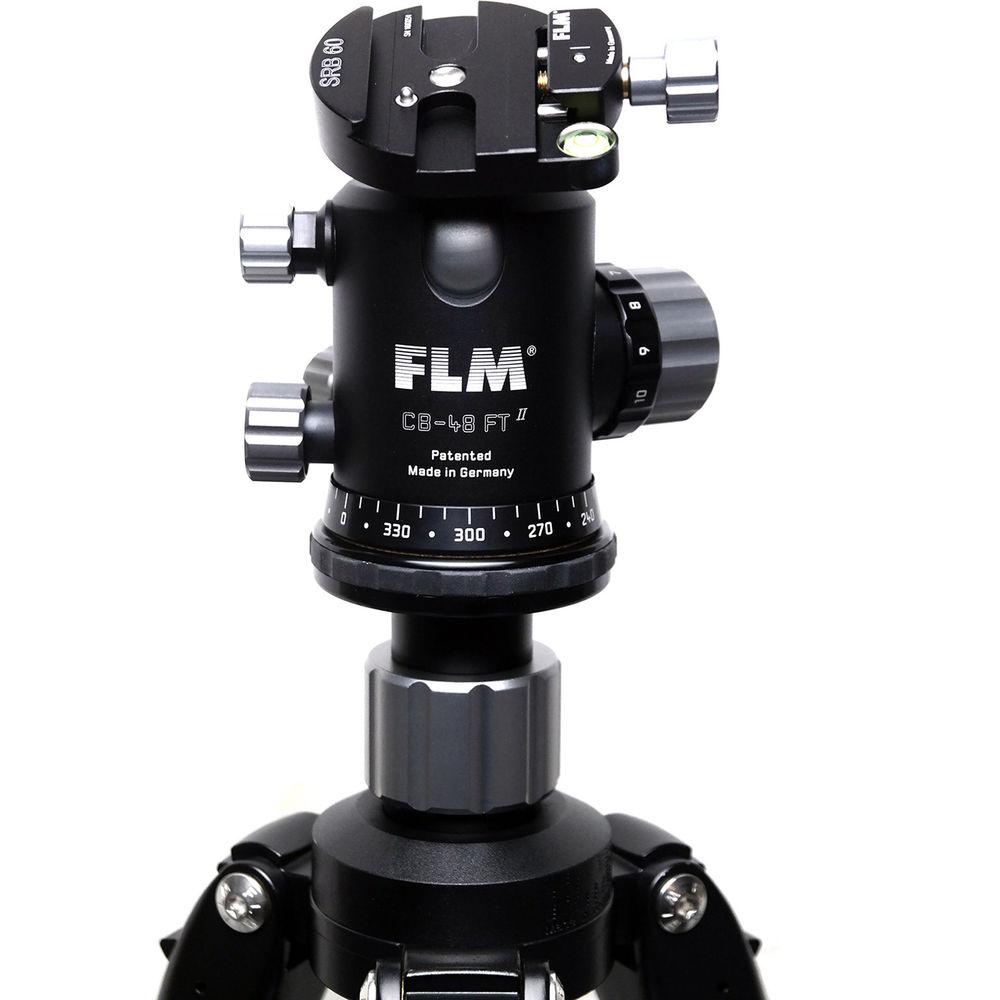

Also provided is a CB-48FTR Ball Head that can be attached to tripods or other support systems that feature a 3/8"-16 mount. Separately-available Arca-type quick release plates can be attached or removed from the integrated SRB 60 clamp located at the top of the ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. A bubble level is integrated within the locking knob's rosette. For use in the landscape orientation, an additional bubble level is included along the top surface of the clamp.
Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed quick release plate from accidentally sliding off when the clamp is opened. Adjacent surface grooves complement the retaining pin by improving the efficacy of retaining screws installed on the bottom of some Arca-type plates. When used, such screws can also serve to prevent the Arca-type plate from accidentally sliding off when the clamp it is placed on is opened.
The CB-48FTR Ball Head has a load capacity of 99.2 lb. By loosening the ball head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Up to twelve levels of pressure can be applied to the ball-and-socket joint's movements by rotating the numbered tension ring located around the primary locking knob. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. Near the top of the ball head is another locking knob that enhances the ability to tilt the ball-and-socket joint in a precise and level manner by restricting all other lateral movements. Finally, a dual-function knob below the rotational locking knob can be used to activate the ball head's ability to generate audible and tactile clicks at 15° intervals. Useful when capturing a sequence of images that are intended to be aligned and merged into a single panoramic photo, those clicks can be used to ensure that images within a sequence sufficiently overlap to form a panorama. The dual-function knob can also serve to quickly lock the head against its rotating base, so that when the ball head is turned, it can be screwed onto or unscrewed from a tripod or support system, rather than rotating in place. - Tripod
-
- Supports up to 33.1 lb
- Removable, push-and-pull center column with ballast hook for rapid camera, lens, or sport optic positioning
- Can be set for a minimum height of 25.6", or 4.7" without the center column
- All three legs can be extended in the tripod configuration to obtain a maximum height of 57.1", or 68.1" when used with the center column fully raised
- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature three sections, an independent spread, a 3-position angle lock, and a twist lock for rapid deployment
- Rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Weighs 3.9 lb and measures 24.0" when all three legs are reversed 180° and folded
- Interchangeable, center column mounts for tripod heads or accessories with 1/4"-20 or 3/8"-16 female accessory threads
- Two hex keys to install or remove interchangeable mounts for center column
- Drawstring pouch for storage and transport
- Ball Head
-
- 99.2 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Numbered tension ring located around the primary locking knob applies up to 12 levels of pressure on the ball-and-socket joint's movements
- Secondary locking knob with knurled surface allows head to rotate 360°
- For precise and level tilting, a tertiary locking knob restricts all other lateral movements for the ball-and-socket joint
- Dual-function control knob activates the ball head's ability to generate audible and tactile clicks at 15° intervals
- Clicks can be used to ensure that images as part of a sequence sufficiently overlap to form a panorama
- Dual-function control knob can also serve to quickly lock the ball head against its rotating base, so that when the ball head is turned, it can be screwed onto or unscrewed from a tripod or support system, rather than rotating in place
- Integrated, SRB 60 clamp on top of on the ball-and-socket joint is compatible with a separately-available Arca-type quick release plate
- Clamp includes two built-in bubble levels to accommodate landscape or portrait orientations
- Integrated retaining pin on the clamp prevents a quick release plate from accidentally sliding off when the clamp is opened
- Surface grooves complement the retaining pin by improving the efficacy of retaining screws installed on the bottom of some Arca-type plates that also serve to prevent an Arca-type plate from accidentally sliding off when the clamp it is placed on is opened
- Durable, aluminum-alloy construction
In the Box FLM CP30-L3 Pro Tripod and CB-48FTR Ball Head with SRB 60 Arca-Type Clamp Drawstring Pouch 1/4"-20 Center Column Mount 3/8"-16 Center Column Mount Hex Key for 1/4"-20 Center Column Mount Hex Key for 3/8"-16 Center Column Mount Limited 10-Year Warranty User Guide PDF 712.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the FLM CP30-L3 Pro Tripod and CB-48FTR Ball Head with SRB 60 Arca-Type Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLM CP30-L3 Pro Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Quick Release Plate Type | Arca-Type | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Ball Sphere Diameter | 1.9" / 4.8 cm | | | | Load Capacity | 33.1 lb / 15 kg | | Maximum Working Height | 68.1" / 173 cm | | Max Height without Center Column | 57.1" / 145 cm | | Minimum Working Height | 4.7" / 11.9 cm | | Folded Length | 24" / 61 cm | | Materials | Aluminum Alloy, Carbon Fiber | | Weight | 3.9 lb / 1.8 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Retractable, Spiked | | | | Center Column Features | Ballast Hook | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 25.0 x 5.2 x 5.1" |
