User Manual for Flolight 1 x FL-110AWT 2 x FL-220AWT Fluorescent 3-Light Kit Click to enlarge the picture
Contents of the user manual for the Flolight 1 x FL-110AWT 2 x
- Product category: Fluorescent Lights Flolight
- Brand: Flolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Flolight Fluorescent Lights
|
User manual for the Flolight 1 x FL-110AWT 2 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Flolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Flolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Flolight product will considerably shorten its lifespan!
|

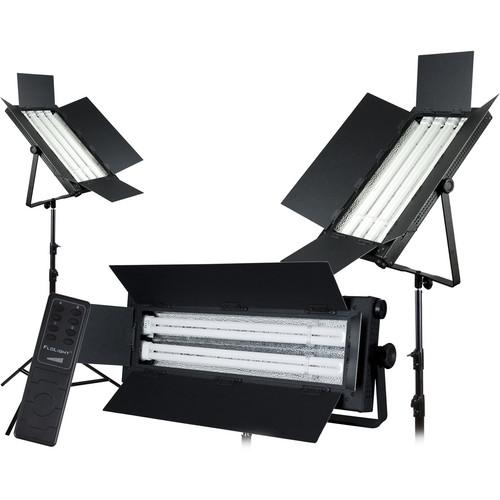

Product description The 3000K 1 x FL-110AWT / 2 x FL-220AWT Fluorescent 3-Light Kit by Flolight is a great way for single shooters or small production companies to take studio quality lighting on the road. The FL-110AWT fixture outputs the hot light equivalent of 500W while drawing very little power. The two included FL-220AWTs also operate on very little power but output double the amount of light as the FL-110AWT or the hot light equivalent of 1000W. A padded carrying case and an 8.0' light stand is included for each light as is a light stand bag for the three stands. The 3000K Flolight FL-110AWT Fluorescent Video Light with Wireless Dimming is a great choice for a studio fixture when high output, low running cost, and soft light are priorities. The FL-110AWT uses two 55W fluorescent lamps to give you an impressive 500W hot light equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 106.2W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hot lights you used turned your studio into a sauna. And with a lamp life of about 8000 hours the FL-110AWT is practically maintenance free. The Flolight FL-220AWT Fluorescent Video Light with Wireless Dimming (3000K) is a great choice for a studio fixture when high output, low running cost and soft light are priorities. The FL-220AWT uses four 55W fluorescent lamps to give you an impressive 1000W hot light equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 193.5W. That means that you'll save money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hot lights you used turned your studio into a sauna. You can also work closer to the talent without discomfort or fear of injury. And with a lamp life of about 10,000 hours the FL-220AWT is practically maintenance free. In situations where low light is required the built in 30-100% dimmer on both the FL-110AWT and the FL-220AWT allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. The fixtures come with lamps and 2 yokes to offer you a choice of vertical or horizontal mounting. - Fluorescents give naturally soft, even light. The included slide in diffusers provide an even softer light.
- The FL-110AWT and the FL-220AWT are perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-110AWT utilizes two 55W Biax lamps. The FL-220AWT utilizes four 55W Biax lamps.
UPC: 812689013697 In the Box Flolight 1 x FL-110AWT / 2 x FL-220AWT Fluorescent 3-Light Kit (3000K) FL-110AWT Fluorescent Fixture 2 x 55W Biax Lamps for FL-110AWT Fluorescent Fixture 2 x Yokes for FL-110AWT Remote Control for FL-110AWT Diffusion Cloth for FL-110AWT 2 x FL-220AWT Fluorescent Light (3000K) 3 x FL-LSMD Light Stand (8') 3 x Carrying Bag for Lights Light Stand Bag (Black) Limited 1-Year Warranty (Excluding Lamps) Table of Contents
|
Upload User Manual
Have you got an user manual for the Flolight 1 x FL-110AWT 2 x FL-220AWT Fluorescent 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlolight KIT-FL-220AWT3 Specs | Lamps | FL-110AWT: 2 x 55 W fluorescent
FL-220AWT: 4 x 55 W fluorescent | | Color Temperature | FL-110AWT: 3000K tungsten
FL-220AWT: 3000K tungsten | | CRI | FL-110AWT: 95
FL-220AWT: 95 | | Rating | FL-110AWT: 500 W hot light equivalent (with both lamps on)
FL-220AWT: 1000 W hot light equivalent (with both lamps on) | | Lamp Life | FL-110AWT: 10,000 hours
FL-220AWT: 10,000 hours | | Ballast | FL-110AWT: In fixture
FL-220AWT: In fixture | | Photometrics | FL-110AWT:
Lux Feet:
1770 at 3.0' / 091 m
500 at 6.0' / 1.8 m
245 at 9.0' / 2.7 m
Lux meters:
1430 at 3.28' / 1.0 m
420 at 6.5' / 2.0 m
209 at 9.8' / 3.0 m
FL-110AWT:
Lux Feet:
2680 at 3.0' / 0.91 m
783 at 6.0' / 1.8 m
379 at 9.0' / 2.7 m
Lux Meters:
2270 at 3.28' / 1.0 m
660 at 6.5' / 2.0 m
324 at 9.8' / 3.0 m | | Mounting | FL-110AWT: 2 yokes provided: horizontal or vertical mount
FL-220AWT: 2 yokes provided: horizontal or vertical mount | | Input Voltage | FL-110AWT: 100-130 VAC at 50-60 Hz, 0.8 A at 116 VAC
FL-220AWT: 100-130 VAC at 50-60 Hz, 0.8 A at 116 VAC | | Frequency Range | FL-110AWT: 25-50 kHz
FL-220AWT: 25-50 kHz | | Wireless Range | FL-110AWT: 19' / 15 m
FL-220AWT: 19' / 15 m | | Wireless Frequency | FL-110AWT: 315 MHz, signal strength: 0.4 W
FL-220AWT: 315 MHz, signal strength: 0.4 W | | Dimming | FL-110AWT: Yes, wireless | | Power Draw | FL-110AWT: 106.2 W at 116 VAC
FL-220AWT: 193.5 W at 116 VAC | | Dimensions | FL-110AWT: 24 x 8.5 x 2.0" / 610 x 216 x 51 mm
FL-220AWT: 24 x 13.4 x 2.0" / 610 x 340 x 51 mm | | Weight | FL-110AWT: 5.6 lb / 2.5 kg
FL-220AWT: 9.4 lb / 4.3 kg | | | | Package Weight | 72.5 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
