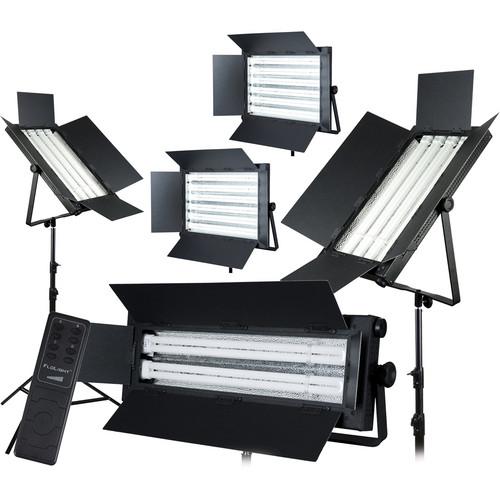

User Manual for Flolight FL-220AWD and FL-110AWD 5 Fluorescent Light Kit Click to enlarge the picture
Contents of the user manual for the Flolight FL-220AWD and FL-110AWD 5 Fluorescent
- Product category: Fluorescent Lights Flolight
- Brand: Flolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Flolight Fluorescent Lights
|
User manual for the Flolight FL-220AWD and FL-110AWD 5 Fluorescent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Flolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Flolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Flolight product will considerably shorten its lifespan!
|
Product description This Flolight 5 Fluorescent Light Kit is a versatile and complete five light kit designed for constant 5400K-balanced studio-quality fluorescent lighting. Both of these lights feature 30-100% dimming control, either via the integrated dial or by using the include wireless remote dimmers from each individual light. Diffusion cloths are also included with each light, as well as built-in four-way barn doors, for greater control over the beam angle and quality of light and two separate yokes permit mounting in either vertical or horizontal orientations on the included 8' light stands. - FL-220AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) The Flolight FL-220AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) is a great choice for a studio fixture when high output, low running cost, and soft light are priorities. The FL-220AWD uses four 55W fluorescent lamps to give you an impressive 1000W hotlight equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 193.5W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hotlights you used turned your studio into a sauna. And with a lamp life of about 10,000 hours the FL-220AWD is practically maintenance free.In situations where low light is required the built in 30-100% dimmer allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. The fixture comes with 4 lamps and 2 yokes to offer you a choice of vertical or horizontal mounting, as well as a soft padded bag.
- Fluorescents give naturally soft, even light. The included slide in diffuser provides an even softer light.
- The FL-220AWD is perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-220AWD utilizes four 55W Biax lamps.
UPC: 812689011679 - FL-110AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) The 5400K daylight Flolight FL-110AWD Fluorescent Video Light with Wireless Dimming is a great choice for a studio fixture when high output, low running cost and soft light are priorities. The FL-110AWD uses two 55W fluorescent lamps to give you an impressive 500W hotlight equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 106.2W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hotlights you used turned your studio into a sauna. And with a lamp life of about 8000 hours, the FL-110AWD is practically maintenance free.In situations where low light is required, the built in 30-100% dimmer allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. The fixture comes with 2 lamps and 2 yokes to offer you a choice of vertical or horizontal mounting.
- Fluorescents give naturally soft even light. The included slide in diffuser provides an even softer light.
- The FL-110AWD is perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-110AWD utilizes two 55W Biax lamps.
UPC: 812689011600 - FL-LSMD Light Stand (8') The 8' Flolight FL-LSMD Light Stand is a sturdy aluminum double-riser light stand that weighs 7.0 lb but will support lights up to 20 lb in weight. The stand has a 5/8" (16 mm) top stud. The stand is suitable for the Flolight LED 500, LED 1000, FL-110, FB-110, FL-220, FB-220, FL-330, FB-330 or any fixture with a 5/8" receiver. UPC: 812689011587
In the Box Bundle Items 4 x FL-220AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) sczzcadydqwubwvqtcctvwtyfvyqzr - 4 x 55W 5400K Daylight Biax Fluorescent Lamps
FL-110AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) sczzcadydqwubwvqtcctvwtyfvyqzr - 2 x 55W 5400K Daylight Biax Fluorescent Lamps
5 x FL-LSMD Light Stand (8') Table of Contents
|
Upload User Manual
Have you got an user manual for the Flolight FL-220AWD and FL-110AWD 5 Fluorescent Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FL-220AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight)
| Lamps | 4 x 55 W Biax fluorescent | | Rating | 1000 W hot light equivalent (with all lamps on) | | CRI | 95 | | Color Temperature | 5400K daylight | | Photometrics | Lux Feet:
3500 at 3.0' / 0,91 m
1070 at 6.0' / 1.8 m
523 at 9.0' / 2.7 m
Lux Meters:
2920 at 3.28' / 1.0 m
925 at 6.5' / 2.0 m
456 at 9.8' / 3.0 m | | Frequency Range | Ballast: 25-50 kHz | | Dimming | Yes, dimming range: 30-100%, controller included | | Wireless Frequency | 315 MHz, signal strength: 0.4 W | | Wireless Range | 19' / 15 m | | Mounting | 2 yokes provided: horizontal or vertical mount | | Input Voltage | 110-240 VAC at 50/60 Hz | | Power Draw | 193.5 W at 116-120 VAC | | Lamp Life | 10,000 hours | | Ballast | In fixture | | Dimensions | 24 x 13.4 x 2.0" / 610 x 340 x 51 mm | | Weight | 9.4 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 28.9 x 18.5 x 6.2" | - FL-110AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight)
| Lamps | 2 x 55 W fluorescent | | Color Temperature | 5400K daylight | | CRI | 95 | | Rating | 500 W hot light equivalent (with both lamps on) | | Lamp Life | 10,000 hours | | Ballast | In fixture | | Photometrics | Lux feet:
2420 at 3.0' / 0,91 m
668 at 6.0' / 1.8 m
318 at 9.0' / 2.7 m
Lux Meters:
2040 at 3.28' / 1.0 m
575 at 6.5' / 2.0 m
274 at 9.8' / 3.0 m | | Mounting | 2 yokes provided: horizontal or vertical mount | | Input Voltage | 100-130 VAC at 50-60 Hz, 0.8 A @ 116 VAC | | Frequency Range | 25-50 kHz | | Wireless Range | 19' / 15 m | | Wireless Frequency | 315 MHz, signal strength: 0.4 W | | Dimming | Yes, 30-100% | | Power Draw | 106.2 W at 116 VAC | | Dimensions | 24 x 8.5 x 2.0" / 610 x 216 x 51 mm | | Weight | 5.6 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 28.5 x 13.0 x 6.0" | - FL-LSMD Light Stand (8')
| Load Capacity | 20 lb / 9 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Collapsed Height | 37" / 94 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 7.0 lb / 3.2 kg | | | | Box Dimensions (LxWxH) | 40.0 x 4.15 x 3.9" |
