User Manual for Flolight FL-220AWT Fluorescent Light Click to enlarge the picture
Contents of the user manual for the Flolight FL-220AWT Fluorescent Light
- Product category: Fluorescent Lights Flolight
- Brand: Flolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Flolight Fluorescent Lights
 |
User manual for the Flolight FL-220AWT Fluorescent Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Flolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Flolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Flolight product will considerably shorten its lifespan!
|

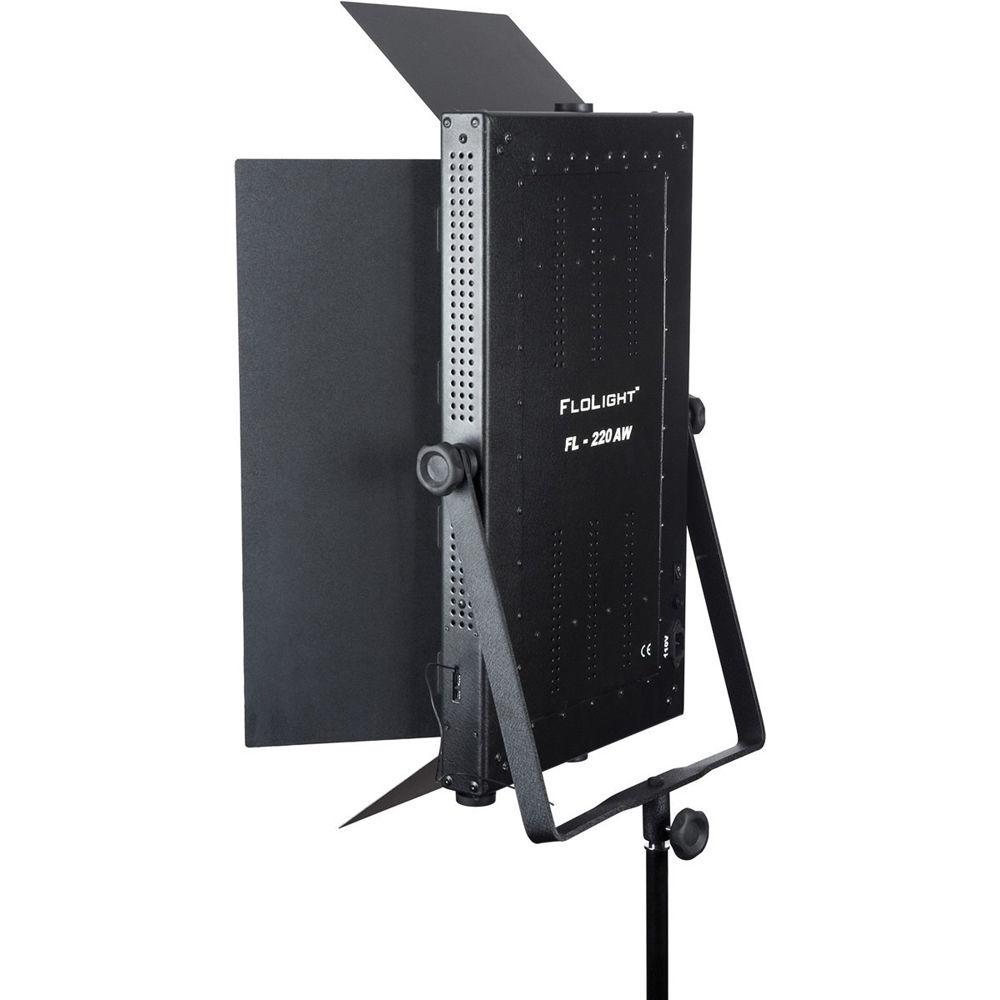

Product description The 3000K Flolight FL-220AWT Fluorescent Light is a great choice for a studio fixture when high output, low running cost and soft light are priorities. The FL-220AWT uses four 55W fluorescent lamps to give you an impressive 1000W hotlight equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 193.5W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hotlights you used turned your studio into a sauna. And with a lamp life of about 10,000 hours the FL-220AWT is practically maintenance free.In situations where low light is required the built in 30-100% dimmer allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. The fixture comes with 4 lamps and 2 yokes to offer you a choice of vertical or horizontal mounting. - Fluorescents give naturally soft, even light. The included slide in diffuser provides an even softer light.
- The FL-220AWT is perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-220AWT utilizes four 55W Biax lamps.
UPC: 812689011686 In the Box Flolight FL-220AWT Fluorescent Light (3000K) 4 x 55W 3000K Tungsten Biax Fluorescent Lamps Diffusion Cloth Wireless Controller Horizontal Mount Vertical Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Flolight FL-220AWT Fluorescent Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlolight FL-220AWT Specs | Lamps | 4 x 55 W fluorescent | | Rating | 1000 W hot light equivalent (with all lamps on) | | CRI | 95 | | Color Temperature | 5400K daylight | | Photometrics | Lux Feet:
2680 at 3.0' / 0.91 m
783 at 6.0' / 1.8 m
379 at 9.0' / 2.7 m
Lux Meters:
2270 at 3.28' / 1.0 m
660 at 6.5' / 2.0 m
324 at 9.8' / 3.0 m | | Frequency Range | Ballast: 25-50 kHz | | Dimming | Yes, dimming range: 30-100%, controller included | | Wireless Frequency | 315 MHz, signal strength: 0.4 W | | Wireless Range | 19' / 15 m | | Mounting | 2 yokes provided: horizontal or vertical mount | | Input Voltage | 110-220 VAC at 50/60 Hz, 1.5 A @ 116 VAC | | Power Draw | 193.5 W at 116 VAC | | Lamp Life | 10,000 hours | | Ballast | In fixture | | Dimensions | 24 x 13.4 x 2.0" / 610 x 340 x 51 mm | | Weight | 9.4 lb / 4.3 kg | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 7.0" |
