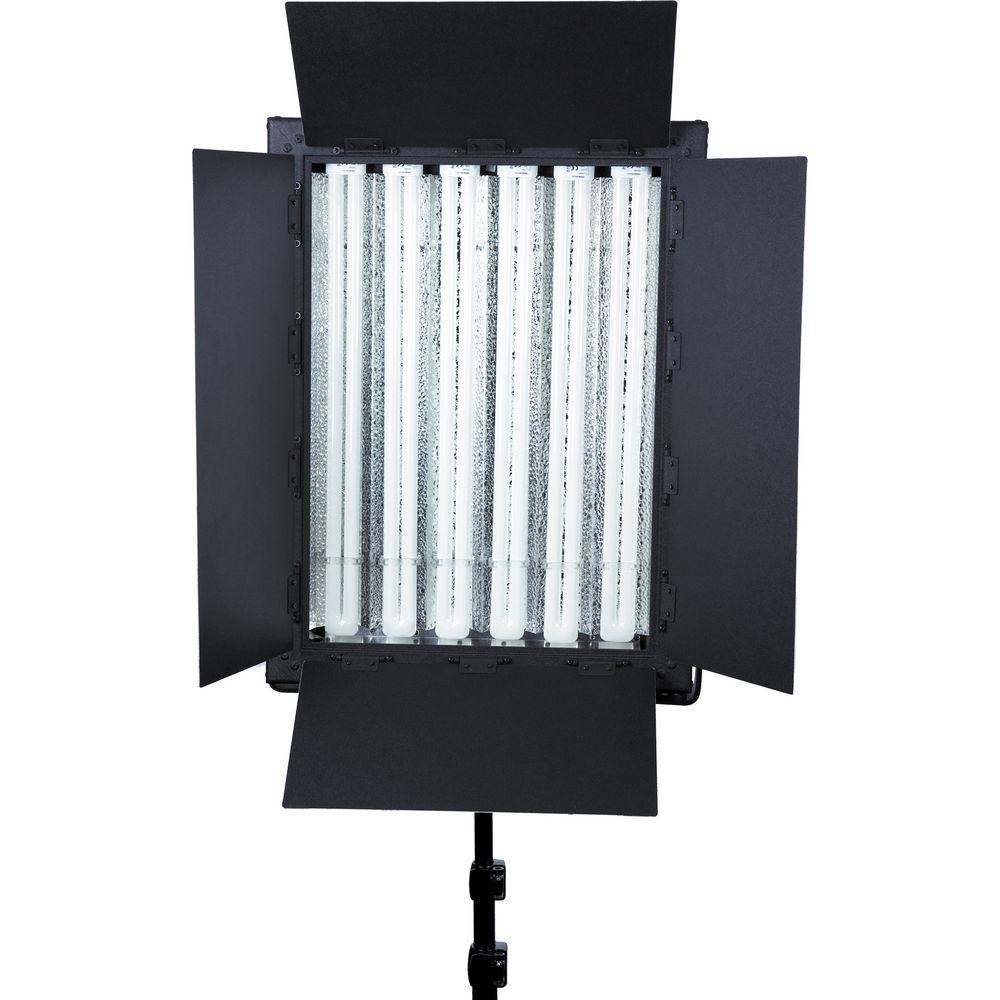

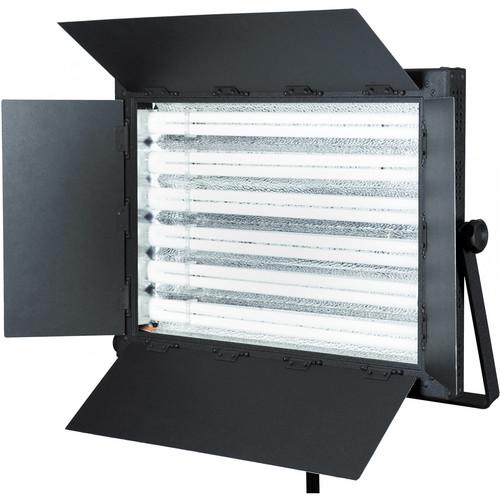

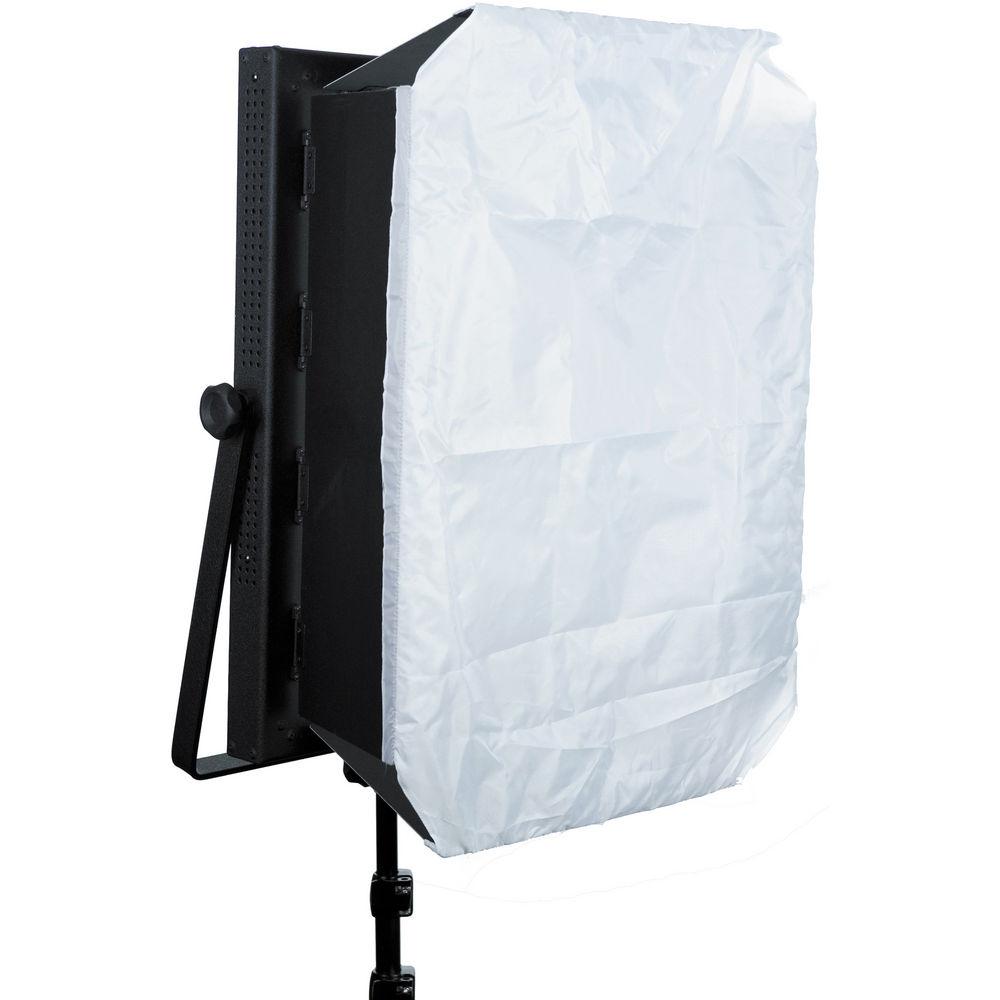

Product description The Flolight FL-330AWD Fluorescent Video Light with Wireless Dimming FL-330AWD is a great choice for a studio fixture when high output, low running cost and soft light are priorities. The FL-330AWD uses six 55W fluorescent lamps to give you an impressive 1500W hotlight equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 331.3W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hotlights you used turned your studio into a sauna. And with a lamp life of about 10,000 hours the FL-330AWD is practically maintenance free.In situations where low light is required the built in 30-100% dimmer allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. The fixture comes with 6 lamps and 2 yokes to offer you a choice of vertical or horizontal mounting. - Fluorescents give naturally soft, even light. The included slide in diffuser provides an even softer light.
- The FL-330AWD is perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-330AWD utilizes six 55W Biax lamps.
UPC: 812689011723 In the Box Flolight FL-330AWD Fluorescent Video Light with Wireless Dimming (5400K Daylight) 6 x 55w 5400K Daylight Biax Fluorescent Lamps Diffusion Cloth Wireless Controller Horizontal Mount Vertical Mount Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Flolight FL-330AWD Fluorescent Video Light with Wireless Dimming in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlolight FL-330AWD Specs | Lamps | 6 x 55W Biax fluorescent | | Rating | 1500W hot light equivalent (with all lamps on) | | CRI | 95 | | Color Temperature | 5400K Daylight | | Photometrics | Lux feet: 6,900 @ 3.0' (0,91 m), 2,100 @6.0' (1.8 m), 1,010 @9.0' (2.7 m)
Lux meters: 6,010 @ 3.28' (1.0 m), 1,830 @ 6.5' (2.0 m), 867 @ 9.8' (3.0 m) | | Frequency Range | Ballast: 25-50 kHz | | Dimming | Yes, dimming range: 30-100%, controller included | | Wireless Frequency | 315 MHz, signal strength: 0.4 W | | Wireless Range | 19' / 15 m | | Mounting | 2 yokes provided: horizontal or vertical mount | | Input Voltage | 110-240 VAC at 50/60 Hz | | Power Draw | 331.3 W at 116 VAC / 120 VAC | | Lamp Life | 10,000 hours | | Ballast | In fixture | | Dimensions | 24 x 18.3 x 2.0" / 610 x 464 x 51 mm | | Weight | 12.8 lb / 5.8 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 28.6 x 22.5 x 6.3" |
