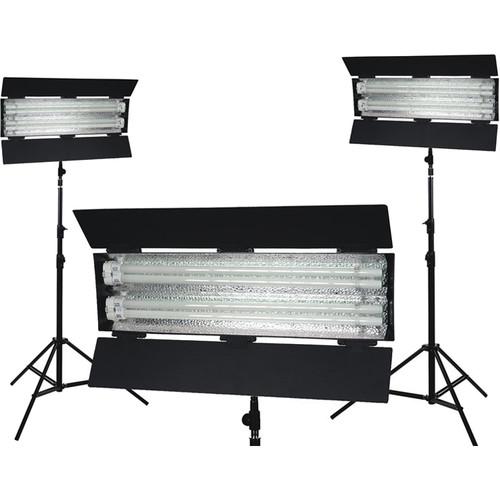

User Manual for Flolight KIT-FL-110AW 3-Point Lighting Kit Click to enlarge the picture
Contents of the user manual for the Flolight KIT-FL-110AW 3-Point Lighting Kit
- Product category: Fluorescent Lights Flolight
- Brand: Flolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Flolight Fluorescent Lights
 |
User manual for the Flolight KIT-FL-110AW 3-Point Lighting Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Flolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Flolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Flolight product will considerably shorten its lifespan!
|
Product description The Flolight KIT-FL-110AW 3-Point Lighting Kit (3000K Tungsten) is a great choice for a studio system when high output, low running cost and soft light are priorities. The FL-110AW uses two 55W fluorescent lamps to give you an impressive 500W hotlight equivalent. That's impressive enough, but it does it with minimal heat and a low power draw of only 106.2W. That means that you won't toast the talent while saving money both on kilowatt usage of the fixture and on AC costs that would have been needed when the hotlights you used turned your studio into a sauna. And with a lamp life of about 10,000 hours the FL-110AW is practically maintenance free.In situations where low light is required the built in 30-100% dimmer allows you to reduce power either on the unit's side panel or with the included wireless remote control. Beam control is provided by the built-in 4-way barndoors and the included diffusion cloth. Each fixture in the kit comes with 2 lamps and 2 yokes to offer you a choice of vertical or horizontal mounting, a diffusion cloth, light stand and a soft bag. - Fluorescents give naturally soft even light. The included slide in diffuser provides an even softer light.
- The FL-110AW is perfect for studio or location work where power hungry incandescents can quickly overload available power. With just a fraction of the heat of incandescents you also avoid cooking your talent or constantly running air conditioning.
- The FL-110AW utilizes two 55W Biax lamps.
UPC: 812689013772 In the Box Flolight KIT-FL-110AW 3-Point Lighting Kit (3000K Tungsten) 3 x FL-110AW Fixtures 6 x 3000K Tungsten Biax Fluorescent Lamps 3 x Diffusion Cloth 3 x 6.0' Light Stands 3 x Wireless Controller 3 x Horizontal Mount 3 x Vertical Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Flolight KIT-FL-110AW 3-Point Lighting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlolight FL-110AW Specs | Lamps | Each fixture: 2 x 55 W fluorescent | | Color Temperature | 3000K Tungsten | | CRI | 95 | | Rating | Each fixture: 500 W hot light equivalent (with both lamps on) | | Lamp Life | 10,000 hours | | Ballast | In fixture | | Photometrics | Lux feet: 1770 at 3.0' (0.91 m), 500 at 6.0' (1.8 m), 245 at 9.0' (2.7 m)
Lux meters: 1430 at 3.28' (1.0 m), 420 at 6.5' (2.0 m), 209 at 9.8' (3.0 m) | | Mounting | 2 x Yokes provided for each fixture; horizontal or vertical mount | | Input Voltage | 100-130 VAC at 50-60 Hz, 0.8 A at 116 VAC | | Frequency Range | 25-50 kHz | | Wireless Range | 19' / 15 m | | Wireless Frequency | 315 MHz, signal strength: 0.4 W | | Dimming | Yes | | Power Draw | 106.2 W at 116 VAC | | Dimensions | 24 x 8.5 x 2.0" / 610 x 216 x 51 mm | | Weight | 5.6 lb / 2.5 kg | | | | Package Weight | 67.85 lb | | Box Dimensions (LxWxH) | 44.3 x 22.0 x 20.8" |
