User Manual for FLOWCINE Black Arm Complete Dampening System with 15-22 lb Anti-Vibration Mount & Standard Case Click to enlarge the picture
Contents of the user manual for the FLOWCINE Black Arm Complete Dampening System
- Product category: Stabilizers & Gimbals FLOWCINE
- Brand: FLOWCINE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLOWCINE Stabilizers & Gimbals
 |
User manual for the FLOWCINE Black Arm Complete Dampening System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLOWCINE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLOWCINE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLOWCINE product will considerably shorten its lifespan!
|

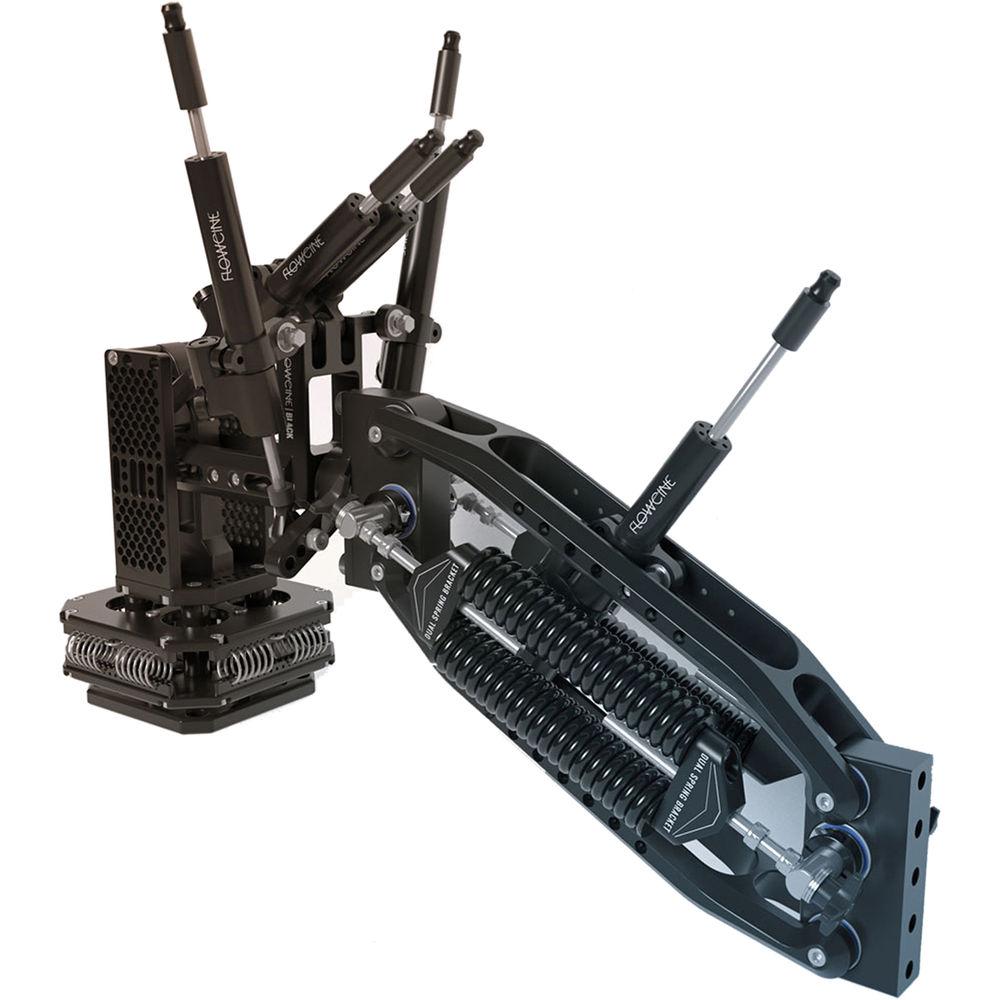

Product description Capture super-stabilized gimbal shots from your car, ATV, boat, snowmobile, or other vehicle with the Black Arm Complete from FLOWCINE. Purely mechanical, this three-axis dampening and vibration-reduction system hard-mounts your gimbal-and-camera setup to your vehicle, stabilizing roll and tilt as well as vertical motion and vibration. The Black Arm's design incorporates a four-spring arm with fully adjustable actuator hydraulic dampers and a platform that levels the separately available gimbal. In addition, between the arm and the mounted gimbal there is an anti-vibration mount capable of handling loads between 15 and 22 lb. Mounting the Black Arm is as simple as clamping it onto a standard 48-52mm speed rail.

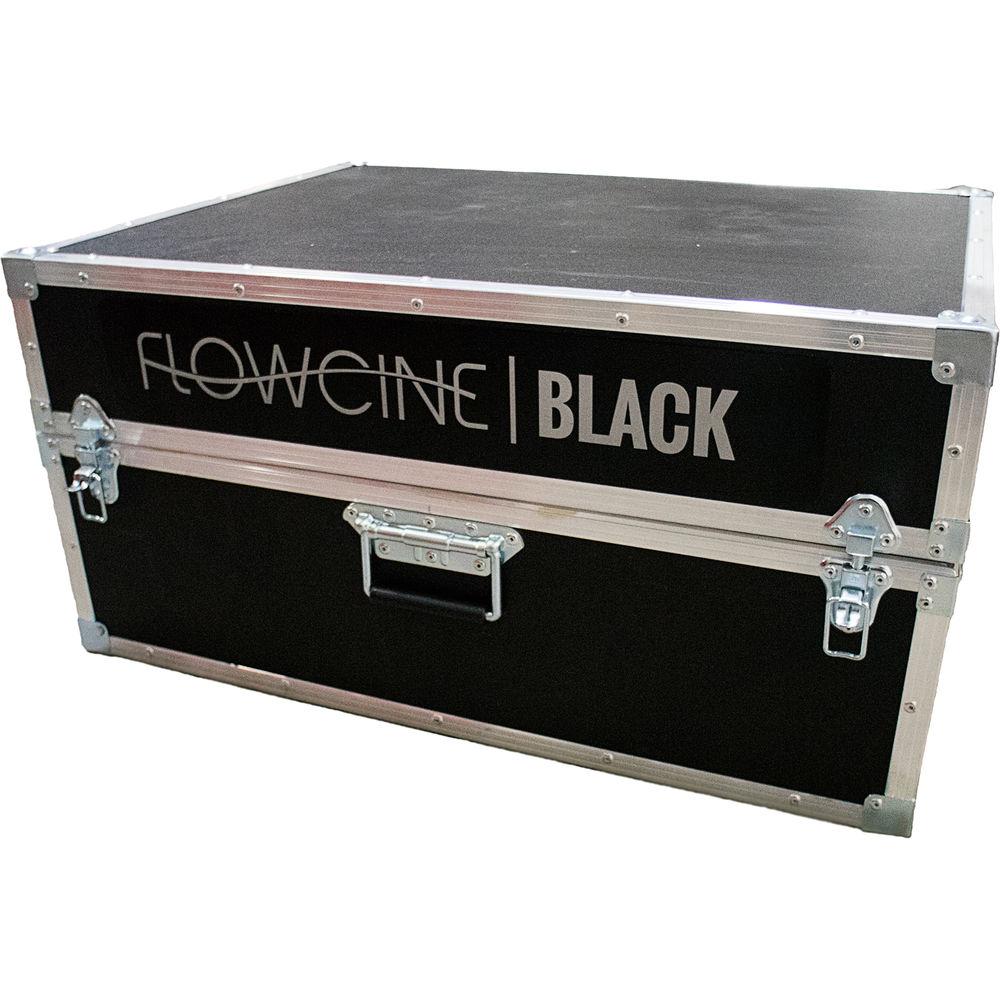

The damping action of all three axes—vertical, tilt, and roll—is brought about by the hydraulic dampers. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot. The Black Arm Complete ships with two dampers for each of the three axes. Also included is a standard flight case with white interior foam, metal corners, pad-lockable drawbolt catches, and surface handles. In the Box FLOWCINE Black Arm Complete Dampening System with 15-22 lb Anti-Vibration Mount & Standard Case Anti-Vibration Mount #1 for Black Arm Dampening System (15-22 lb) Standard Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLOWCINE Black Arm Complete Dampening System with 15-22 lb Anti-Vibration Mount & Standard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLOWCINE Black Arm Specs | Load Capacity | 15 - 22 lb / 7 - 10 kg | | Mounting Interface | Black Arm to Vehicle:
Clamp for 1.9 - 2.0" / 48 - 52 mm speed rail
Gimbal to Black Arm:
4 x 1/4"-20 UNC holes - 25 mm CC
5 x 3/8"-16 holes UNC - 25.4 mm CC
4 x 8 mm holes - 98.99 mm CC
6.5 mm holes - 2 x 1.5" CC
3.2 mm holes - 32 mm CC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
