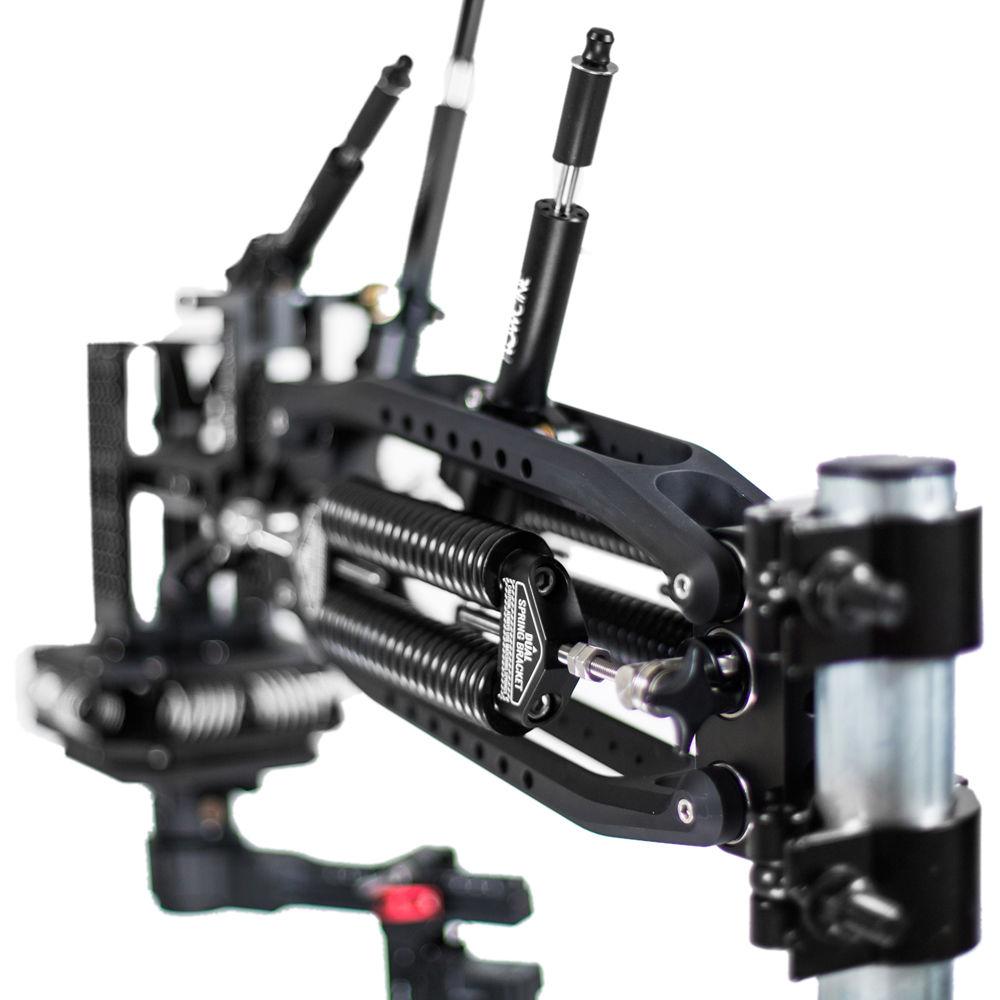

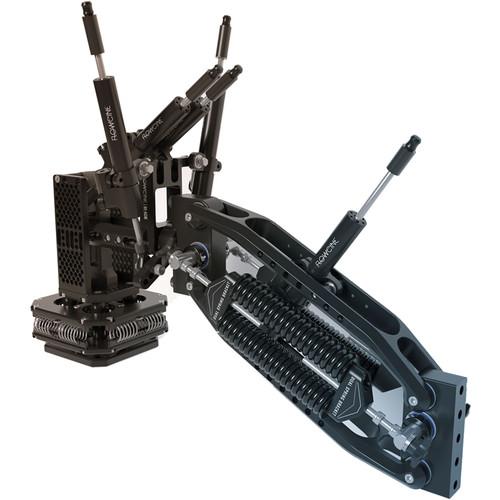

Product description Capture super-stabilized gimbal shots from your car, ATV, boat, snowmobile, or other vehicle with the Black Arm Complete from FLOWCINE. Purely mechanical, this three-axis dampening and vibration-reduction system hard-mounts your gimbal-and-camera setup to your vehicle, stabilizing roll and tilt as well as vertical motion and vibration. The Black Arm's design incorporates a four-spring arm with fully adjustable actuator hydraulic dampers and a platform that levels the separately available gimbal. In addition, between the arm and the mounted gimbal there is an anti-vibration mount capable of handling loads between 42 and 57 lb. Mounting the Black Arm is as simple as clamping it onto a standard 48-52mm speed rail.

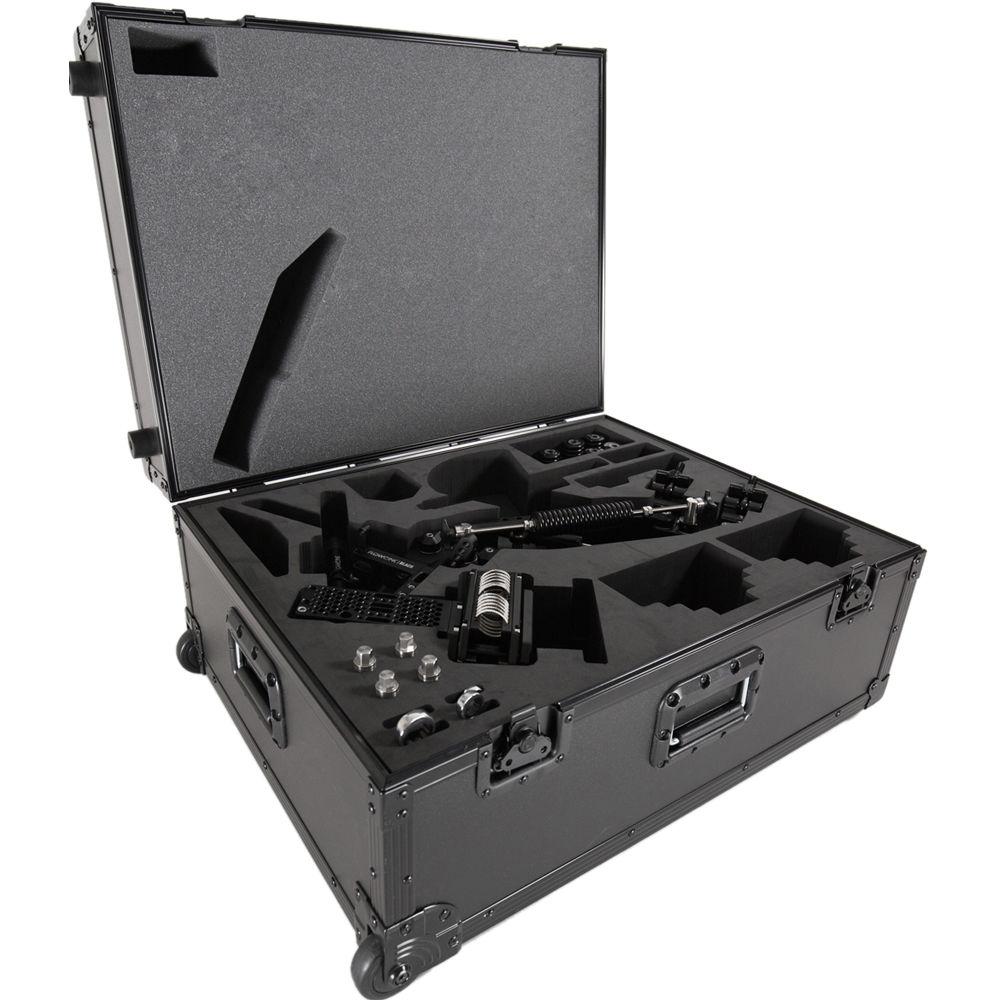

The damping action of all three axes—vertical, tilt, and roll—is brought about by the hydraulic dampers. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot. The Black Arm Complete ships with two dampers for each of the three axes. Also included is an extra-sturdy, wheeled all-black pro case with powder-coated metal corners, butterfly catches, and heavy-duty recessed handles. In the Box FLOWCINE Black Arm Complete Dampening System with 42-57 lb Anti-Vibration Mount & Pro Case Anti-Vibration Mount #4 for Black Arm Dampening System (42-57 lb) Pro Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLOWCINE Black Arm Complete Dampening System with 42-57 lb Anti-Vibration Mount & Pro Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLOWCINE Black Arm Specs | Load Capacity | 42 - 57 lb / 19.0 - 25.8 kg | | Mounting Interface | Black Arm to Vehicle:
Clamp for 1.9 - 2.0" / 48 - 52 mm speed rail
Gimbal to Black Arm:
4 x 1/4"-20 UNC holes - 25 mm CC
5 x 3/8"-16 holes UNC - 25.4 mm CC
4 x 8 mm holes - 98.99 mm CC
6.5 mm holes - 2 x 1.5" CC
3.2 mm holes - 32 mm CC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
