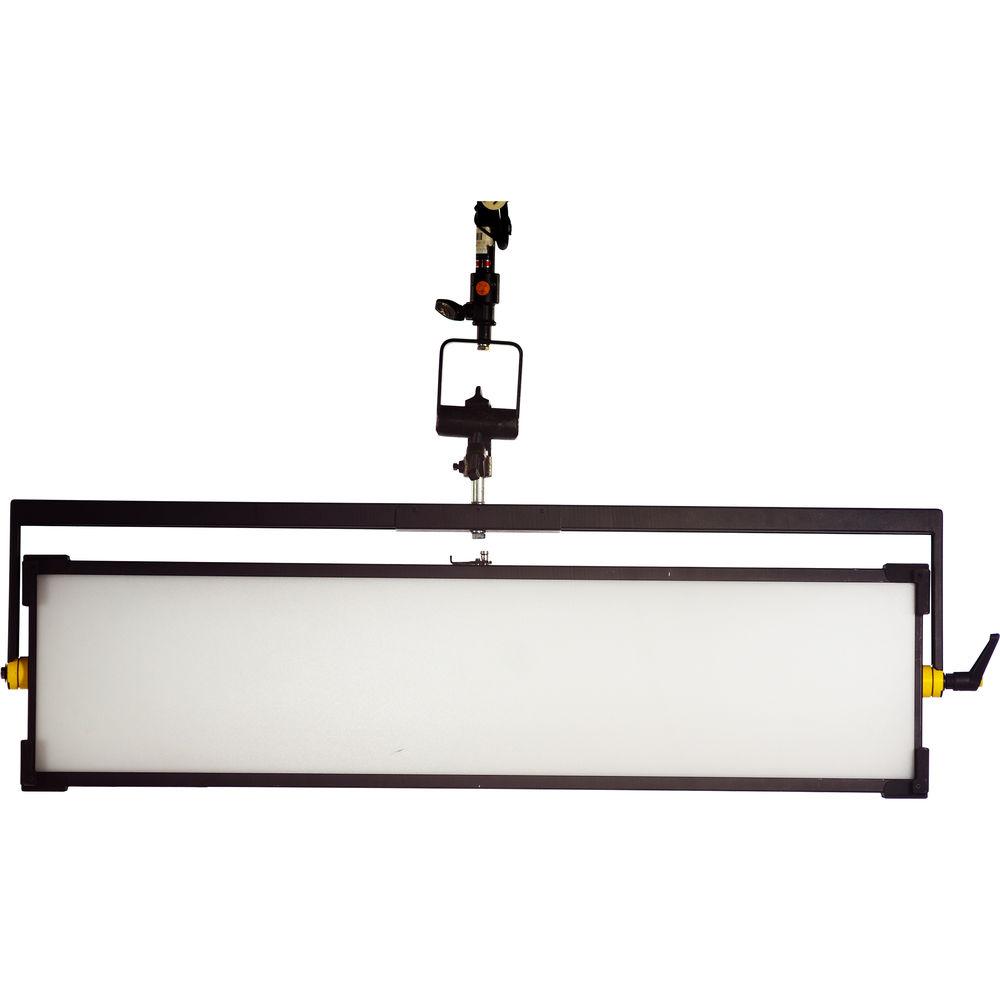

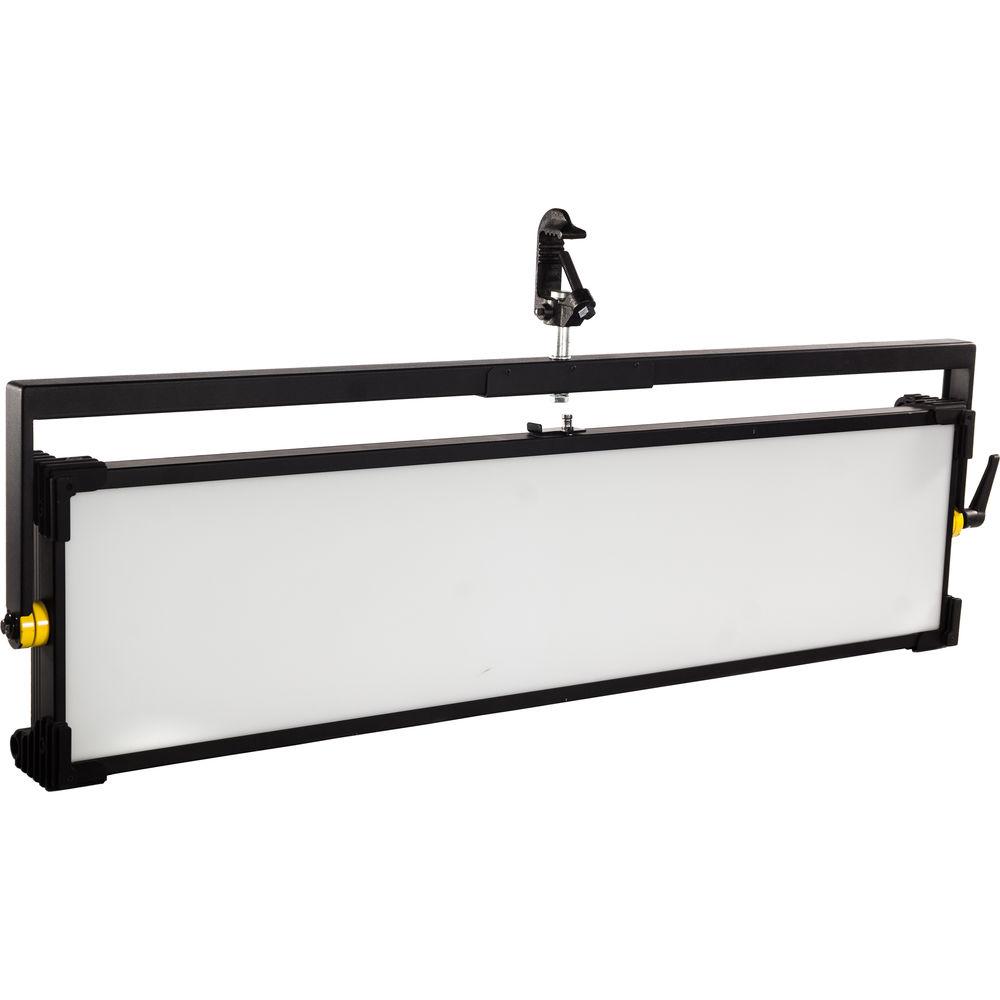

Product description Using NEBULA Diffusion Chamber Technology, the CineLight Production 120 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 47.1 x 12.2", the CineLight 120 creates a wide 70 x 62° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95. Users will also enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision.

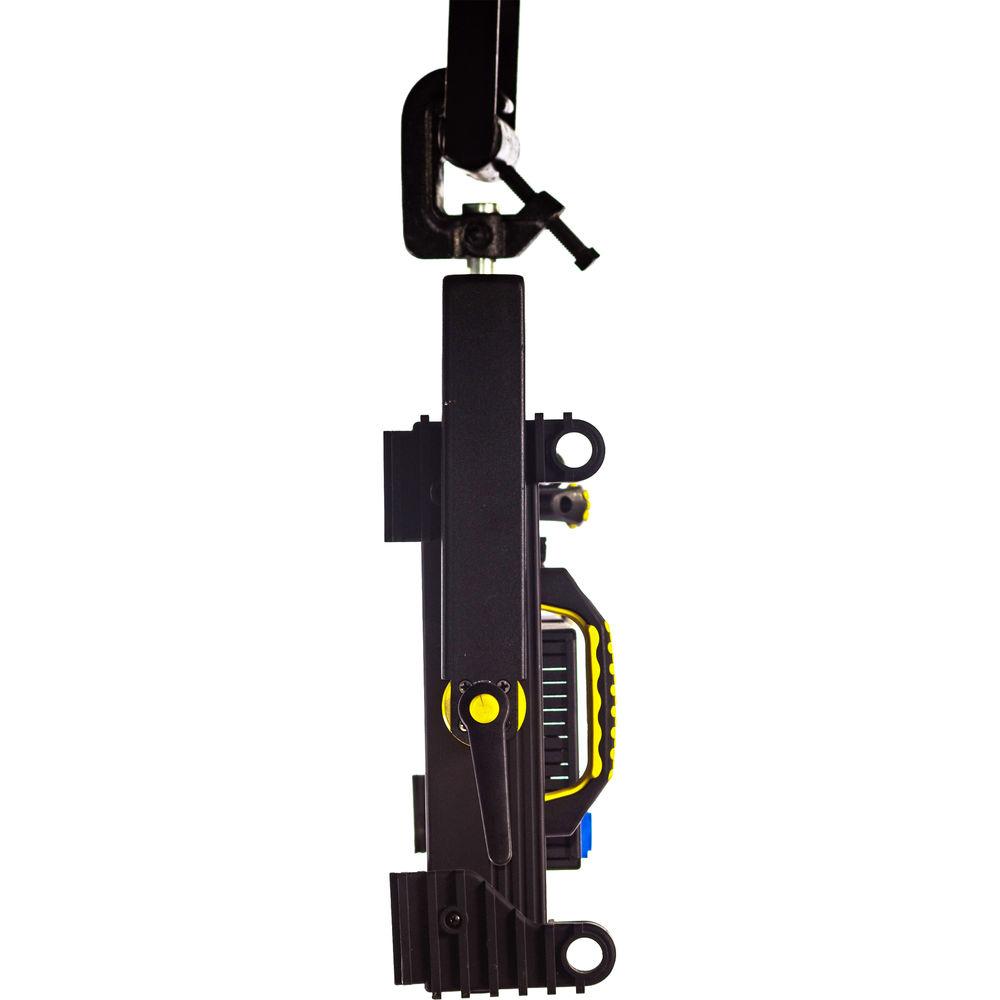

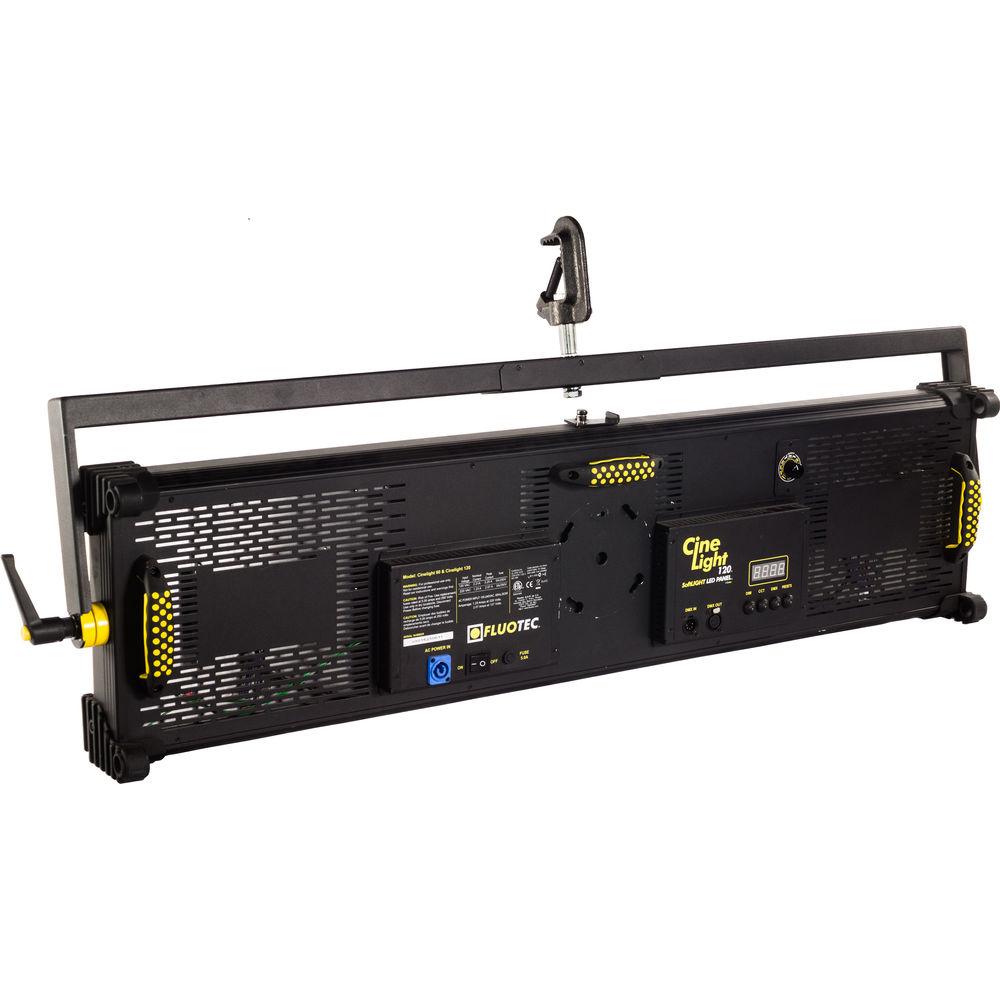

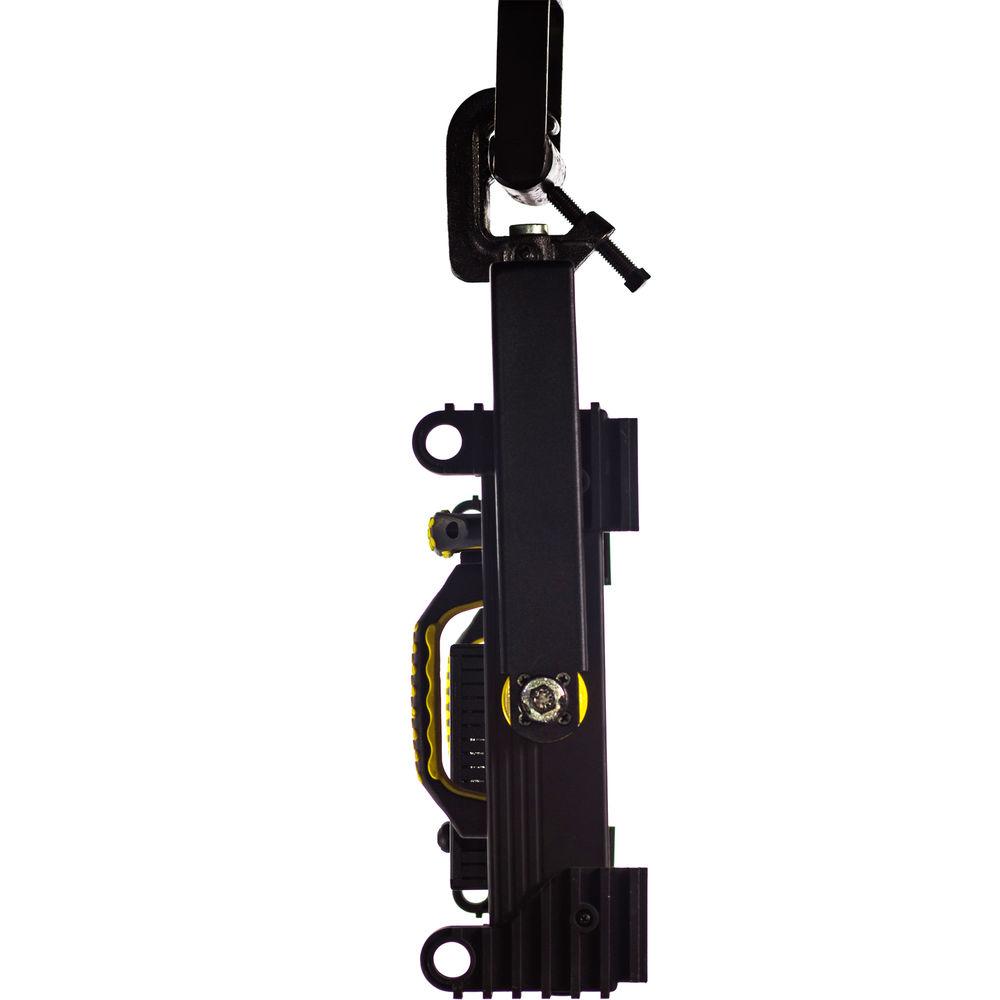

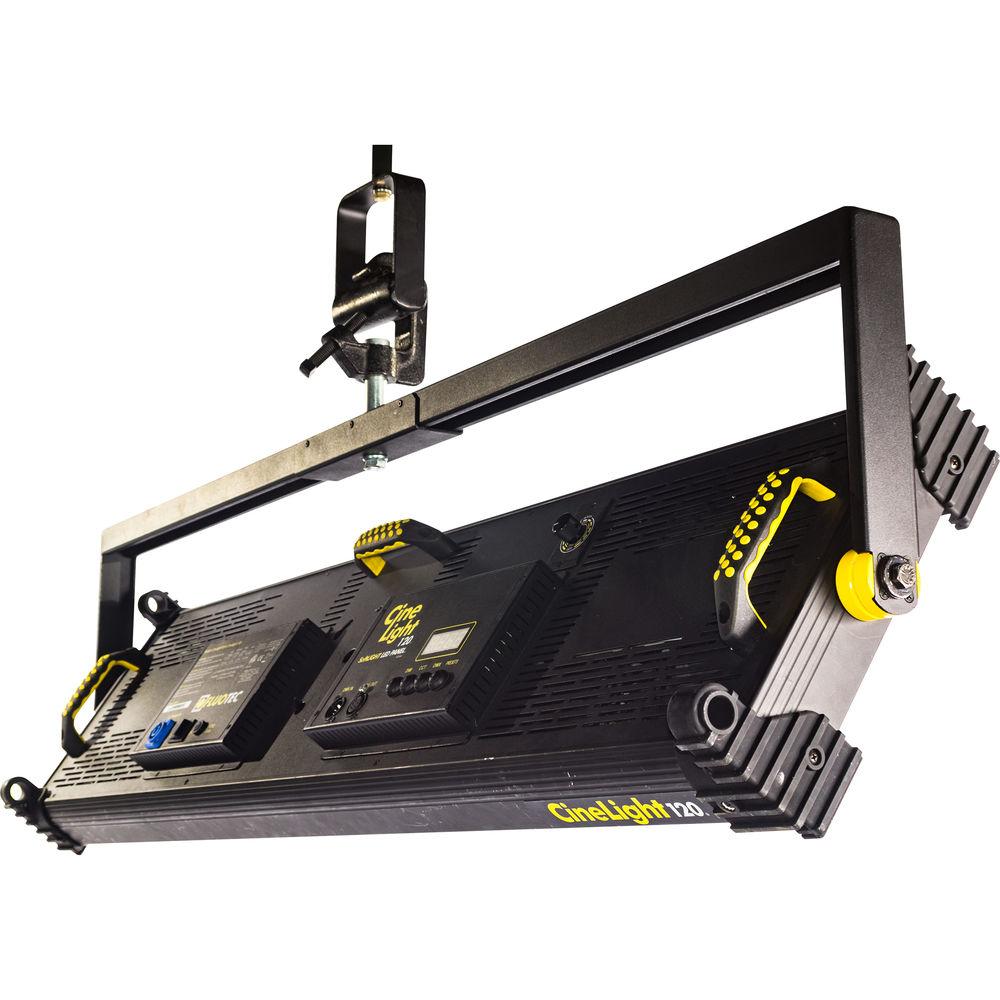

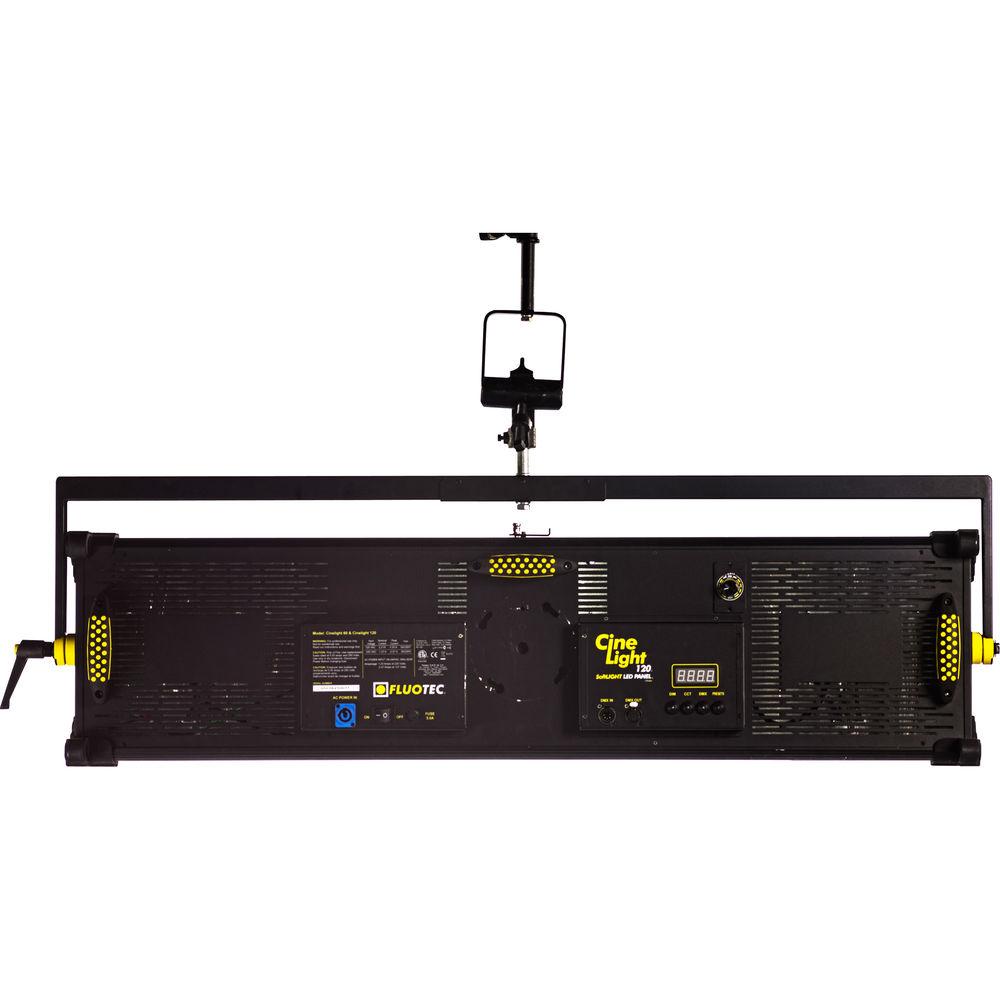

Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature. Benefitting from the use of LEDs, the CineLight 120 uses completely silent passive cooling. Also, it can be integrated into a variety of setups using the included yoke with stand mount spigot. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 266 W. For additional control over the light output, the fixture includes a gel frame and a 50° egg crate grid. - Photometrics
- Neutral White: 139 fc / 1500 lux at 6' / 1.8 m
Cool White: 139 fc / 1500 lux at 6' / 1.8 m

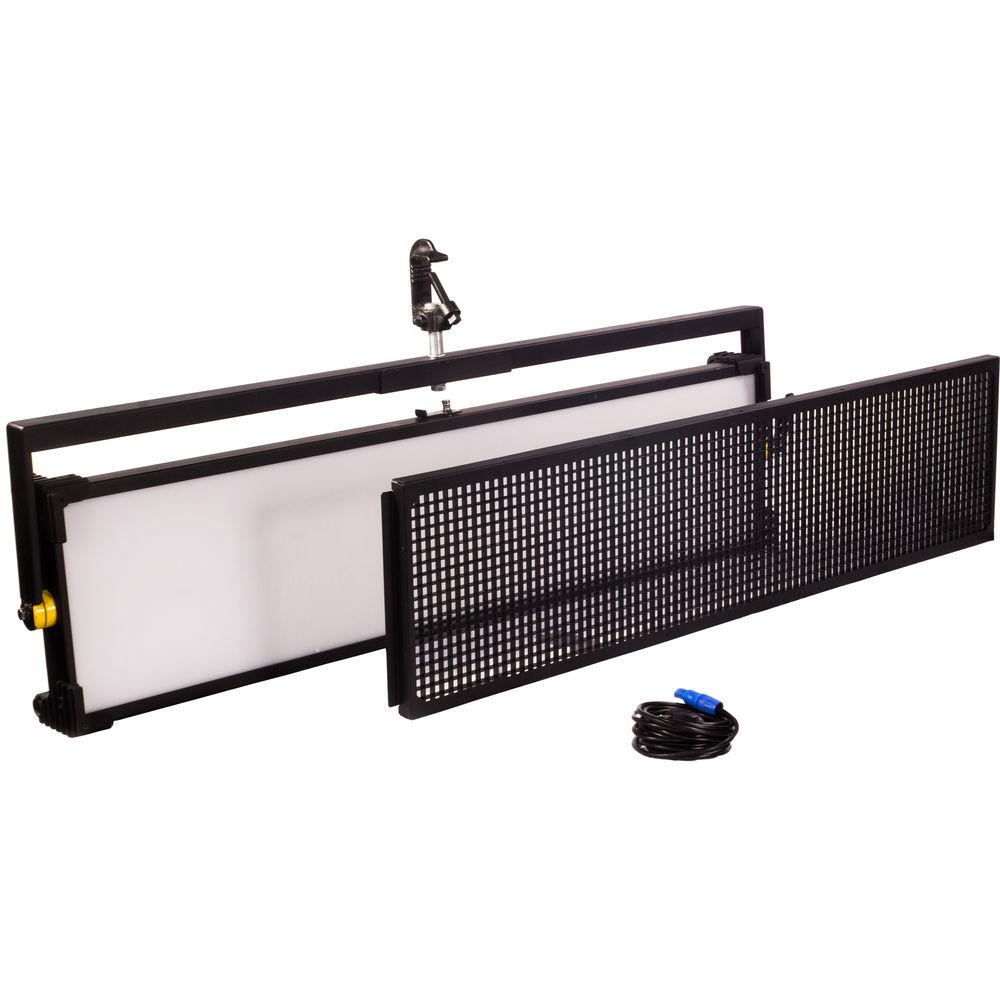

Warm White: 139 fc / 1500 lux at 6' / 1.8 m UPC: 040232641442 In the Box Fluotec CineLight Production 120 Tunable SoftLIGHT LED Panel (Yoke) Gel Frame 50° Egg Crate PowerCon AC Cable with Switch (16') Yoke C-Clamp Stand Mount Spigot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Production 120 Tunable SoftLIGHT LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec Production 120 Specs | Light Source | LED | | CRI | 95 | | Color Temperature | 2700-6600K | | Beam Angle | 70 x 62° | | Dimming | 0-100% | | DMX Connectors | 5-pin XLR input
5-pin XLR output | | Display | Digital | | Cooling | Passive | | Mount | Yoke
5/8" receiver
C-clamp | | Power Connectors | powerCON AC input
powerCON AC output | | Power Requirements | 90-240 VAC, 50/60 Hz, 2.22 A | | Power Draw | 266 W | | Dimensions | 47.1 x 12.2 x 4.9" / 119.7 x 31.2 x 12.4 cm | | Weight | 21.5 lb / 9.7 kg | | | | Package Weight | 45.45 lb | | Box Dimensions (LxWxH) | 55.0 x 18.0 x 9.5" |
