User Manual for Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel 1-Light Kit Click to enlarge the picture
Contents of the user manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
 |
User manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|

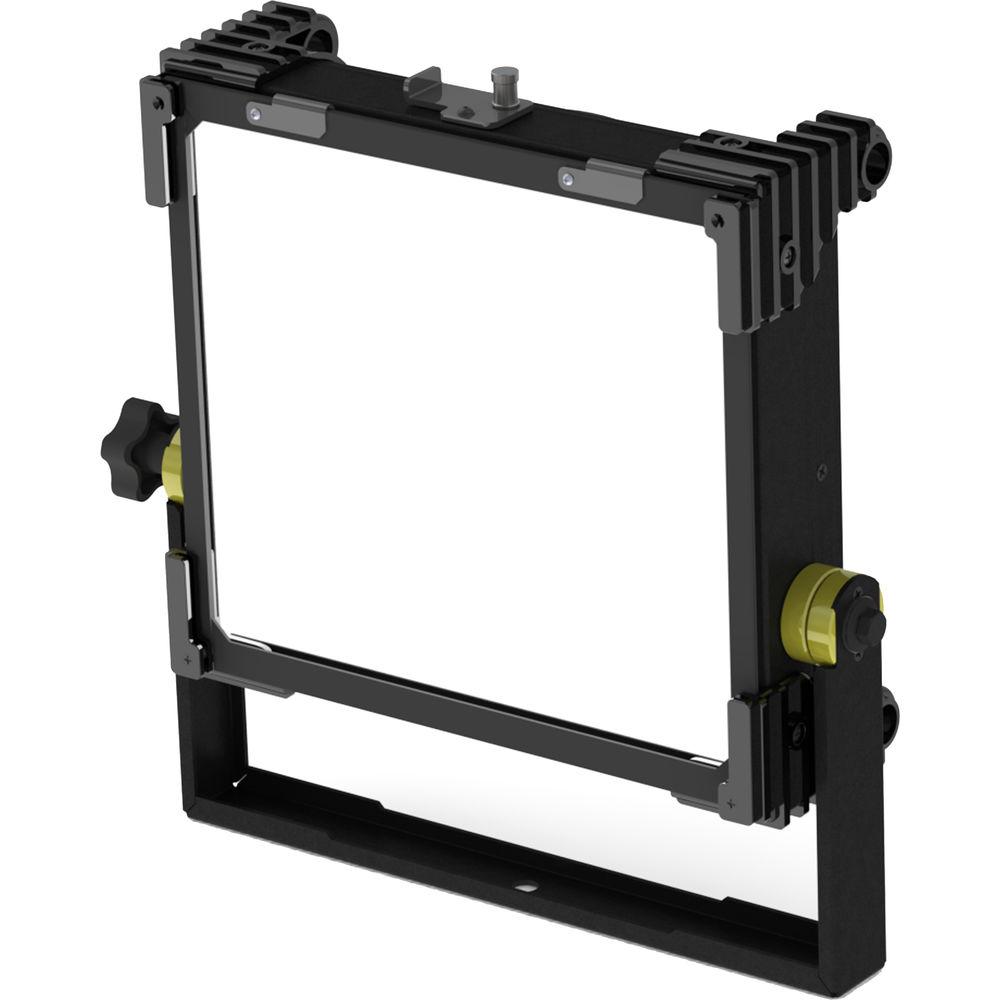

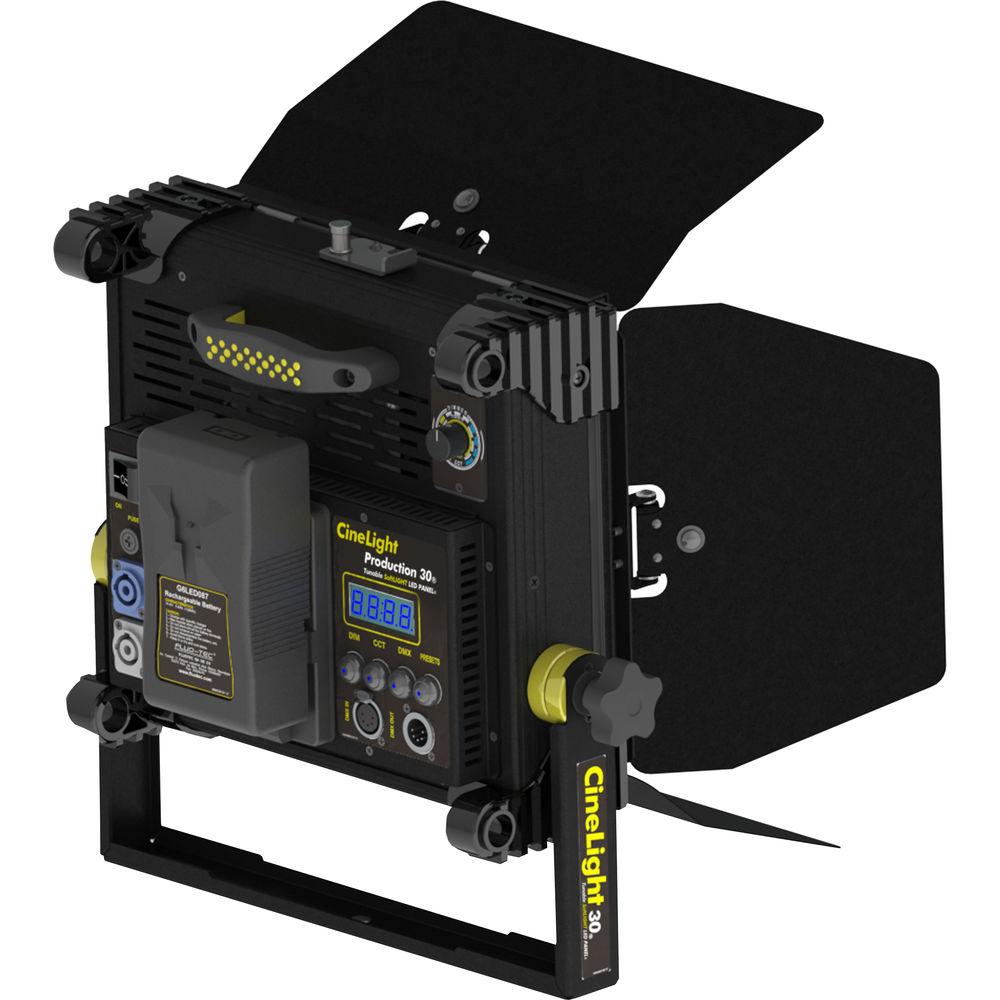

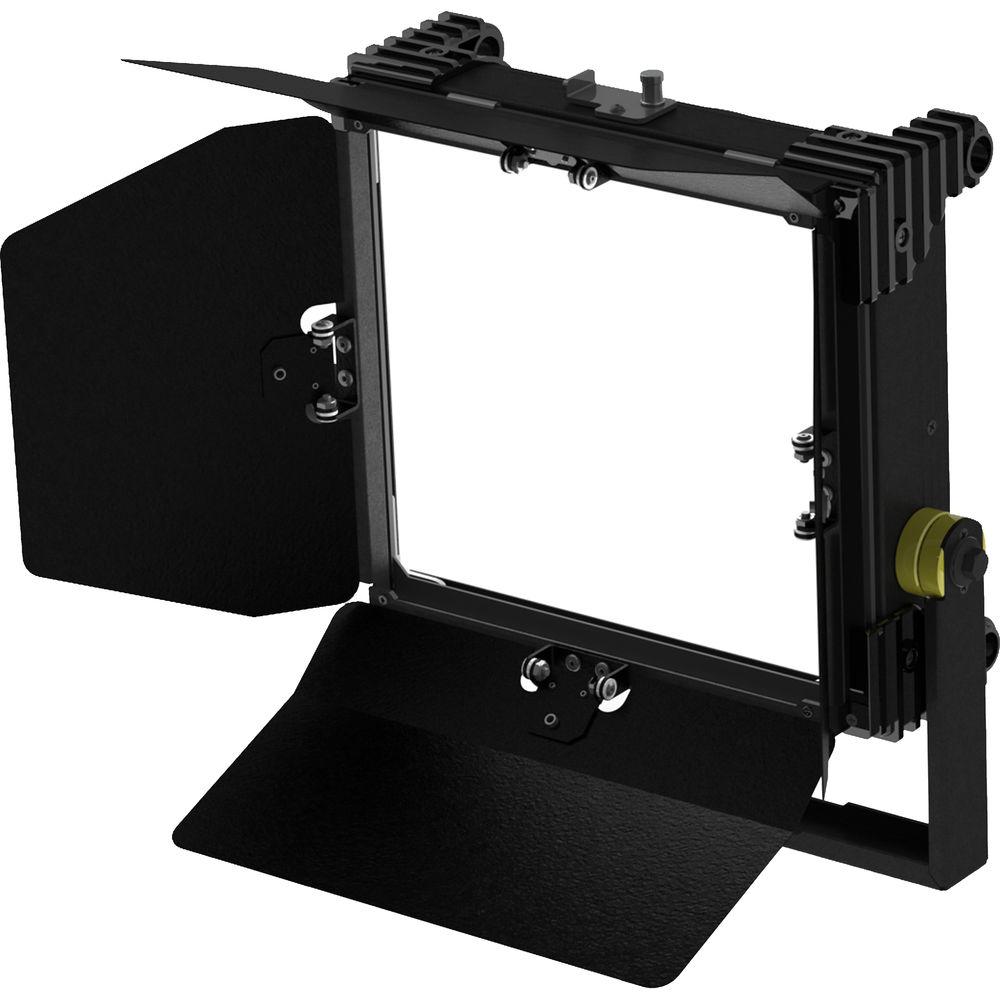

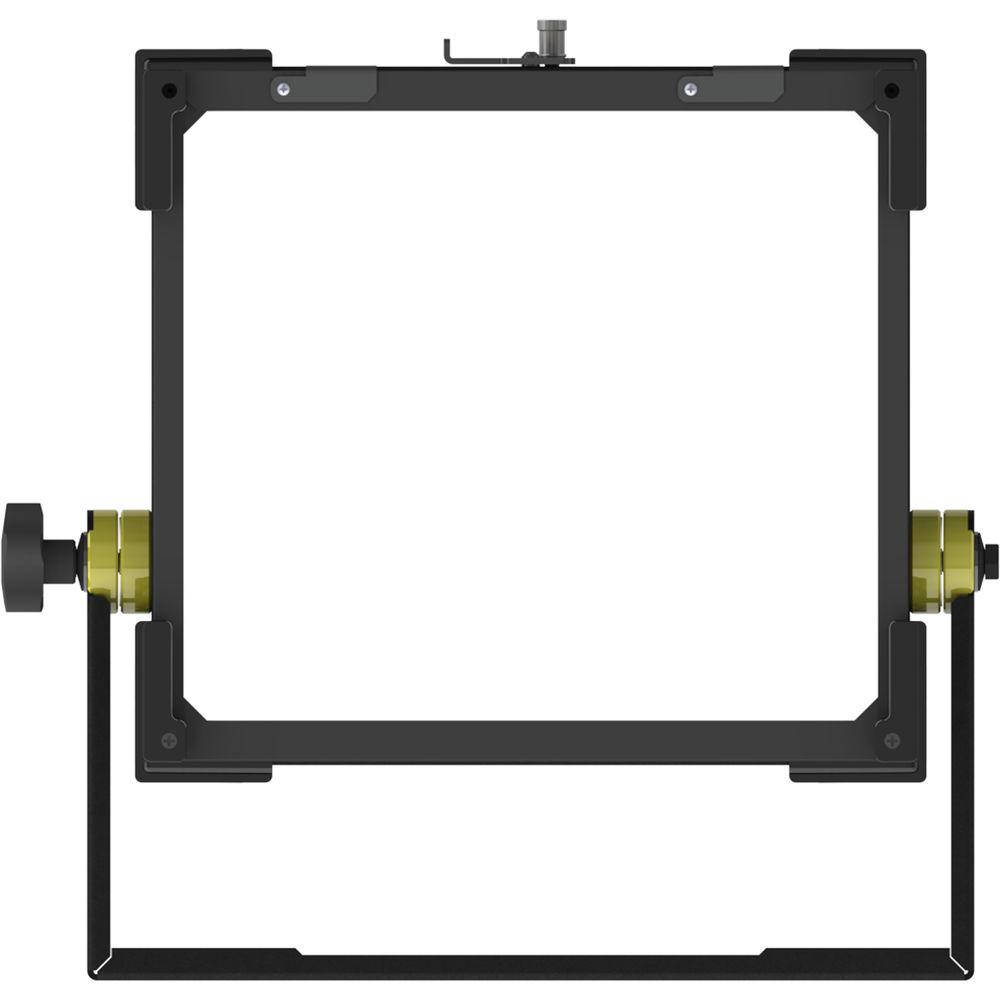

Product description Enjoy soft, flattering light along with the essentials you need to transport and get set up by picking up this CineLight Production 30 Tunable SoftLIGHT LED Panel 1-Light Kit from FLUOTEC. Starring the 16.6 x 12.7" panel and packaging it with an 8.8' Tripod KS stand as well as a plastic multilight case with handle and wheels, this kit will provide users the essential tools needed for setting up and make sure the fixture is protected during storage and transport. - CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power) Using NEBULA Diffusion Chamber Technology, the CineLight Production 30 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio or on-location kit a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 16.6 x 12.7" and equipped with a V-mount battery plate, the CineLight 30 creates a 65 x 65° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95, while still easy to move around and position.
Users will enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision. Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature.
Benefitting from the use of LEDs, the CineLight 30 uses completely silent passive cooling. Also, it can mount to most standard stands using the included yoke with 5/8" receiver. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 57W. For additional control over the light output, the fixture includes a filter holder for gels and a 50° egg crate grid. - Photometrics
- Neutral White: 38 fc / 416 lux at 6' / 1.8m
Cool White: 38 fc / 416 lux at 6' / 1.8m
Warm White: 38 fc / 416 lux at 6' / 1.8m UPC: 040232641541 - KS Light Stand (8.8') The 8.8' KS Light Stand from Fluotec is designed for use with StarMaker series tunable production LED panels. It has a maximum working height of 8.8' and minimum working height of 2.75'.
- Tubular legs with double-strut leg brace
- Multi-Light Case with Wheels for StarMaker HP LED Lights Constructed from hard-formed plastic, the Multi-Light Case with Wheels for StarMaker HP LED Lights from Fluotec is designed to hold one or two StarMaker HP panels. The case has wheels and a handle for easy transport.

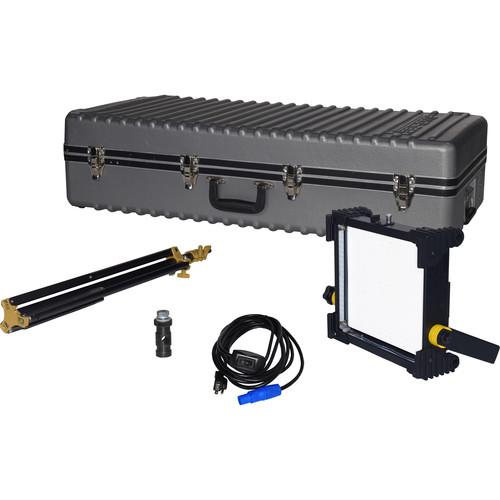

In the Box Bundle Items CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power) yztefrtsetcbetbaefdctwe - PowerCon AC Cable with Switch (16')
KS Light Stand (8.8') Multi-Light Case with Wheels for StarMaker HP LED Lights Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power)
| Light Source | LED | | CRI | 95 | | Color Temperature | 2700-6600K | | Beam Angle | 65 x 65° | | Dimming | 0-100% | | DMX Connectors | 5-pin XLR input
5-pin XLR output | | Display | Digital | | Cooling | Passive | | Mount | Yoke
5/8" receiver | | Power Connectors | powerCON AC input
powerCON AC output
V-mount battery plate | | Power Requirements | 90-240 VAC, 50/60 Hz, 0.48 A | | Power Draw | 57 W | | Dimensions | 16.6 x 12.7 x 6.3" / 42.3 x 32.3 x 16.2 cm | | Weight | 10 lb / 4.5 kg | - KS Light Stand (8.8')
| Mounting Options | 5/8" Stud | | Number of Sections | 2 | | Column Diameter | 0.87" / 2.21 cm
1.13" / 2.87 cm | | Maximum Working Height | 8.8' / 2.7 m | | Minimum Working Height | 2.8' / 0.9 m | | Collapsed Height | 3' / 0.9 m | | Footprint Diameter | 3.4' / 1.04 m | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Material | Aluminum | | Weight | 4.0 lb / 1.8 kg | - Multi-Light Case with Wheels for StarMaker HP LED Lights
| | | Carry and Transport Options | Handle | | Material of Construction | Plastic | | Exterior Dimensions (W x H x D) | 37.5 x 17.8 x 9" / 95.2 x 45 x 22.9 cm |
