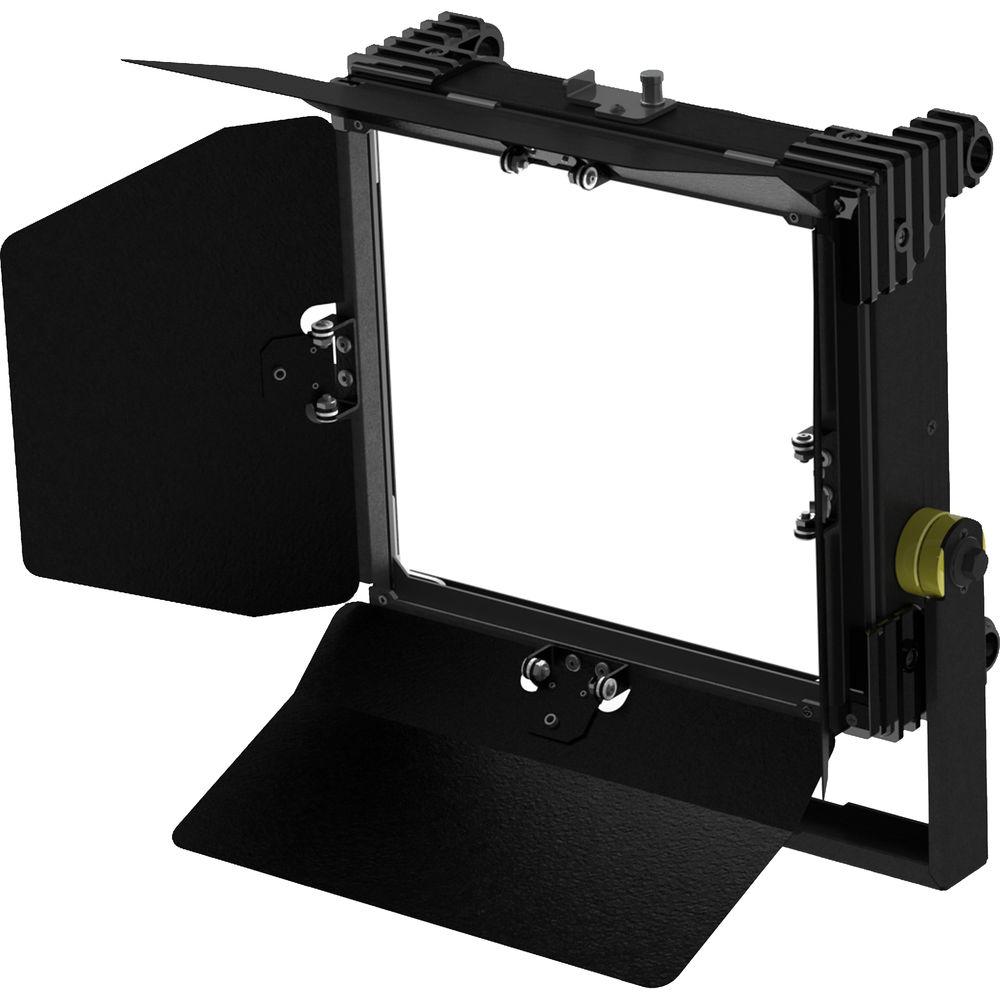

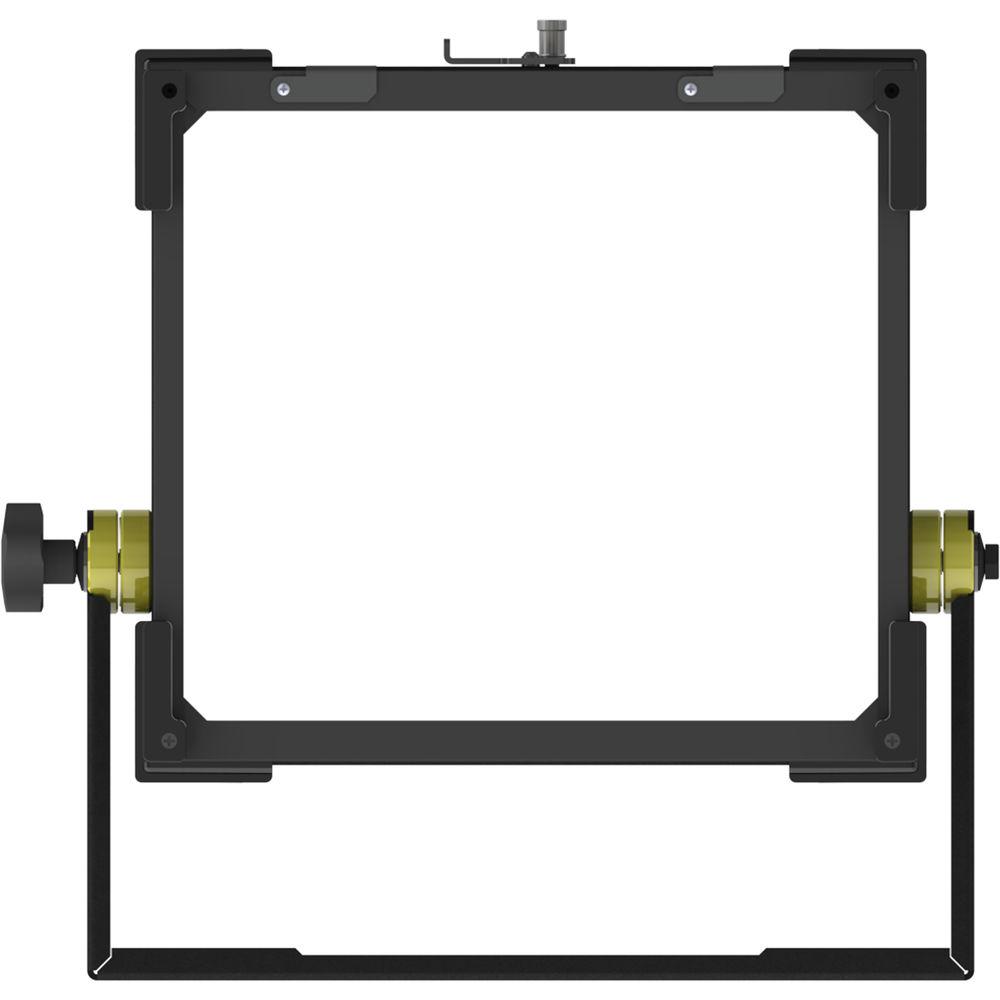

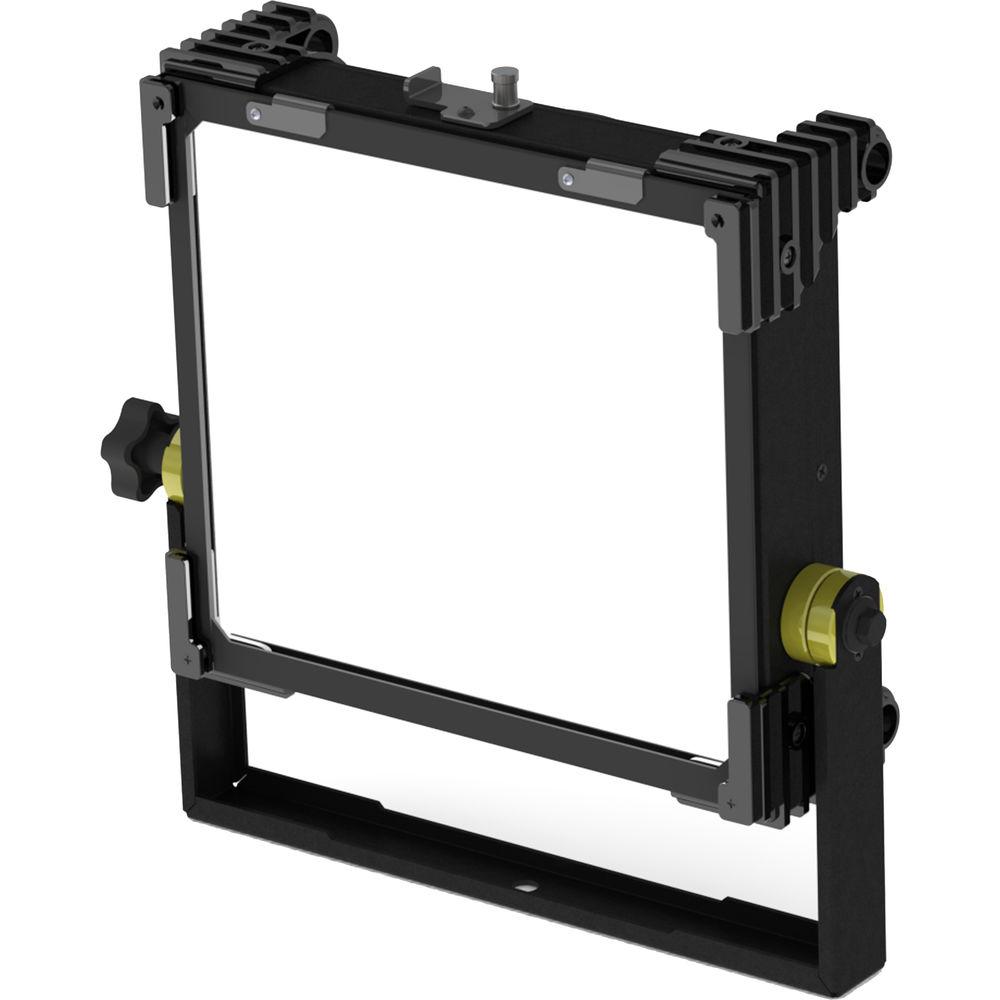

Product description Create a beautiful three-point lighting setup with a soft quality by using this CineLight Production 30 Tunable SoftLIGHT LED Panel 3-Light Kit from FLUOTEC. Bundling together three of their 16.6 x 12.7" panels, this kit provides users with versatility, as well as mobility thanks to the ability to use V-mount batteries in addition to AC power. The kit also includes three 8.8' Tripod KS stands for positioning your lights and a heavy-duty flight case with a handle and wheels for storage and transport. - CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power) Using NEBULA Diffusion Chamber Technology, the CineLight Production 30 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio or on-location kit a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 16.6 x 12.7" and equipped with a V-mount battery plate, the CineLight 30 creates a 65 x 65° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95, while still easy to move around and position.

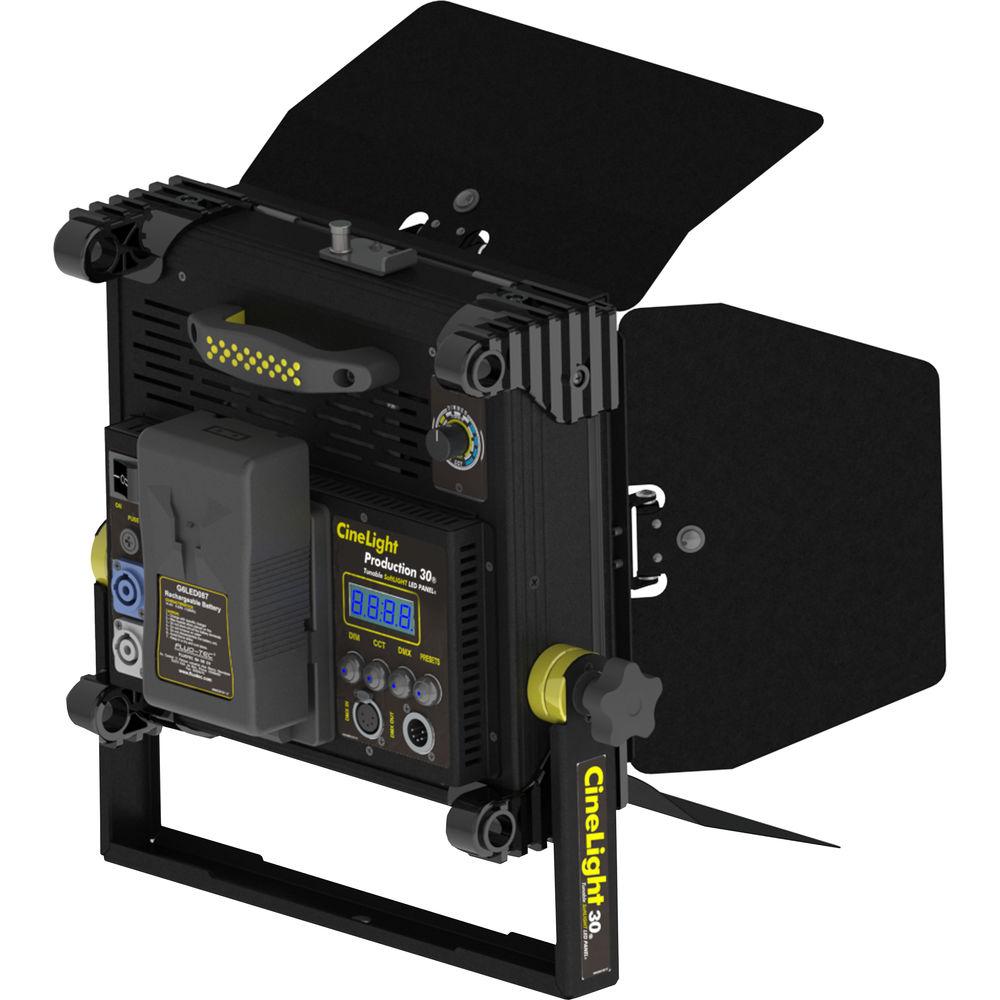

Users will enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision. Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature.
Benefitting from the use of LEDs, the CineLight 30 uses completely silent passive cooling. Also, it can mount to most standard stands using the included yoke with 5/8" receiver. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 57W. For additional control over the light output, the fixture includes a filter holder for gels and a 50° egg crate grid. - Photometrics
- Neutral White: 38 fc / 416 lux at 6' / 1.8m
Cool White: 38 fc / 416 lux at 6' / 1.8m
Warm White: 38 fc / 416 lux at 6' / 1.8m UPC: 040232641541 - KS Light Stand (8.8') The 8.8' KS Light Stand from Fluotec is designed for use with StarMaker series tunable production LED panels. It has a maximum working height of 8.8' and minimum working height of 2.75'.
- Tubular legs with double-strut leg brace
- Heavy-Duty Flight Case with Wheels for StarMaker HP Panels Designed for image makers who spend a great deal of time on the road, the 22.8 x 41.73 x 7.4" Heavy-Duty Flight Case with Wheels for StarMaker HP Panels from Fluotec is built to last. The case is constructed from vinyl-covered plywood with metal-reinforced edges for the rigors of heavy use. It features recessed latches and spring-action handles, as well as wheels for easy transport.

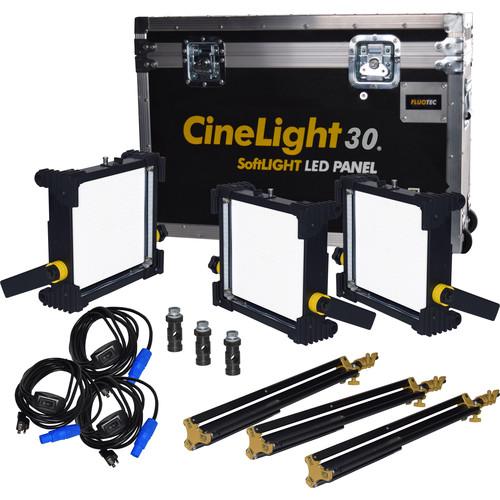

In the Box Bundle Items 3 x CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power) azuaebfuytvsrreceerrzycfeevbcub - PowerCon AC Cable with Switch (16')
3 x KS Light Stand (8.8') Heavy-Duty Flight Case with Wheels for StarMaker HP Panels Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CineLight Production 30 Tunable SoftLIGHT LED Panel (V-Mount Battery Plate and AC Power)
| Light Source | LED | | CRI | 95 | | Color Temperature | 2700-6600K | | Beam Angle | 65 x 65° | | Dimming | 0-100% | | DMX Connectors | 5-pin XLR input
5-pin XLR output | | Display | Digital | | Cooling | Passive | | Mount | Yoke
5/8" receiver | | Power Connectors | powerCON AC input
powerCON AC output
V-mount battery plate | | Power Requirements | 90-240 VAC, 50/60 Hz, 0.48 A | | Power Draw | 57 W | | Dimensions | 16.6 x 12.7 x 6.3" / 42.3 x 32.3 x 16.2 cm | | Weight | 10 lb / 4.5 kg | - KS Light Stand (8.8')
| Mounting Options | 5/8" Stud | | Number of Sections | 2 | | Column Diameter | 0.87" / 2.21 cm
1.13" / 2.87 cm | | Maximum Working Height | 8.8' / 2.7 m | | Minimum Working Height | 2.8' / 0.9 m | | Collapsed Height | 3' / 0.9 m | | Footprint Diameter | 3.4' / 1.04 m | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Material | Aluminum | | Weight | 4.0 lb / 1.8 kg | - Heavy-Duty Flight Case with Wheels for StarMaker HP Panels
| | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Metal, Wood | | Exterior Dimensions (W x H x D) | 22.8 x 41.7 x 7.4" / 58 x 106 x 19 cm |
