User Manual for Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel Click to enlarge the picture
Contents of the user manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
 |
User manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|

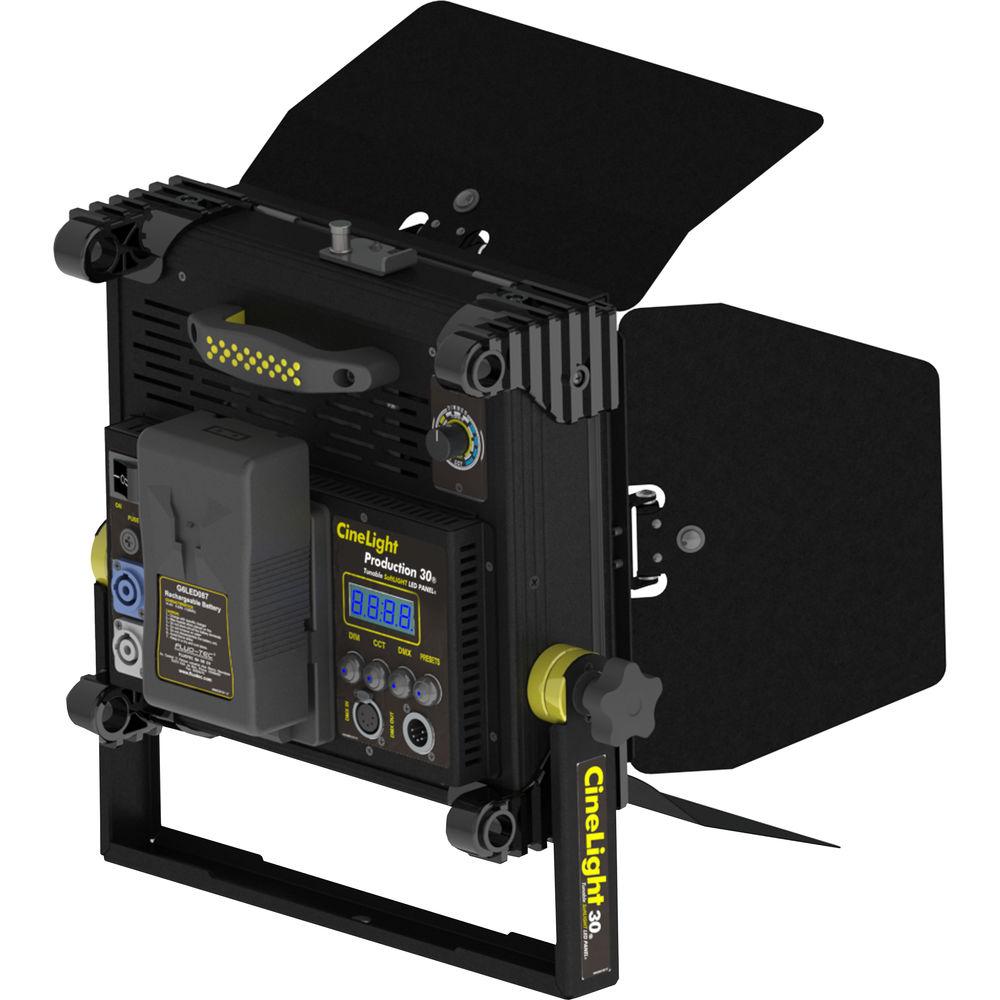

Product description Using NEBULA Diffusion Chamber Technology, the CineLight Production 30 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio or on-location kit a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 16.6 x 12.7" and equipped with a Gold-mount battery plate, the CineLight 30 creates a 65 x 65° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95, while still easy to move around and position.
Users will enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision. Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature.
Benefitting from the use of LEDs, the CineLight 30 uses completely silent passive cooling. Also, it can mount to most standard stands using the included yoke with 5/8" receiver. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 57W. For additional control over the light output, the fixture includes a filter holder for gels and a 50° egg crate grid. - Photometrics
- Neutral White: 38 fc / 416 lux at 6' / 1.8m
Cool White: 38 fc / 416 lux at 6' / 1.8m
Warm White: 38 fc / 416 lux at 6' / 1.8m UPC: 040232641558 In the Box Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel (Gold-Mount Battery Plate and AC Power) Filter Holder 50° Egg Crate PowerCon AC Cable with Switch (16') Stand Mount Spigot Stand Mounting Bracket 2 x Safety Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Production 30 Tunable SoftLIGHT LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec Production 30 Specs | Light Source | LED | | CRI | 95 | | Color Temperature | 2700-6600K | | Beam Angle | 65 x 65° | | Dimming | 0-100% | | DMX Connectors | 5-pin XLR input
5-pin XLR output | | Display | Digital | | Cooling | Passive | | Mount | Yoke
5/8" receiver | | Power Connectors | powerCON AC input
powerCON AC output
Gold-mount battery plate | | Power Requirements | 90-240 VAC, 50/60 Hz, 0.48 A | | Power Draw | 57 W | | Dimensions | 16.6 x 12.7 x 6.3" / 42.3 x 32.3 x 16.2 cm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 21.5 x 15.0 x 9.0" |
