Product description

• CineLight Production 60 Tunable SoftLIGHT LED Panel (Stand Mounting Bracket) Using NEBULA Diffusion Chamber Technology, the CineLight Production 60 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 24.8 x 12.2", the CineLight 60 creates a wide 70 x 62° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95. Users will also enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision.

  Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature. Benefiting from the use of LEDs, the CineLight 60 uses completely silent passive cooling. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 133W. For additional control over the light output, the fixture includes a gel frame and a 50° eggcrate grid.
  Photometrics
  • Neutral White: 74 fc / 800 lux at 6' / 1.8 m
    Cool White: 74 fc / 800 lux at 6' / 1.8 m
    Warm White: 74 fc / 800 lux at 6' / 1.8 m
  UPC: 040232566417

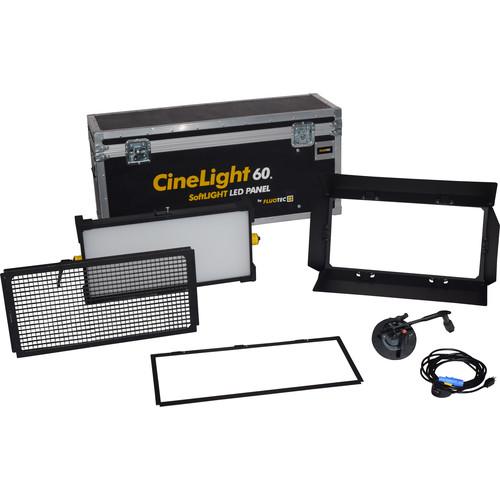

• Wheeled Flight Case for CineLight 60 Made for travel, touring, or shipping, the Wheeled Flight Case for CineLight 60 from Fluotec is a hinged hard case with reinforced metal edges and corners. The case features recessed, spring-loaded handles and twist- locking latches.
• 4-Leaf Barndoor Set for CineLight Studio and Production 60 LED Panels The 4-Leaf Barndoor Set for CineLight Studio and Production 60 LED Panels from Fluotec is a light modifier that mounts to front of the fixture. Its 4-leaf design allows you to swing one or more of the leaves into the beam path to selectively light areas that you want to and to keep light from areas that you don't want illuminated.

• Gel Frame

• 50° Eggcrate

• PowerCon AC Cable with Switch (16')

• Mounting Bracket with Stabilizer Arm for CineLight 120 Series

• C-Clamp

• Stand Mount Spigot

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CineLight Production 60 Tunable SoftLIGHT LED Panel (Stand Mounting Bracket)

  Light Source	LED
  CRI	95 @ 4600K
  Color Temperature	2700-6500K
  Beam Angle	70 x 62°
  Dimming	0-100%
  DMX	Yes
  Power Draw	0.91 A (109 W) @ 120 V
  Display	Digital
  Cooling	Passive
  Mount	Yoke with stand mounting bracket 5/8" receiver C-clamp
  Power Connectors	powerCON AC input powerCON AC output
  Power Requirements	90-240 VAC, 50/60 Hz, 1.11 A
  Power Draw	133 W
  Dimensions	24.8 x 12.2 x 4.9" / 63.2 x 31.2 x 12.4 cm
  Weight	15.4 lb / 7.0 kg

  Box Dimensions (LxWxH)	37.5 x 16.0 x 9.5"

• Wheeled Flight Case for CineLight 60

  Closure Type	Latch
  Carry and Transport Options	Handle
  Material of Construction	Aluminum, Wood
  Exterior Dimensions (W x H x D)	33.6 x 15.8 x 11.6" / 85.5 x 40.3 x 29.5 cm

• 4-Leaf Barndoor Set for CineLight Studio and Production 60 LED Panels
