User Manual for Fluotec CineLight Production 60 Tunable SoftLIGHT LED Panel Click to enlarge the picture
Contents of the user manual for the Fluotec CineLight Production 60 Tunable SoftLIGHT
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
 |
User manual for the Fluotec CineLight Production 60 Tunable SoftLIGHT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|

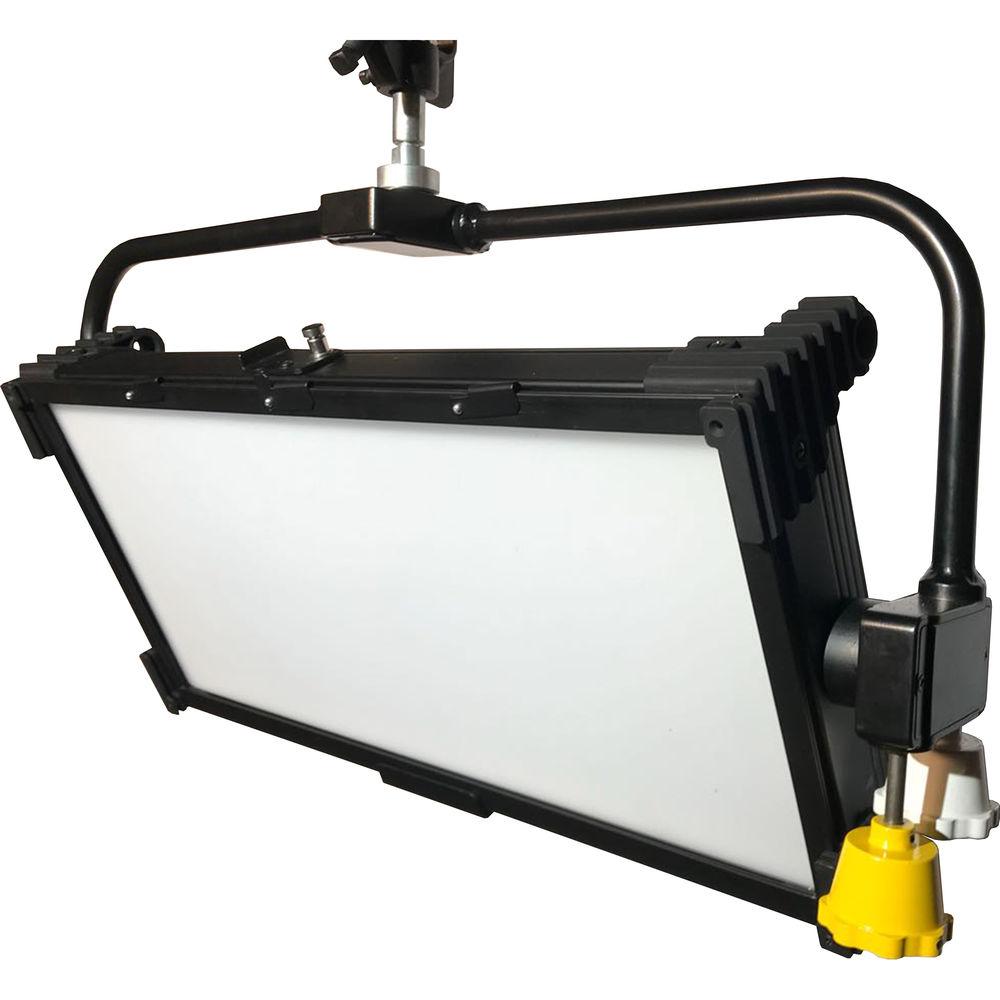

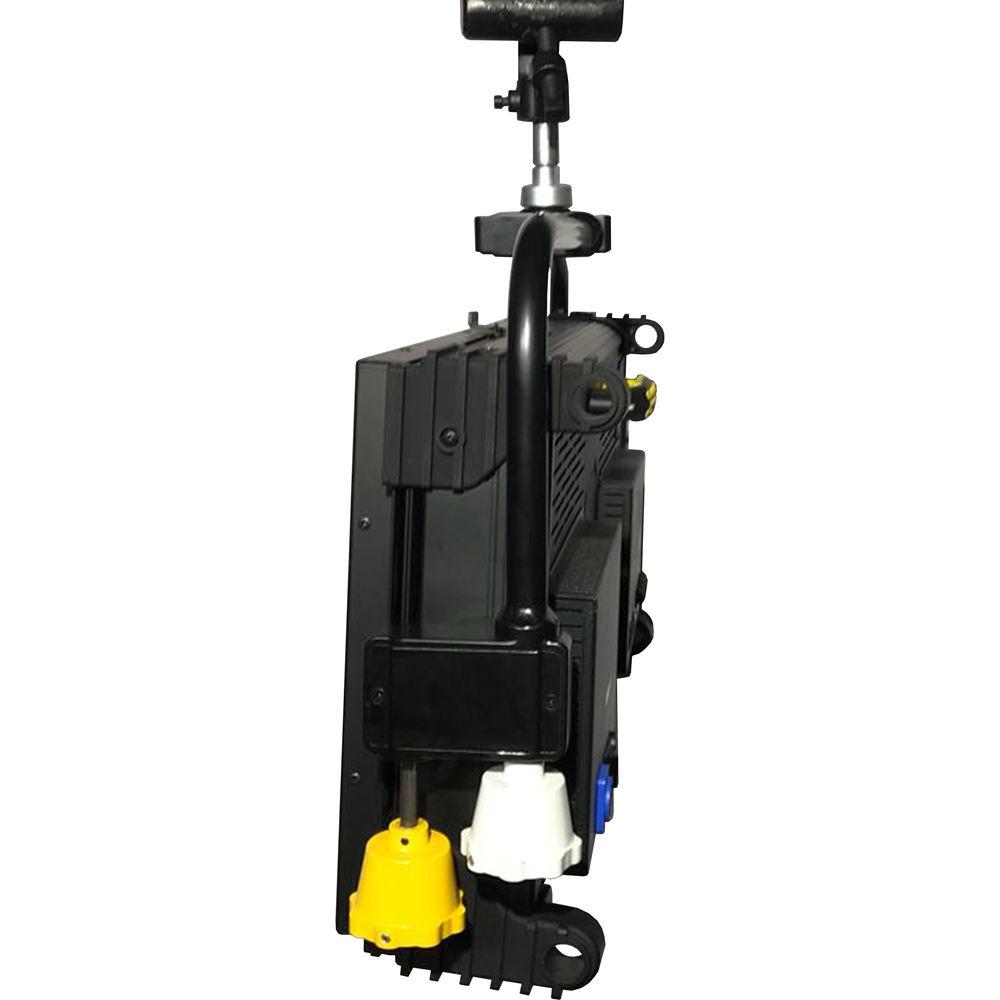

Product description Using NEBULA Diffusion Chamber Technology, the CineLight Production 60 Tunable SoftLIGHT LED Panel from FLUOTEC will offer your studio a beautiful soft light that will easily illuminate and flatter your models and subjects. Measuring 24.8 x 12.2", the CineLight 60 creates a wide 70 x 62° beam angle to help fill the scene with a color-accurate light, proven by the fixture's rated CRI of 95. Users will also enjoy the ability to easily adjust the color temperature from a tungsten-balanced 2700K to a daylight-balanced 6600K through smooth adjustments or eight programmable presets. HALODIM stepless 0-100% dimming is present as well with a 12-bit resolution for extra precision.
Operation of the fixture can be performed using either local controls and the digital display or via DMX which automatically assigns two channels, one for dimming and the other for color temperature. Benefiting from the use of LEDs, the CineLight 60 uses completely silent passive cooling. Additionally, it comes with a universal 90-240 VAC power supply and 16' powerCON cable and draws approximately 133W. For additional control over the light output, the fixture includes a gel frame and a 50° eggcrate grid. - Photometrics
- Neutral White: 74 fc / 800 lux at 6' / 1.8 m
Cool White: 74 fc / 800 lux at 6' / 1.8 m
Warm White: 74 fc / 800 lux at 6' / 1.8 m UPC: 051497034757 In the Box Fluotec CineLight Production 60 Tunable SoftLIGHT LED Panel (Pole Operated) Gel Frame 50° Eggcrate PowerCon AC Cable with Switch (16') rfurtvztxzrtzzcwzv C-Clamp Stand Mount Spigot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Production 60 Tunable SoftLIGHT LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec Production 60 Specs | Light Source | LED | | CRI | 95 @ 4600K | | Color Temperature | 2700-6500K | | Beam Angle | 70 x 62° | | Dimming | 0-100% | | DMX | Yes | | Power Draw | 0.91 A (109 W) @ 120 V | | Display | Digital | | Cooling | Passive | | Mount | Pole-operated yoke
5/8" receiver
C-clamp | | Power Connectors | powerCON AC input
powerCON AC output | | Power Requirements | 90-240 VAC, 50/60 Hz, 1.11 A | | Power Draw | 133 W | | Dimensions | 24.8 x 12.2 x 4.9" / 63.2 x 31.2 x 12.4 cm | | Weight | 15.4 lb / 7.0 kg |
