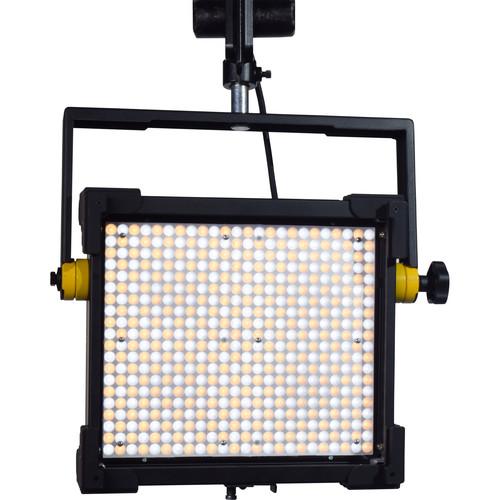

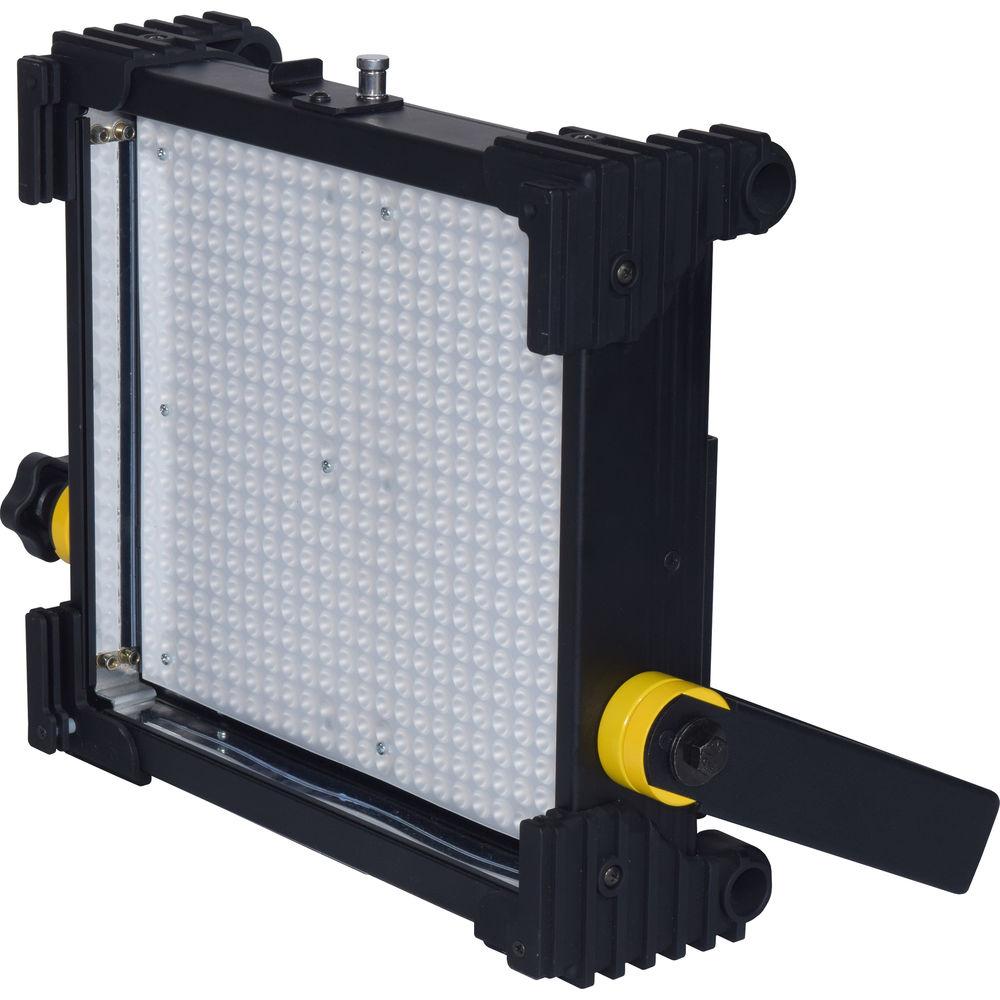

Product description The CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel from Fluotec uses stepless 0 to 100% HALODIM control dimming with 12-bit resolution and calculated curves specially designed for the human eye, allowing a smooth dimming response and minimum color shift. The DMX control software automatically assigns 2 channels (first for dimming and the second for color temperature).

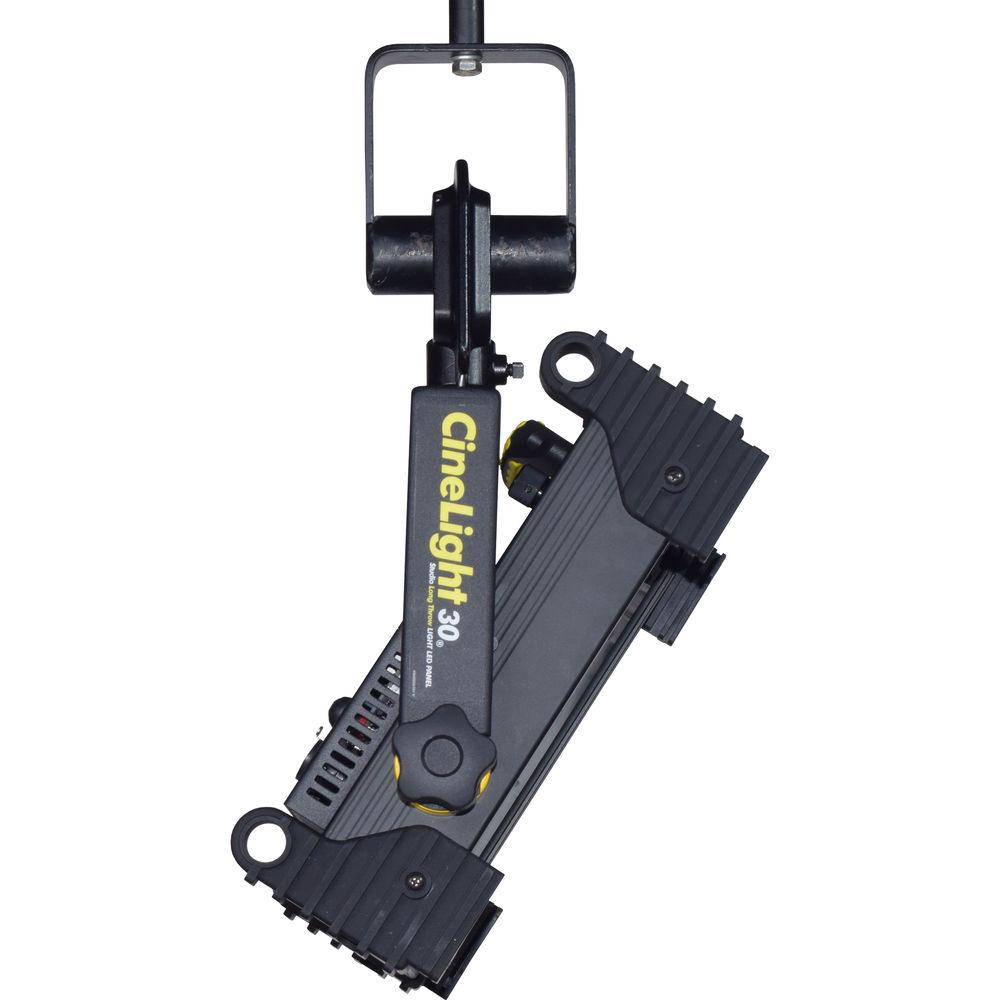

The panel also offers constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved via the calibration curves). It comes with a yoke mount and offers 44 x 44° beam angle. In addition, the light is equipped with a Gold-mount battery plate. - Manual and/or DMX control
- 8 memory presets for color temperature and custom configurations are allowed between 2700 to 6600K
- White light LEDs controlled by software-hardware drivers
- Constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved with custom-designed calibration curves)
In the Box Fluotec CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel (Gold-Mount) G6FLT262 C-Clamp PowerCon AC Cable with Switch (16') uwevtustrabradzsey G6FLT057 Stand Mount Spigot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec Studio 30 Specs | Max Power Draw | 65 W | | Color Range | 2700 to 6600K
Remote Variable CCT: 2700 to 6300K | | CRI | +95 at 4600K | | Operating Voltage | 90 to 240 VAC, 50/60Hz | | Photometrics | Neutral White/Cool White/Warm White
100 fc / 1078 lux at 6' / 1.8 m
45 fc / 481 lux at 9' / 2.74 m
25 fc / 270 lux at 12' / 3.66 m | | Current | 0.55 A | | Power Consumption | 57 W | | Beam Angle | 44 x 44° | | Dimming | 0 to 100% via DMX and digital display | | Mount | Yoke | | Certifications | CE, cETLUS, NOM | | Power Connectors | powerCON AC input
powerCON AC output
Gold mount battery plate | | Dimensions | 16.6 x 12.7 x 6.3" (42.3 x 32.3 x 16.2 cm) | | Weight | 10 lb (4.5 kg) |
