Fluotec CineLight Studio 30 Gold Mount

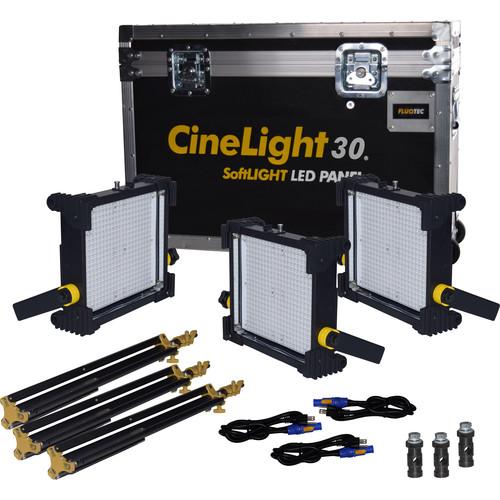

User Manual for Fluotec CineLight Studio 30 Gold Mount Long Throw 3-Light Kit

• Product category: LED Lights Fluotec
• Brand: Fluotec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fluotec LED Lights

Product description

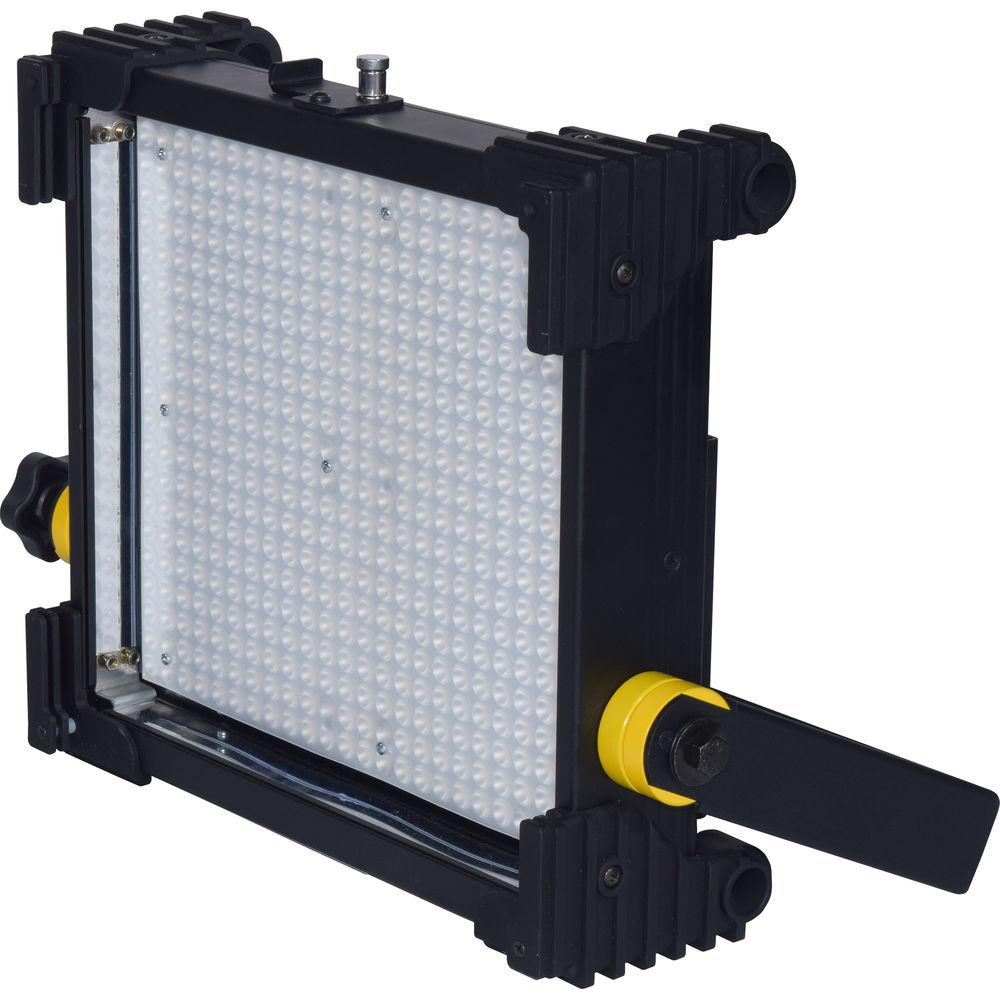

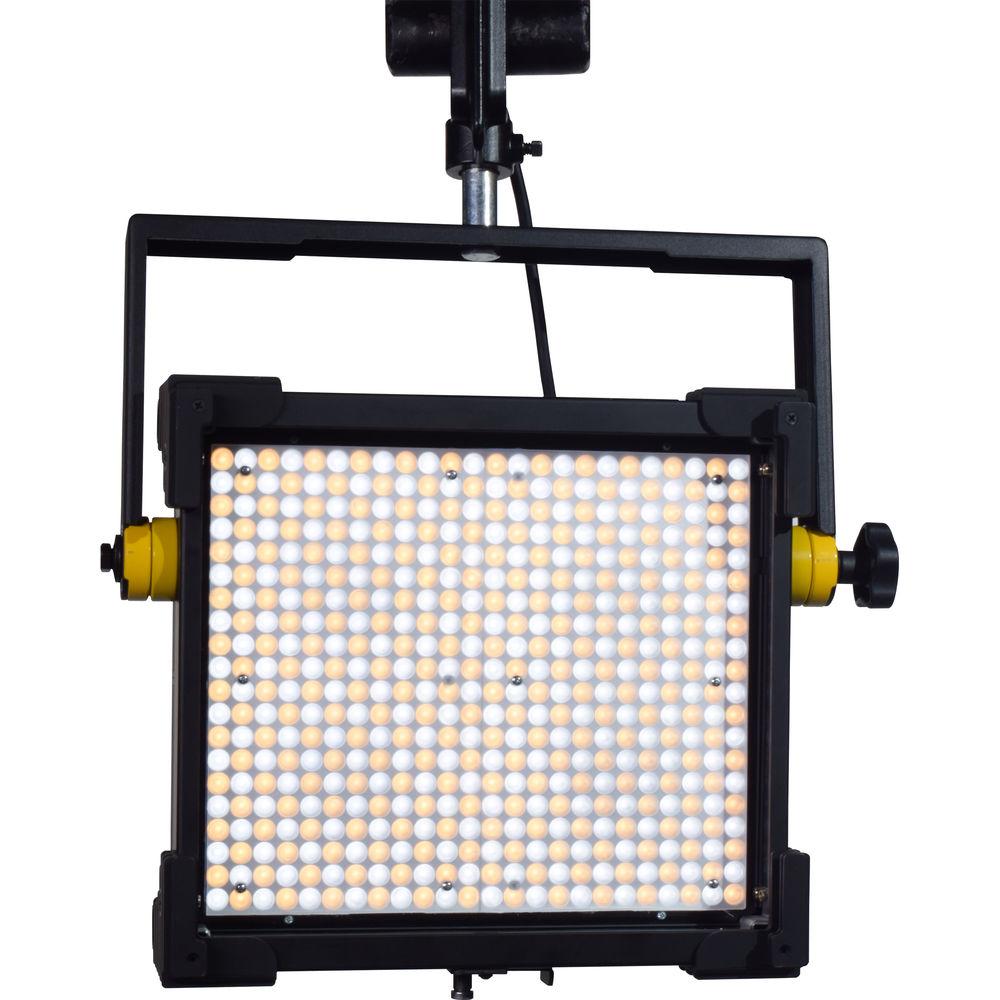

• CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel (Gold-Mount) The CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel from Fluotec uses stepless 0 to 100% HALODIM control dimming with 12-bit resolution and calculated curves specially designed for the human eye, allowing a smooth dimming response and minimum color shift. The DMX control software automatically assigns 2 channels (first for dimming and the second for color temperature).

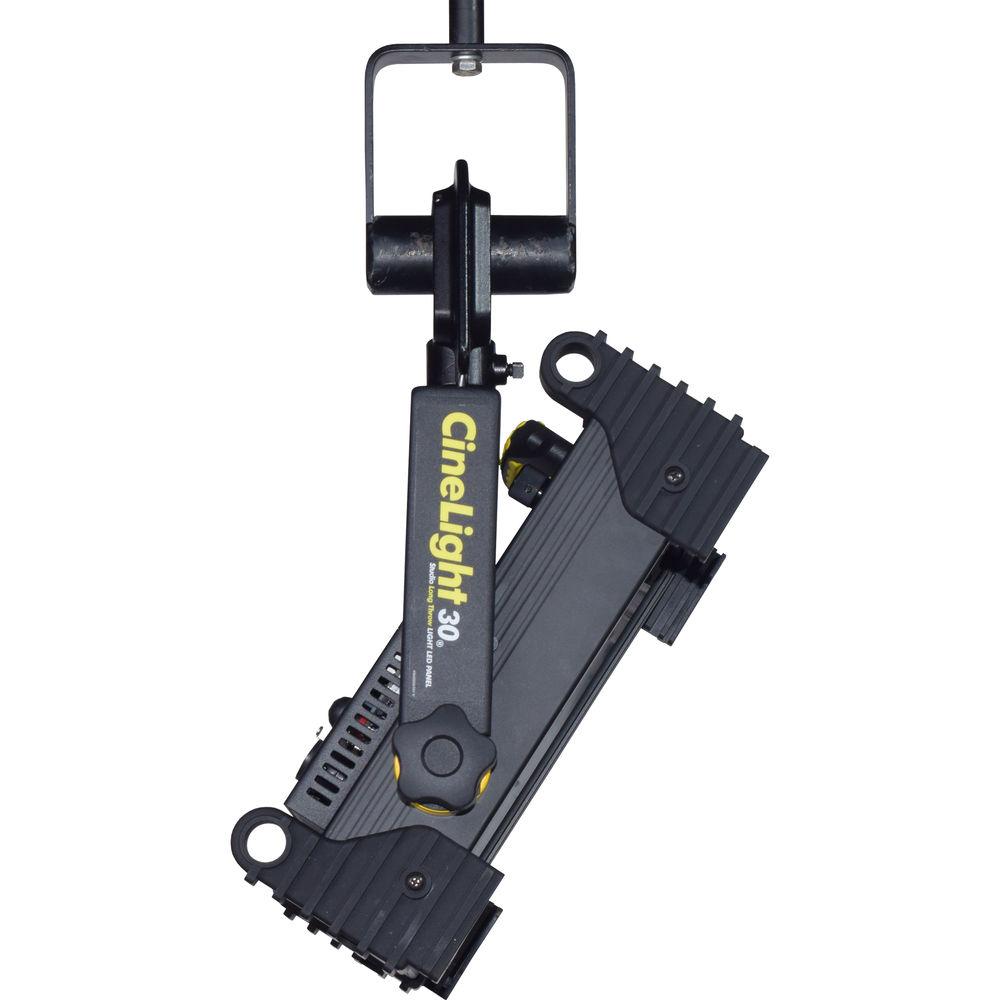

  The panel also offers constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved via the calibration curves). It comes with a yoke mount and offers 44 x 44° beam angle. In addition, the light is equipped with a Gold-mount battery plate.
  • Manual and/or DMX control
  • 8 memory presets for color temperature and custom configurations are allowed between 2700 to 6600K
  • White light LEDs controlled by software-hardware drivers
  • Constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved with custom-designed calibration curves)
• KS Light Stand (8.8') The 8.8' KS Light Stand from Fluotec is designed for use with StarMaker series tunable production LED panels. It has a maximum working height of 8.8' and minimum working height of 2.75'.
  • Tubular legs with double-strut leg brace
• Heavy-Duty Flight Case with Wheels for StarMaker HP Panels Designed for image makers who spend a great deal of time on the road, the 22.8 x 41.73 x 7.4" Heavy-Duty Flight Case with Wheels for StarMaker HP Panels from Fluotec is built to last. The case is constructed from vinyl-covered plywood with metal-reinforced edges for the rigors of heavy use. It features recessed latches and spring-action handles, as well as wheels for easy transport.

• G6FLT262 C-Clamp

• PowerCon AC Cable with Switch (16')

• G6FLT057 Stand Mount Spigot

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CineLight Studio 30 65W 1' Tunable Long Throw White Light LED Panel (Gold-Mount)

  Max Power Draw	65 W
  Color Range	2700 to 6600K Remote Variable CCT: 2700 to 6300K
  CRI	+95 at 4600K
  Operating Voltage	90 to 240 VAC, 50/60Hz
  Photometrics	Neutral White/Cool White/Warm White 100 fc / 1078 lux at 6' / 1.8 m 45 fc / 481 lux at 9' / 2.74 m 25 fc / 270 lux at 12' / 3.66 m
  Current	0.55 A
  Power Consumption	57 W
  Beam Angle	44 x 44°
  Dimming	0 to 100% via DMX and digital display
  Mount	Yoke
  Certifications	CE, cETLUS, NOM
  Power Connectors	powerCON AC input powerCON AC output Gold mount battery plate
  Dimensions	16.6 x 12.7 x 6.3" (42.3 x 32.3 x 16.2 cm)
  Weight	10 lb (4.5 kg)

• KS Light Stand (8.8')

  Mounting Options	5/8" Stud
  Number of Sections	2
  Column Diameter	0.87" / 2.21 cm 1.13" / 2.87 cm
  Maximum Working Height	8.8' / 2.7 m
  Minimum Working Height	2.8' / 0.9 m
  Collapsed Height	3' / 0.9 m
  Footprint Diameter	3.4' / 1.04 m
  Leg Shape	Round
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Material	Aluminum
  Weight	4.0 lb / 1.8 kg

• Heavy-Duty Flight Case with Wheels for StarMaker HP Panels

  Closure Type	Latch
  Carry and Transport Options	Handle
  Material of Construction	Metal, Wood
  Exterior Dimensions (W x H x D)	22.8 x 41.7 x 7.4" / 58 x 106 x 19 cm
