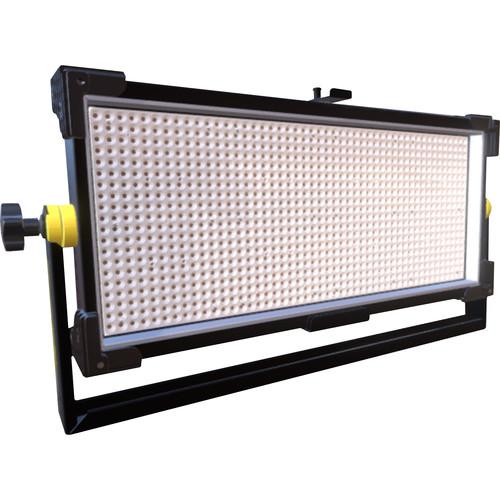

User Manual for Fluotec CineLight Studio 60 133W 2' Tunable Long Throw SoftLIGHT LED Panel Click to enlarge the picture
Contents of the user manual for the Fluotec CineLight Studio 60 133W 2'
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
|
User manual for the Fluotec CineLight Studio 60 133W 2' contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|
Product description The CineLight Studio 60 133W 2' Tunable Long Throw SoftLIGHT LED Panel from Fluotec uses stepless 0 to 100% HALODIM control dimming with 12-bit resolution and calculated curves specially designed for the human eye, allowing a smooth dimming response and minimum color shift. In addition, the light comes with a long throw light reflector louver and 50° light control grid.
The panel also offers constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved via the calibration curves). It comes with a yoke mount and offers 44 x 44° beam angle. - Manual and/or DMX control
- 8 memory presets for color temperature and custom configurations are allowed between 2700 to 6600K
- White light LEDs controlled by software-hardware drivers
- Constant luminous output for the whole range (2700 to 6300K) of correlated color temperatures (CCT is achieved with custom-designed calibration curves)
- DMX control software automatically assigns 2 channels (first for dimming and the second for color temperature)
In the Box Fluotec CineLight Studio 60 133W 2' Tunable Long Throw SoftLIGHT LED Panel (Yoke Mount) Long Throw Reflector Louver G6CNT122 Gel Frame G6CNT132 50° Light Control Grid G6CNT153 Yoke G6FLT262 C-Clamp PowerCon AC Cable without Switch (16') G6FLT057 Stand Mount Spigot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec CineLight Studio 60 133W 2' Tunable Long Throw SoftLIGHT LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec Studio 60 Specs | Power Draw | 133 W | | Color Range | 2700 to 6600K
Remote Variable CCT: 2700 to 6300K and 8 presets | | CRI | +95 at 4600K | | Operating Voltage | 90 to 240 VAC, 50/60Hz | | Photometrics | Neutral White/Cool White/Warm White
192 fc / 2073 lux at 6' / 1.8 m
85 fc / 925 lux at 9' / 2.74 m
48 fc / 518 lux at 12' / 3.66 m | | Current | 1.11 A at 120 V | | Beam Angle | 44 x 44° | | Dimming | 0 to 100% via DMX and digital display | | Mount | Yoke | | Certifications | CE, cETL, NOM | | Power Connectors | powerCON AC input
powerCON AC output | | Dimensions | 12.2 x 24.8 x 4.9" (31.2 x 63.2 x 12.4 cm) | | Weight | 15.43 lb (7 kg) |
