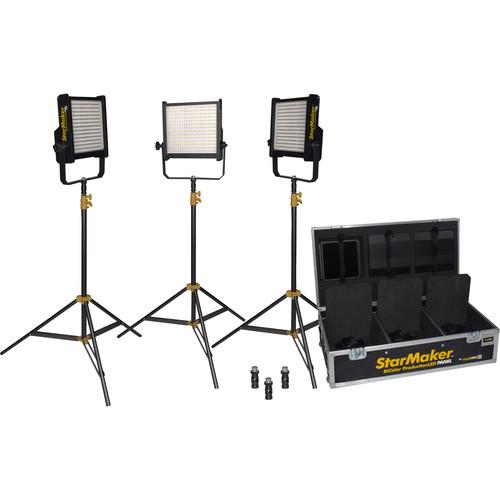

User Manual for Fluotec StarMaker HP Weatherproof LED Bi-Color LED Panel Pack 3 Click to enlarge the picture
Contents of the user manual for the Fluotec StarMaker HP Weatherproof LED Bi-Color
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
|
User manual for the Fluotec StarMaker HP Weatherproof LED Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|
Product description Fluotec has put together this StarMaker HP Weatherproof LED Bi-Color LED Panel Pack 3 with V-mount for image makers who need to take studio-quality lighting on the road. The pack contains three StarMaker Bi-Color HP Weatherproof Panels with gel frames, AC cables, stand spigots, C-clamps, safety cables, and three 8.8' light stands. A hard, wheeled case is included for storage and transport. - StarMaker HP Weatherproof LED Bi-Color LED Panel (V-Mount) The V-mount StarMaker HP Weatherproof LED Bi-Color LED Panel from Fluotec is a versatile light source with solid core features. Its IP65 rating means that it's protected from rain or water projected from any direction. The StarMaker's 45-degree beam angle offers directional control for selective lighting and can be narrowed further by employing the included 30-degree grid. The light has an expansive color temperature range of 2700 to 6200K, making it easy to match other fixtures, ambient light conditions, or just for creative expression. Its high CRI rating of 97 is an indicator of superior, accurate color rendering. The StarMaker is also dimmable from 0 to 100% for instant changes in light intensity without moving the fixture. Ready for worldwide use, the StarMaker has a 90 to 240 VAC power supply, but can also run on V-mount batteries when mains power is unavailable. Besides the grid, the StarMaker comes with a gel frame, powerCON AC cable, and a stand spigot. UPC: 040232641718
- KS Light Stand (8.8') The 8.8' KS Light Stand from Fluotec is designed for use with StarMaker series tunable production LED panels. It has a maximum working height of 8.8' and minimum working height of 2.75'.
- Tubular legs with double-strut leg brace
- Heavy-Duty Flight Case with Wheels for StarMaker HP Panels Designed for image makers who spend a great deal of time on the road, the 22.8 x 41.73 x 7.4" Heavy-Duty Flight Case with Wheels for StarMaker HP Panels from Fluotec is built to last. The case is constructed from vinyl-covered plywood with metal-reinforced edges for the rigors of heavy use. It features recessed latches and spring-action handles, as well as wheels for easy transport.
In the Box Bundle Items 3 x StarMaker HP Weatherproof LED Bi-Color LED Panel (V-Mount) axsrzqtdft - Filter Holder for StarMaker LED Panel
- PowerCon AC Cable with Switch (16')
- 30° Honeycomb Grid for StarMaker HP LED Panel
3 x KS Light Stand (8.8') Heavy-Duty Flight Case with Wheels for StarMaker HP Panels
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec StarMaker HP Weatherproof LED Bi-Color LED Panel Pack 3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - StarMaker HP Weatherproof LED Bi-Color LED Panel (V-Mount)
| | | Beam Angle | 45° | | Color Temperature | 2700 to 6200K | | Color Accuracy Standard | CRI 97 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 56 fc / 602.6 lux at 9' / 2.74 m | | Fixture Dimensions | 13.4 x 13.0 x 3.5" / 34.0 x 33.0 x 8.8 cm With Yoke Handle: 15.7" / 40 cm Wide | | Fixture Weight | 10.58 lb / 4.8 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | powerCON | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 66 W | | | | Cable Length | 16' / 4.88 m | | Inline Switch | Yes | | Cable Type | powerCON to NEMA 5-15 | | | | Certifications | CE, ETL, as per Manufacturer | | IP Rating | IP65 | - KS Light Stand (8.8')
| Mounting Options | 5/8" Stud | | Number of Sections | 2 | | Column Diameter | 0.87" / 2.21 cm
1.13" / 2.87 cm | | Maximum Working Height | 8.8' / 2.7 m | | Minimum Working Height | 2.8' / 0.9 m | | Collapsed Height | 3' / 0.9 m | | Footprint Diameter | 3.4' / 1.04 m | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Material | Aluminum | | Weight | 4.0 lb / 1.8 kg | - Heavy-Duty Flight Case with Wheels for StarMaker HP Panels
| | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Metal, Wood | | Exterior Dimensions (W x H x D) | 22.8 x 41.7 x 7.4" / 58 x 106 x 19 cm |
