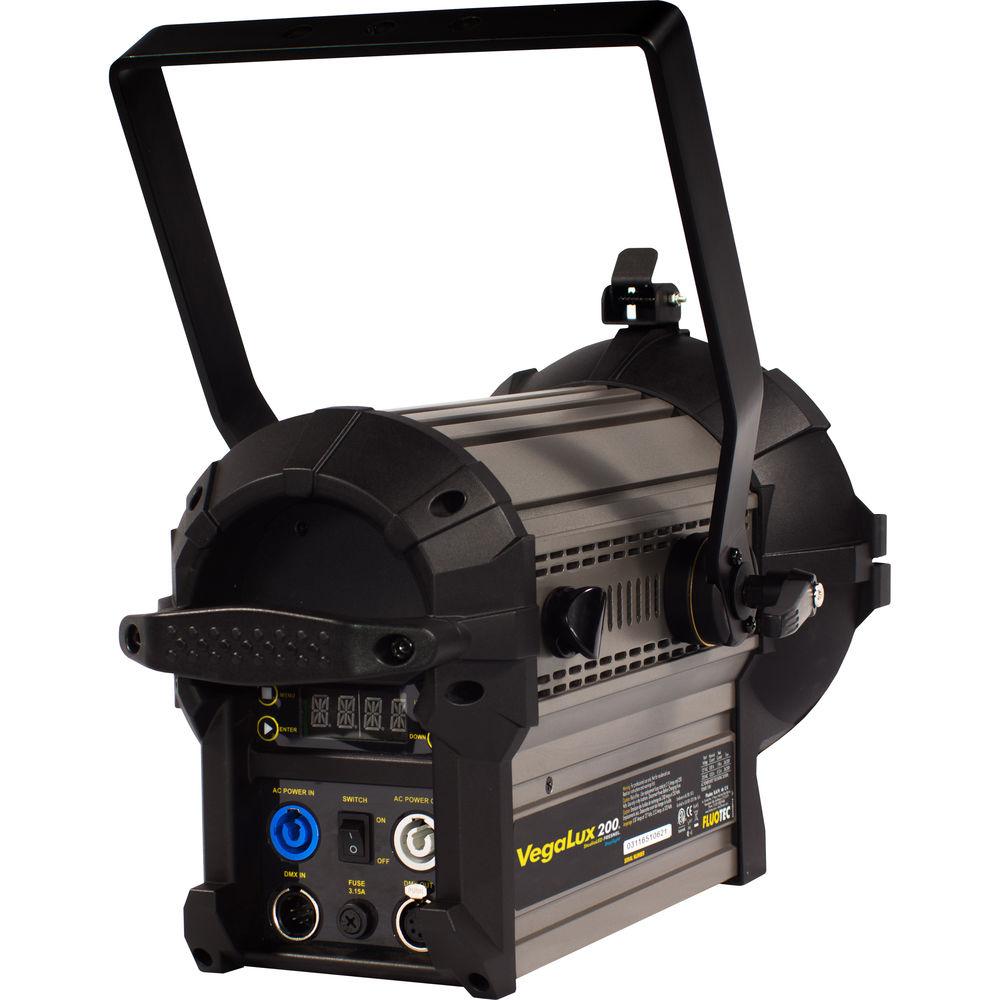

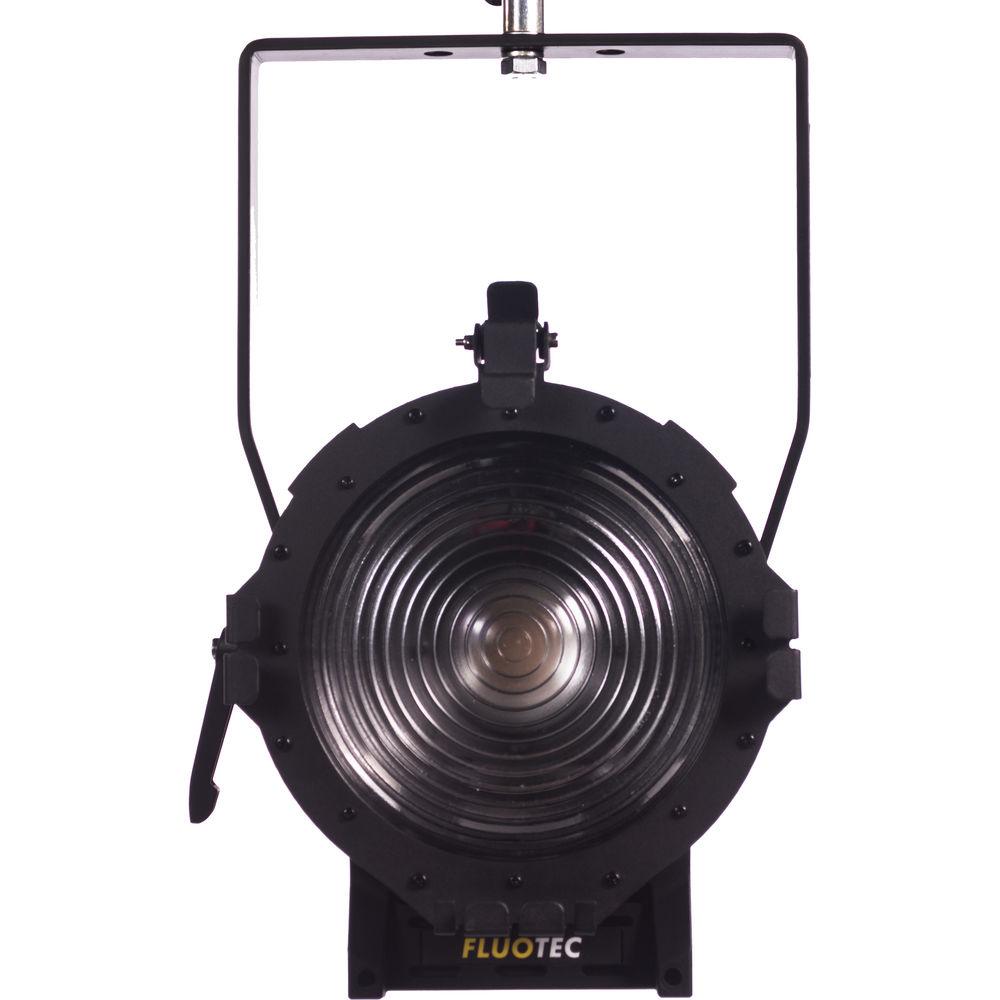

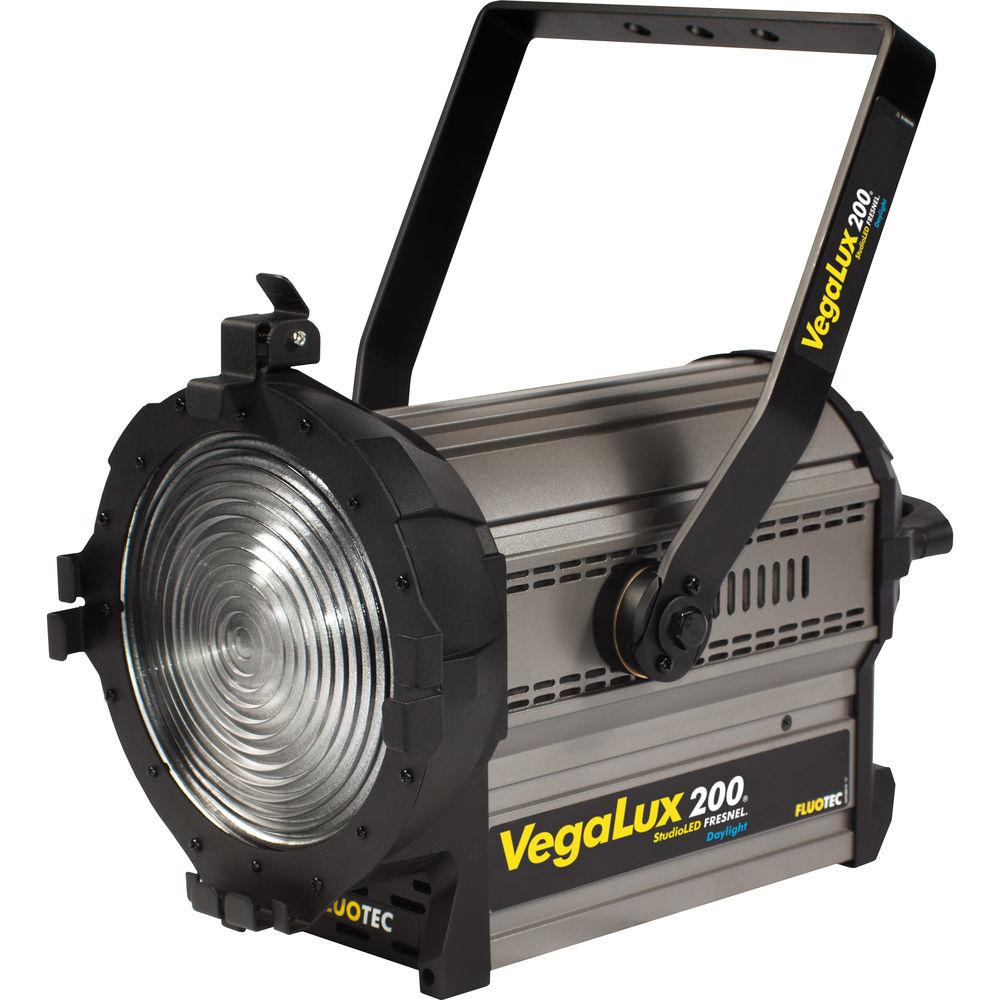

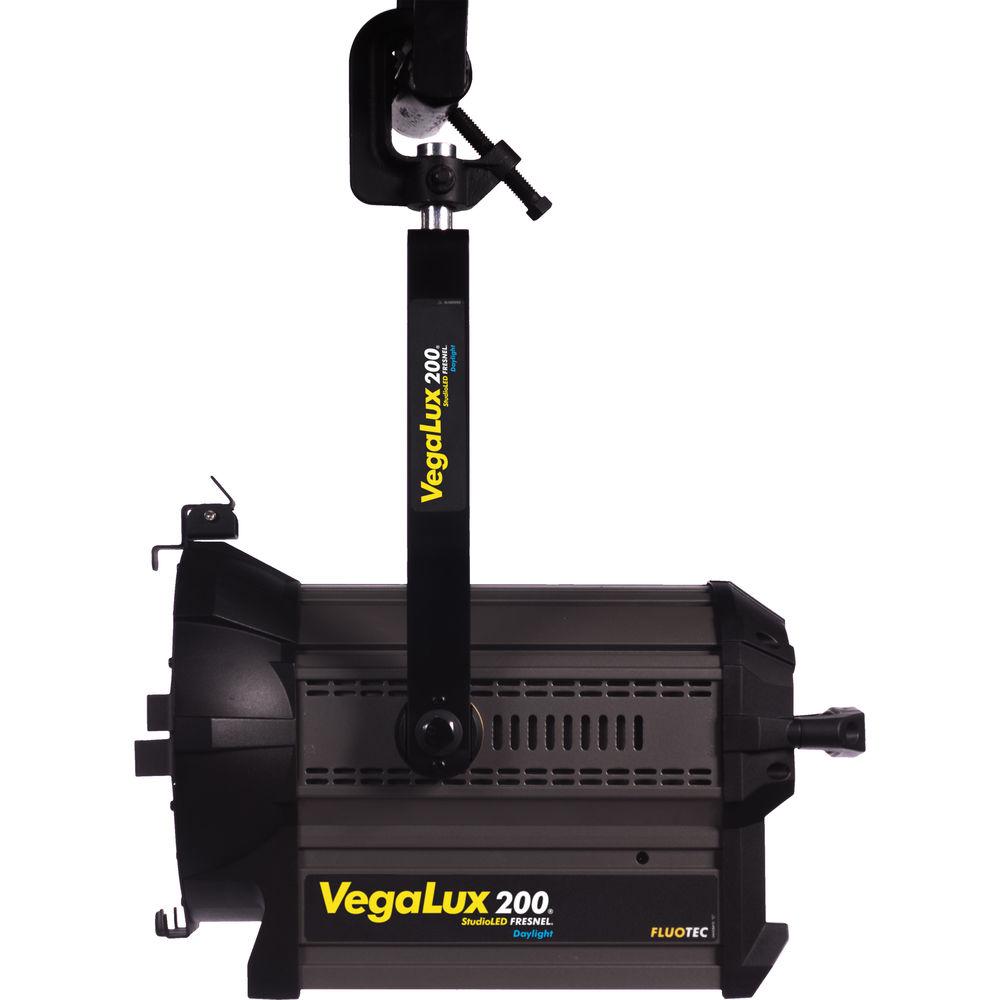

Product description For crisp, clean light with sharp shadows and flattering color, the VegaLux 200 Daylight 7" StudioLED Fresnel with Stand Mount Yoke from Fluotec is a wise choice. This 7" Fresnel uses NEBULA Diffusion Chamber Technology to create a perfectly blended white light with a daylight-balanced color temperature of 5600K and color that's rated CRI90+, an indicator of accurate rendering of color. It also features motorized local and DMX adjustment of the beam angle from a 10° spot to a 40° flood for exacting control over how the light falls on your scene. Users can even control power using either DMX or local controls with HALODIM technology ensuring smooth, stepless adjustments from 0-100%.

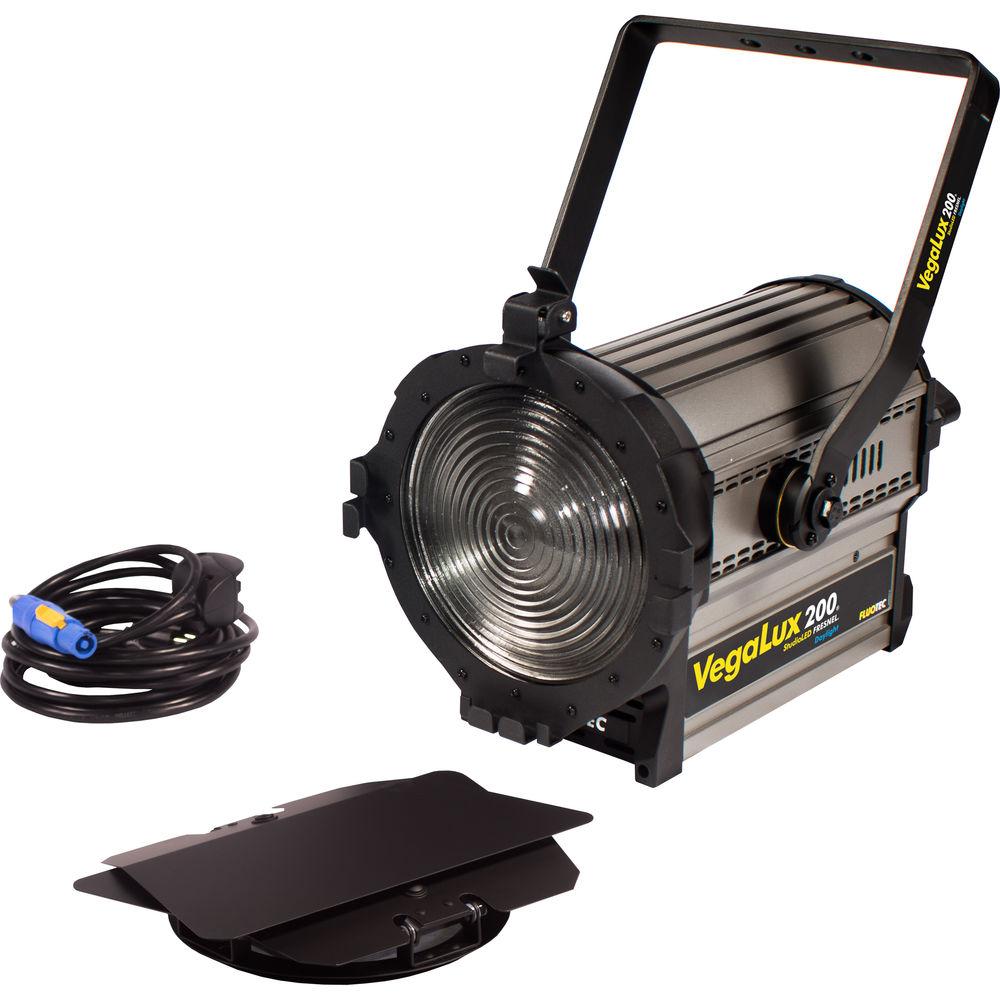

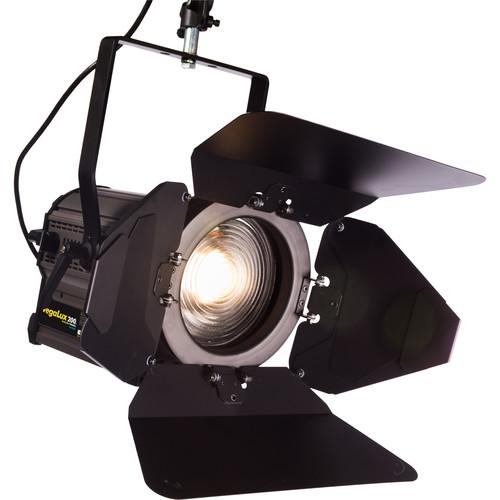

The VegaLux 200 can operate worldwide via its universal 90-240 VAC power supply and boasts a low power draw of 185W, while its efficient LEDs are cooled by a virtually silent fan, contributing to a lengthy lamp life of 50,000 hours. Included with the unit are an 8-leaf barndoor set, a yoke, filter holder, C-clamp, two safety cables, stand mount spigot, and a 16' locking powerCON cable. - Photometrics
- 10° Spot: 1732 fc / 18,844 lux at 6' / 1.8 m
40° Flood: 218 fc / 2372 lux at 6' / 1.8 m In the Box Fluotec VegaLux 200 Daylight 7" StudioLED Fresnel (Stand Mount) 8-Leaf Barndoors for VegaLux 200 StudioLED Fresnel Filter Holder for VegaLux 200 LED Fresnel C-Clamp for StudioLED Panels/Fresnels and CineLight Panels 16' powerCON AC Cable Stand Mount Spigot 2 x Safety Cable for StudioLED Fresnels Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec VegaLux 200 Daylight 7" StudioLED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec VegaLux 200 Specs | Light Source | LED | | Lens | 7.0" / 17.8 cm | | CRI | 90+ | | Color Temperature | 5600K | | Beam Angle | 10-40° | | Dimming | 0-100% | | DMX | Yes | | Display | Digital | | Cooling | Active | | Mount | Yoke | | Power Connectors | powerCON AC input
powerCON AC output | | Power Requirements | 90-240 VAC, 50/60 Hz, 1.48 A | | Power Draw | 1.48 A (185 W) at 120 V | | Certification and Compliance | ETL, CE, NOM | | Dimensions | 9.8 x 10.2 x 15" / 24.8 x 25.9 x 38.1 cm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 20.0 x 18.5 x 14.0" |
