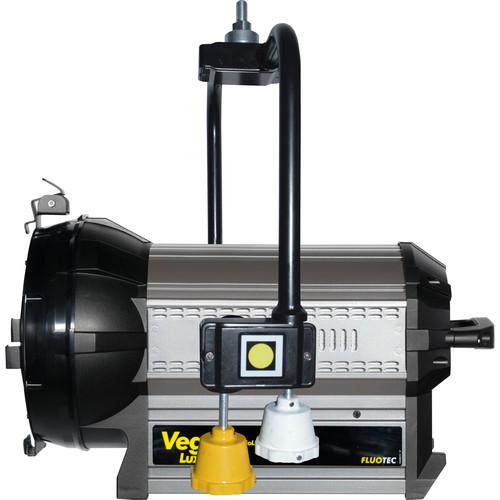

User Manual for Fluotec VegaLux 200 HP Daylight 7" StudioLED Fresnel Click to enlarge the picture
Contents of the user manual for the Fluotec VegaLux 200 HP Daylight 7"
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
|
User manual for the Fluotec VegaLux 200 HP Daylight 7" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|
Product description For crisp, clean light with even flood or sharp shadow output and accurate color, the VegaLux 200 HP Daylight 7" StudioLED Fresnel with Pole-Operated Yoke from Fluotec is a wise choice. This Fresnel uses Nebula Diffusion Chamber Technology to create a blended white light with a daylight-balanced color temperature of 5700K that's rated with a CRI of 93, an indicator of accurate rendering of color. It also features motorized local and DMX adjustment of the beam angle from a 12° spot to a 52° flood for exacting control over how the light falls on your scene. Users can also control light intensity using either DMX or local controls with Halodim technology, which ensures smooth, stepless adjustments from 0-100%.
The VegaLux 200 HP can operate worldwide via its universal 90-240 VAC power supply and boasts a low power draw of 197W, while its efficient LEDs are cooled by a virtually silent fan, contributing to a lengthy lamp life of 50,000 hours. Included with the unit are an 8-leaf barndoor set, filter holder, C-clamp, safety cable, stand mount spigot, and a 16' locking powerCON cable. This pole-operated version of the light is hung overhead on a pipe or grid and has two cups for panning and tilting that are adjusted from below with a long pole. - Benefits
-
- Local and DMX Dimmable: 0 to 100%
- Motorized Zoom 12 to 52° Spot to Flood variable beam
- 50,000 hours long Life LED
- Powerful LED engine with very low 197W electrical draw
- 90 to 240 VAC, 50/60 Hz
- Halodim stepless CCT and dimming technology
- Quiet operation
- Exclusive Nebula Diffusion Chamber for a high CRI and TLCI ratings
UPC: 051497034955 In the Box Fluotec VegaLux 200 HP Daylight 7" StudioLED Fresnel (Pole-Operated) 8-Leaf Barndoors for VegaLux 200 StudioLED Fresnel Filter Holder for VegaLux 200 LED Fresnel C-Clamp for StudioLED Panels/Fresnels and CineLight Panels Pole-Operated Yoke 16' powerCON AC Cable Stand Mount Spigot 2 x Safety Cable for StudioLED Fresnels Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec VegaLux 200 HP Daylight 7" StudioLED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec VegaLux 200 HP Specs | | | Beam Angle | 12 to 52° | | Color Temperature | 5700K | | Color Accuracy Standard | CRI 93 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Photometrics | 12° at 5700K:
2103.1 fc / 22,638 lux at 8.99' / 2.74 m
52° at 5700K:
181.4 fc / 1953 lux at 8.99' / 2.74 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 11.2 x 17.0 x 18.4" / 28.4 x 43.2 x 46.7 cm (Including Yoke) | | Fixture Weight | 16.04 lb / 7.28 kg (Including Yoke) | | | | Lens Diameter | 7" / 17.78 cm | | Lens Type | Fresnel | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 197 W | | | | Cable Length | 16.4' / 5 m | | Cable Type | powerCON to NEMA 5-15 | | | | Power Supply Power Connector | powerCON Input | | | | Certifications | CE, ETL, as per Manufacturer |
