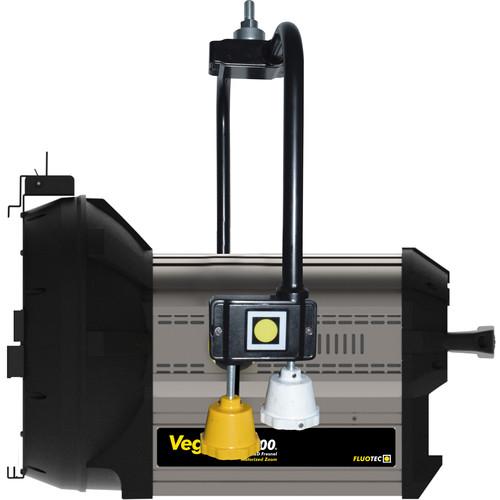

User Manual for Fluotec VegaLux 300 Tungsten 10" StudioLED Fresnel with Pole-Operated Yoke Click to enlarge the picture
Contents of the user manual for the Fluotec VegaLux 300 Tungsten 10" StudioLED
- Product category: LED Lights Fluotec
- Brand: Fluotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fluotec LED Lights
|
User manual for the Fluotec VegaLux 300 Tungsten 10" StudioLED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fluotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fluotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fluotec product will considerably shorten its lifespan!
|
Product description For a crisp, clean light with sharp shadows and flattering color rendition, the VegaLux 300 Tungsten 10" StudioLED Fresnel with Pole-Operated Yoke from Fluotec is a wise choice. This large 10" Fresnel uses NEBULA Diffusion Chamber Technology to create a perfectly blended white light and it offers impressive CRI93 color rendering at 3100K. It also features motorized local and DMX adjustment of the beam angle from 13 to 50 degrees for exacting control over how the light falls on your scene. Users can even control power using either DMX or local controls with HALODIM technology ensuring smooth stepless adjustments from 0 to 100%.
The fixture can be operated worldwide via its universal 90 to 240 VAC power supply. It also boasts a low power draw of 197W thanks to the use of LEDs, and these bulbs are rated to last for 50,000 hours. Included with the unit is an 8-leaf barndoor set, a pole-operated yoke, a filter holder, a C-clamp, two safety cables, a stand mount spigot, and a 16' powerCON cable. UPC: 051497034849 In the Box Fluotec VegaLux 300 Tungsten 10" StudioLED Fresnel with Pole-Operated Yoke G6LED127 8-Leaf Barndoor Set G6LED128 Gel Frame C-Clamp for StudioLED Panels/Fresnels and CineLight Panels PowerCon AC Cable without Switch (16') G6FLT057 Stand Mount Spigot 2 x Safety Cable for StudioLED Fresnels Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fluotec VegaLux 300 Tungsten 10" StudioLED Fresnel with Pole-Operated Yoke in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFluotec VegaLux 300 Specs | | | Beam Angle | 13 to 50° | | Color Temperature | 3100K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Photometrics | 13° at 3100K:
3837 fc / 41,286.1 lux at 5.91' / 1.8 m
50° at 3100K:
456 fc / 4906.6 lux at 5.91' / 1.8 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 22.2 x 13.5 x 20.6" / 56.4 x 34.3 x 52.3 cm (Including Yoke) | | Fixture Weight | 26.2 lb / 11.88 kg (Including Yoke) | | | | Battery Plate | None | | Power Input Connector | powerCON | | | | Lens Diameter | 10" / 254 mm | | Lens Material | Glass | | Lens Type | Fresnel | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 197 W | | | | Cable Length | 16' / 4.88 m | | Inline Switch | No |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
