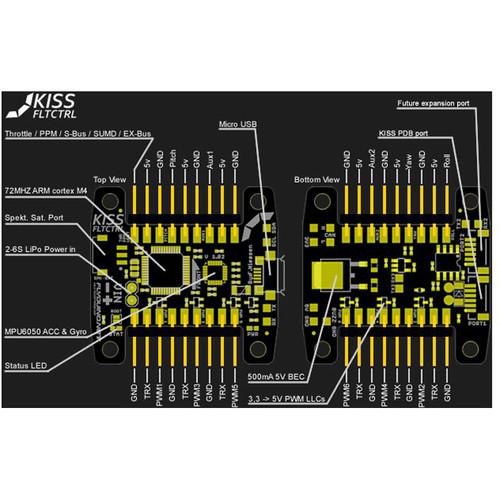

Product description The KISS 32-Bit Drone Flight Controller from Flyduino has been designed to give drone racing enthusiasts a more simplified FC, but with full access to the software for customization. Once installed, you can choose your drone's airframe from the GUI, download presets from other pilots, or manually tweak the PID to your liking.

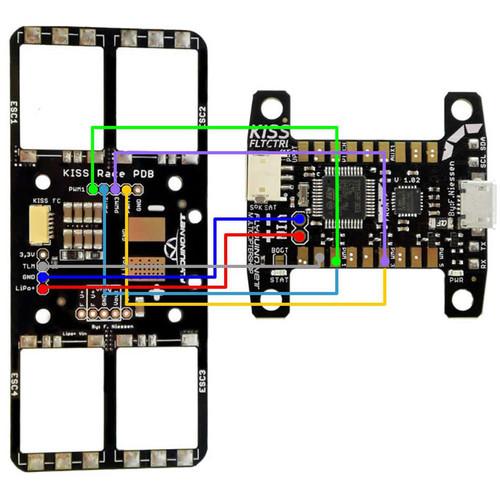

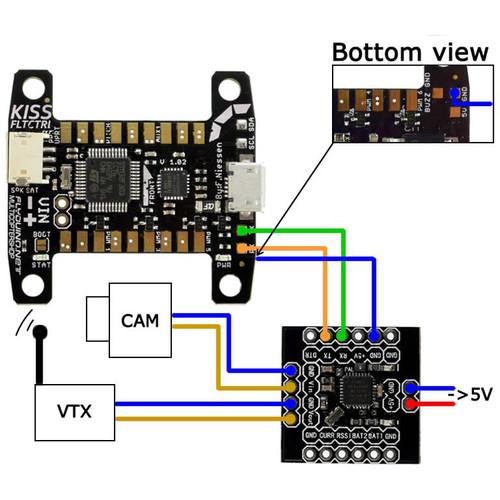

When coupling this FC with the (optional) KISS ESC from Flyduino, you get the ability to use built-in telemetry data on the OSD of your FPV goggles as a live feed, or within the KISS FC GUI. You can keep tabs on battery voltage, power consumption, ESC temperature, and motor RPMs. - Additional Features
- Supports Tri, Y4, Y6, Quad +/x, and Hexa +/x drone airframes
Supports Spektrum, Futaba, FrSky, Jeti, Graupner, Hitec/Traditional, and Multiplex drone receivers
Eight receiver inputs (4 for analog sticks, and 4 for AUX Channels 1-4)
Six PWM outputs for 2-6 motors or servos UPC: 712760660034 In the Box Flyduino KISS 32-Bit Racing Drone Flight Controller (v1.03) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Flyduino KISS 32-Bit Racing Drone Flight Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlyduino PR1993 Specs | Mounting Holes | Pattern: 1.2 x 1.2" / 3.0 x 3.0 cm
Holes: 3.2mm | | Voltage | Direct: 2S
Recommended: 5S
Maximum: 6S | | Weight | 0.2 oz / 4.6 g | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 4.8 x 3.0 x 0.5" |
