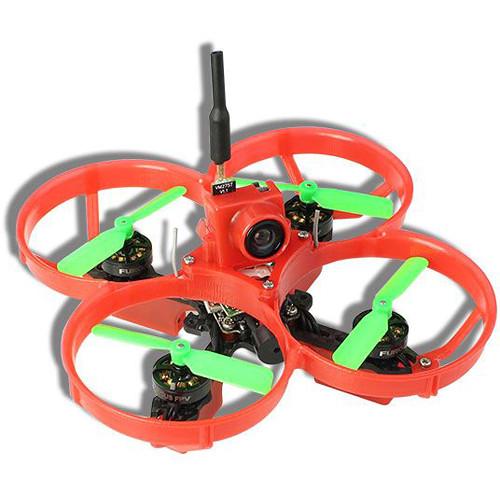

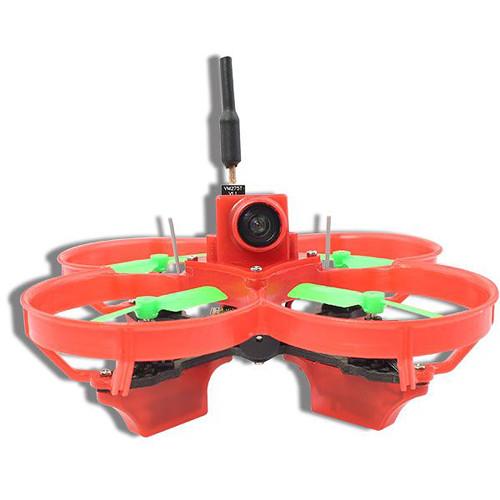

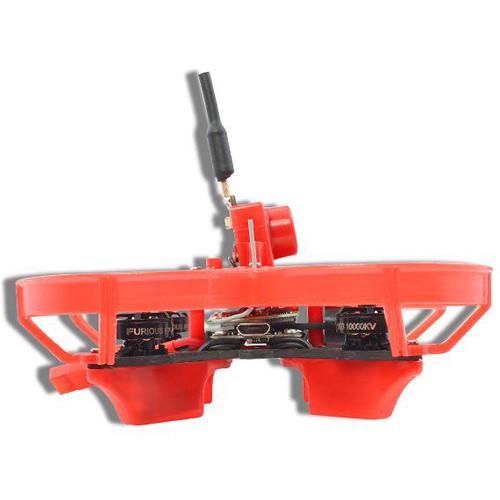

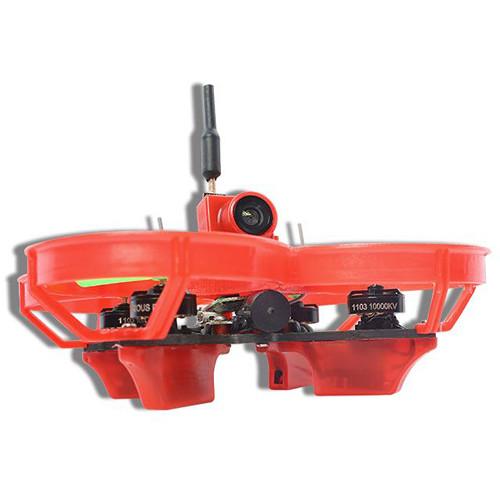

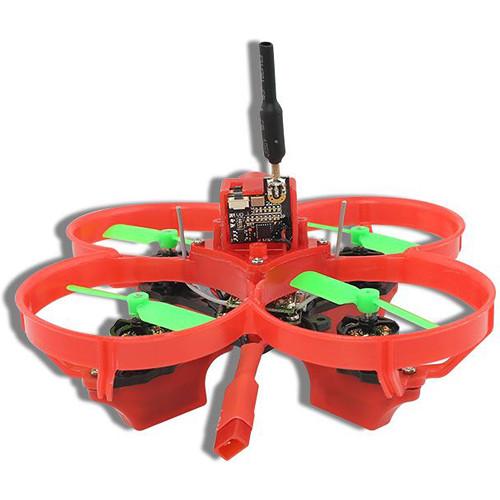

Product description Aerial Photography and Drone Glossary Read More The Furious FPV Moskito 70 Spektrum Quad Copter from FlySight features a 2S input power and hypersonic 4:1 power to weight ratio. Weighing 1.6 oz and measuring 2.8", this lightweight device offers optimum ballistic FPV performance. With great signal strength, the integrated dual-antenna diversity receiver system allows you to push your FPV limits. This Moskito 70 is equipped with a dipole antenna system and utilizes high kV 1102 motors. - Freestyle flight or on the track
- 16 x 16mm RACEWHOOP flight controller
- Built-in PDB with integrated current sensor
- 45mm propellers specially designed for maximum levels of thrust
- Plastic injection prop guards
- Lightweight 3.6g VTx and camera system
- Micro beeper installed for finding the MOSKITO in case it's lost
- FuriousFPV 1103 10.000 kV brushless motors with Japanese NSK bearings with sintering N52 magnets
- FuriousFPV optimized 1.7 dBi gain LHCP circular antenna
In the Box FlySight Furious FPV Moskito 70 Spektrum Quad Copter Screw Driver Rubber Battery Trap Propellers Limited 2-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the FlySight Furious FPV Moskito 70 Spektrum Quad Copter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlySight Furious Specs | Flight Time | 3 to 5 minutes | | Flight Control System | Racewhoop brushless FC 0.6 x 0.6" (16 x 16 mm) hole size with current sensor | | ESC | 7 A, Ultra-light BLHeli-s Dshot | | Motor | Furious FPV 1103 10.000 kV | | System | R/C: Spektrum | | Supported FPV Cameras | 600 TVL (120°) | | Video Transmitter | 5.8 GHz, 25 mW 40-ch | | Propeller Length | 2-bladed 1.8" (45 mm) | | Antenna | VTX linear dipole | | Receiver | Spektrum compatible receiver with dual diversity | | Battery | 2S 7.4 V 300 mAh | | Power Connector | Red JST | | Battery Size Supported | 0.6 x 1.8 x 0.7" (14 x 45 x 18 mm) | | Compatibility | DSMX Spektrum Compatibility: DX6, DX6E, DX7, DX8, DX9, and DX9E
JR Transmitter Compatibility (DSMX/DSM2 module): JR12X, JR11X, JR9503, and JR9303 | | Alarms | Micro buzzer | | Range | Control Range: 656' (200 m)
Video Range Ground: 393.7' (120 m) | | Working Temperature | 32 to 122°F (0 to 50°C) | | Size | 2.8" (70 mm) | | Weight | Without Battery: 1.6 oz (45 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.4 x 4.6 x 2.9" |
