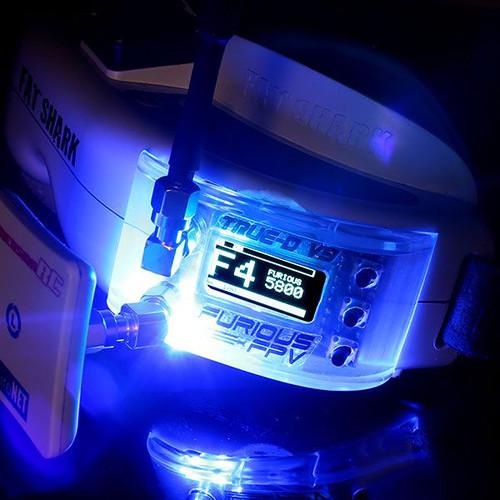

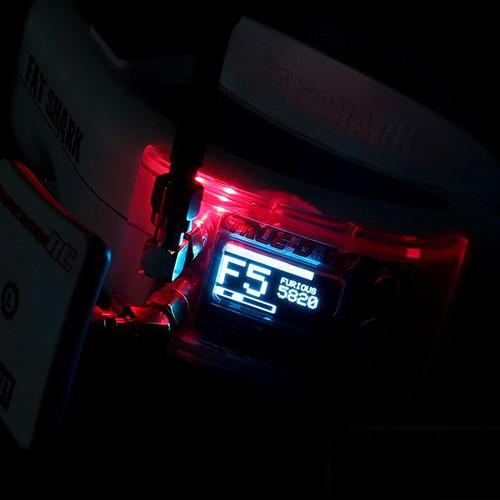

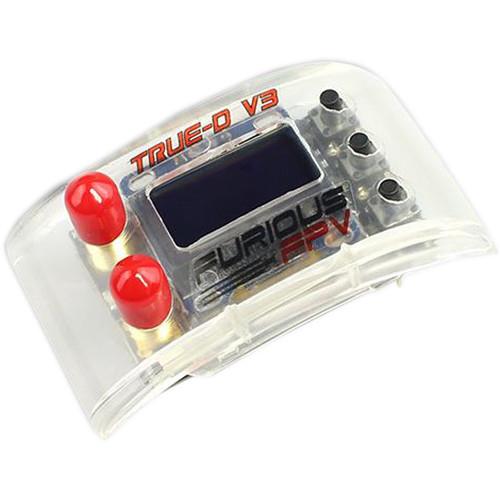

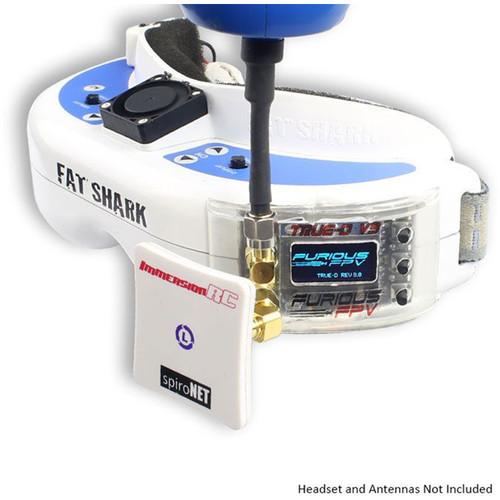

Product description The Furious True-D V3 Diversity Receiver from FlySight utilizes a USB port for easy firmware updates, and employs a built-in low voltage buzzer to provide pilots with crucial warning when power gets low. It also features additional modules that help dissipate heat. The Furious TRUE-D actively searches for signal strength via Smooth Switch technology choosing the highest strength output for maximum video clarity. And with the V3 system, a higher resolution RSSI is utilized with antenna switching capability, offering even better signal resolution & video clarity. With a total of (40) available channels, the TRUE-D is hyper flexible, offering Manual Channel Setup, Auto Search Mode, and Working Channel Mode. These different selections provide the end user with total control, allowing you to select what works when it comes to your FPV systems. It features a simple interface that utilizes a high resolution LCD screen for all setup functionality. With the multi-button V3 interface, programming your TRUE-D is easier than ever, allowing instantaneous levels of adjustment via the optimized 3 button layout. Designed to be housed within the FatShark Dominator goggle sets, the Furious TRUE-D V3 system is a true plug-and-play setup that will pay dividends. A diversity receiver system is two receivers built into one package, allowing the pilot to choose two very different antenna systems for maximum levels of video range & clarity. The most common antenna used is an omnidirectional circular polarized antenna, which provides a specified element of range all around you. However, this radius of video range is limited, and after a specified distance, the video signal will degrade and fall away. With a diversity receiver, a second antenna system can be used, allowing a more directional antenna to be chosen for much greater range. Directional antennas far outpace omnidirectional antennas in overall distance, and even though the beam pattern is narrower than an omni antenna, directional antennas will certainly increase the given range available, equating to video clarity without frustrating signal losses. - True Diversity Technology
- With two receivers working together as one, your video clarity & overall range is optimized as the TRUE-D diversity system actively searches for the highest signal quality for maximum video clarity.
- Switch Video
- Instantaneously switching between antennas for optimum signal strength, Smooth Switch technology keeps your head in the race with the remarkable video quality available.

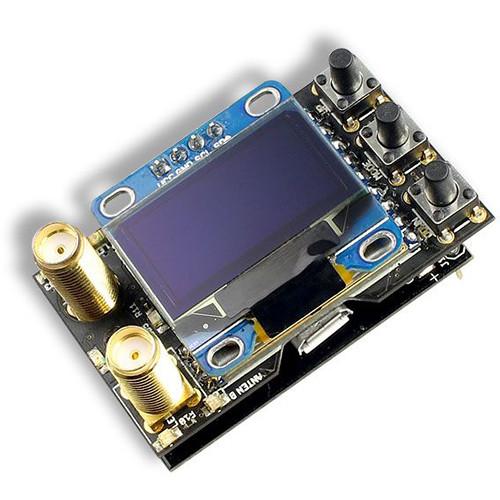

- Updated 3 Button Layout
- The 3-button layout allows easy access to the entire TRUE-D menu. Easy access with the goggles on or off, providing an intuitive and robust interface that is simple and easy to use.
- Easy View Simplicity
- With Easy View, you are a finger press away from every adjustment you could possibly need, displayed in an easy to ready layout - all with the ease and simplicity.
- Push Button Power-Up
- To better conserve battery power and limit thermal loading, the TRUE-D V3 can be powered on & off via the stock FatShark button interface, or via the TRUE-D system itself. This allows you to have the TRUE-D in use when you need it and powered down when you don't.
- Working Mode
- Offering you the ability to save eight total channels, Working mode makes it easy for you to choose the channel based upon past preferences for the known performance.
- Manual Mode
- Straightforward and to the point, Manual mode gives you complete control, allowing you to select any of the 40 channels available for optimum FPV.
- Auto Mode
- Make life simple. With auto mode, the TRUE-D system does all the work for you by locking onto the video frequency being used, allowing you to simply fly without fuss or bother.
- 40-Channel Ready
- Optimized with a total of 40 available channels, the TRUE-D covers all the bases, allowing you to use nearly any video transmitter available.
- Raceband
- The TRUE-D incorporates Raceband support for track ready application.
- Firmware Upgrade

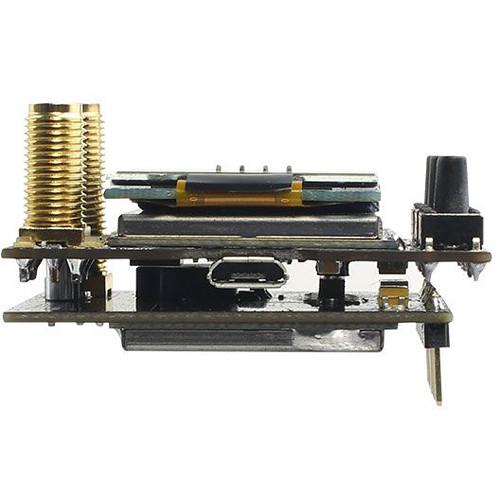

- The TRUE-D incorporates a built-in USB port, allowing firmware updates to be smooth, simple and, to the point.
In the Box FlySight Furious True-D V3 Diversity Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FlySight Furious True-D V3 Diversity Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlySight FPVGM1001 Specs Connector | SMA jack connector / female | Working Frequency | 5.8 GHz | Application | FatShark Dominator V1, V2, & V3 Goggles | Number of Channels | 40 channels | | Package Weight | 0.2 lb | Box Dimensions (LxWxH) | 3.4 x 2.4 x 1.3" |
