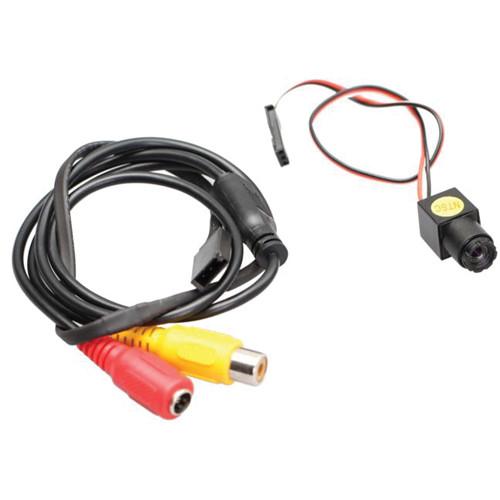

Product description The 4 to 24V Micro FPV Camera from SlySky features a 1/3" CMOS sensor and a resolution of 520 TVL. It includes a video and power cable. UPC: 605482581070 In the Box FlySight Micro FPV Camera (4 to 24V) Video / Power Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the FlySight Micro FPV Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlySight FPV58107 Specs | Sensor | 1 x 1/3" CMOS
Dimensions: 0.2 x 0.1" / 4.75 x 3.55 mm | | Standard | NTSC | | Resolution | Total Pixels: 656 x 492
Effective: 520 TVL | | Focal Length | 0.5 mm | | Aperature | f/2.0 | | Angle of View | 90 ° | | Shutter Speed | 1/50 to 1/10,000 second | | Scanning System | 2:1 | | Low Light Sensitivity | 0.008 lux at f/1.2 | | Signal to Noise Ratio (SNR) | 52 dB | | Gain Control | Auto | | White Balance | Auto | | Backlight Compensation | Auto | | Output Signal | Composite: 1.0 Vp-p / 75 ohm | | | | Connectivity | Red: Power
Black: Ground
Yellow: Video | | Working Current | 70 mA | | Power Requirement | 3.6 to 24 VDC | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Humidity | < 90% RH | | Dimensions | 0.4 x 0.5 x 0.8" / 10.5 x 11.5 x 20 mm | | Weight | 0.1 oz / 3 g |
