User Manual for Focal Alpha 50 Active 2-Way 5" Near Field Professional Monitoring Speaker Click to enlarge the picture
Contents of the user manual for the Focal Alpha 50 Active 2-Way 5"
- Product category: Studio Monitors Focal
- Brand: Focal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focal Studio Monitors
 |
User manual for the Focal Alpha 50 Active 2-Way 5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!
|

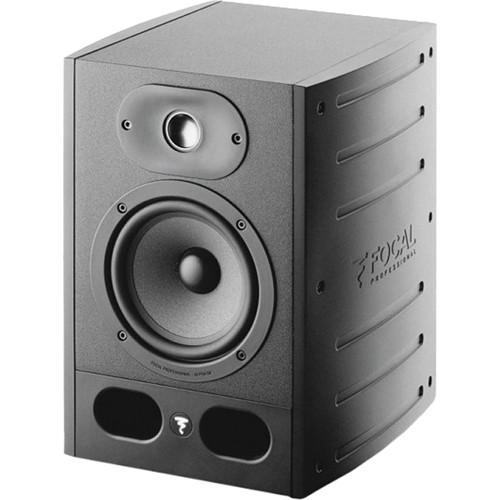

Product description The Focal Alpha 50 Active 2-Way Near Field Professional Monitoring Speaker features a 5" (13cm) woofer with a polyglass cone and a 1" (25mm) aluminum inverted dome tweeter. It also features a large laminar port, a 20W amplifier for the tweeter, 35W amplifier for the woofer, and has a frequency response of 45Hz to 22kHz (+/- 3dB).

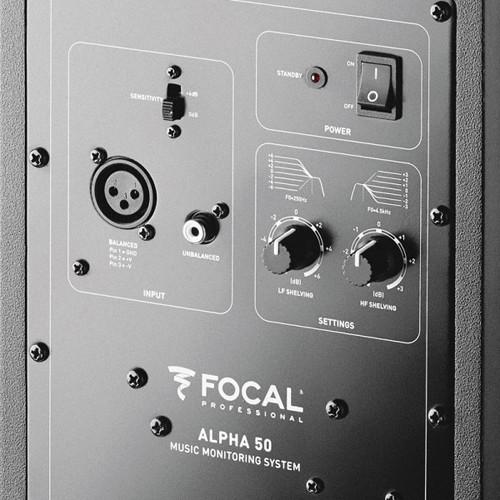

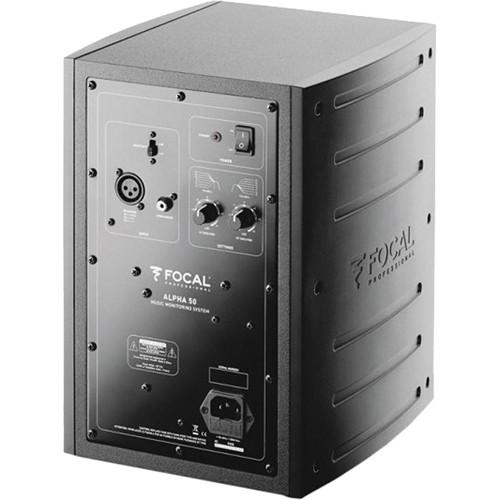

The Alpha 50 boasts a compact design, intentionally adapted for confined spaces and smaller mix environments. It is equipped with XLR balanced and RCA unbalanced inputs for flexibility, and has adjustable low and high frequency shelving controls to compensate for acoustical deficiencies in your listening environment. - Low directivity: designed to maintain the same sound throughout the room
- Damping and rigidity: designed for neutrality, low distortion
- Optimized for similar tonal balance at low and high volumes; low sensitivity to wall effects
- Reduced power consumption
In the Box Focal Alpha 50 Active 2-Way 5" Near Field Professional Monitoring Speaker (Single) Power Cord Limited 1-Year Warranty User Manual PDF 13.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal Alpha 50 Active 2-Way 5" Near Field Professional Monitoring Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal Alpha 50 Specs | Frequency Response | 45 Hz to 22 kHz, (+/- 3dB) | | Power | 55 W (35 W + 20 W) | | Maximum SPL | 103 dB SPL (pic @1m) | | Input Connectors | XLR balanced, 10 kOhms, with sensitivity compensation
RCA unbalanced, 10 kOhms, with sensitivity compensation | | LF Amplifier | 35 W, class AB | | HF Amplifier | 20 W, class AB | | Standby Mode | Standby: After about 30 minutes without using the monitor
Activation of the monitor: By signal detection >3mV | | Power Supply | 220 - 240 V (fuse T500mAL/250V), or 100-120V (fuse T1AL / 250 V), the voltage cannot be modified | | Connection | IEC inlet and detachable power cord | | Sensitivity | Adjustable, 0 or +6dB | | Shelf Adjustments | LF shelving (0 - 300 Hz): adjustable, +/-6 dB
HF shelving (4.5 - 22 kHz): adjustable, +/-3 dB | | Power On/Off | Switch on rear panel | | Power Consumption | < 0.5 W | | Indicators | Power ON/OFF LED - Standby LED | | Woofer | 5" (13cm) drive unit - polyglass cone | | Tweeter | 1" (25mm) drive unit - aluminum inverted dome | | Cabinet | 0.6" (15 mm) MDF | | Dimensions | 12.3 x 8.7 x 10.2" (313 x 220 x 258 mm) | | Weight | 16.1 lb (7.3 kg) | | | | Package Weight | 20.3 lb | | Box Dimensions (LxWxH) | 16.929 x 13.622 x 12.047" |
