User Manual for Focal CMS 50 5" Active 2-Way Studio Monitor

Click to enlarge the picture
Focal CMS 50 5" Active 2-Way Studio Monitor Contents of the user manual for the Focal CMS 50 5" Active 2-Way
  • Product category: Studio Monitors Focal
  • Brand: Focal
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Focal Studio Monitors

Focal CMS 50 5" Active 2-Way Studio Monitor Focal CMS 50 5" Active 2-Way Studio Monitor Focal CMS 50 5" Active 2-Way Studio Monitor Focal CMS 50 5" Active 2-Way Studio Monitor
User manual for the Focal CMS 50 5" Active 2-Way contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Focal product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!



Product description

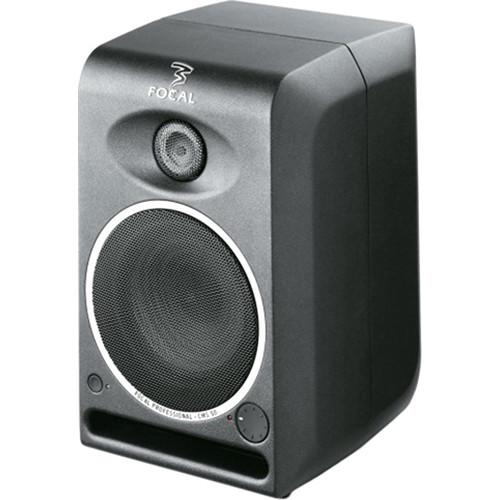

The CMS 50 from Focal Professional is a compact nearfield studio monitor ideal for use in home, project, or mobile studios. The reinforced and damped die-cast aluminum cabinet houses a 5" Polyglass woofer and an aluminum/magnesium inverted dome tweeter to provide realistic audio with a wide frequency response. Each speaker is powered by its own Class-AB amplifier, totaling 130W for strong, distortion-free performance. A slotted bass port on the front of the cabinet helps to extend low frequency response.

The monitor features XLR and RCA input connectors, making it easy to connect to a variety of sound systems and devices. It also offers a variety of volume, sensitivity, parametric EQ, high-pass filter, and shelving controls, allowing you to customize the speaker's acoustic response to match your environment. A unique base plate decouples the monitor from your table to minimize vibrations and reflections. It is also magnetically shielded for safe use near video monitors and other electronic devices.
  • Compact size, ideal for small studios or for use as a secondary monitor in larger studios
  • Reinforced and damped die-cast aluminum cabinet with black powder coat finish
  • 5" Polyglass woofer and an aluminum/magnesium inverted dome tweeter provide realistic audio with a wide frequency response
  • Each speaker is powered by its own Class-AB amplifier for a total of 130W to provide a strong, distortion-free performance
  • Slotted bass port on the front of the cabinet helps to extend low frequency response

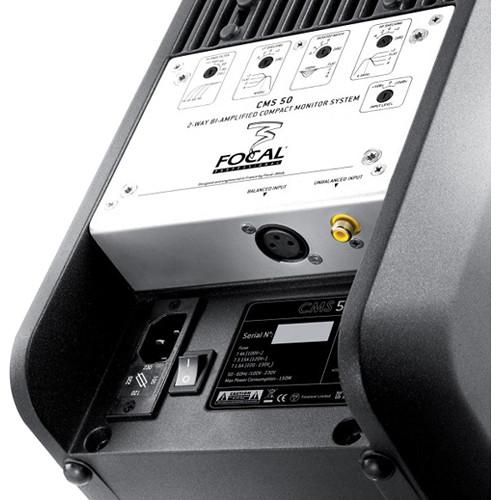

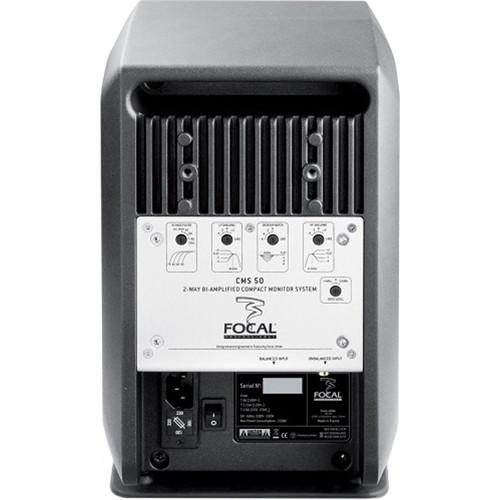

  • XLR and RCA input connectors make it easy to connect to a variety of sound systems and devices

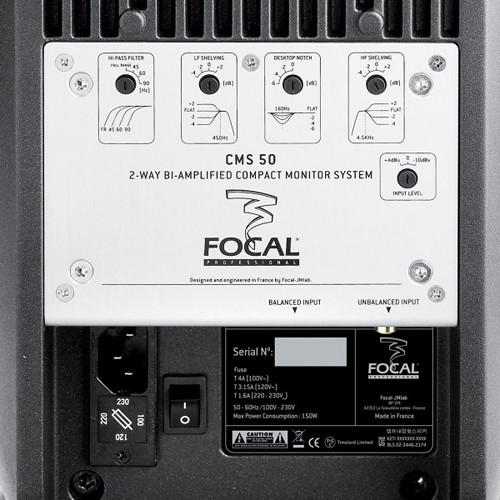

  • Volume, sensitivity, parametric EQ, high-pass filter, and shelving controls allow you to customize the speaker's acoustic response to match your environment
  • Unique base plate decouples the monitor from your table to minimize vibrations and reflections
  • Magnetically shielded for safe use near video monitors and other electronic devices
  • Accepts 100-230VAC power for international use
In the Box Focal CMS 50 5" Active 2-Way Studio Monitor
  • Power Cord
  • Base Plate/Table Stand
  • Limited 1-Year Warranty
  • User Manual PDF 8mbaucbeyxxaxtayztesaw Table of Contents




    Upload User Manual

    Have you got an user manual for the Focal CMS 50 5" Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Focal 50 Specs

    Low Frequency Driver 5" (127mm) Polyglass Cone Woofer
    High Frequency Driver Aluminum/Magnesium Inverted Dome Tweeter
    LF Amplifier 80W RMS, Class-AB
    HF Amplifier 50W RMS, Class-AB
    Crossover Not Specified by Manufacturer
    Frequency Range 55Hz - 28kHz
    Maximum Sound Pressure Level (SPL) 107dB (Peak)
    Connectors 1 x XLR Input
    1 x RCA Input
    1 x AC Power Input
    Input Impedance 20 kOhms, Balanced
    47 kOhms, Unbalanced
    Controls and Indicators 1 x Power Switch
    1 x Volume Knob
    1 x Sensitivity Switch
    2 x Shelving Switches
    1 x High-Pass Switch
    1 x Parametric EQ Switch
    1 x Power LED
    1 x Standby LED
    1 x Clip LED
    Shielded Yes
    Dimensions (HxWxD) 11.8 x 7.5 x 7.9" (300 x 190 x 201mm) (With Base Plate)
    Weight 17 lbs (7.7kg)
    Package Weight 19.5 lb
    Box Dimensions (LxWxH) 16.4 x 11.8 x 11.1"
