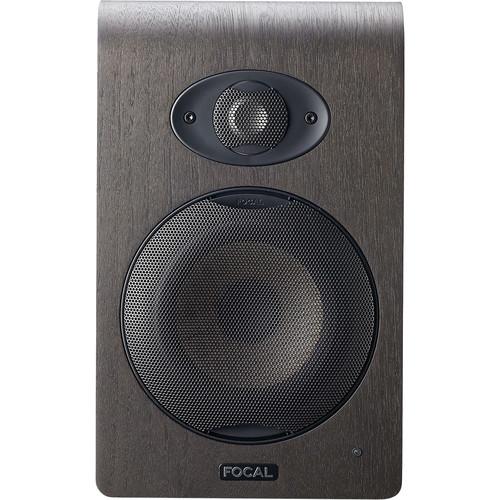

Product description New Focal Shape Series Monitors Read More The Shape 50 - 5.0" Active 2-Way Studio Monitor from Focal Professional is a compact nearfield studio monitor ideal for use in home, project, or mobile studios. The sealed MDF cabinet houses a 5.0" flax sandwich cone woofer and an aluminum/magnesium inverted dome tweeter that combine to provide a frequency response of 50 Hz to 35 kHz with a maximum SPL of 106 dB, while two 5.0" passive radiators help extend the low frequencies and minimize distortion. The midrange/low-frequency driver is powered by a Class-AB 60W amplifier, while the high-frequency driver utilizes a Class-AB 25W amplifier. The sealed enclosure allows the monitor to be placed near a boundary or wall with no adverse effects.
The monitor features XLR and RCA input connectors, making it easy to connect to a variety of sound systems and devices. It also offers a variety of controls including an adjustable crossover at 160 Hz, as well as high- and low-frequency shelf controls, plus a releasable high-pass filter, which allow you to customize the speaker's acoustic response to match your environment. The Shape 50 can be mounted to the ceiling or a wall via the optional fastening accessories package and ships with a standard IEC power cord. -

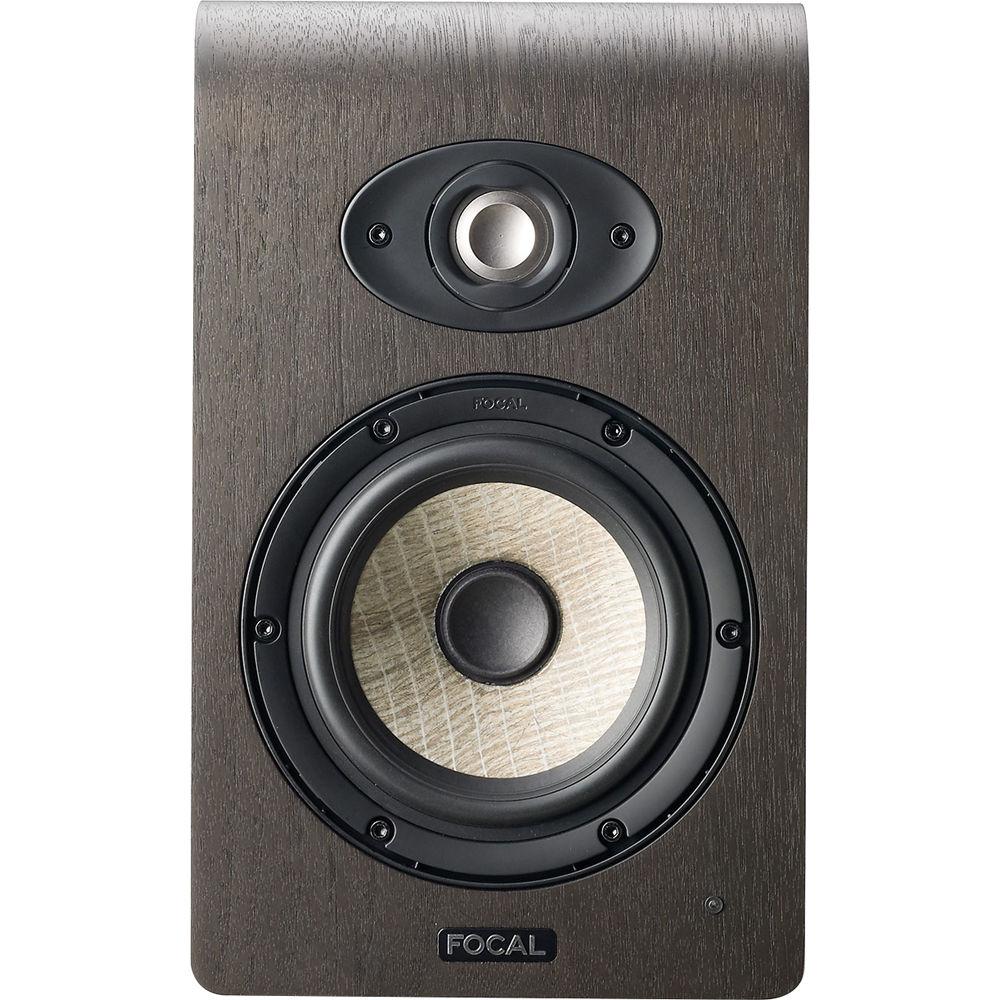

- Aluminum/magnesium inverted dome tweeter
- "M"-Shaped Tweeter: 1" with low directivity for a flexible listening position
- Flax Sandwich Cone Woofer: 5.0" with controlled and articulated bass, natural and detailed lower midrange and upper midrange registers

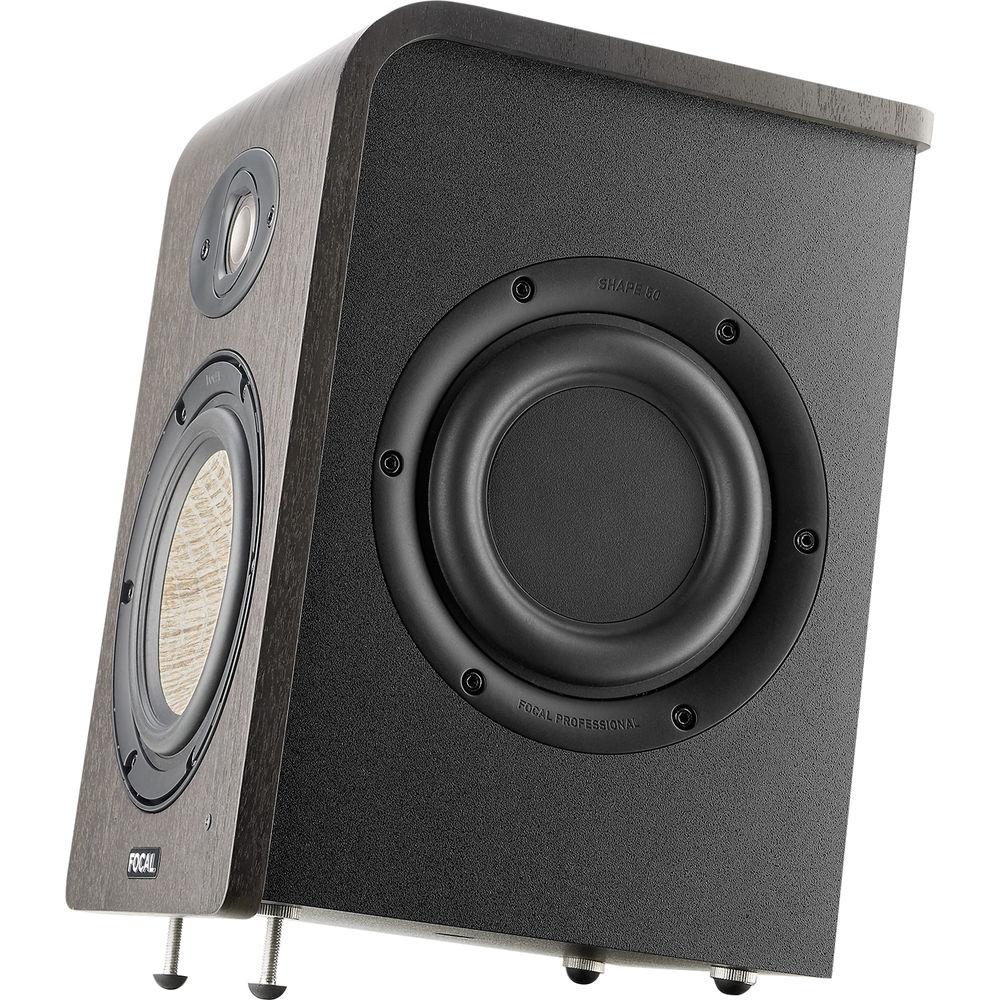

- Dual passive radiators (5.0") for extended bass response and reduced distortion
- Designed without a port, allowing it to be placed near a wall
- Releasable high-pass filter
- Adjustable Crossover: 160 Hz
- Adjustable treble and bass
- Frequency Response: 50 Hz to 35 kHz
- Maximum SPL: 106 dB (peak at 1 m)
- XLR and RCA inputs
- Auto-standby mode
- Accepts 100-240 VAC power for international use
- Fastening mechanisms present on the back and underneath for installing on the ceiling or a wall (fastening accessories not supplied)
- Threads for ceiling and wall mounts (fastening accessories not supplied)
In the Box Focal Shape 50 - 5.0" Active 2-Way Studio Monitor (Single) Power Cord Limited 1-Year Warranty Focal Announces New Shape Series Monitors Andrew Eisele 04/21/2017 Spec sheet PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal Shape 50 - 5.0" Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal Shape 50 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Passive Radiator, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Metal Tweeter
LF Driver: 1 x 5" / 127 mm Cone
LF Driver: 2 x 5" / 127 mm Passive Radiator | | Amplification | HF Amplifier: Class-AB Rated at 25 W
LF Amplifier: Class-AB Rated at 60 W | | | | Frequency Response | 50 Hz to 35 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 106 dB | | Protections and Limiting | Fuse | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input (10 kOhms) | | | | AC Input Power | 100 to 120 VAC at 50/60 Hz
220 to 240 VAC at 50/60 Hz Universal Switching Power Supply | | Power Consumption | 0.5 W (Standby) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 7.5 x 12.3 x 9.5" / 190.5 x 312.4 x 241.3 mm | | Weight | 20.7 lb / 9.4 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 17.5 x 12.1 x 10.0" |
