User Manual for Focal Shape 65 - 6.5" Active 2-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the Focal Shape 65 - 6.5" Active
- Product category: Studio Monitors Focal
- Brand: Focal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focal Studio Monitors
|
User manual for the Focal Shape 65 - 6.5" Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!
|

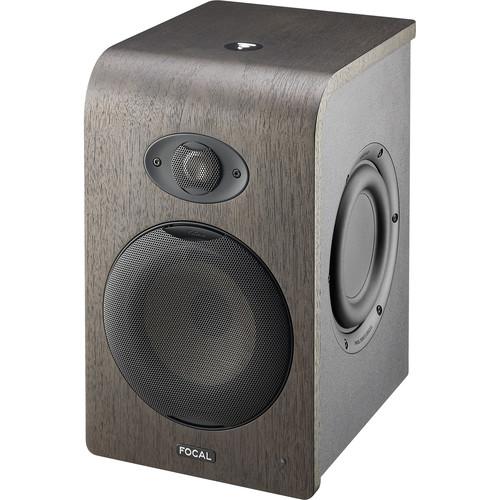

Product description New Focal Shape Series Monitors Read More The Shape 65 - 6.5" Active 2-Way Studio Monitor from Focal Professional is a compact nearfield studio monitor ideal for use in home, project, or mobile studios. The sealed MDF cabinet houses a 6.5" flax sandwich cone woofer and an aluminum/magnesium inverted dome tweeter that combine to provide a frequency response of 40 Hz to 35 kHz with a maximum SPL of 109 dB, while two 6.5" passive radiators help extend the low frequencies and minimize distortion. The midrange/low-frequency driver is powered by a Class-AB 80W amplifier, while the high-frequency driver utilizes a Class-AB 25W amplifier. The sealed enclosure allows the monitor to be placed near a boundary or wall with no adverse effects.
The monitor features XLR and RCA input connectors, making it easy to connect to a variety of sound systems and devices. It also offers a variety of controls including an adjustable crossover at 160 Hz, as well as high- and low-frequency shelf controls, plus a releasable high-pass filter, which allow you to customize the speaker's acoustic response to match your environment. The Shape 65 can be mounted to the ceiling or a wall via the optional fastening accessories package and ships with a standard IEC power cord. -
- Aluminum/magnesium inverted dome tweeter
- "M"-Shaped Tweeter: 1" with low directivity for a flexible listening position
- Flax Sandwich Cone Woofer: 6.5" with controlled and articulated bass, natural and detailed lower midrange and upper midrange registers
- Dual passive radiators (6.5") for extended bass response and reduced distortion
- Designed without a port, allowing it to be placed near a wall
- Releasable high-pass filter
- Adjustable Crossover: 160 Hz
- Adjustable treble and bass
- Frequency Response: 40 Hz to 35 kHz
- Maximum SPL: 109 dB (peak at 1 m)
- XLR and RCA inputs
- Auto-standby mode
- Accepts 100-240 VAC power for international use
- Fastening mechanisms present on the back and underneath for installing on the ceiling or a wall (fastening accessories not supplied)
- Threads for ceiling and wall mounts (fastening accessories not supplied)
UPC: 191561824058 In the Box Focal Shape 65 - 6.5" Active 2-Way Studio Monitor (Single) Power Cord Limited 1-Year Warranty Focal Announces New Shape Series Monitors Andrew Eisele 04/21/2017 Specification PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal Shape 65 - 6.5" Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal Shape 65 Specs | Low Frequency Driver | Flax Cone: 6.5" / 165 mm
Passive Radiator: 2 x 6.5" / 165 mm | | High Frequency Driver | Aluminum-Magnesium: 1.0" / 25.0 mm 'M' profile | | LF Amplifier | Midrange and Low-Frequency Amplifier: 80 W, Class-AB | | HF Amplifier | High-Frequency Amplifier: 25 W, Class-AB | | Frequency Range | 40 Hz - 35 kHz (±3 dB) | | Maximum Sound Pressure Level (SPL) | Maximum SPL (Musical Signal): 109 dB SPL (peak @ 1 m) | | Connectors | Balanced: 1 x XLR
Unbalanced: 1 x RCA
IEC Power Input: 1 x IEC | | Input Impedance | XLR: 10 kOhms, balanced
RCA: 10 kOhms, unbalanced with sensitivity compensation | | Controls and Indicators | High-Pass Filter: Adjustable full range 45/60/90 Hz
Bass (0-250 Hz): Adjustable, ±6 dB
Midrange/Bass (160 Hz, Q=1): Adjustable, ±3 dB
High (4.5-35 kHz): Adjustable, ±3 dB
Power On/Power Off: On/off switch on rear panel
Display: LED for power on/off and standby | | Auto Standby | Standby On: After approximately 30 minutes with no signal
Standby Off: Signal detection > 3 mV | | Cabinet Construction | Construction: 0.6" / 15 mm MDF
Finish: Vinyl, real walnut, and black painting | | Power | Universal switch power supply
100-120 VAC (T1AL / 250 V fuse)
220-240 VAC (T2AL / 250 V fuse)
Standby Consumption: < 0.5 W | | Dimensions (HxWxD) | 14.0 x 8.6 x 11.2" / 355.6 x 218.4 x 284.5 mm | | Weight | 28.2 lb / 12.8 kg | | | | Package Weight | 23.2 lb | | Box Dimensions (LxWxH) | 19.6 x 13.9 x 11.4" |
