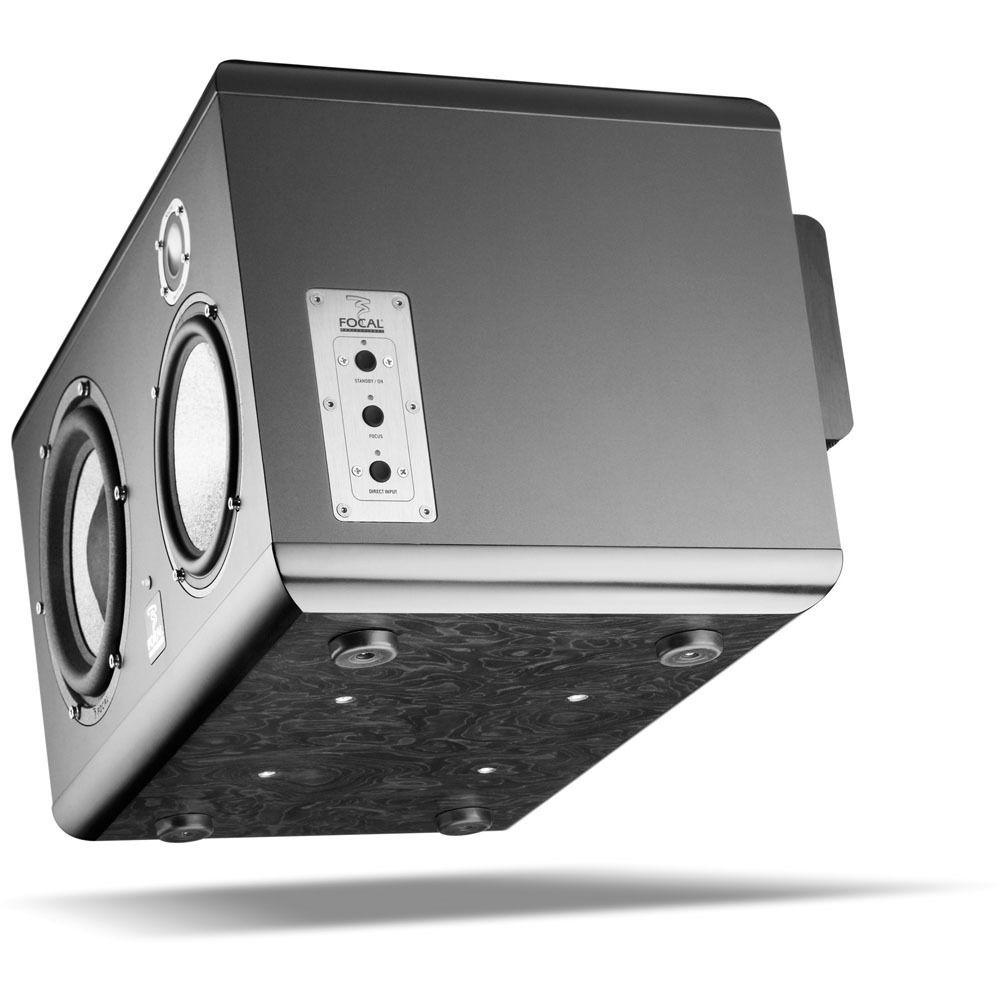

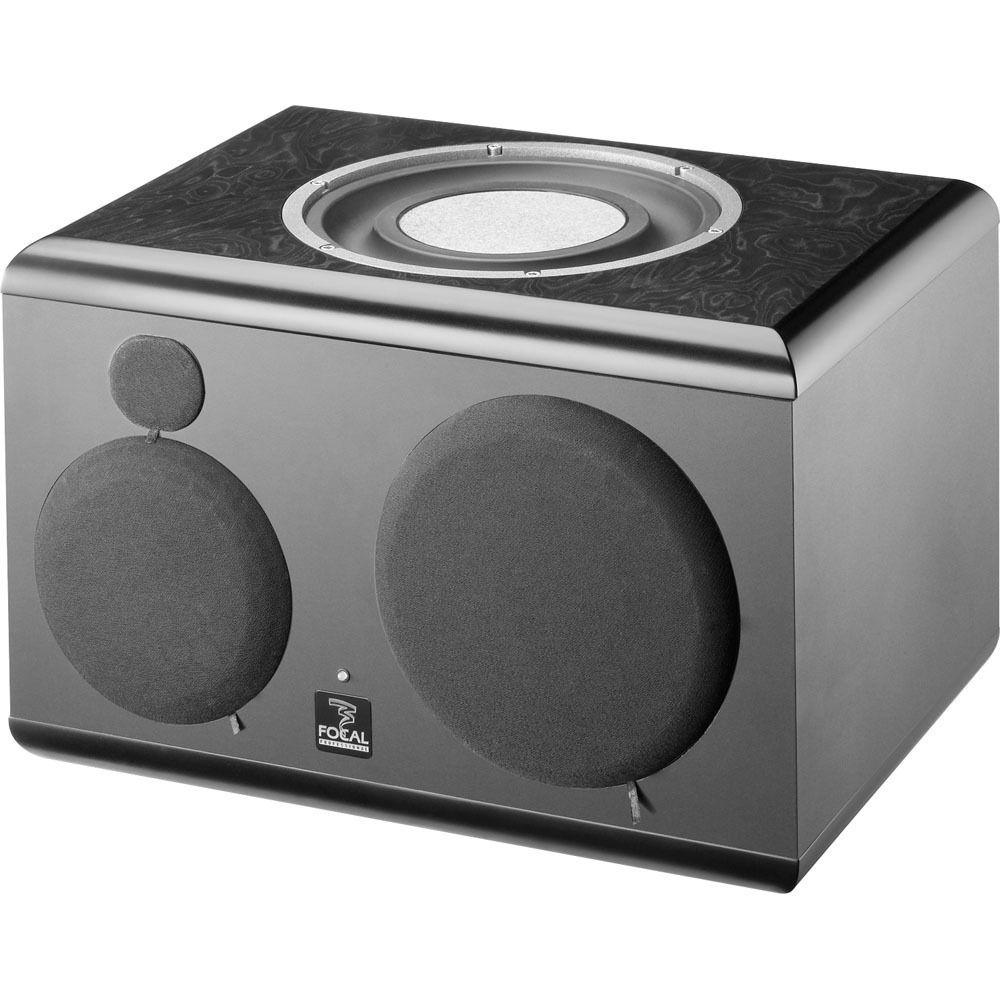

User Manual for Focal SM9 11" 600W 3-Way Active Studio Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Focal SM9 11" 600W 3-Way Active
- Product category: Studio Monitors Focal
- Brand: Focal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focal Studio Monitors
 |
User manual for the Focal SM9 11" 600W 3-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!
|
Product description The SM9 from Focal Professional is a professional-quality active studio monitor speaker that offers accurate sound quality and terrific flexibility for a variety of monitoring applications. The speaker features an 11" passive radiator, an 8" subwoofer, a 6.5" midrange driver, and a 1" pure Beryllium tweeter. The radiator, subwoofer, and midrange driver each use Focal's "W" composite sandwich cone technology, which provides a perfect blend of mass, rigidity, and damping for excellent neutrality and an optimal frequency response. The tweeter has an inverted dome design to produce a high output without requiring high output or increasing directivity, ensuring clear treble with a wide sweet spot.
The speaker can be used in 3-way mode, with the 11" driver for bass, the 8" and 6.5" drivers for midrange, and the 1" tweeter for treble. It can also be used in 2-way mode with just the 6.5" driver and the tweeter. This allows you to choose the optimal monitoring scenario for your particular equipment and application. Switching between modes is achieved by simply turning on the FOCUS mode from the side panel. Low-distortion Class-AB power stages provide a combined amplifier power of 600W to ensure powerful, transparent performance with no distortion.
The rear panel offers an electronically-balanced XLR input with an adjustable sensitivity. It also has controls for high-pass crossover, high and low frequency shelving, and EQ controls, allowing you to precisely tune the monitor's response and performance to match your workspace and application. The cabinet is internally braced and has a black finish to provide lasting durability and style. - Multiple Drivers
- The speaker features an 11" passive radiator, an 8" subwoofer, a 6.5" midrange driver, and a 1" pure Beryllium tweeter to deliver natural audio with a wide frequency response
- "W" Composite Sandwich Cones
- The radiator, subwoofer, and midrange driver each use Focal's "W" composite sandwich cone technology, which provides a perfect blend of mass, rigidity, and damping for excellent neutrality and an optimal frequency response
- Inverted Dome Tweeter Design
- The tweeter has an inverted dome design to produce a high output without requiring high output or increasing directivity, ensuring clear treble with a wide sweet spot. The use of pure Beryllium provides the ability to cover 5 full octaves from 1 to 40kHz, offering unmatched speed and transparency
- 3-Way Mode
- The speaker can be used in 3-way mode, with the 11" driver for bass, the 8" and 6.5" drivers for midrange, and the 1" tweeter for treble. This provides an extra-wide frequency response that's ideal for precision monitoring
- 2-Way Mode
- In 2-way mode, just the 6.5" driver and the tweeter are used. This mode is ideal for checking the quality of systems with a limited frequency response, such as TV sets, computers, iPod docks, etc. It also allows you to more easily check the midrange register. Activating 2-way mode is achieved by simply turning on the FOCUS mode from the side panel
- Class-AB Amplification
- The speaker has low-distortion Class-AB power stages that deliver 400W for low, 100W for mid, and 100W for high frequency channels to ensure a powerful, transparent performance
- Balanced Input
- The electronically-balanced XLR input has an adjustable sensitivity to accept a variety of sound sources
- Customizable Performance
- Controls for high-pass crossover, high and low frequency shelving, and EQ adjustment allow you to precisely tune the monitor's response and performance to match your workspace and application
- Durable and Stylish Cabinet
- The cabinet is internally braced and has a black finish to provide lasting durability and style
In the Box Focal SM9 11" 600W 3-Way Active Studio Monitor Speaker (Left Channel) Power Cord Limited 1-Year Warranty User Manual PDF 1.8mbbrdxttbuydscsqvfuefrsateubd Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal SM9 11" 600W 3-Way Active Studio Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal SM9 Specs | | | Monitor Type | Active 3-Way | | Enclosure | Passive Radiator, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Beryllium Inverted Dome Tweeter
MF Driver: 1 x 6.5" / 165 mm Composite Cone
LF Driver: 1 x 8" / 203 mm Composite Cone
LF Driver: 1 x 11" / 280 mm Composite Passive Radiator | | Amplification | HF Amplifier: Class-AB Rated at 100 W
MF Amplifier: Class-AB Rated at 100 W
LF Amplifier: Class-AB Rated at 400 W | | | | Frequency Response | 30 Hz to 40 kHz ± 3 dB 90 Hz to 20 kHz
