User Manual for Focal Trio11 Be 10" 3-Way Nearfield Midfield Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Focal Trio11 Be 10" 3-Way Nearfield
- Product category: Studio Monitors Focal
- Brand: Focal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focal Studio Monitors
 |
User manual for the Focal Trio11 Be 10" 3-Way Nearfield contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!
|
Product description - Focal Trio11 Be, Feel the Difference!

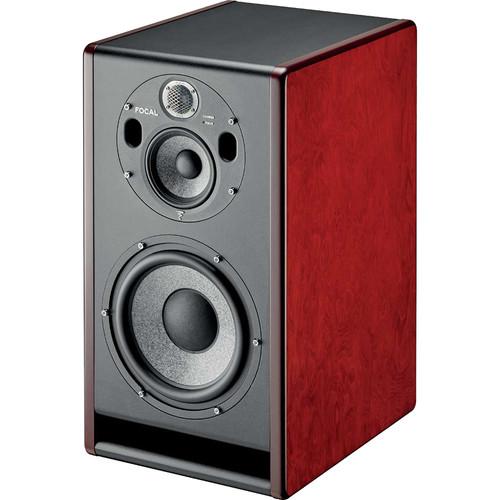

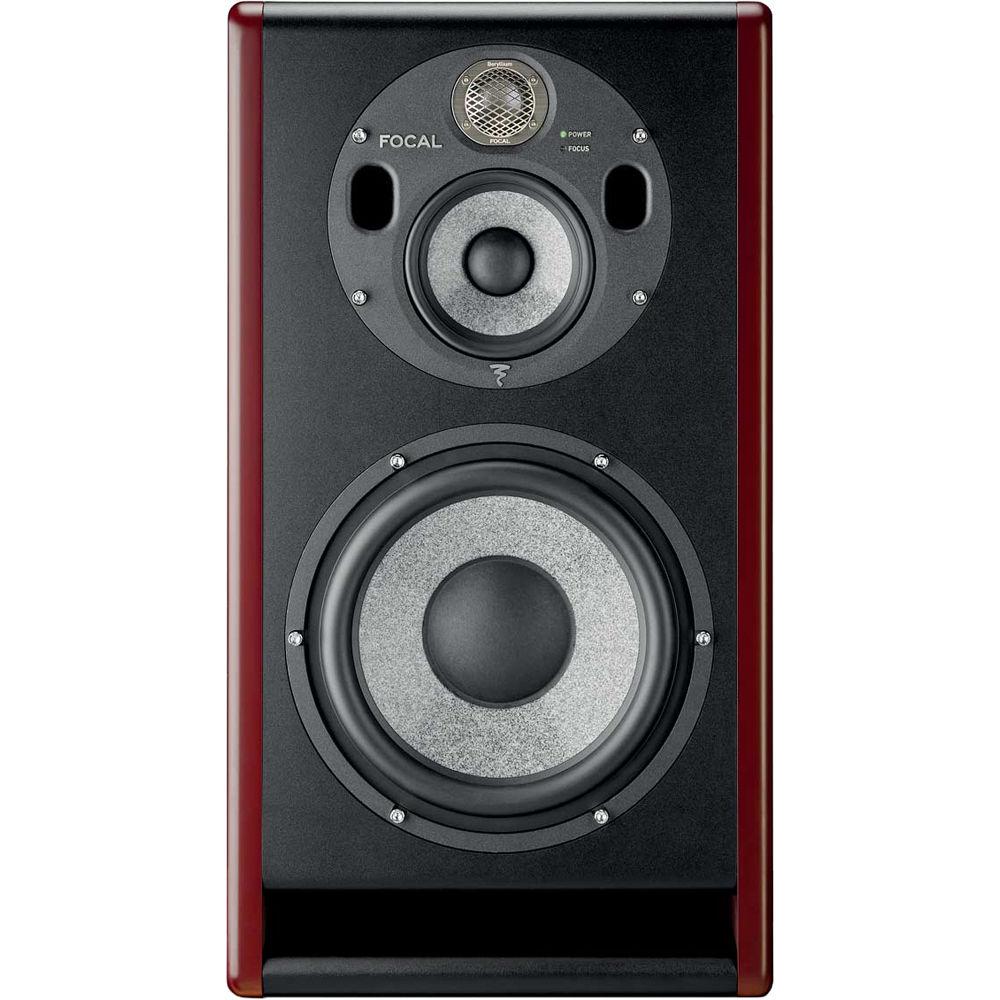

The Focal Trio11 Be is a 10" 3-way nearfield/midfield monitor offering flexible room positioning and the versatility of two monitors in a single enclosure, making it ideal for producers, composers, and audio engineers in music- and post-production applications. The Trio11 combines Focal's famous 1" inverted beryllium dome tweeter, a 5" composite sandwich cone woofer, and a 10" composite sandwich cone subwoofer in an MDF and veneer cabinet that features specially designed ports for the 10" subwoofer and 5" woofer. To allow both vertical and horizontal orientations, the tweeter and 5" woofer are mounted to an aluminum plate capable of rotating up to 360° in 90° increments.Selectable via a standard 1/4" footswitch (available separately) is Focal's FOCUS mode, which toggles the monitor between 3-way and 2-way configurations for easy auditioning of mix translation. In 3-way mode, the Trio11 delivers a frequency response of 30 Hz to 40 kHz, while 2-way mode, it yields a frequency response of 90 Hz to 20 kHz. With 550W of total power from a Class A/B amplifier (for the tweeter) and two Class G amplifiers for the woofer and subwoofer, the Trio11 can produce a maximum peak SPL of 118 dB peak output in 3-way mode. Rear-panel controls are provided for input sensitivity selection, auto standby, and a 3-band equalizer. - 3-way to 2-way FOCUS switchover via footswitch (available separately) enables simple assessment of how mixes translate to compact speaker systems
- Pure beryllium inverted dome tweeter yields low directivity with enhanced linearity and dynamics
- W composite sandwich cone on woofer and subwoofer offers neutral sound and no distortion
- Silent blocks optimize decoupling of the midrange speaker

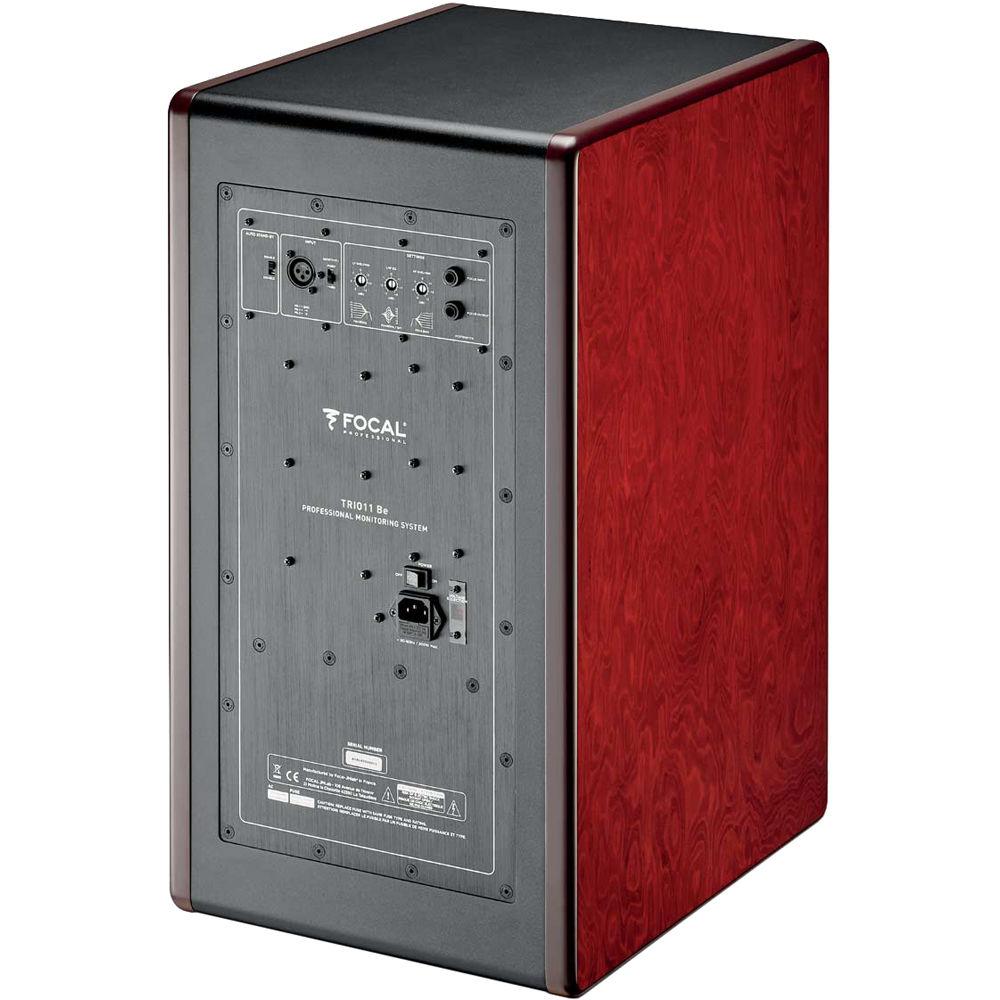

- Balanced XLR input adaptable to +4 dBU or -10 dBV sensitivity
- 35 to 250 Hz low-frequency shelving filter, 4.5 to 40 kHz high-frequency shelving filter, and 160 Hz low-mid peaking EQ

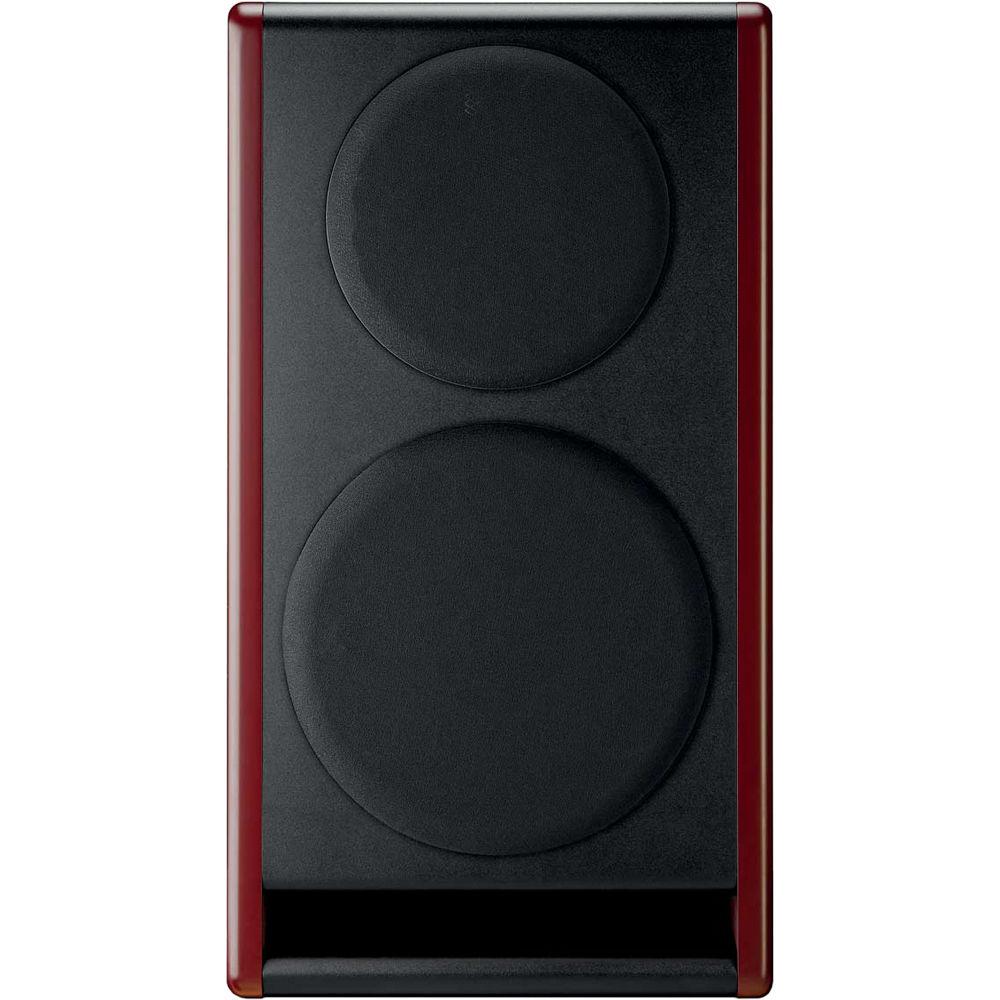

In the Box Focal Trio11 Be 10" 3-Way Nearfield/Midfield Active Studio Monitor (Single) Power Cable 4 x Rubber Feet #4 Allen Key 2 x Protective Grille Limited 5-Year Warranty on Drivers Limited 2-Year Warranty on Amplifier Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal Trio11 Be 10" 3-Way Nearfield Midfield Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal Trio11 Be Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 550 W | | Drivers | LF Driver: 1 x 9.84" / 25 cm Composite Cone
MF Driver: 1 x 5.12" / 13 cm Composite Cone
HF Driver: 1 x 1" / 2.54 cm Beryllium Inverted Dome Tweeter | | Amplification | 1 x LF Amplifier: Class-G Rated at 300 W
1 x MF Amplifier: Class-G Rated at 150 W
1 x HF Amplifier: Class-AB Rated at 100 W | | | | Frequency Range | 30 Hz to 40 kHz ± 3 dB 90 Hz to 20 kHz (
