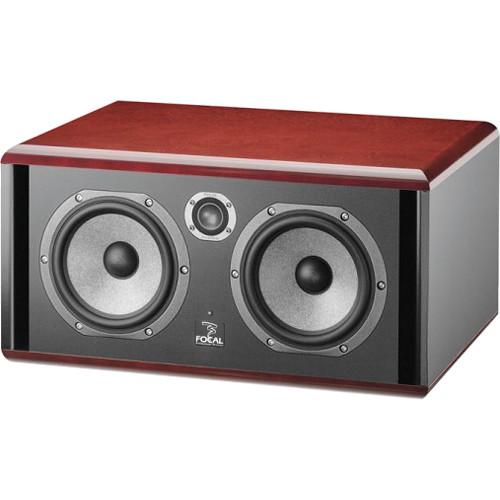

User Manual for Focal Twin6 Be 6.5" Professional Analog Monitoring Speaker Click to enlarge the picture
Contents of the user manual for the Focal Twin6 Be 6.5" Professional Analog
- Product category: Studio Monitors Focal
- Brand: Focal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focal Studio Monitors
 |
User manual for the Focal Twin6 Be 6.5" Professional Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focal product will considerably shorten its lifespan!
|

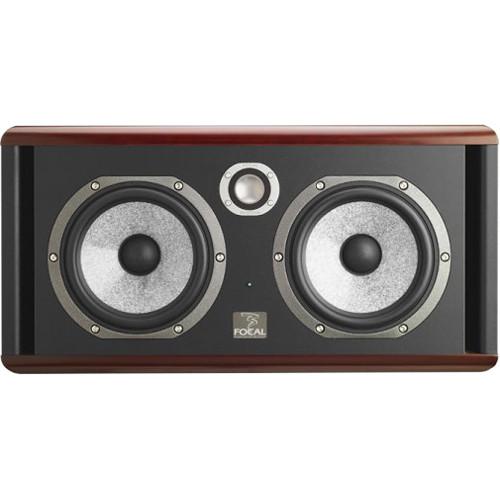

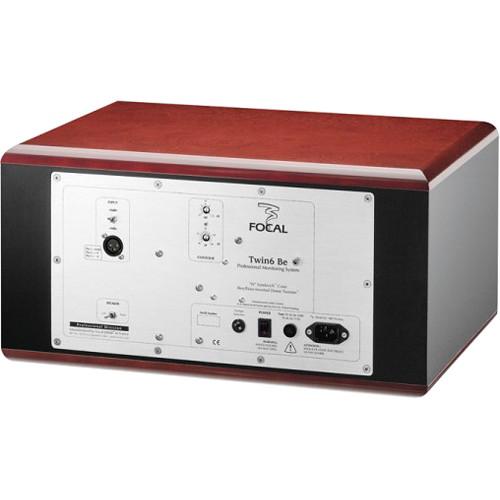

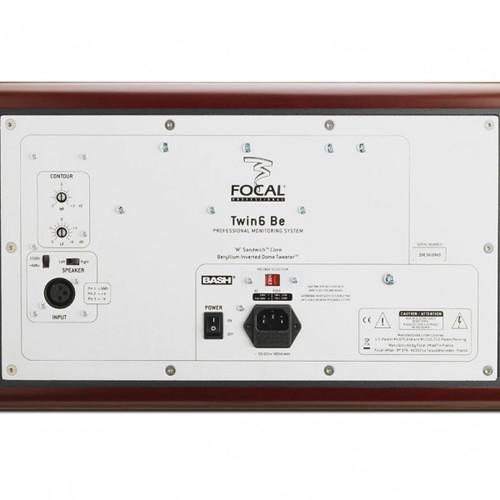

Product description The red Twin6 Be Dual 6.5" Professional Analog Monitoring Speaker from Focal is suitable for recording, mixing, and mastering. The cabinet houses a pair of 6.5" W-cone composite sandwich mid-woofers, one of which works in mid-bass frequencies, whereas the other reproduces from 40 to 150 Hz. This creates a bass that preserves all the signal dynamics, without any masking effect in the midrange, thereby keeping all its neutrality and transparency. A beryllium inverted dome tweeter provides crisp, clear treble. Each driver is powered by its own amplifier for a total of 400W of power.Furthermore, the design of the Twin6 Be speaker permits a high SPL of 115 dB, while at the same time offering a stable tonal balance. Additional control of the bass register is accomplished by fine-tuning on the control plate on the back of the unit in order to obtain a perfect mirror configuration with its mate. The Twin6 Be speaker can be installed vertically or horizontally based on the space requirements of each studio. - Beryllium Inverted Dome Tweeter
- Twin6 Be features a pure Beryllium dome, which is capable of covering five full octaves from 1000 to 40,000 Hz. This tweeter can quickly reproduce high frequencies with transparency.
- Two "W" Composite Sandwich Cone Drivers
- The W-cone pattern (glass/foam/glass) provides a true optimization of the frequency response by fine tuning of mass, rigidity, and damping parameters.
- BASH Technology-Based Bass / Medium Amplification Circuit
- This speaker uses an AB circuit to sufficiently power the high frequency tweeter, allowing for wide bandwidth and accuracy.
In the Box Focal Twin6 Be 6.5" Professional Analog Monitoring Speaker (Red) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Focal Twin6 Be 6.5" Professional Analog Monitoring Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocal Twin6 Be Actv Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x / Beryllium Inverted Dome Tweeter
LF Driver: 2 x 6.5" / 16.5 cm Composite Cone | | Amplification | HF Amplifier: Class-AB Rated at 100 W
LF Amplifier: Rated at 150 W RMS | | | | Frequency Range | 40 Hz to 40 kHz | | Maximum Sound Pressure Level (SPL) | 115 dB | | Analog Input Sensitivity/Gain | +4 dBu / -10 dBV (Fixed) | | Protections and Limiting | Fuse | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms) | | | | AC Input Power | 230 VAC at 50 Hz
115 VAC at 60 Hz | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 19.7 x 9.8 x 13.4" / 500.0 x 250.0 x 340.0 mm | | Weight | 30.8 lb / 14.0 kg | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 25.0 x 19.0 x 15.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
