User manual
Focusrite AKG Perception 220 Mic Focusrite

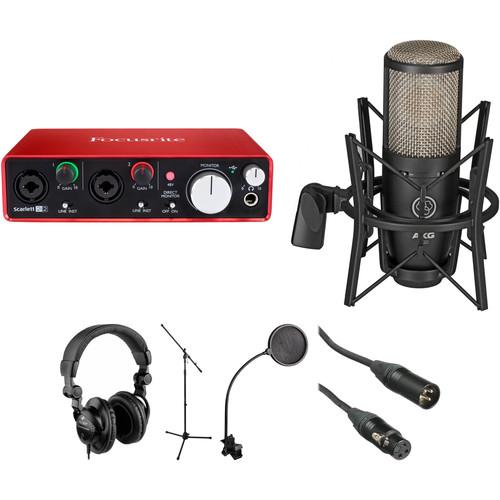

User Manual for Focusrite AKG Perception 220 Mic Focusrite Scarlett 2i2 USB Interface Bundle

• Product category: Audio Interfaces & Systems Focusrite
• Brand: Focusrite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Focusrite Audio Interfaces & Systems

Product description

• Focusrite Scarlett 2i2 USB Audio Interface (2nd Generation)
  • Product Demo
  • Tutorial / set up
  Focusrite's second-generation Scarlett 2i2 is a portable audio interface designed specifically for use in a portable computer environment. Lightweight at 1.3 lb, the device sports two inputs, two outputs, instrument/line switches, 48V Phantom power, direct monitoring, a discrete headphone output, and the ability to draw power via USB. It's designed to operate handily at resolutions and sample rates of up to 24-bit/192 kHz, and its combination front-panel inputs render it suitable for tracking instruments with much in the way of headroom and little in the way of distortion.

  In addition to its two balanced monitor outputs, the Scarlett 2i2 offers a volume-controllable headphone output on the front. Metal gain controls and a red metal chassis provide a durable construction which can be taken on the road. The 2i2 provides a round-trip latency as low as 2.74 ms at 96 kHz, allowing you to record and monitor processed sound sources in real time.

  An included Pro Tools | First Focusrite Creative pack is enhanced by a suite of Focusrite Scarlett plug-ins, a set of tools that includes compression, EQ, gating, and reverb. The Novation Bass Station software synthesizer can be used to add bass or melody, and a sample pack from Loopmasters contains drum loops and sound effects. Ableton Live is included to boot. Focusrite's Red Plug-In Suite (AAX, Audio Units, and VST) delivers modules based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. Also included in this bundle is the Softube Time and Tone Pack for further sonic exploration within your chosen DAW.
  Notable Features
  • • 2 Scarlett mic preamps offering headroom and minimal distortion
    • 2 instrument inputs designed for high-level pickups
    • Sample rates up to 24-bit/192 kHz
    • Headphone output with gain control
    • Low latency and direct monitoring
    • 2 1/4-inch balanced jacks
    • Durable metal construction, portable at 1.3 lb
    • Powered by USB
    • Includes Pro Tools | First Focusrite Creative Pack and Ableton Live Lite
    • Includes additional plug-ins and loops
  UPC: 815301008415
• AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black)
  • Product Demo
  • Tutorial / set up
  For a variety of miking applications including lead vocals, acoustic guitar, and brass instruments, the black Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone from AKG features a 1" true condenser capsule with a cardioid polar pattern. The cardoid pattern helps focus audio capture in front of the capsule, reducing unwanted ambient sound from the other sides and back. A low-cut filter at 300 Hz allows you to cut unwanted low end from your sources, while its selectable -20 dB pad allows the mic to handle SPLs up to 155 dB, allowing it to be placed in front of a variety of sources. A spider shockmount and aluminum carry case are included. UPC: 885038037057
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones
  • Product Demo
  • Tutorial / set up
  The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom
  • Product Demo
  • Tutorial / set up
  The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Auray PFSS-55 Pop Filter with Gooseneck
  • Product Demo
  • Tutorial / set up
  The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
  • Product Demo
  • Tutorial / set up
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• Scarlett 2i2 USB Audio Interface (2nd Generation) teyxddyw
• USB Cable
• Code for Software Bundle
• Limited 2-Year Warranty

• AKG - Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black)

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Auray - PFSS-55 Pop Filter with Gooseneck

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Focusrite Scarlett 2i2 USB Audio Interface (2nd Generation)

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	2 x Combo XLR / 1/4" Input 2 x 1/4" (6.3 mm) Balanced Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  OS Compatibility	macOS 10.10 macOS 10.11 Windows 7 Windows 8.1 Windows 10

  Dimensions	1.9 x 6.9 x 4.5" / 4.8 x 17.5 x 11.5 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	7.7 x 5.9 x 2.0"

• AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black)

  Capsule	1" True Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	20 MV/PA (-34 dBV)
  Maximum SPL	Without Pad: 135 dB (0.5% THD) With Pad Engaged: 155 dB (0.5% THD)
  Equivalent Noise Level	16 dB(A) (IEC 60286-4)
  Signal to Noise Ratio	78 dB(A), Re 1 PA
  Pad	-20 dB
  Low Cut Filters	300 Hz, 12 dB/Octave
  Impedance	Electrical Impedance: ≤ 200 Ohms Recommended Load Impedance: ≥ 1 kOhms
  Connector	3-pin XLR (pin 2 hot)
  Phantom Power	48 V ± 4 V to (IEC 61938)
  Current Consumption	≤ 3 mA
  Temperature Range	14 to 140° F / -10 to 60° C

  Box Dimensions (LxWxH)	9.4 x 8.9 x 5.2"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
