Product description - Clarett 4Pre USB
- Clarett Intro

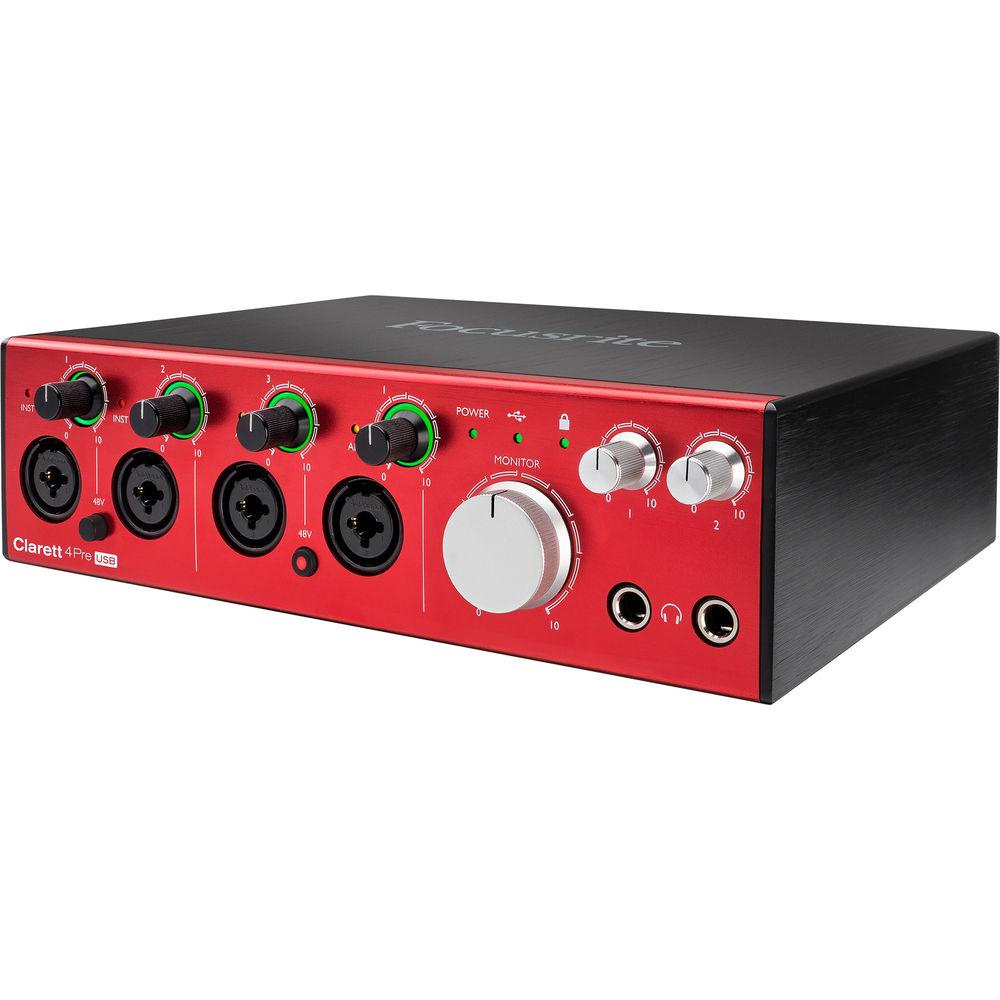

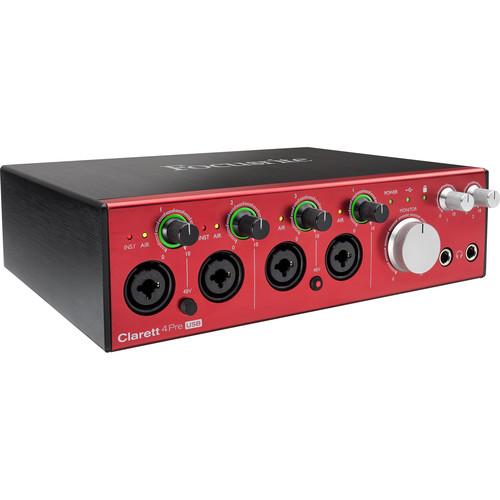

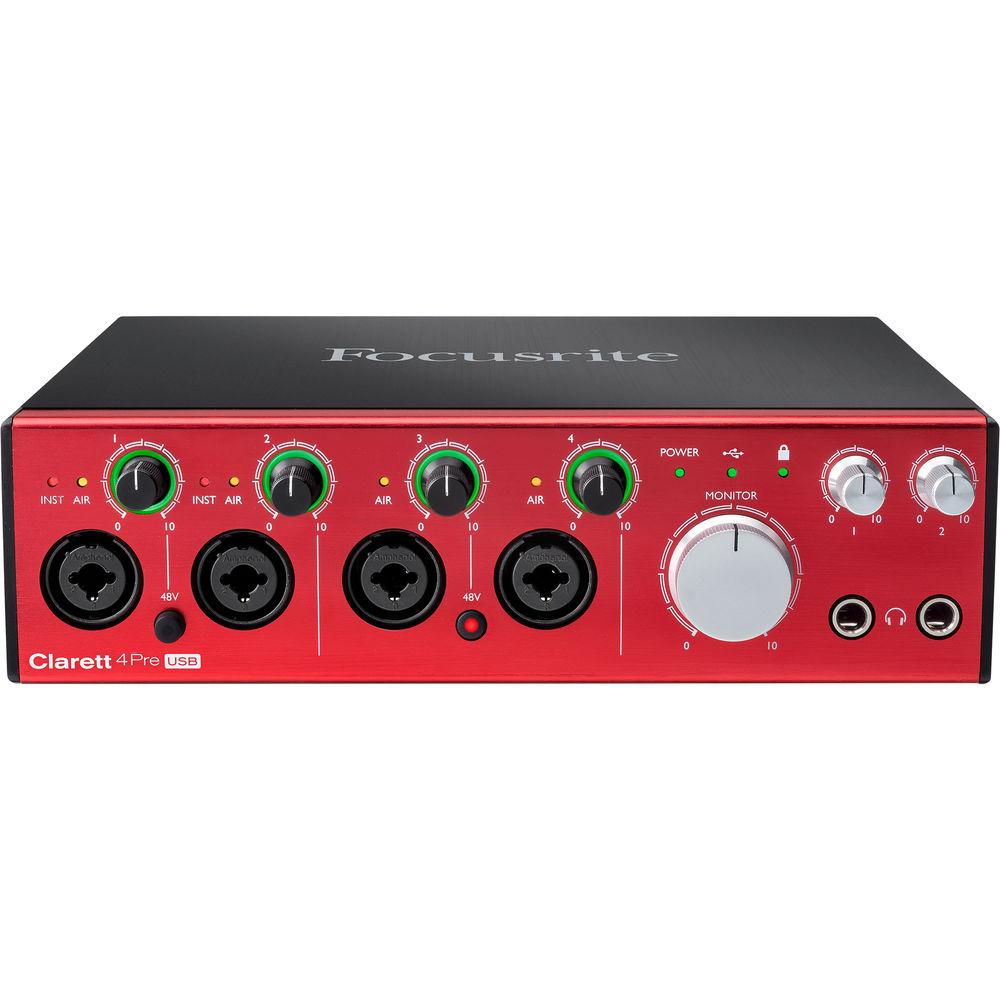

Equally comfortable in the studio or as part of a mobile rig, the Focusrite Clarett 4Pre USB 18x6 USB Audio Interface combines 24-bit / 192 kHz A/D/A conversion, low-latency monitoring, and a multitude of I/O options with four, Air-enabled microphone preamps that can model the sound of the company's classic ISA preamps. With low noise (-128 dB EIN), low distortion, and 118 dB dynamic range, the high-performance mic preamps deliver a clean, open, and transparent sound, for accurate reproduction of the original performance.The Clarett 4Pre USB is equipped with four front panel mic/line inputs, two of which have high-headroom instrument inputs for recording hot pickups without distortion. Each mic pre has a separate gain knob with a Gain Halo meter that makes it easy to set the correct input level. The interface also provides two line level outputs, two monitor outputs with anti-thump technology, MIDI I/O, stereo S/PDIF I/O, and eight channels of ADAT inputs to expand your setup. The front panel features two 1/4" headphone outputs with independent volume controls. A pair of +48V phantom power switches allow you to turn on phantom power for condenser microphones on channels 1 & 2 and 3 & 4 respectively.The Clarett 4Pre USB offers a comprehensive software package that includes the Focusrite Red Plug-In Suite with accurate models of the Red 2 EQ equalizer and Red 3 Compressor, the Softube Time and Tone Bundle with reverb, delay, mastering, and distortion plug-ins, a Loopmasters library with 2GB of royalty-free samples, and more. Also provided is the Focusrite Control software that enables you to configure your routing and monitor mixes from Mac and Windows computers, or iPad, iPhone, and iPod touch devices. - Key Features
-
- Four Air-enabled mic preamps emulate the sound of the company's original ISA mic preamp
- Low-noise (-128 dB EIN) mic preamps with low distortion and up to 118 dB dynamic range
- Precision 24-bit / 192 kHz A/D and D/A conversion
- Record with low latency through amp simulators and effects plug-ins
- Four mic/line XLR-1/4" combo inputs on front-panel—two of them with high-headroom instrument inputs for recording hot pickups without distortion

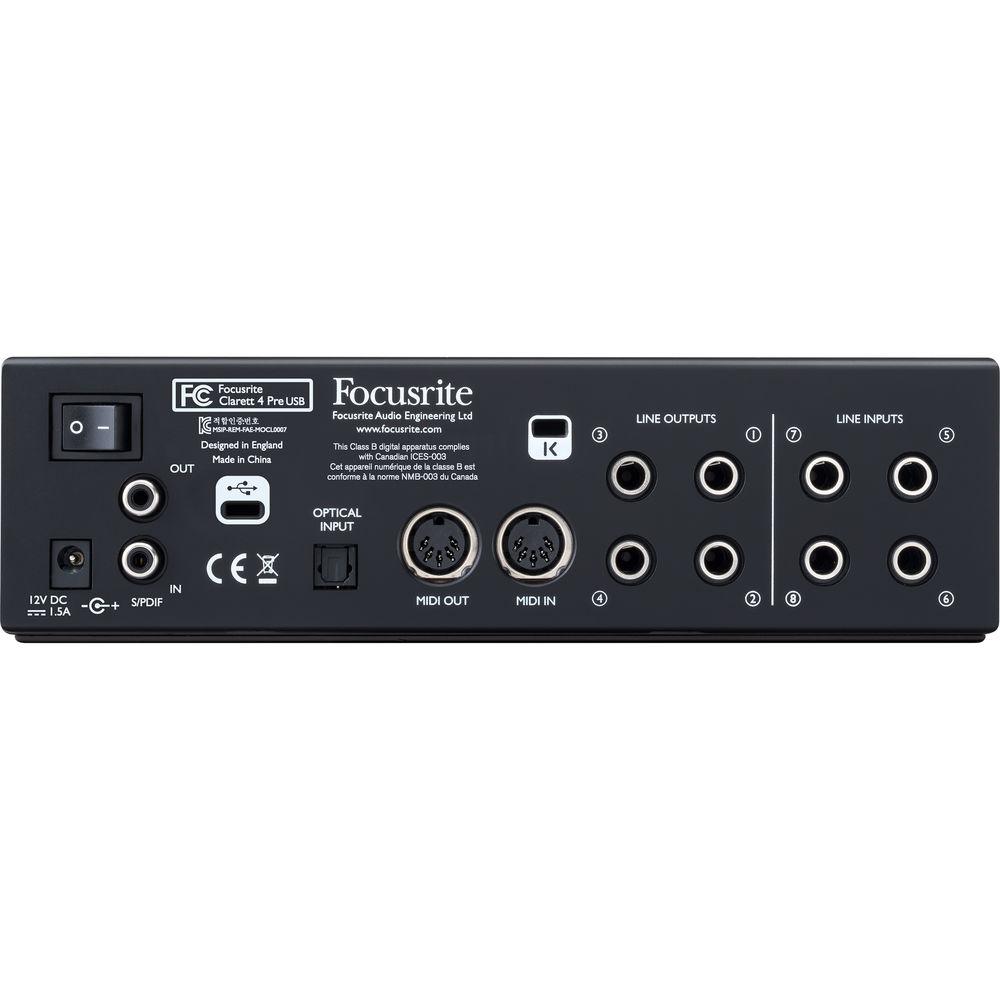

- Four additional line 1/4" jack inputs on rear panel
- Switchable 48V phantom power
- Stereo S/PDIF I/O
- Eight channels of ADAT inputs to expand system
- 5-pin MIDI I/O
- Two monitor outputs with anti-thump technology
- Two additional line outputs
- Two headphone outputs with independent volume controls
- Gain Halo illuminated rings around the gain controls light up green when there's signal present and turn red when the level is too high
- Supports any Mac or Windows computer with USB 2.0 and above
Included Software - Focusrite Control Software
-
- Control software enables you to configure your routing and monitor mixes from Mac or Windows computers, and iPad, iPhone, or iPod touch
- XLN Audio Addictive Keys
-
- One of four Addictive Keys keyboard instruments
- Focusrite Red Plug-In Suite
-
- Accurately models Focusrite's classic Red 2 equalizer and Red 3 compressor
- Softube Time and Tone Bundle
-
- Four of Softube's reverb, delay, mastering, and distortion plug-ins
- Focusrite Plug-In Collective
-
- Exclusive offers, tutorial content, and more, from some of the most innovative and prestigious plug-in companies
- Ableton Live Lite
-
- Customized version of the music production software Ableton Live
- Loopmasters
-
- 2GB library of royalty-free samples
UPC: 815301008521 In the Box Focusrite Clarett 4Pre USB 18x6 USB Audio Interface USB Cable with USB Type-A Connector USB Cable with USB Type-C Connector Power Supply Limited 2-Year Warranty User Manual PDF 3.2mbzrbbseuvytuwycawrtvueatayvyv Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Clarett 4Pre USB 18x6 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite CLARET 4PRE Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-C | | Analog I/O | 4 x Combo XLR / 1/4" TRS Balanced Mic/Line/Hi-Z Input
4 x 1/4" (6.3 mm) TRS Balanced Line Input
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
2 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x TOSLINK / ADAT Input
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Hi-Z Inputs:
20 Hz to 35 kHz
