User Manual for Focusrite Clarett 8PreX 26x28 Thunderbolt Audio Interface Click to enlarge the picture
Contents of the user manual for the Focusrite Clarett 8PreX 26x28 Thunderbolt Audio
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
 |
User manual for the Focusrite Clarett 8PreX 26x28 Thunderbolt Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description CES 2018: Character and Clarity with the Focusrite Clarett USB Audio Interfaces Read More - Clarett 8PreX
- Clarett Intro

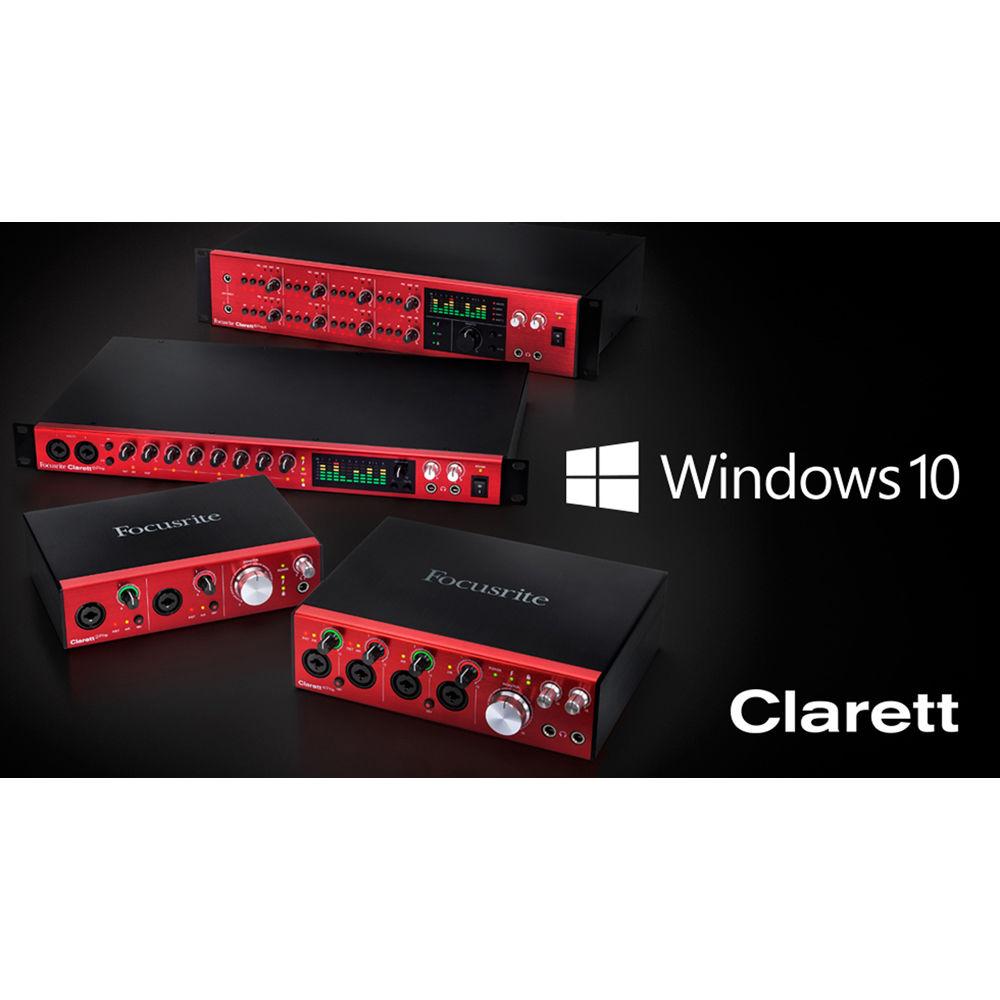

Designed for recording studios, the Focusrite Clarett 8PreX Thunderbolt Audio Interface combines 24-bit 192 kHz A/D/A conversion, 119 dB real-world dynamic range, 1 ms roundtrip Thunderbolt latency, and eight microphone preamps that can model the sound of the company's ISA transformer-based preamps using the air effect. The high resolution recording and ultra-low latency allows you to enable 64-bit AAX, AU, and VST compatible DA plug-ins while monitoring recordings. The interface is now fully compatible with Windows-based computers, providing stable operation with identical functionality on both platforms, while offering sub-3 ms latency. Also provided is a Windows version of the Focusrite Control software mixer for monitoring and routing configuration.
The interface comes with 64-bit AAX, AU, and VST compatible Red 2 and Red 3 plug-in suite. In addition to the Red Plug-in Suite, the interface includes the Softube Time and Tone Pack. Modeled after the Drawmer 1973 FET Stereo compressor hardware, the Drawmer S73 Intelligent Master Processor is a plug-in that aids in balancing and shaping a mix. TSAR-1R Reverb adds space, depth, and width to a sound. Change settings with a single slider, from realistic three-dimensional rooms to dramatic and dreamlike halls. Tube Delay is an echo effect that can go from clean to rude by overdriving its three modeled tube stages - delivering everything from realistic room echoes, to rockabilly style slap back, to dub reggae echo. Saturation Knob is a modeled output distortion unit that adds grit and warmth - use it to fatten up bass lines, add some harmonics and shimmer to vocals, or simply destroy a drum loop.

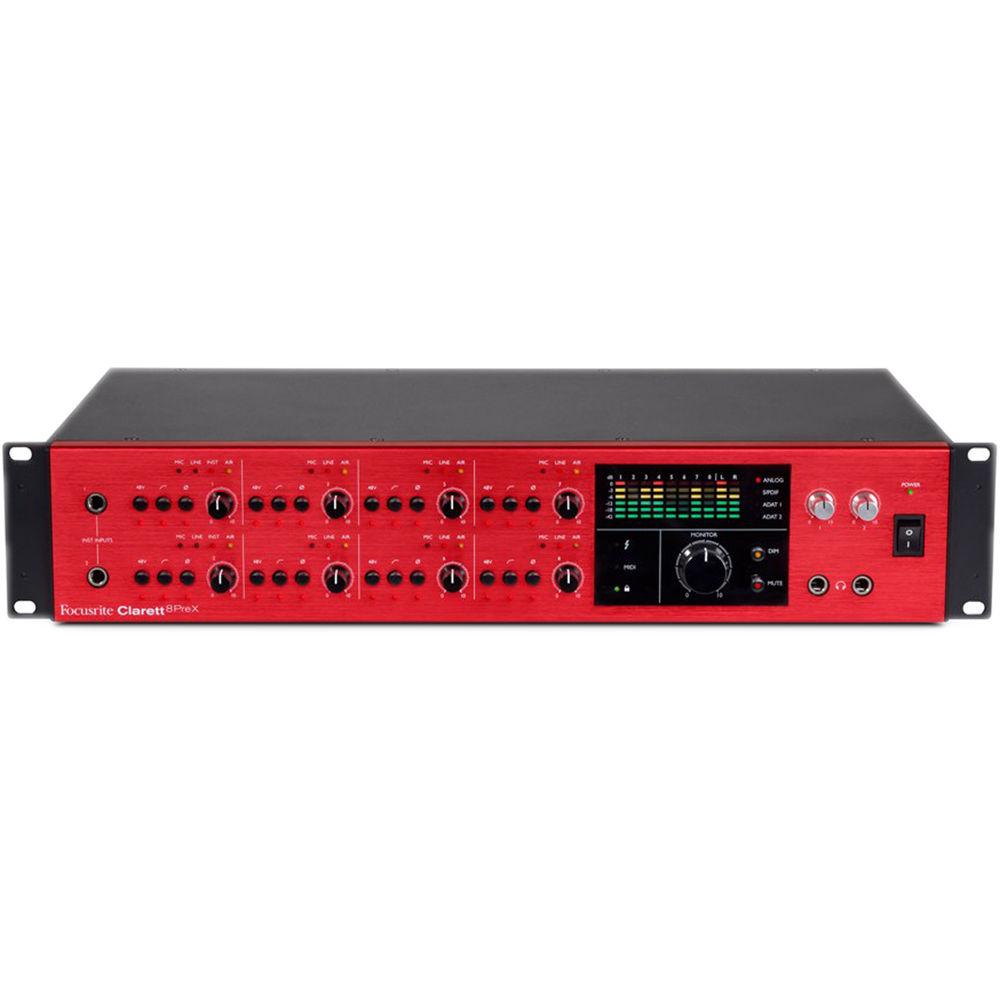

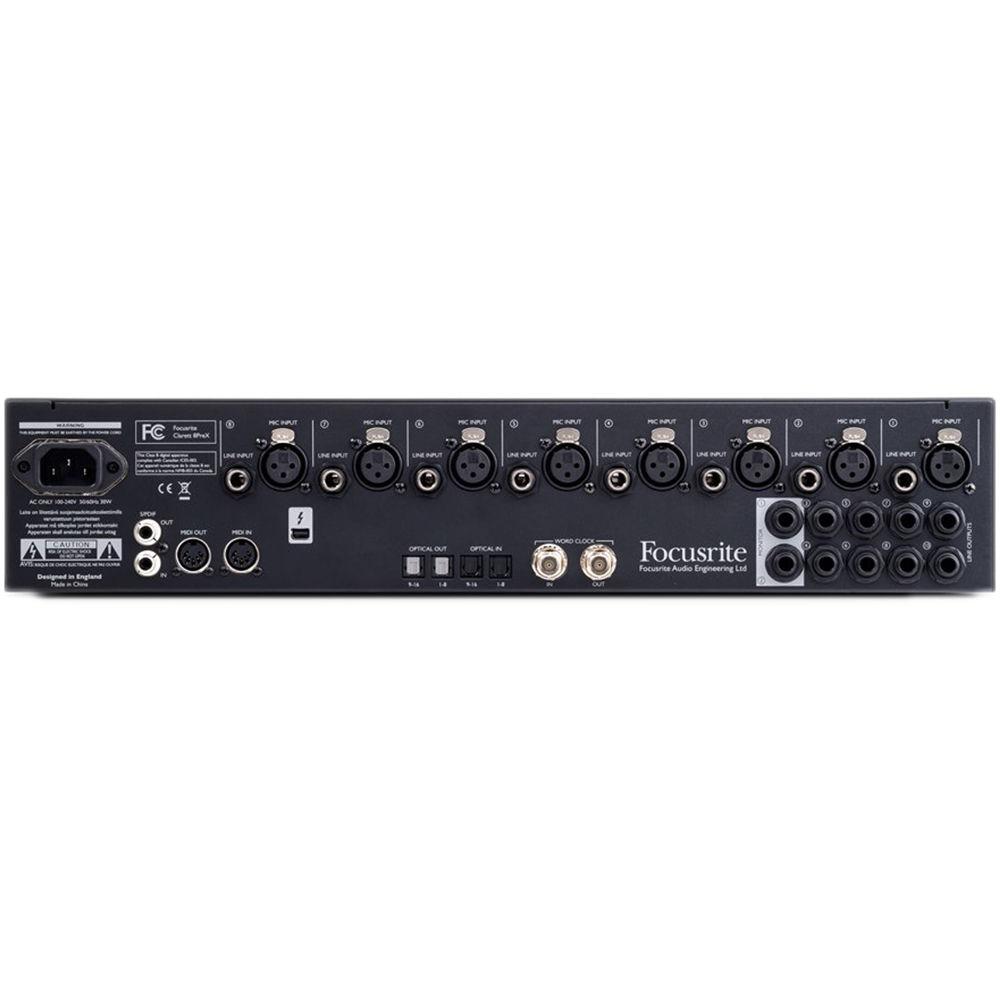

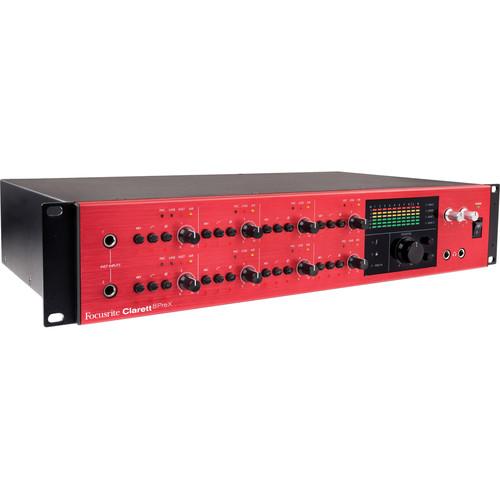

Housed in a 2RU chassis, the interface features two front instrument ¼" TRS inputs, eight rear panel microphone XLR-3F inputs, eight ¼" line level inputs, six line level ¼" TRS outputs, two ¼" TRS monitor outputs, word clock I/O, 5-pin MIDI I/O, stereo S/PDIF I/O, and sixteen channels of ADAT I/O for expansion.

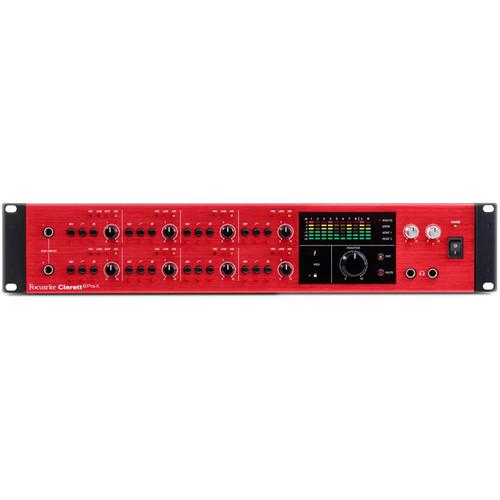

The front panel also features two ¼" TRS headphone outputs with separate volume controls. A dedicated gain control, a +48V phantom power switch, a phase reverse switch, and a high pass filter switch is provided for each microphone preamplifier. A six-segment multi-channel LED meter provides visual feedback, as well as a level control, a dim button, and a mute button. - Eight New Clarett Mic Pres with Extra "Air"
- Features a special "Air" setting that switches in an analog model of the classic transformer-based Focusrite ISA microphone preamplifier while the instrument inputs provide extra headroom to handle the loudest pickup
- Use DAW Plug-ins in Real Time
- Thunderbolt connectivity provides a round trip latency of 1 ms which enables you to monitor through your DAW with your favorite plug-ins such as EQ, reverb, or compression
- Precision Digital Conversion
- Offers 24-bit 192 kHz conversion with up to 119 dB of dynamic range
- I/O
- Provides 26 audio inputs and 28 outputs into a 2U rack space, including 8 analog inputs, 10 analog outputs, stereo S/PDIF I/O and 16 channels of ADAT I/O. Connect up to 16 more mic preamps over ADAT for a 24-channel microphone setup
- Front Panel I/O
- Offers two convenient front panel inputs for when the unit is rack mounted
- Accessible Metering and Monitoring
- Provides analog and digital input levels and main monitor outputs, via a 6-segment, multichannel hardware meter. The monitor features include a level control, plus dim, and mute buttons alongside dual high-power headphone outputs
- Downloadable iOS Remote Control

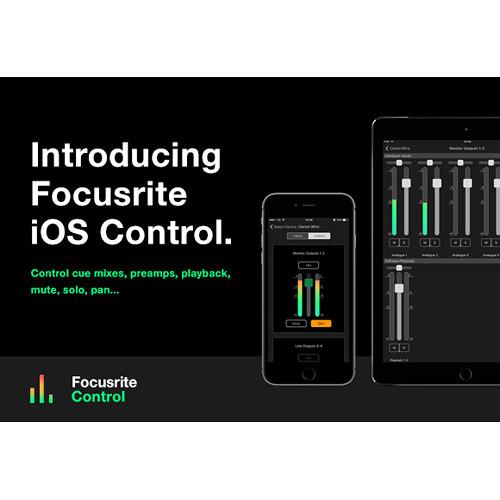

- Downloadable Focusrite iOS Control app adjusts cue mixes remotely from iOS devices (iPad, iPhone, or iPod touch)
- Softube Time and Tone Bundle
- Contains Drawmer S73 Intelligent Master Processor, TSAR-1R Reverb, Tube Delay echo effect, and Saturation Knob, a modeled output distortion unit
UPC: 815301008385 In the Box Focusrite Clarett 8PreX 26x28 Thunderbolt Audio Interface iOS Control App Via Free Download Limited 2-Year Warranty User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Clarett 8PreX 26x28 Thunderbolt Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite 8-Prex Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x Thunderbolt (MDP) (Thunderbolt 2) | | Analog I/O | 2 x 1/4" (6.3 mm) TRS Hi-Z Input
8 x 1/4" (6.3 mm) TRS Line Input
8 x XLR 3-Pin Mic Input
2 x 1/4" (6.3 mm) TRS Headphone Output
8 x 1/4" (6.3 mm) TRS Line Output
2 x 1/4" (6.3 mm) TRS Monitor Output | | Digital I/O | 1 x BNC (Word Clock) Output
1 x TOSLINK / ADAT Input
1 x TOSLINK / ADAT Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Hi-Z Inputs:
20 Hz to 20 kHz
